OBC charger cutting-edge technology

1. Core Functionality and Technical Architecture of OBC Chargers‌

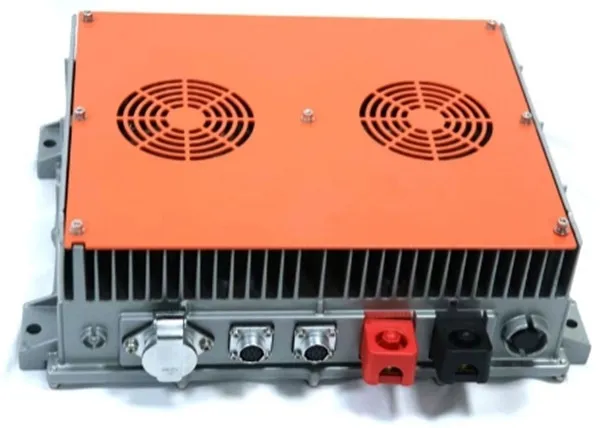

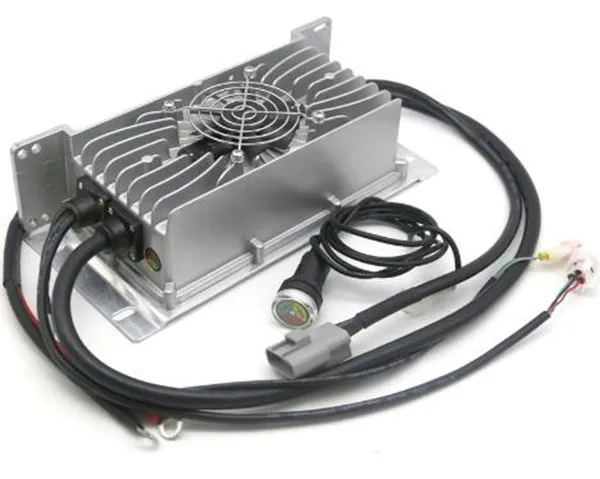

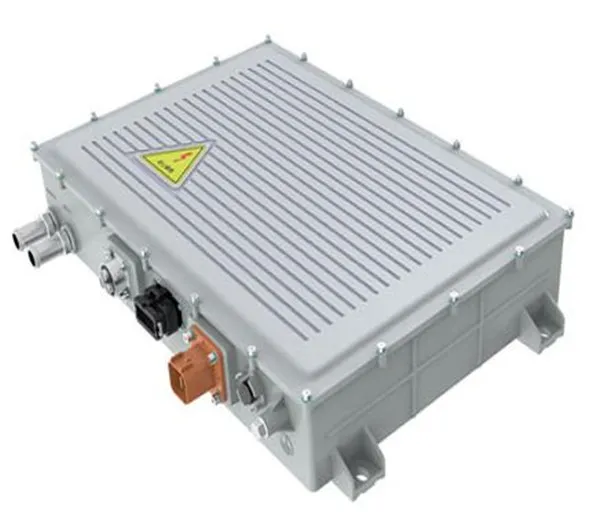

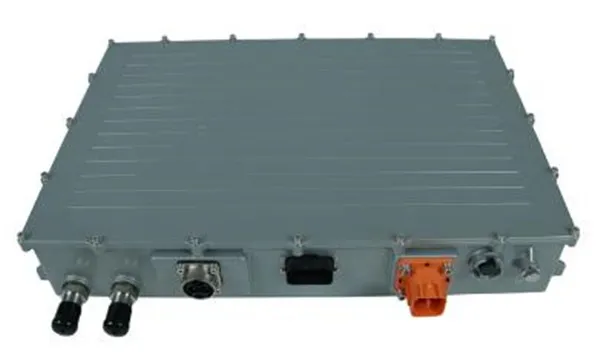

On-Board Chargers (OBC) are critical components in electric vehicles (EV), responsible for converting alternating current (AC) from charging stations into direct current (DC) to recharge high-voltage batteries‌. Modern OBC integrate two primary conversion stages:

(1)‌AC/DC Conversion‌: Utilizes rectifiers and EMI filters to transform grid AC (e.g., 220V single-phase or 380V three-phase) into stable DC‌.

(2)‌DC/DC Conversion‌: Adjusts voltage and current levels to match battery requirements through advanced topologies like LLC resonant or phase-shifted full-bridge circuits‌.

High-performance OBC achieve efficiencies of 90-95% by incorporating power factor correction (PFC) and adaptive thermal management systems‌.

‌2. Critical Features Driving Commercial Adoption‌

For professional buyers, the following OBC specifications define product competitiveness:

‌Power Output‌: Standard models range from 3kW to 22kW, with 11kW+ units enabling 4-hour full charges for 100kWh batteries‌.

‌Bidirectional Capability‌: Advanced OBC support vehicle-to-grid (V2G) and vehicle-to-load (V2L) applications, turning EV into mobile energy storage units‌.

‌Multi-Standard Compliance‌: Compatibility with global protocols (CCS, CHAdeMO, GB/T) ensures market adaptability‌.

‌Safety Mechanisms‌: Integrated protections against overvoltage, short circuits, and insulation faults meet ISO 26262 automotive safety standards‌.

‌3. Emerging Market Trends and Industry Demands‌

The EV charging ecosystem is undergoing transformative shifts, creating new opportunities for OBC manufacturers:

‌High-Power Charging‌: Demand for 22kW+ OBC is surging, driven by commercial fleets and premium EV requiring <2-hour charging cycles‌.

‌Material Innovations‌: Wide-bandgap semiconductors (SiC/GaN) reduce OBC size by 30% while boosting efficiency to 97%‌.

‌Modular Design‌: Scalable architectures allow OEM to integrate OBC with DC/DC converters and PDU, optimizing space and cost‌.

‌Regional Variations‌:

‌Europe‌: Emphasis on 22kW three-phase OBC for public charging networks.

‌Asia‌: Cost-effective 6.6kW-11kW models dominate private EV markets‌.

‌4. Strategic Applications Across EV Segments‌

OBC specifications vary significantly based on target applications:

‌Passenger EV‌: Compact 6.6kW-11kW units with liquid cooling for urban mobility‌.

‌Commercial Vehicles‌: Rugged 22kW-44kW OBC with CAN FD communication for buses and logistics fleets‌.

‌Energy Storage Integration‌: Bidirectional OBC enable V2G revenue models, particularly in solar-powered microgrids‌.

‌5. Future Innovations Redefining OBC Technology‌

Industry leaders are prioritizing these R&D directions:

‌Wireless Charging Integration‌: Inductive OBC prototypes eliminate connectors, enhancing durability for autonomous vehicles‌.

‌AI-Powered Optimization‌: Machine learning algorithms predict charging patterns, reducing grid strain during peak hours‌.

‌800V System Compatibility‌: Next-gen OBC supporting 800V battery architectures cut charging time by 50% compared to 400V systems‌.

‌Cybersecurity Upgrades‌: Secure boot and encrypted CAN protocols protect against charging infrastructure attacks‌.

6.‌Conclusion‌

For OBC manufacturers and suppliers, success hinges on balancing technical sophistication with cost efficiency. Prioritizing bidirectional functionality, modular scalability, and regional customization will capture growing demand in the global OBC market‌. Strategic partnerships with semiconductor providers and charging network operators will further solidify market positioning as EV adoption accelerates toward 2030.
