Product Description

Basic Information
Model NO.
MS08A-06
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile App, RFID
Dimensions
700mm X 400mm X 1700mm
Weight
225kg
Cable Length
5m
Connectors
Gbt, CCS2, CCS1, Chademo, Nacs
Input Voltage
400VAC / 480VAC (3p+N+PE)
Output Voltage
200 - 1000VDC
Rated Power
≤240kw
Protection
IP54 IK10
DC EV Charger Station
Product Description

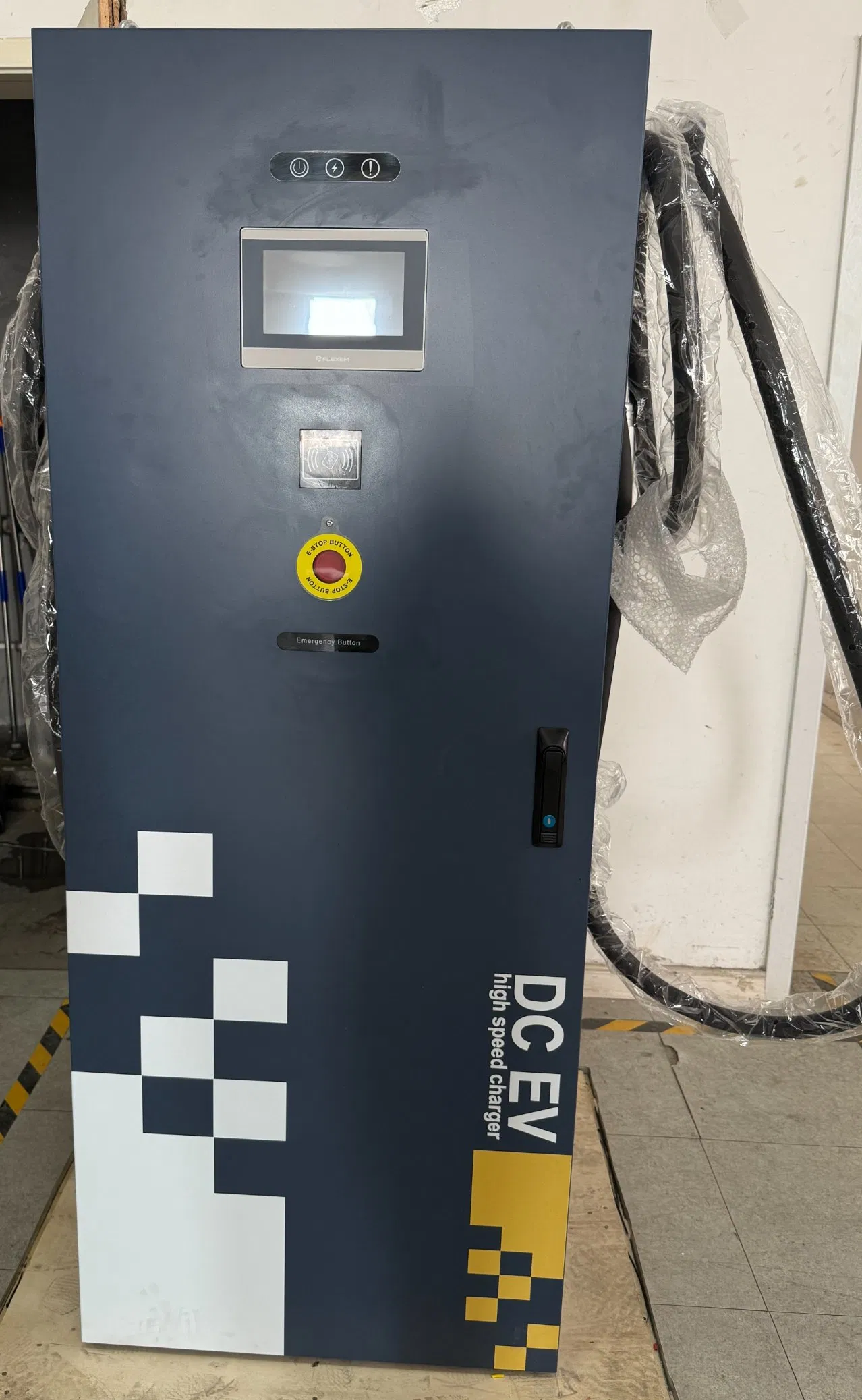

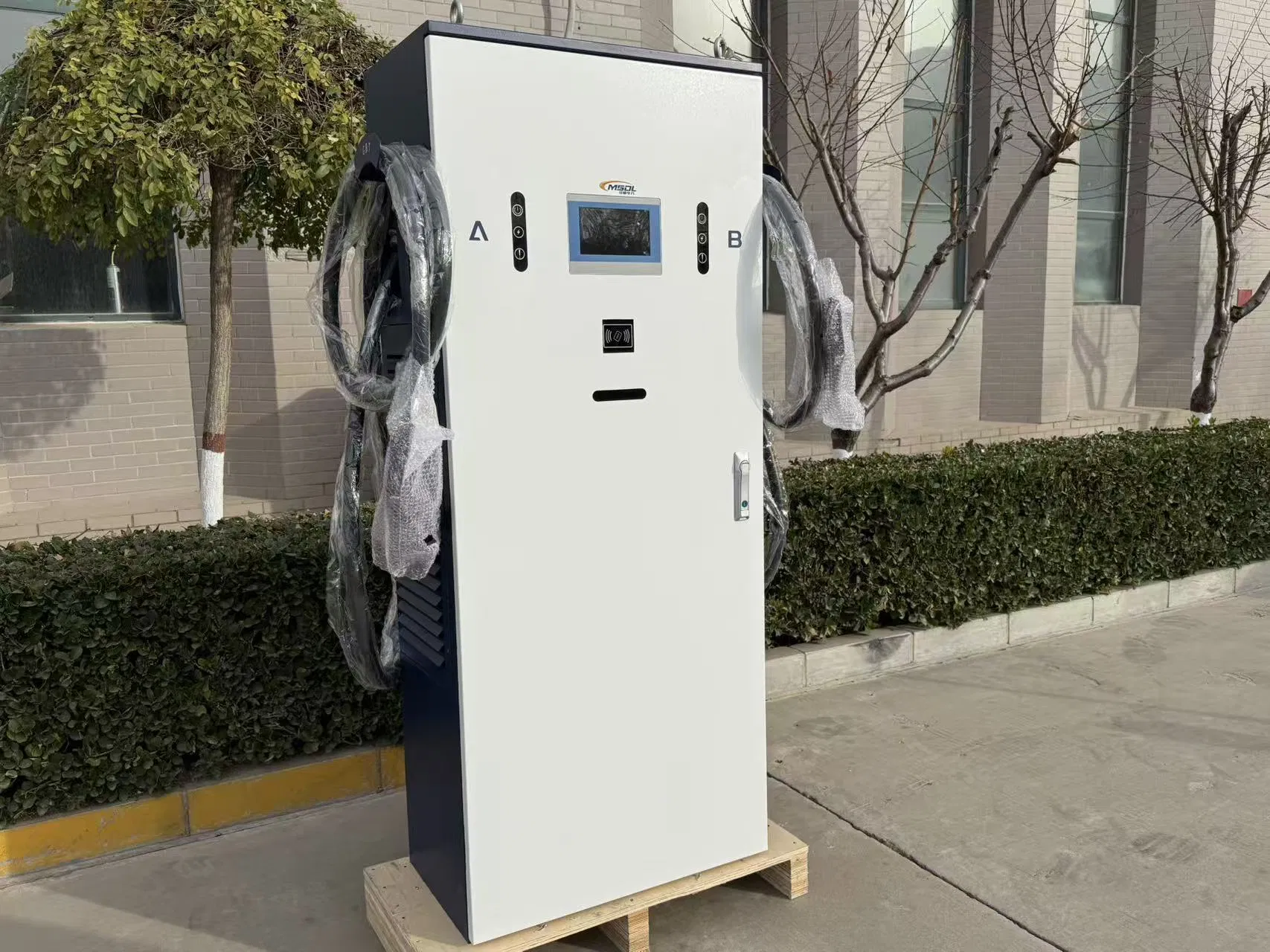

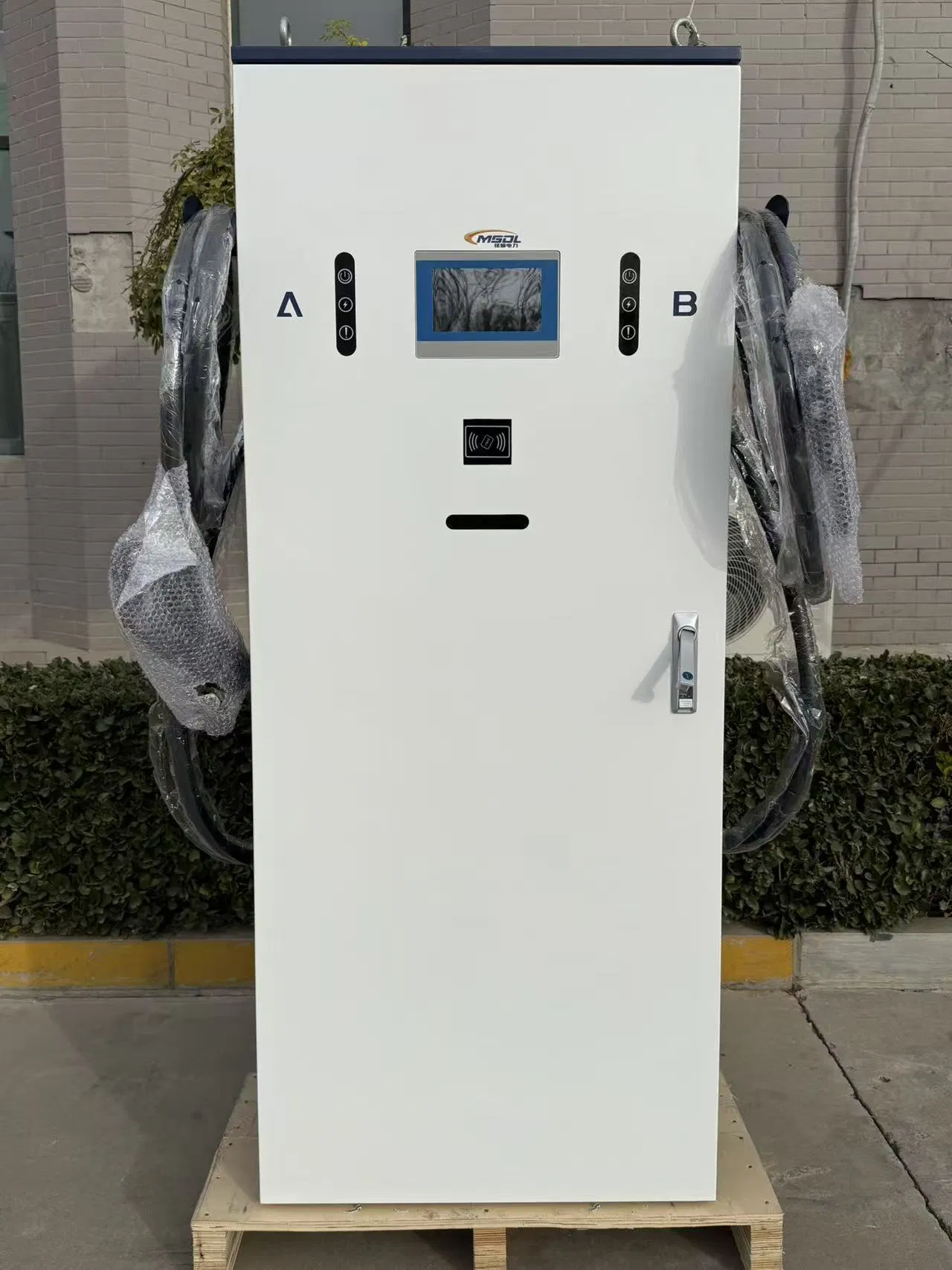

120kW Series DC EV charger

This 120kW series DC EV charger focuses on "small footprint and high adaptability" — its compact cabinet has extremely low requirements for installation sites, making it suitable for towns, narrow spaces, and batch deployment scenarios. It adopts a full front-opening door design, providing ample operating space for maintenance and enhancing post-operation convenience.

Equipped with a 7-inch touch screen and built-in RFID reader, it is compatible with the OCPP protocol and mainstream operating platforms. The dual-gun configuration can meet the fast-charging needs of two vehicles simultaneously, making it suitable for both home and commercial vehicle charging scenarios.

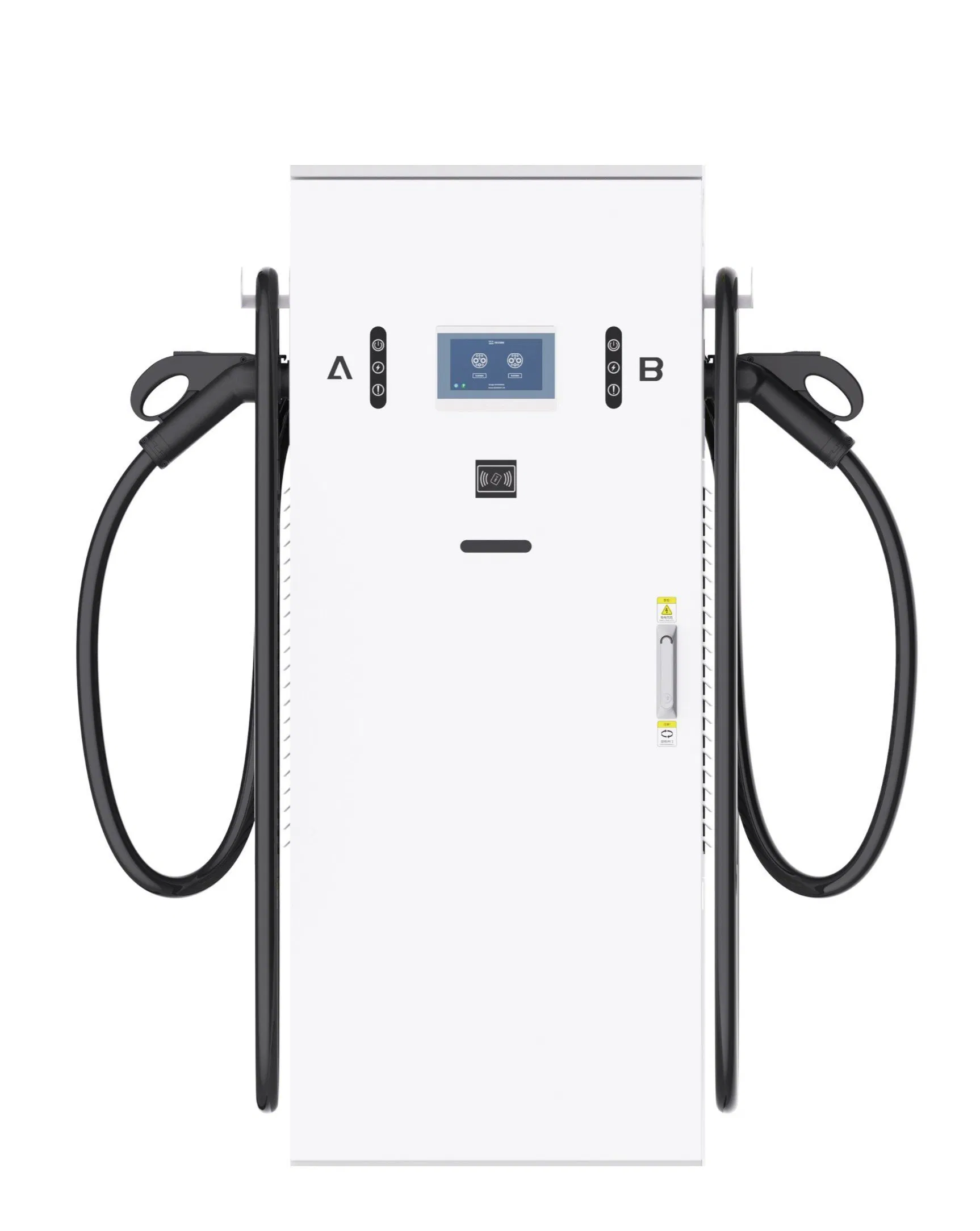

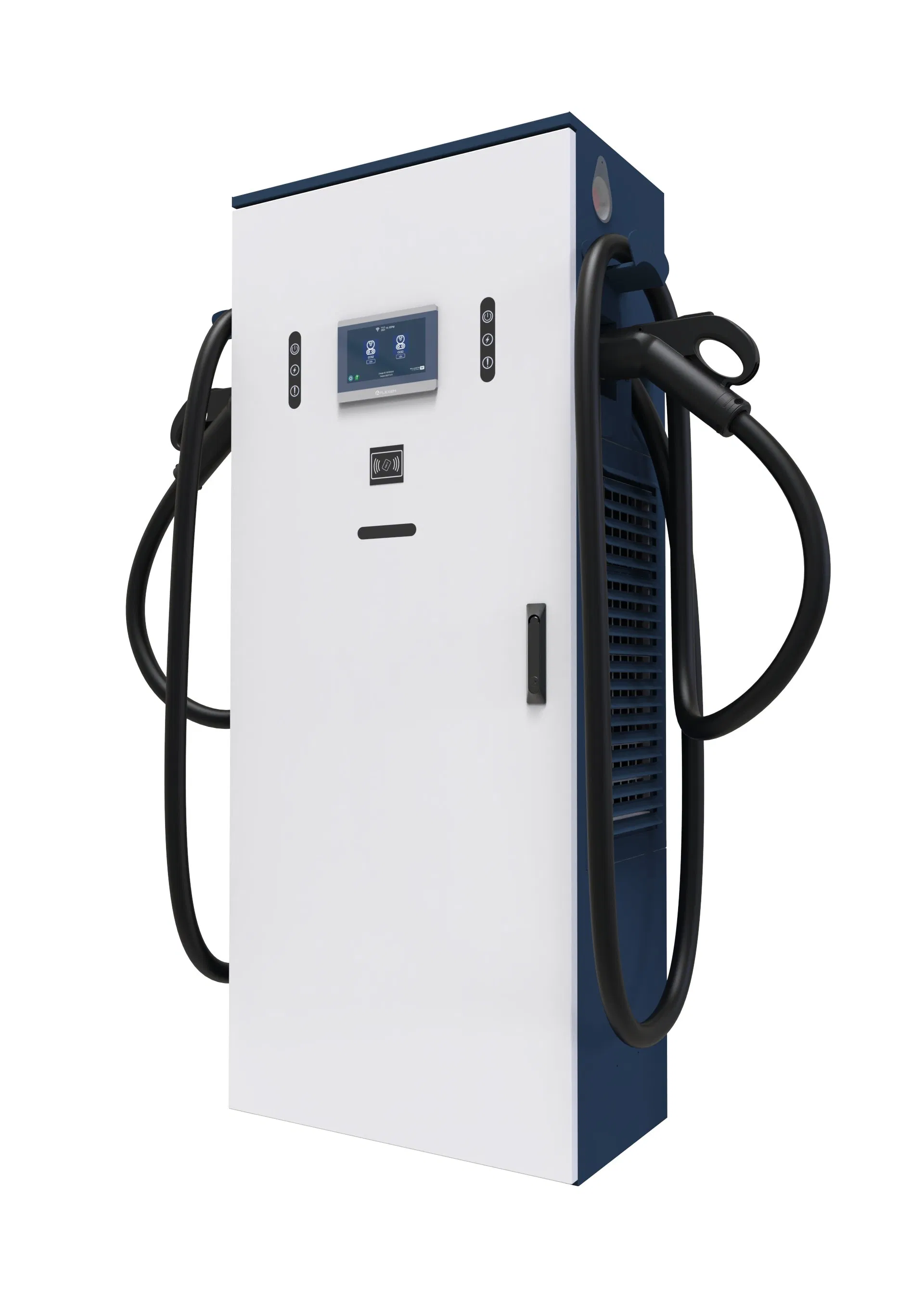

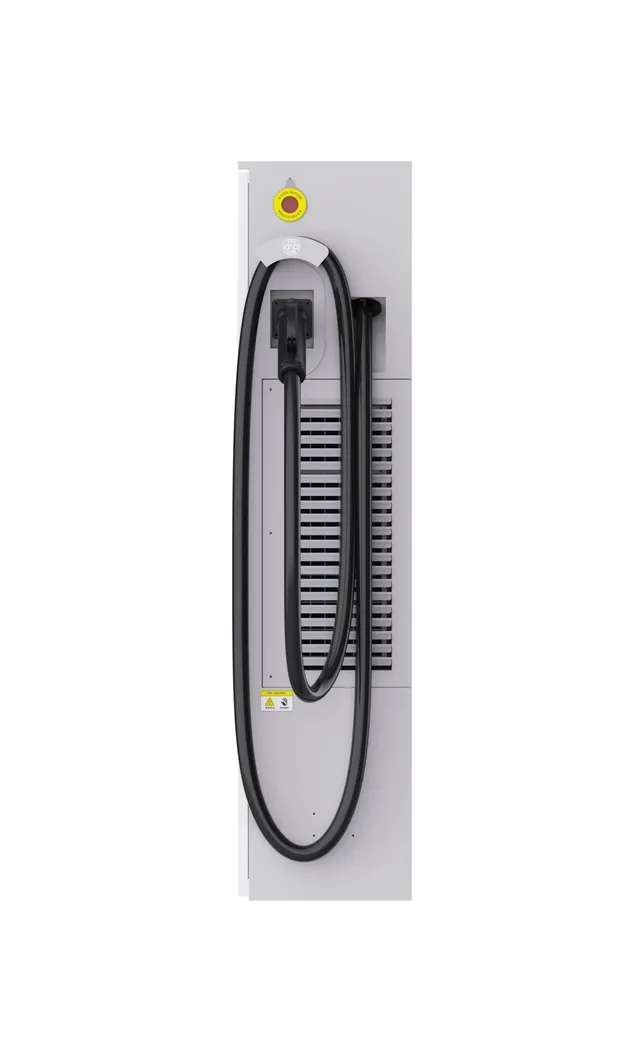

DC Charger Detail 1 DC Charger Detail 2 DC Charger Detail 3
Technical Specification
Category Parameter Details
Electrical Indicators Input Frequency 50/60Hz
Output Current 1-300A
Efficiency Peak efficiency ≥ 96%
Functional Design Display 7’’ LCD with touch screen
Communication WIFI / Ethernet / 3G/4G (Optional)
Cooling Air Cooled
Environment Operating Temp -30°C to 75°C
Altitude < 2000m
Humidity ≤ 95% RH (Non-condensing)

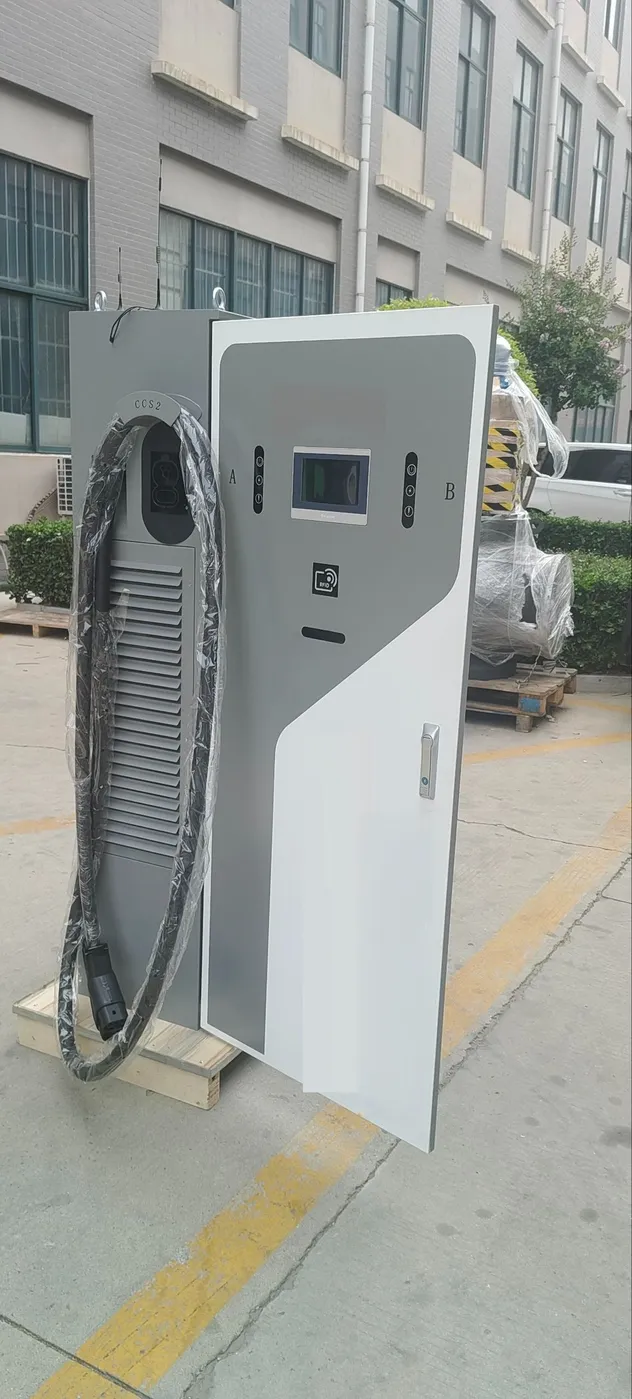

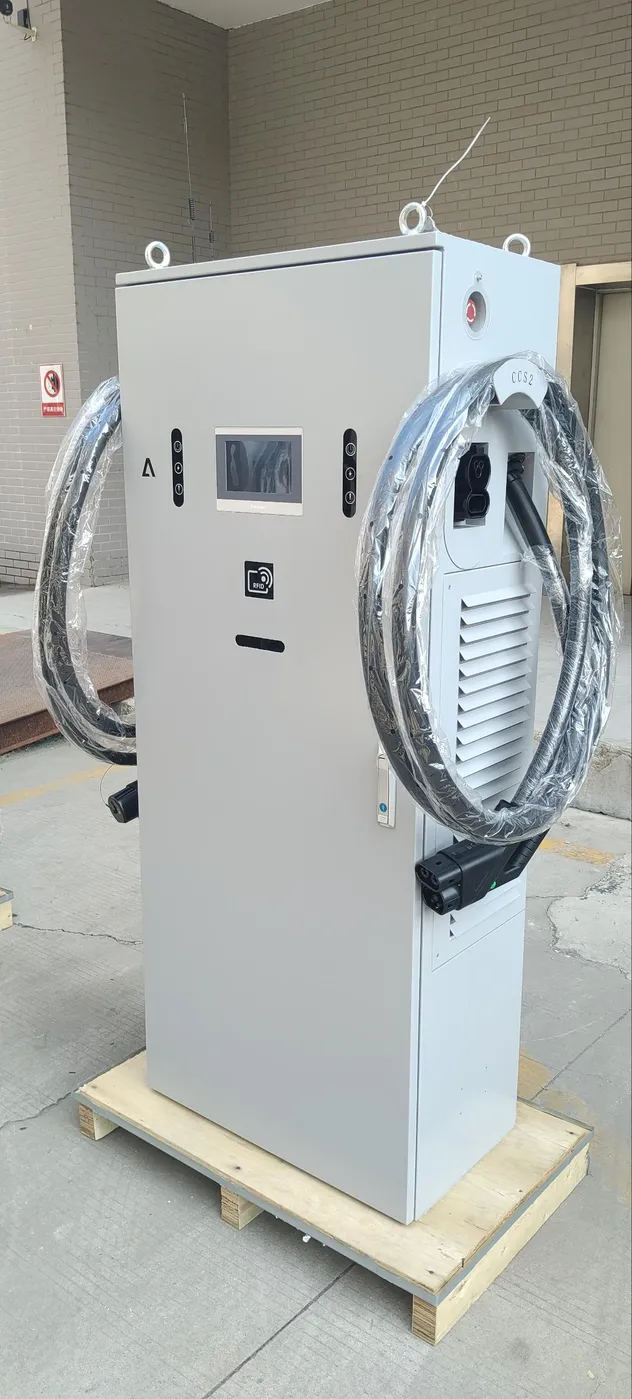

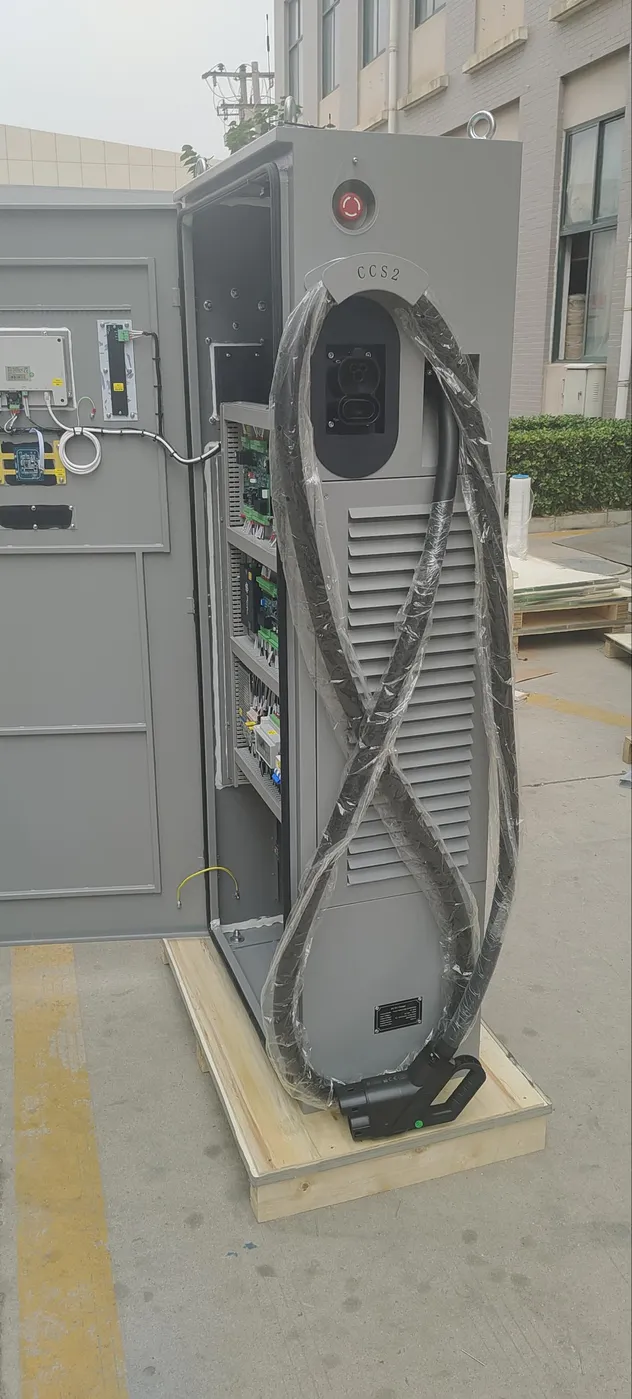

EV Charging Layout 1 EV Charging Layout 2 EV Charging Layout 3
Safety & Packaging
Safety Protection
Overvoltage, Lightning, Overcurrent, Leakage, Waterproof
Emergency Stop
Manual Emergency Stop Button
Package Type
Wooden Case Packaging
Gross Weight
240.00kg
Frequently Asked Questions
Are you a professional manufacturer?
Yes, we are a professional manufacturer of new and sustainable energy applications for over 8 years.
What is the product warranty?
The warranty ranges from 12-60 months. During this period, we provide technical support and replacement parts free of charge.
What are the terms of packing?
We use standard wooden box packaging and standard carton packaging to ensure safety during transport.
Do you test all goods before delivery?
Yes, we conduct 100% testing on all products before they leave the facility to ensure quality.
What's the difference between Movable and Wallbox Chargers?
Portable chargers are designed for mobility and temporary power needs, while wallbox chargers are fixed installations for regular use.
What power output range can you produce?
Our production capacity ranges from 20kW up to 1.5MW systems.
