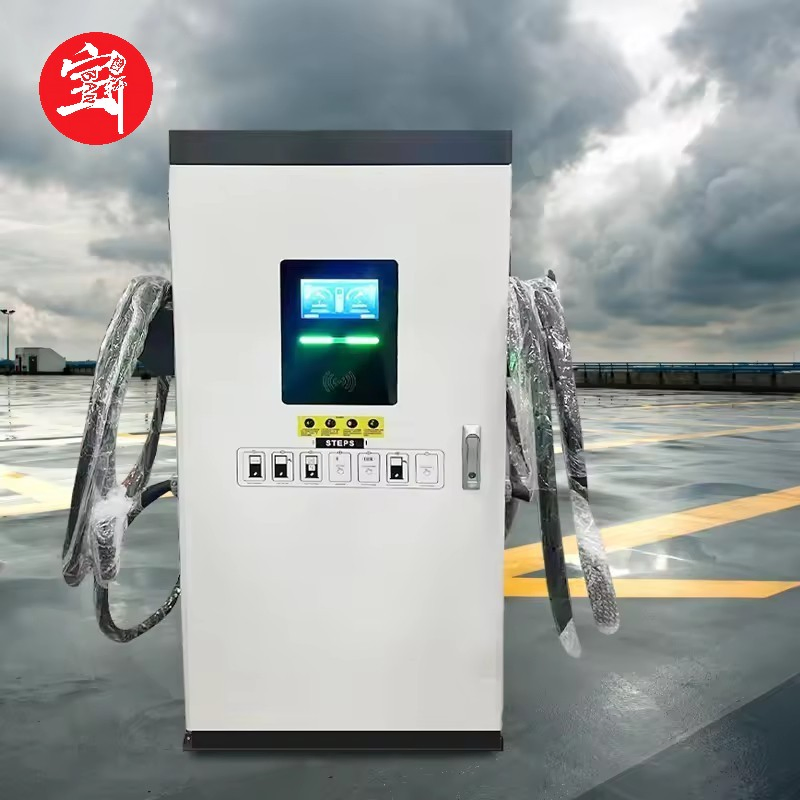

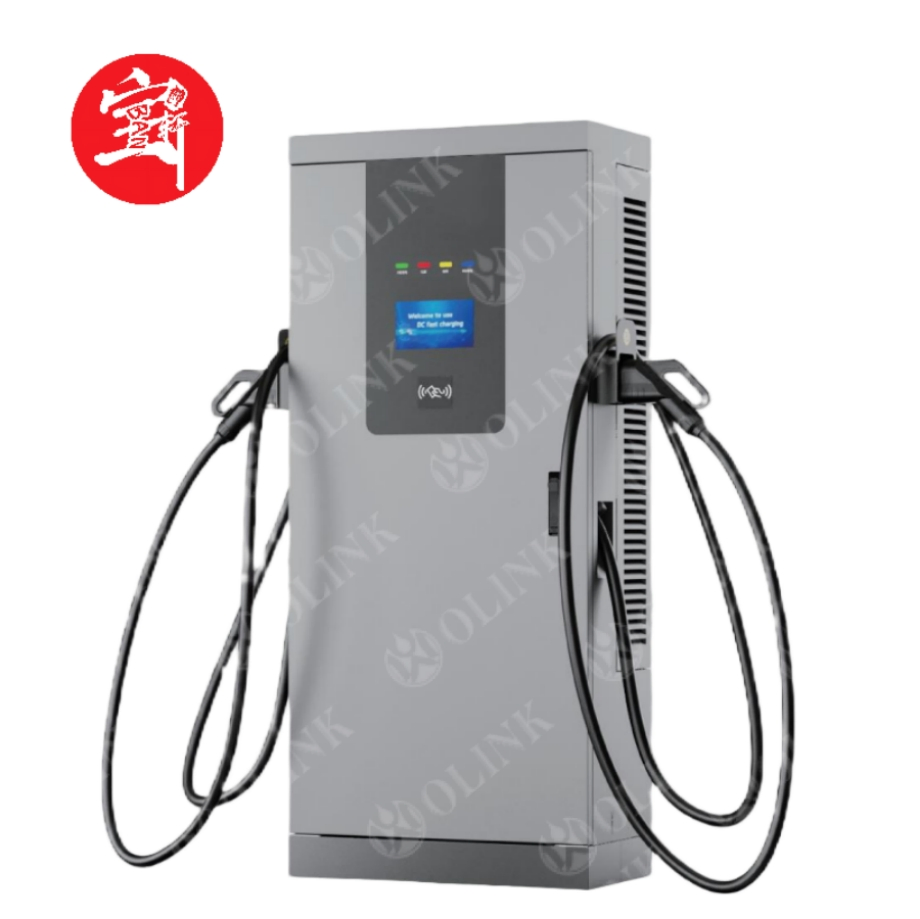

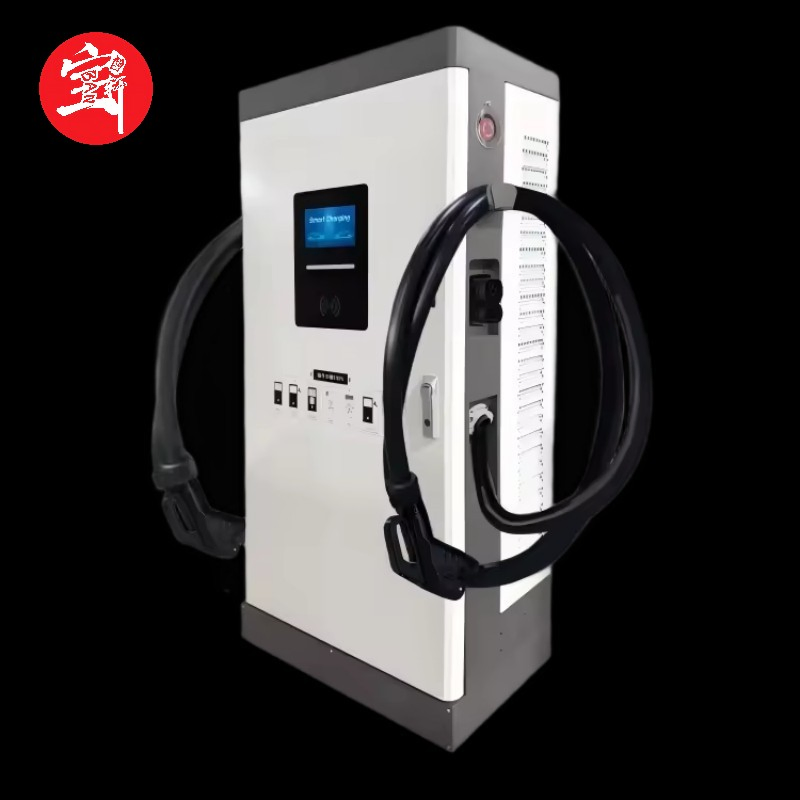

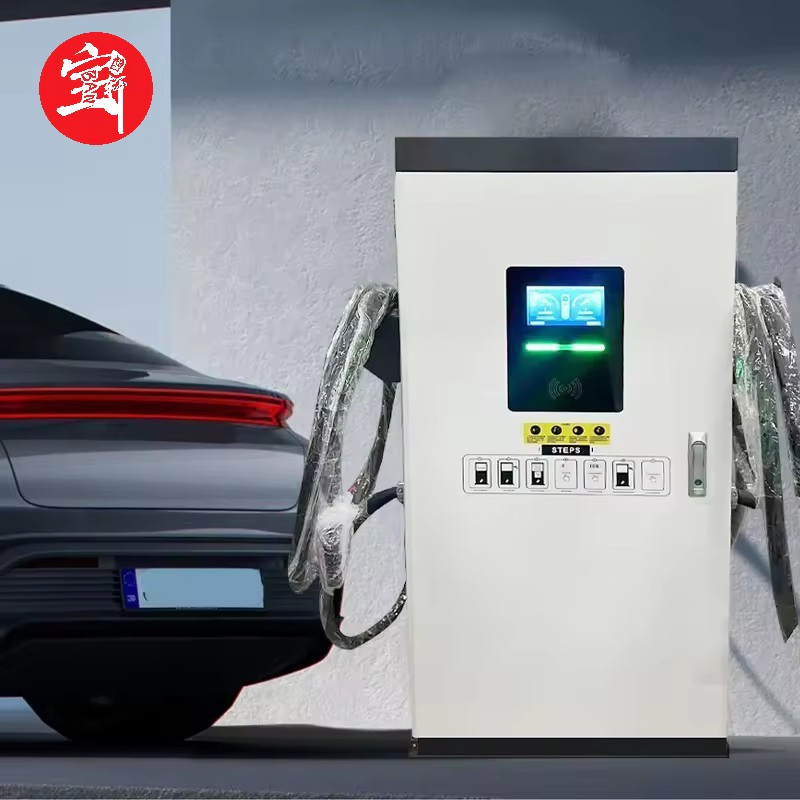

Intelligent 120kw Dual-Port EV DC Fast Charger with Touchscreen Display and Ocpp 2.0 Protocol Support

1 / 5

Intelligent 120kw Dual-Port EV DC Fast Charger with Touchscreen Display and Ocpp 2.0 Protocol Support

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

Model NO.

AmpCore Pro 120KW

Location

Private Use

Interfaces

One Pile with Multiple Charges

Charging Method

Plug and Play

Transport Package

Carton Packaging

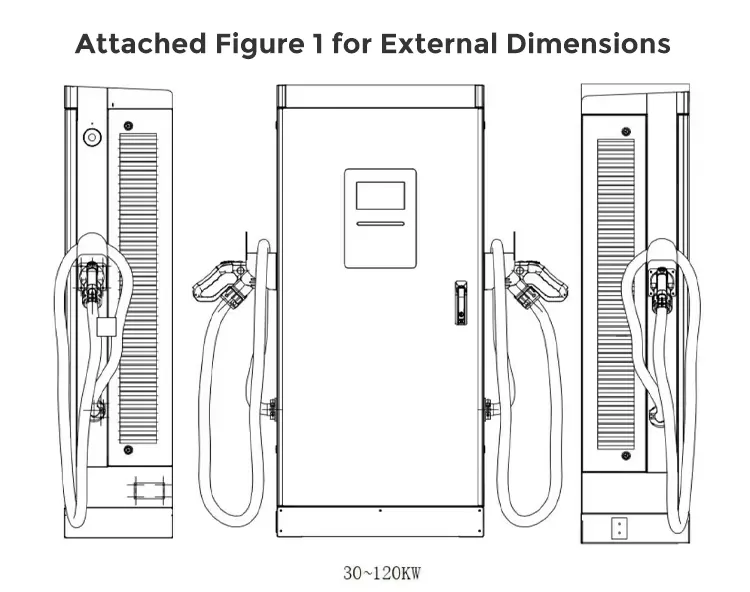

Specification

75*39*172cm

Origin

China

Package Size

108.00cm * 95.00cm * 195.00cm

Gross Weight

580.000kg

Product Description

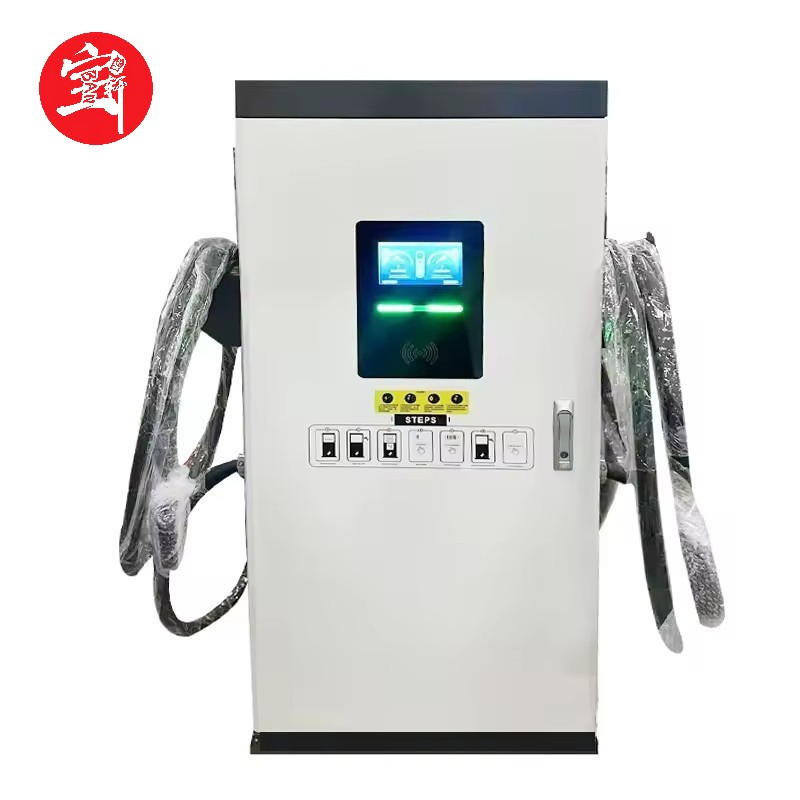

Intelligent 120kw Dual-Port EV DC Fast Charger

⚡

Intelligent Charging Solution: 120kw Dual-Port EV DC Fast Charger equipped with a touchscreen display and advanced OCPP 2.0 protocol support for seamless network integration and management.

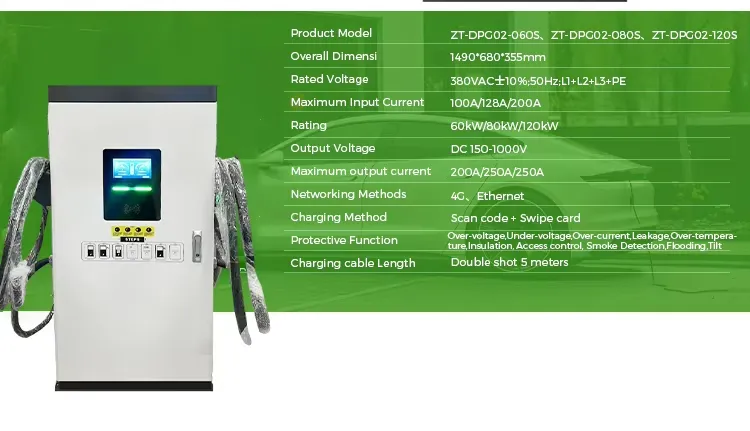

Technical Specification

Rated input voltage	380Vac±20% (three-phase)
Output rating	120KW
Rated output current	300A
Output voltage range	150~1000Vdc
Network connection	4G network; Ethernet (optional); WIFI
Charging method	Charge by card or scan
Levels of protection	IP54
Support gun	GB/T, CCS2, or Mixed Guns (double-barreled)
Charging cable length	Standard 5 meters (customizable)
Human-computer interaction	7-inch touchscreen
Communicating protocol	OCPP1.6 / OCPP1.6J / OCPP2.0
Work environment	-25℃ to 40℃; Humidity 5% ~ 95% RH

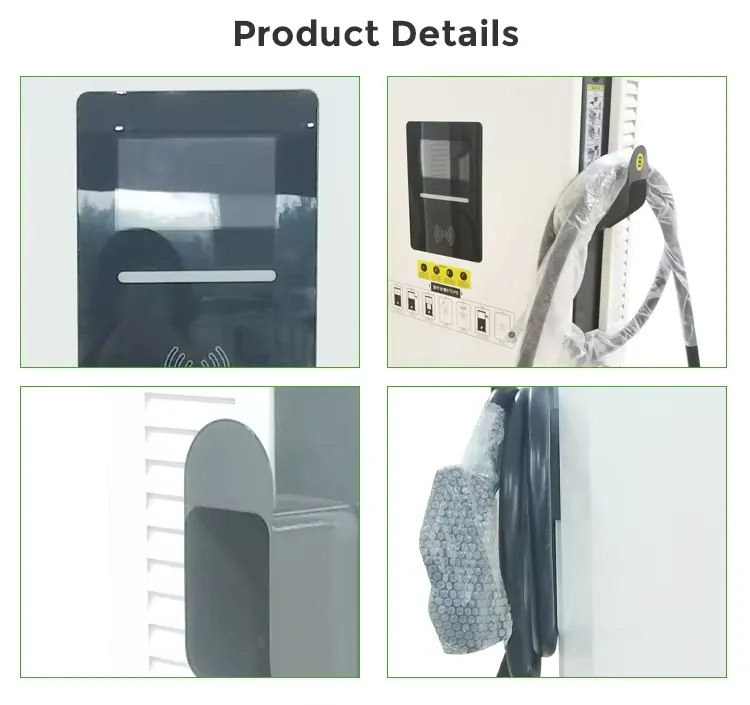

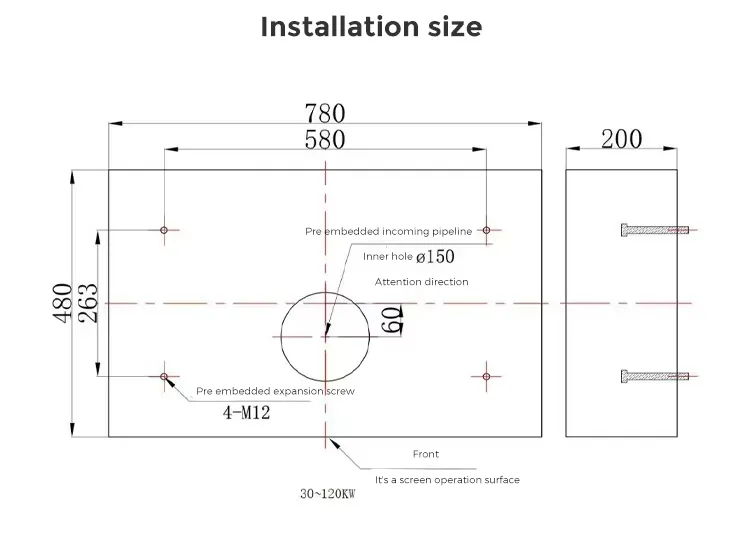

Detailed Display

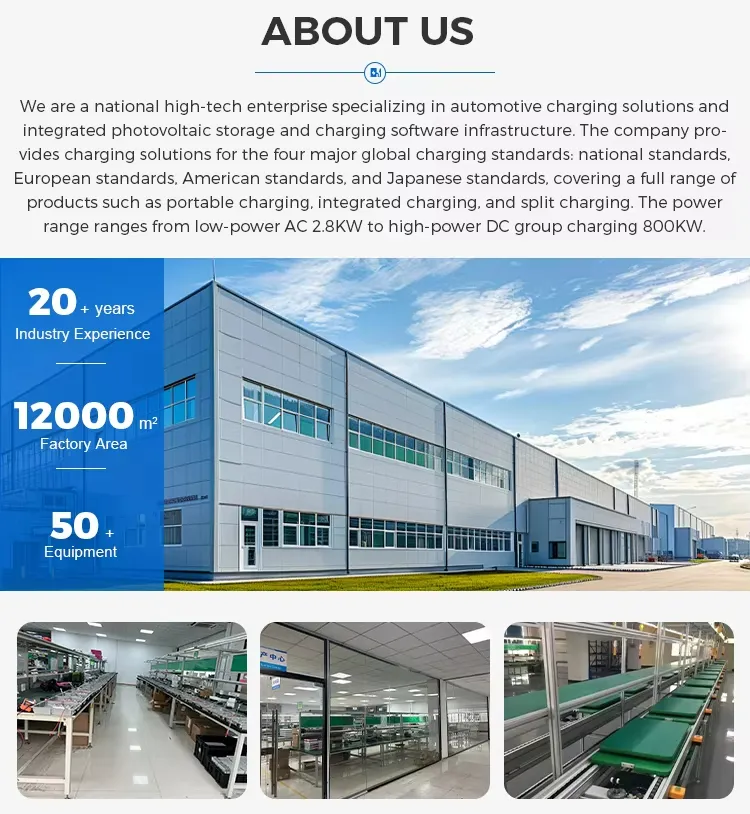

About Our Expertise

🏗️

With 13 years of deep-rooted experience in the automotive industry, we provide professional and reliable technology and services. We have transitioned our expertise from maintaining high-end vehicle brands to the new energy sector, focusing on high-performance charge-discharge equipment.

Our philosophy of "Innovation-Driven, Quality-First, and Green Future" ensures that we deliver high-safety products including portable charging guns, home charging piles, and commercial operation piles. We precisely match adaptation needs for various markets including Europe, America, and Southeast Asia through rigorous pre-shipment testing.

Safety & Application

🛡️

Safety Functions: Over temperature protection, leakage protection, anti-overvoltage, anti-overcurrent, short circuit protection, dust and rain protection, lightning protection, under voltage protection, flame retardant, and anti-theft gun lock.

📍

Application Scenarios: Residential areas, private residences, factories, commercial offices, urban complexes, vehicle 4S shops, driving schools, and workshops.

FAQ

What certifications do your products hold?

Our products are fully CE certified, meeting European safety, health, and environmental protection requirements.

What are the available charging and connection methods?

We support Plug and Play, swipe cards, and 4G internet connections for commercial sharing and app-based management.

What materials are used in the construction?

We use high-quality pure copper for internal components to ensure maximum conductivity and durability.

What is the protection rating for outdoor use?

Our equipment is rated up to IP65 level, providing excellent protection against dust and water ingress.

Do you support customization for different vehicle standards?

Yes, our output gun tips can match multiple standards, including American standards. We support 99% of new energy vehicle models and offer OEM customization.

How do you ensure compatibility with different vehicle models?

Leveraging our 13-year background in auto repair, we conduct extensive pre-shipment tests to ensure adaptation for markets in Europe, America, and Southeast Asia.
