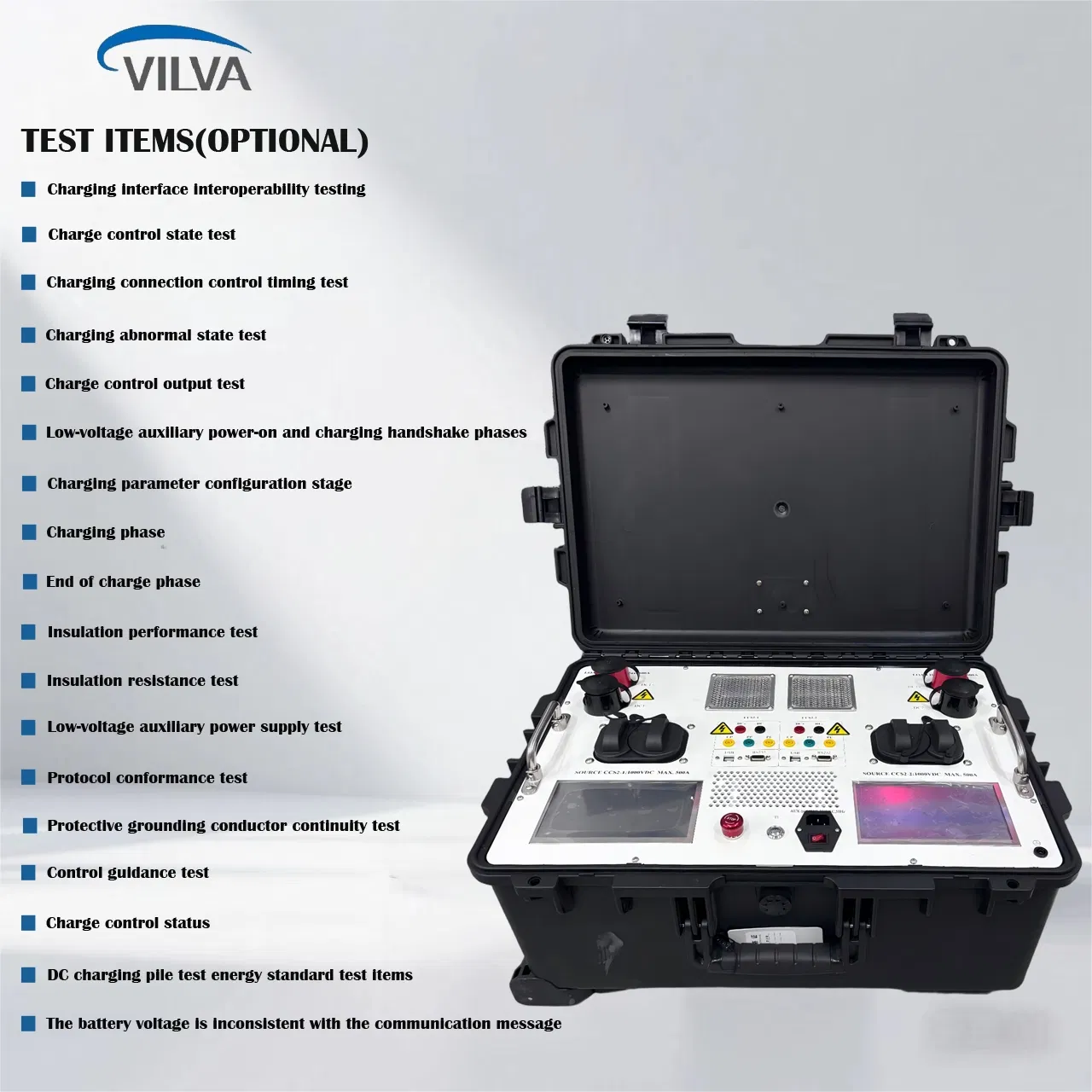

Supports mainstream charging protocols including GB/T (China), CCS (EU/US), CHAdeMO, and Tesla Supercharger, enabling testing across different regional and brand standards.
Equipped with high-precision voltage/current sensors (accuracy ≤ 0.1%) to measure parameters from 0–1000V and 0–500A, including ripple and dynamic response.
Simulates the complete EV charging process from physical connection and handshake to configuration and fault disconnection verification.
Allows manual injection of communication interruptions, overvoltage, and insulation resistance reduction to test diagnostic and protection capabilities.
Integrates a high-precision meter to calculate charging energy, power factor, and efficiency, supporting load curve analysis.
Decodes and monitors communication data (CAN bus, Ethernet) in real time, displaying frame content and error codes for diagnostics.

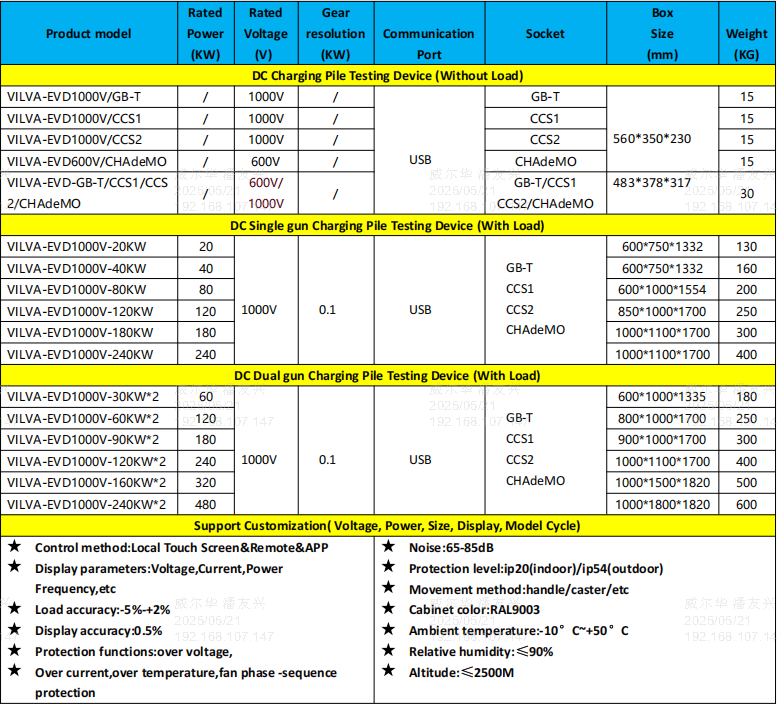

| Parameter | Details |
|---|---|

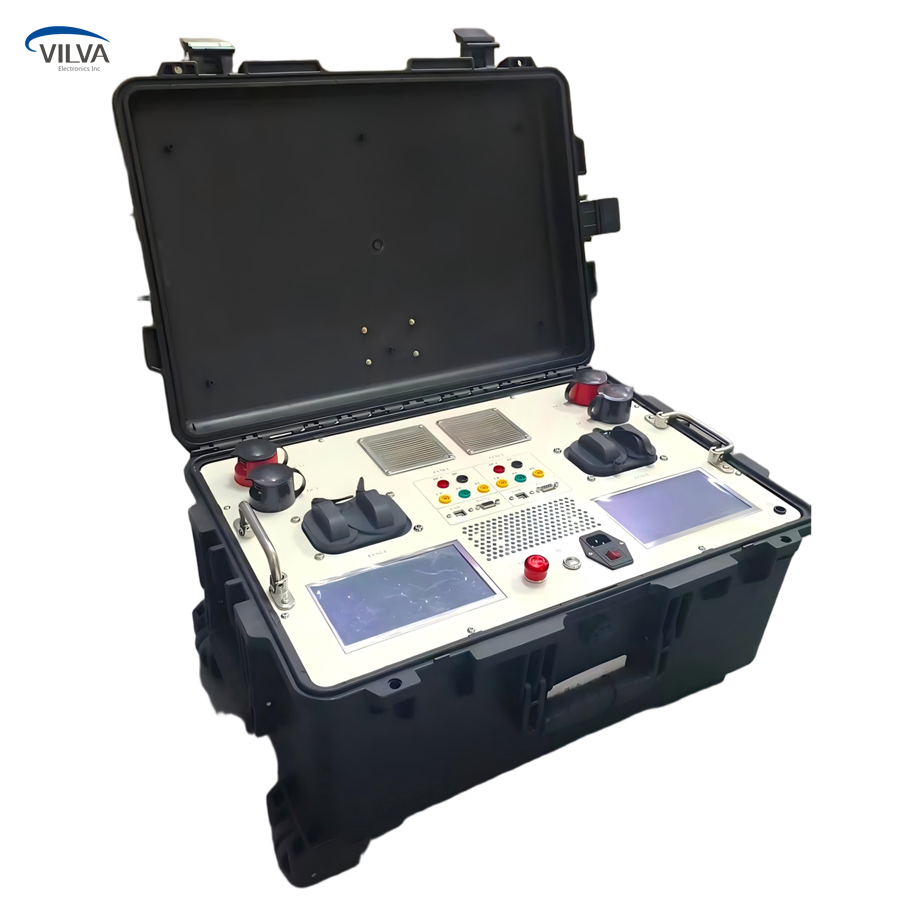

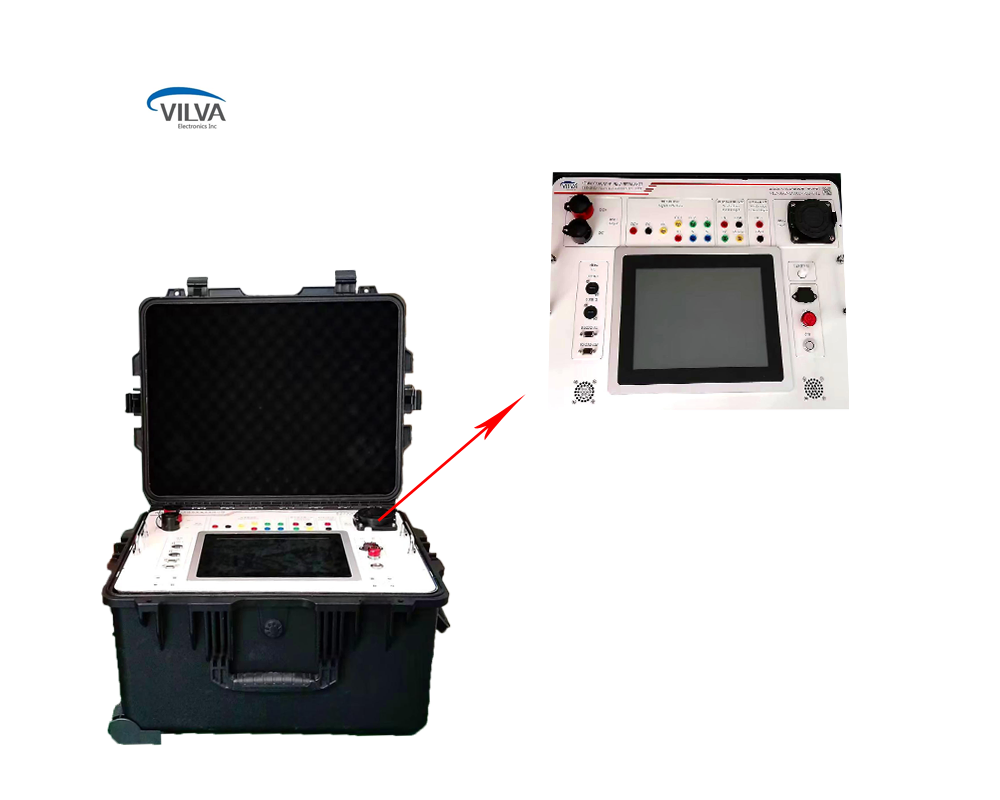

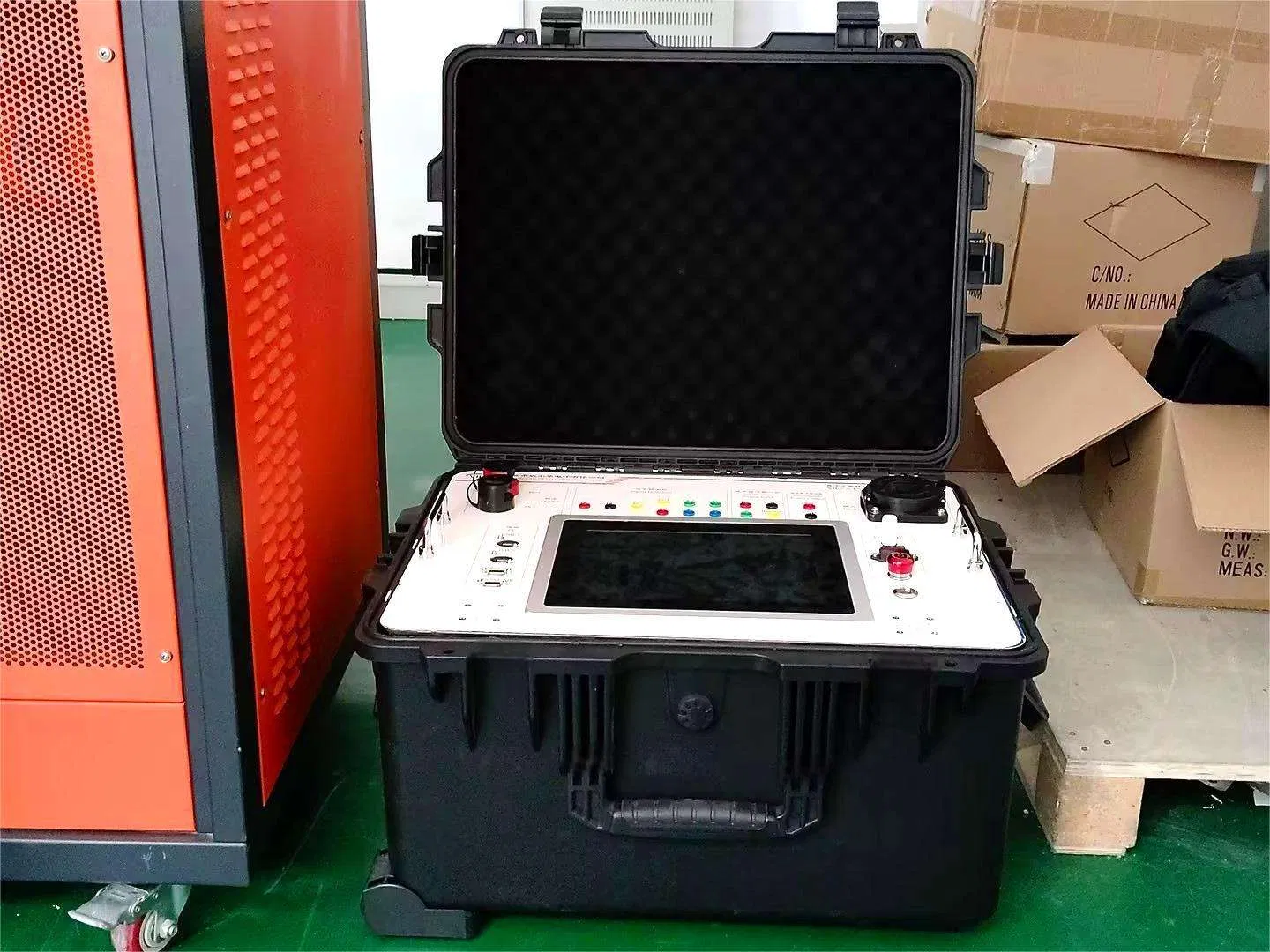

| Protect Name | DC GBT EV Charger Pile Tester, Support Other Sockets |
| Rated Voltage | DC 200V~1000V |
| USB Interface | Support Upper Control |
| Test Accuracy | -5%~+2% |
| Application | Simulate various performance indicators and test communication protocols |
| Protection Function | Overvoltage/ Gunseat Overtemperature/ Load Overtemperature |
| Working Source | Single Phase 220Vac |
| Protection Level | IP20 (Indoor) |
| Cooling Mode | Force-air cooling |
| Control Mode | Touch screen/ Upper Control |
| Ambient Temperature | -10℃ to +50℃ |
