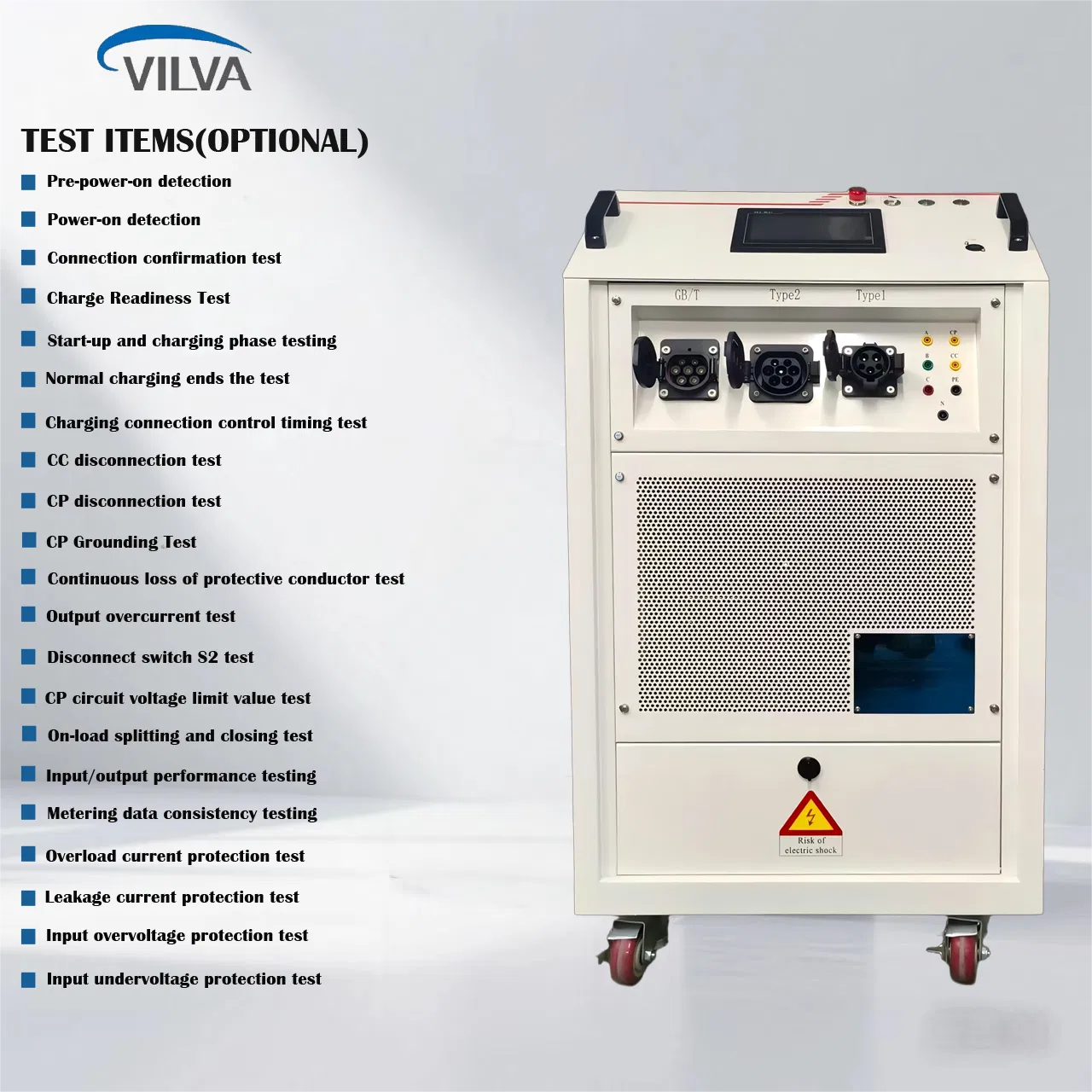

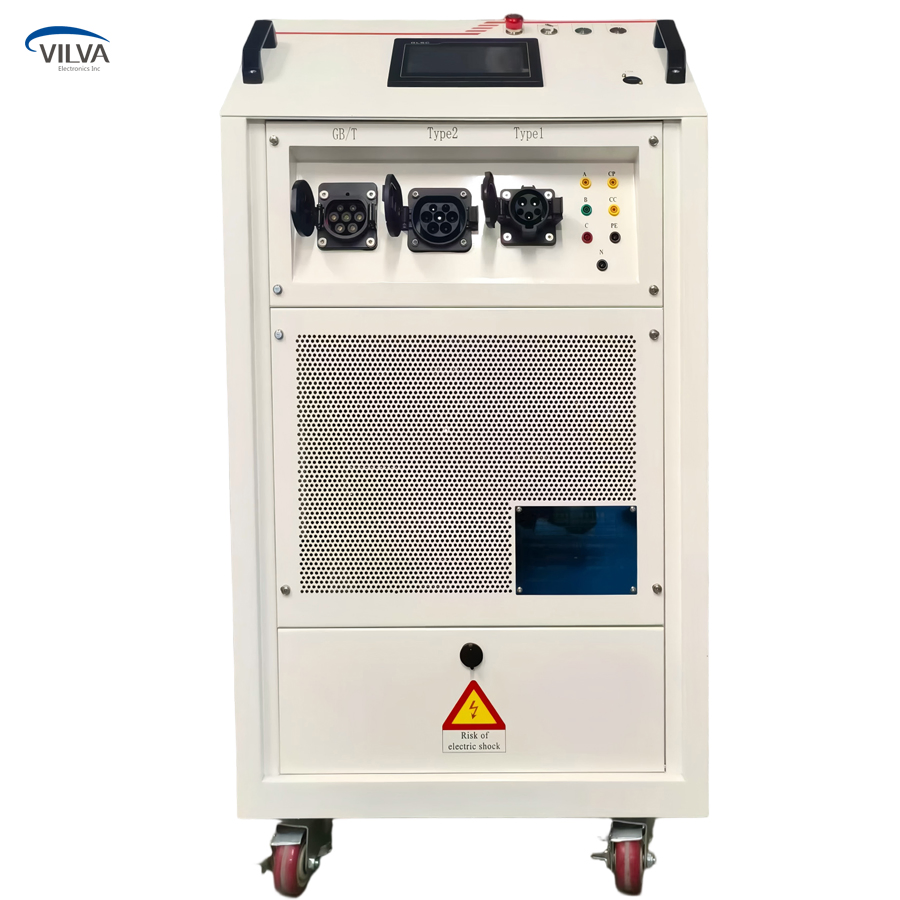

380V 23kw AC EV Charger Simulator Type 1/2/Gbt Sockets for Car Charging Stations Testing
380V 23kw AC EV Charger Simulator Type 1/2/Gbt Sockets for Car Charging Stations Testing
380V 23kw AC EV Charger Simulator Type 1/2/Gbt Sockets for Car Charging Stations Testing
380V 23kw AC EV Charger Simulator Type 1/2/Gbt Sockets for Car Charging Stations Testing
380V 23kw AC EV Charger Simulator Type 1/2/Gbt Sockets for Car Charging Stations Testing
1 / 5
380V 23kw AC EV Charger Simulator Type 1/2/Gbt Sockets for Car Charging Stations Testing
380V 23kw AC EV Charger Simulator Type 1/2/Gbt Sockets for Car Charging Stations Testing
380V 23kw AC EV Charger Simulator Type 1/2/Gbt Sockets for Car Charging Stations Testing
380V 23kw AC EV Charger Simulator Type 1/2/Gbt Sockets for Car Charging Stations Testing
380V 23kw AC EV Charger Simulator Type 1/2/Gbt Sockets for Car Charging Stations Testing

380V 23kw AC EV Charger Simulator Type 1/2/Gbt Sockets for Car Charging Stations Testing

Customization: Available
After-sales Service: 1 Year Warranty
Application: Electrical Testing,Auto Testing
Send Inquiry

Product Description

Basic Information
Model NO.
AC 380V 23KW EV Charger Simulator
Protection Class
IP20/IP54
Load Accuracy
-5%-+2%
Ambient Temperature
-10°C~+50°C
Display Class
0.5class/0.3class
Customized
OEM/ODM/Obm
Rated Voltage
AC 380V/Customized
Noise Level
65dB~85dB
Rated Power
22.5kw/Customized
Protection Function
Overvoltage / Overtemperature
Transport Package
Wooden
Specification
750*600*1335mm
Product Description
AC EV Charger Pile Tester
1
Multi-standard Compatibility Supports mainstream charging protocols such as CCS, CHAdeMO, GB/T, and Tesla for global compliance.
2
Precise Electrical Measurement Accurately measures input voltage, current, frequency, power factor, and harmonic distortion.
3
Charging Protocol Simulation Simulates EV communication behavior to test handshake, authentication, and coordination processes.
4
Fault Simulation Function Simulates overvoltage, undervoltage, and overcurrent to assess charger handling capabilities.
5
Energy Consumption Measurement High-precision metering modules verify the accuracy of the charger's built-in energy meter.
6
Data Logging & Analysis Automatically records test data and generates reports in CSV or PDF formats.
7
Remote Control & Monitoring Operate via PC software or mobile APP for real-time monitoring and parameter adjustment.
8
Portable & Compact Design Lightweight structure with a handle, ideal for parking lots and residential on-site testing.
9
Overload & Safety Protection Built-in protection for over-temperature, over-voltage, and short-circuits.
10
Compliance Testing Certification Aligns with IEC 61851, GB/T 18487, and SAE J1772 standards.

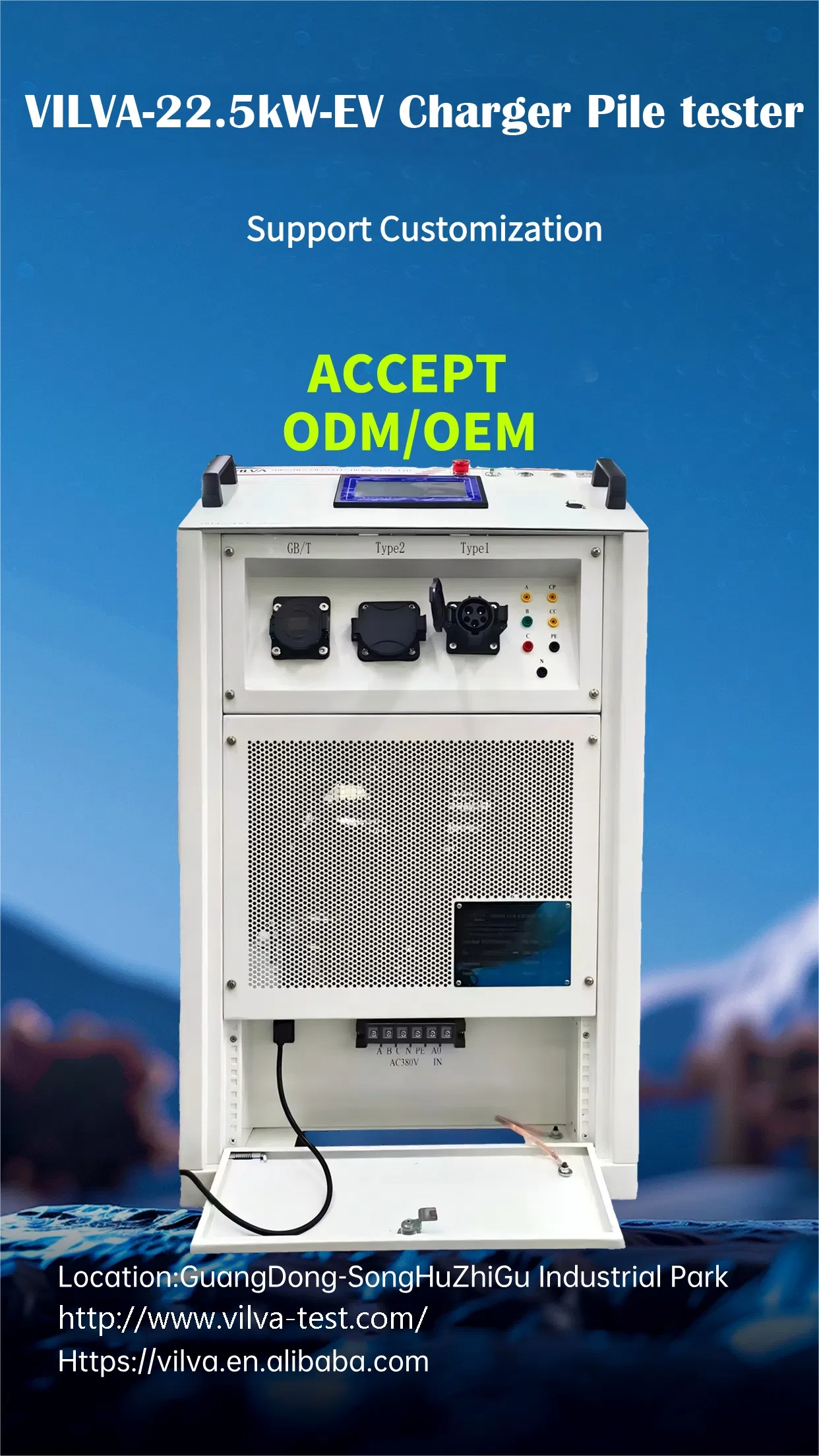

AC EV Charger Simulator Details
Technical Specification
Product NameAC 480V 23KW EV Charger Pile tester
Rated VoltageAC 480V, Customized
Test Accuracy-5%~+2%
Sampling Accuracy0.5 class
Protection FunctionsOvervoltage/ Gunseat Overtemperature/ Load Overtemperature
ApplicationPerformance, safety, and compliance verification
Protection LevelIP20 (Indoor)
Noise Level65-85dB
Working ModeContinuous work / Auto Testing
Cooling ModeForce-air cooling
Control ModeTouch screen / Upper Control
Move ModePortable and mobile suitcase-style design
Ambient Temp-10℃ to +50℃
Humidity≤95%

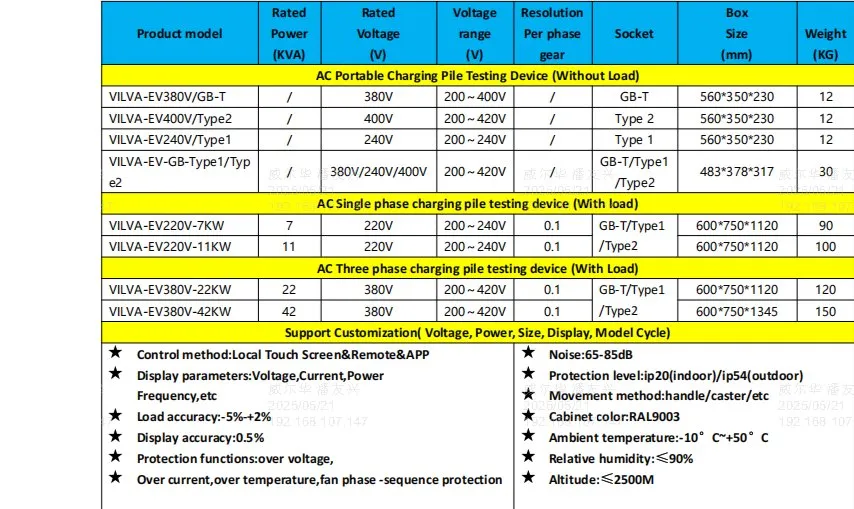

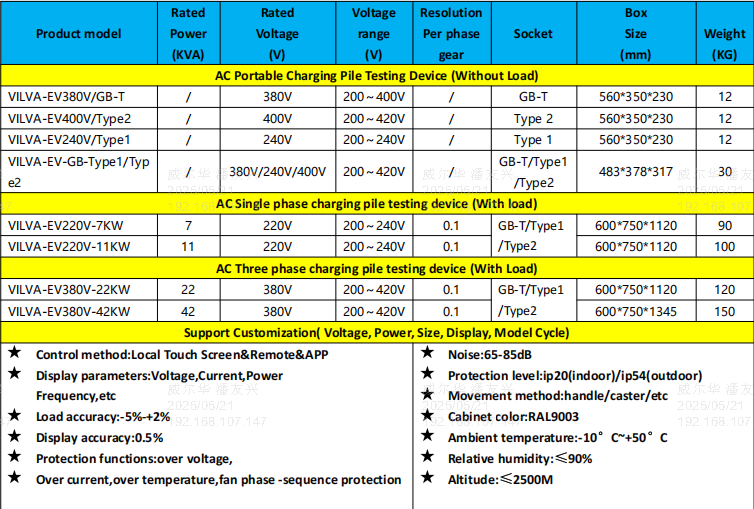

Specification Diagram

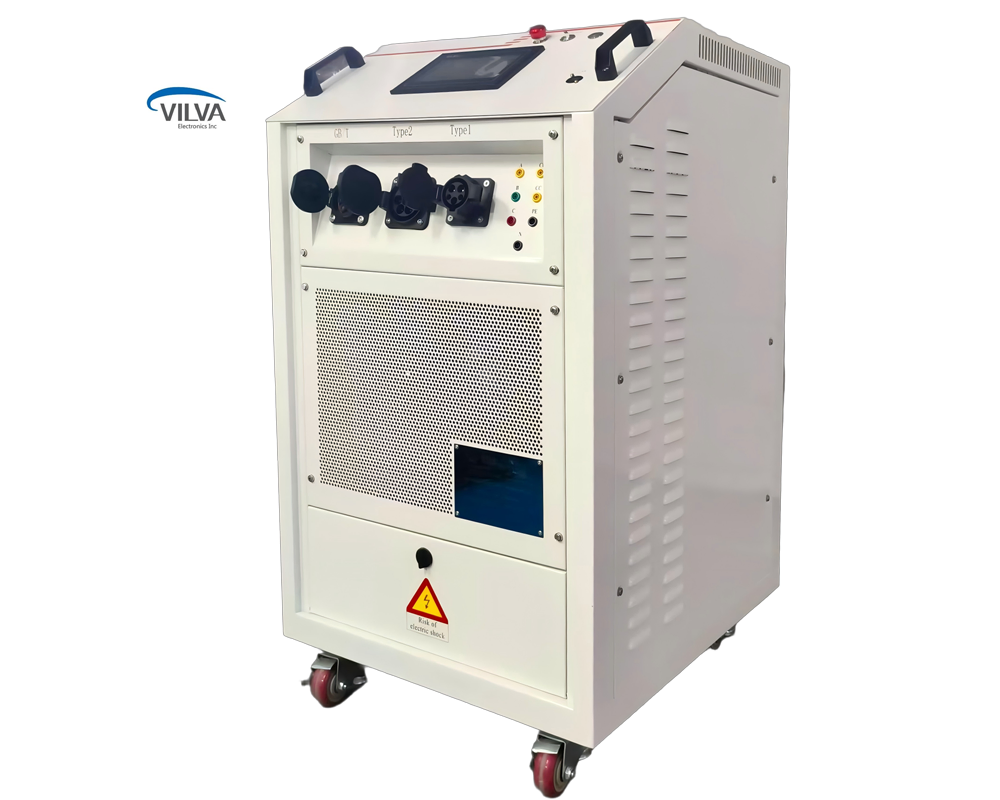

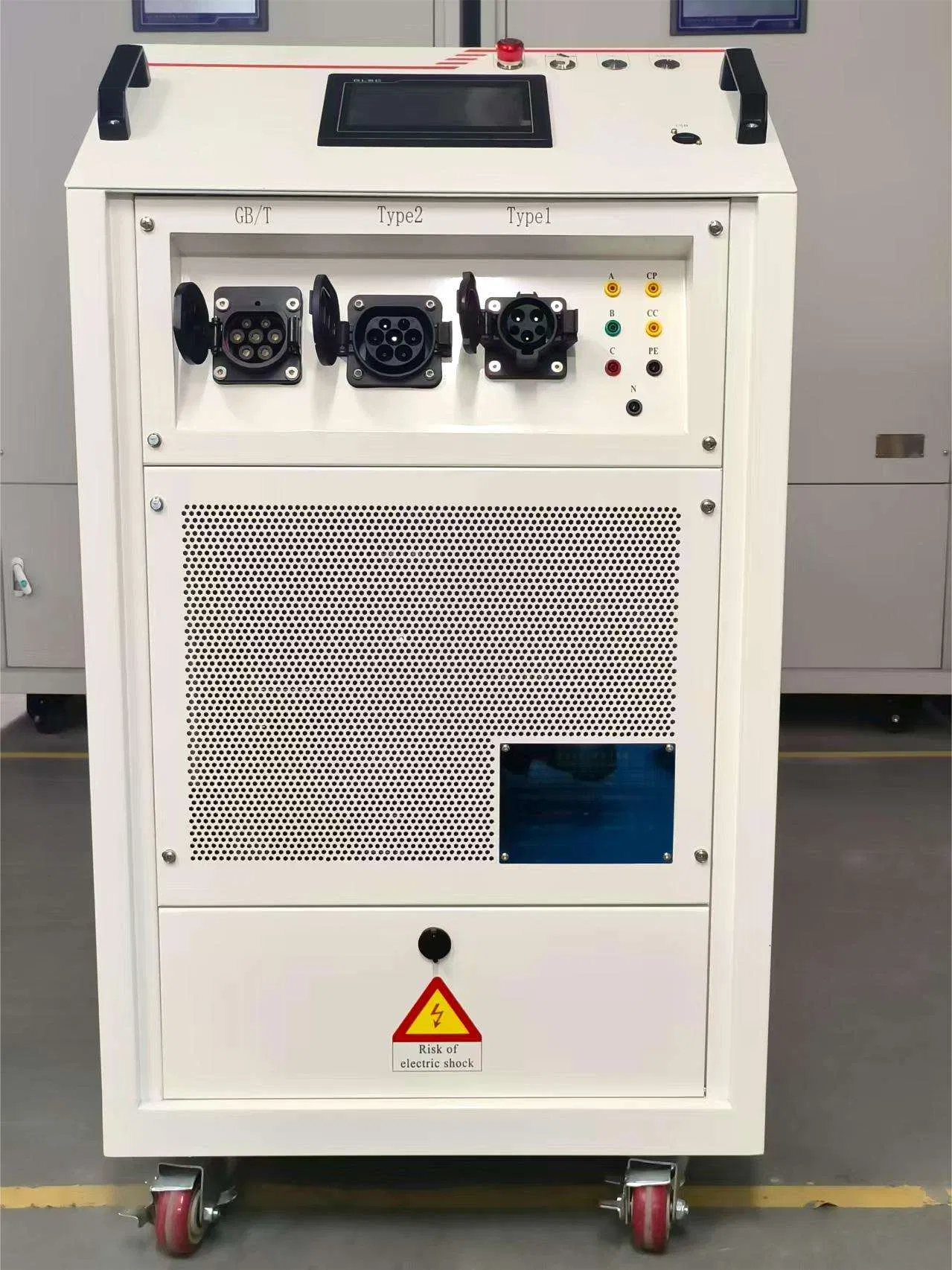

Equipment View
Manufacturing & Logistics
R&D Center
Production Line
Packaging
Frequently Asked Questions
Can the Charger pile tester be customized?
Yes, all aspects of the product can be customized to meet specific technical requirements and regional standards.
What is the standard lead time for orders?
The lead time typically ranges between 30 to 58 days, depending on the level of customization required.
Which charging socket types are supported?
For AC testing, we support GB-T, Type 1, and Type 2. For DC testing, we support GB-T, CCS1, CCS2, and CHAdeMO.
How is the test data displayed?
The device features a touch screen that provides clear data visualization, including statistics and waveform outputs for various message types.
Is the equipment suitable for outdoor use?
The standard model is designed for indoor use (IP20). However, we offer an optional outdoor version with air ducts for weatherproofing.
Are protocol consistency tests supported?
Yes, our testing equipment is fully capable of conducting protocol consistency tests to ensure charger interaction reliability.
