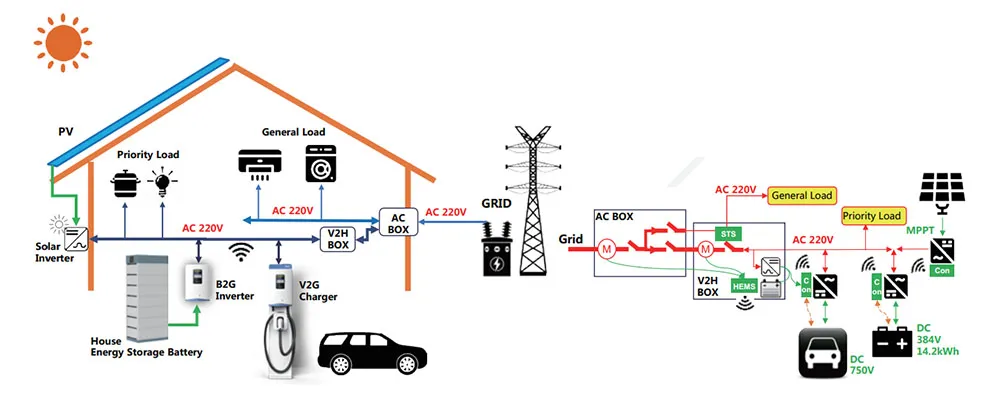

The EXP07KE is a high-performance electric vehicle DC charger qualified for CCS, CHAdeMO, and GBT charging standards. This station is uniquely designed with V2G (Vehicle-to-Grid) and V2H (Vehicle-to-Home) functions, enabling EV batteries to serve as grid energy storage, backup power supplies, and smart grid nodes.

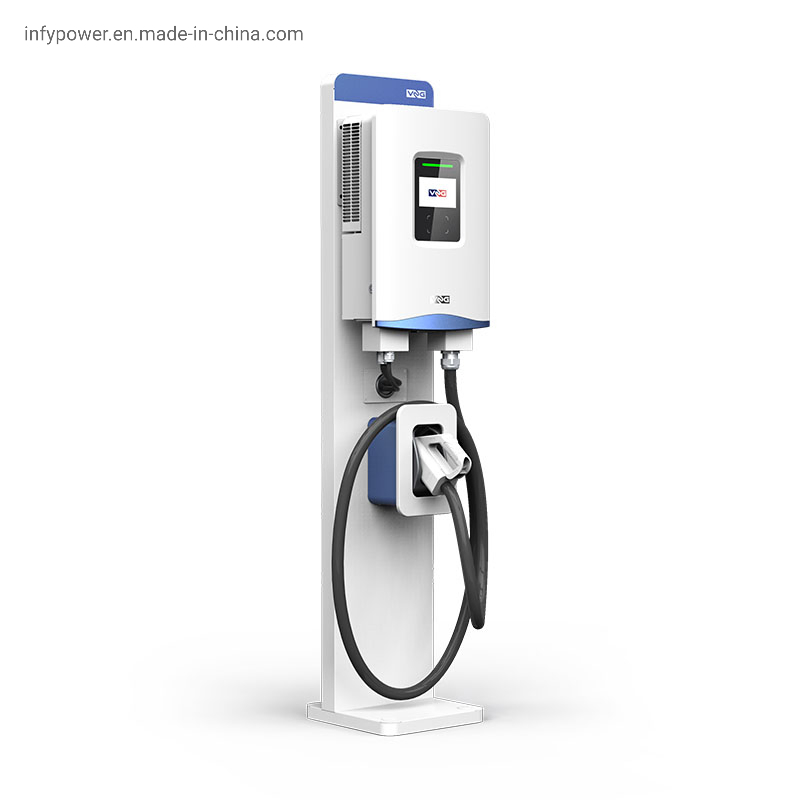

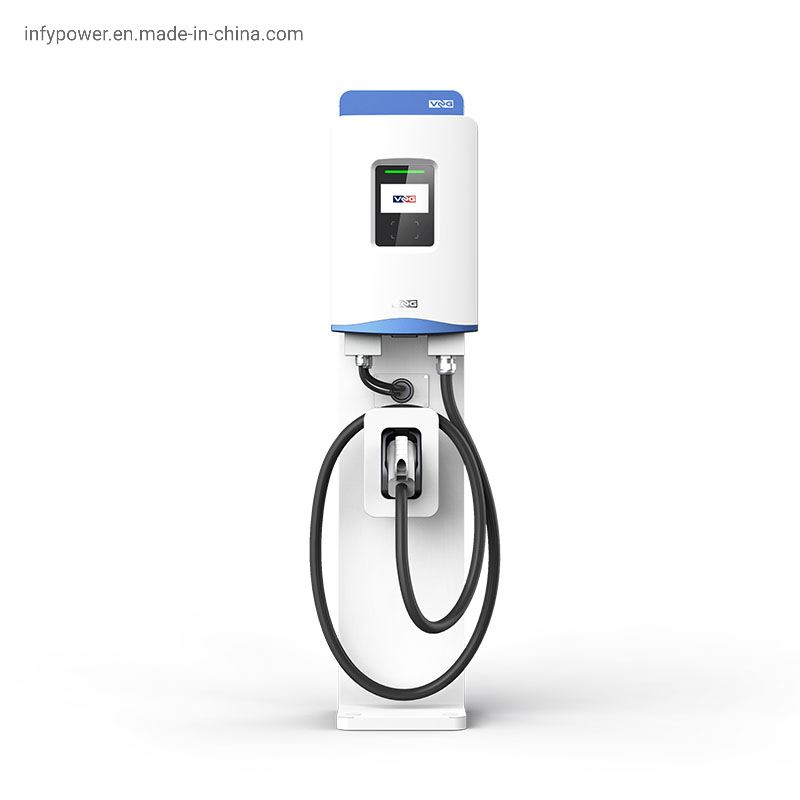

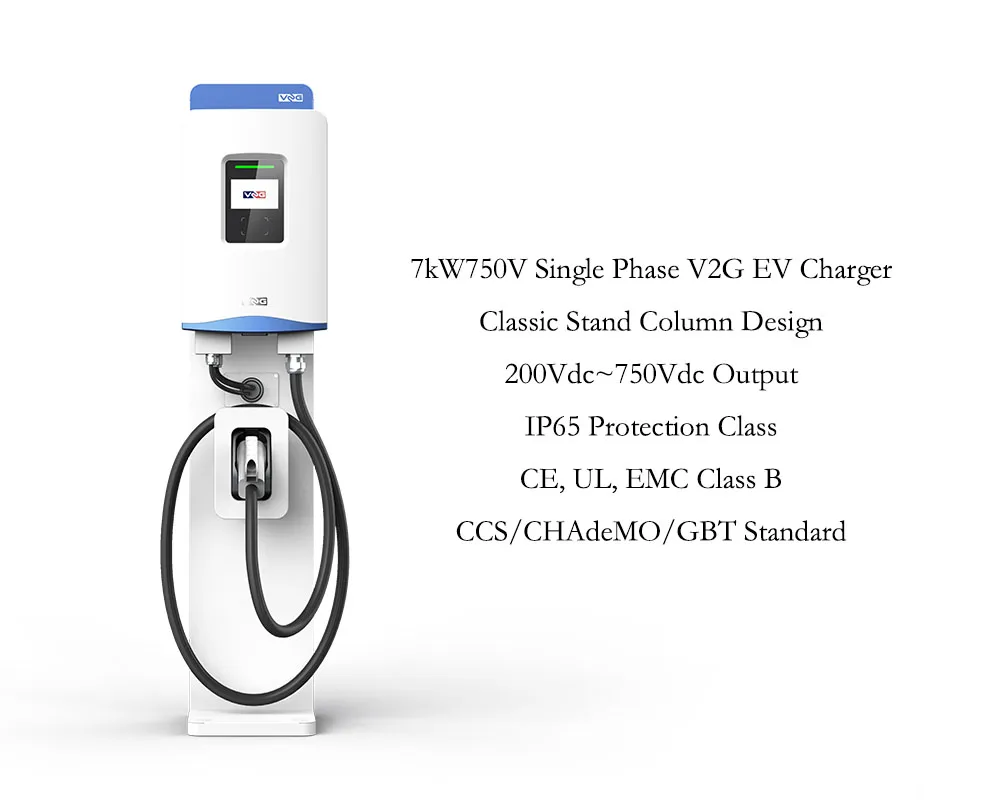

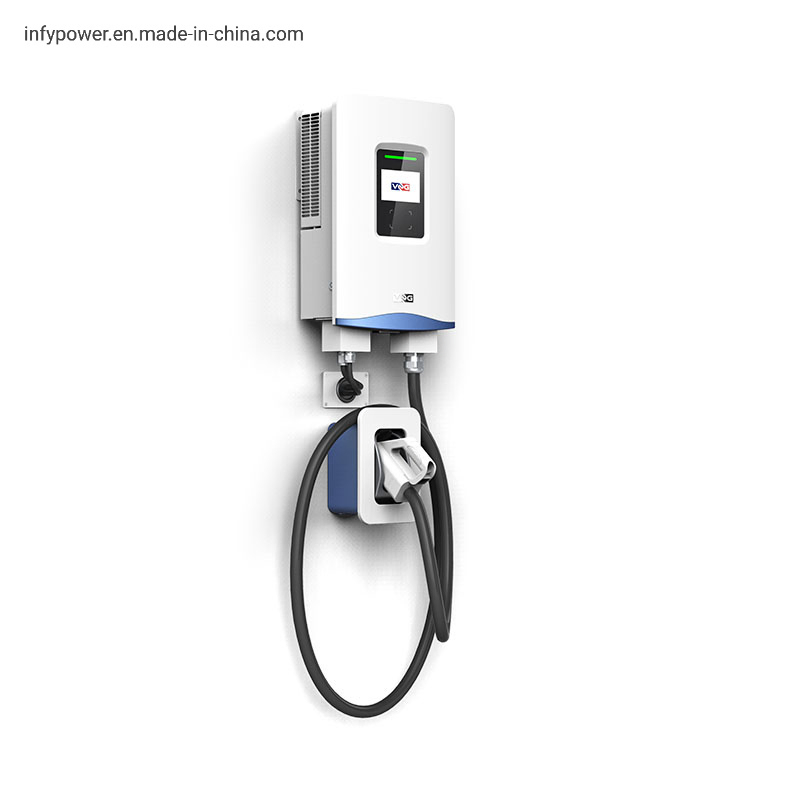

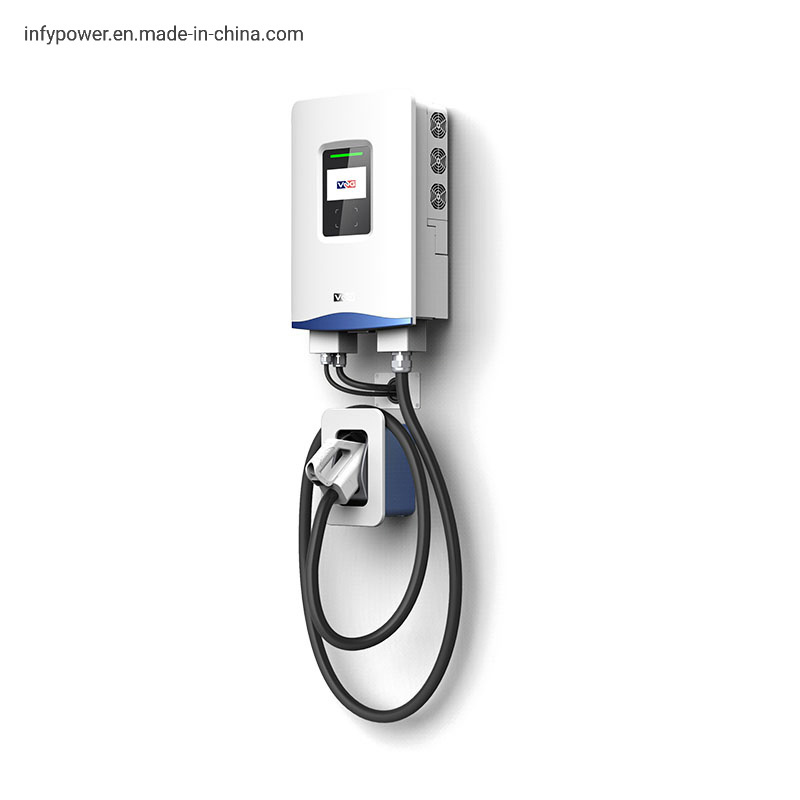

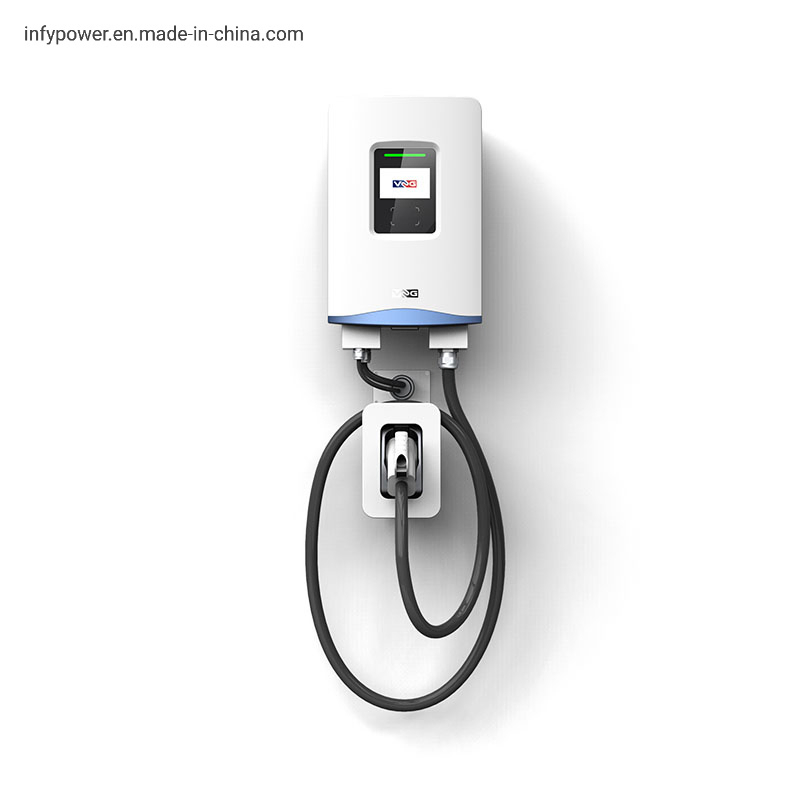

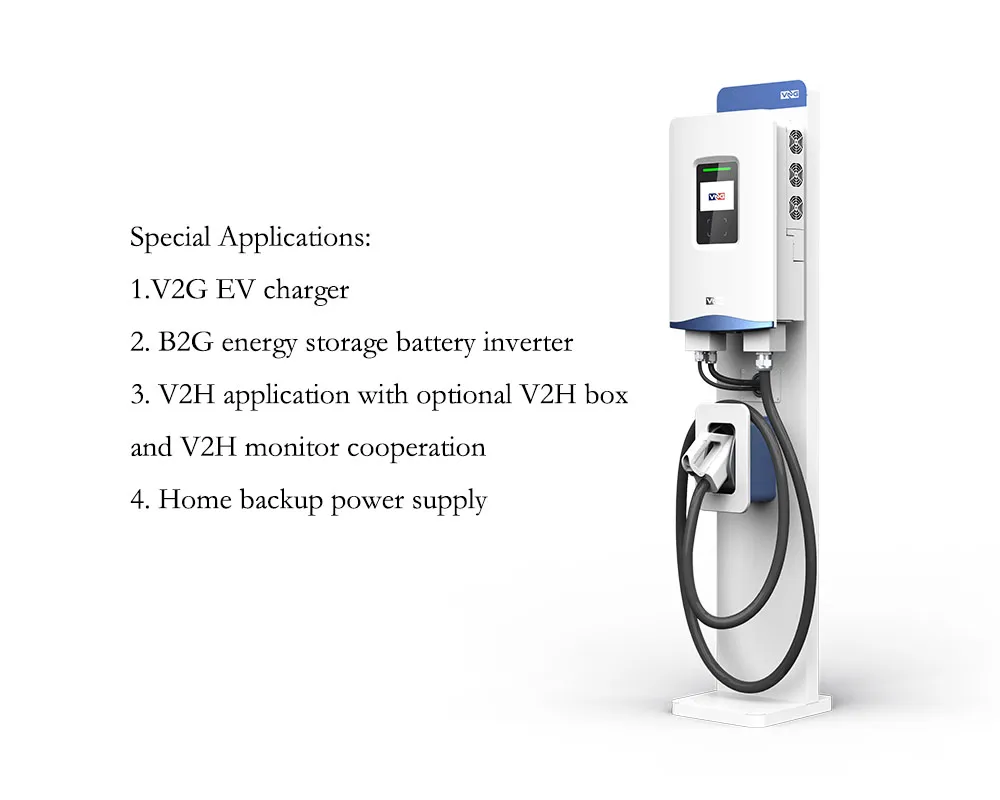

It features a robust stand column design (with optional wall mounting), IP65 protection, and a 5" TFT LCD touch screen. With a DC output power capacity of 7kW and a wide voltage range from 200Vdc to 750Vdc, it provides efficient and flexible fast-charging solutions.
| Parameter Item | Specifications |
|---|---|
| Charging Mode AC Input | 100Vac~264Vac, L+N+PE, 32A, power factor > 0.98 |
| Charging Mode DC Output | 7kW, 200Vdc~750Vdc, 0~23A, Efficiency > 95% |
| V2G Mode DC Output | 7kW/32A, 50Hz/60Hz, Efficiency > 95% |
| B2G Wallbox Converter | 200~750V (Battery Side), 100Vac~264Vac (AC Side) |
| Charging Standard | CCS, GBT, CHAdeMO |
| Certification | EMC Class B, TUV CE and UL |
| Dimension & Weight | 450mm*320mm*200mm / < 30kg |
