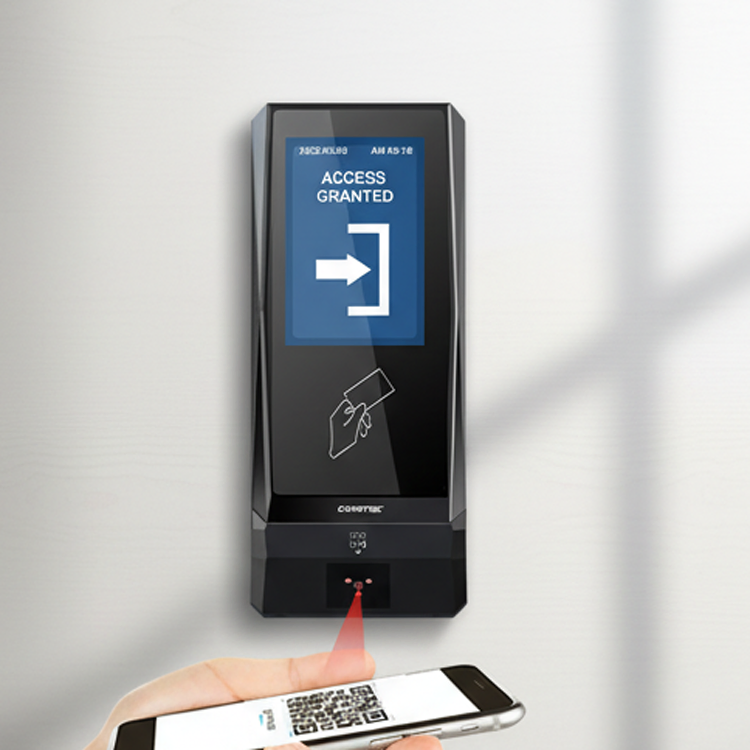

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal equipped with wireless 4G and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server software communication, featuring embedded relays to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phones.
| Display | 3.5" capacitive touch screen |
| QR code | QR Code, Micro QR code, PDF417, Code 128, Code 39, and mainstream 1D/2D barcodes. |
| Mobile ID | BLE, NFC |
| RFID Smart Card | EM 125KHz, 13.56MHz Mifare® Classic, Plus, DESFire® EV1/EV2, NFC tags, HID Prox, iCLASS® series. |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2. |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, exit button. |
| Capacity | 10,000 users / 50,000 logs |
| IP Protection | IP65 outdoor/indoor use, UV-resistance |

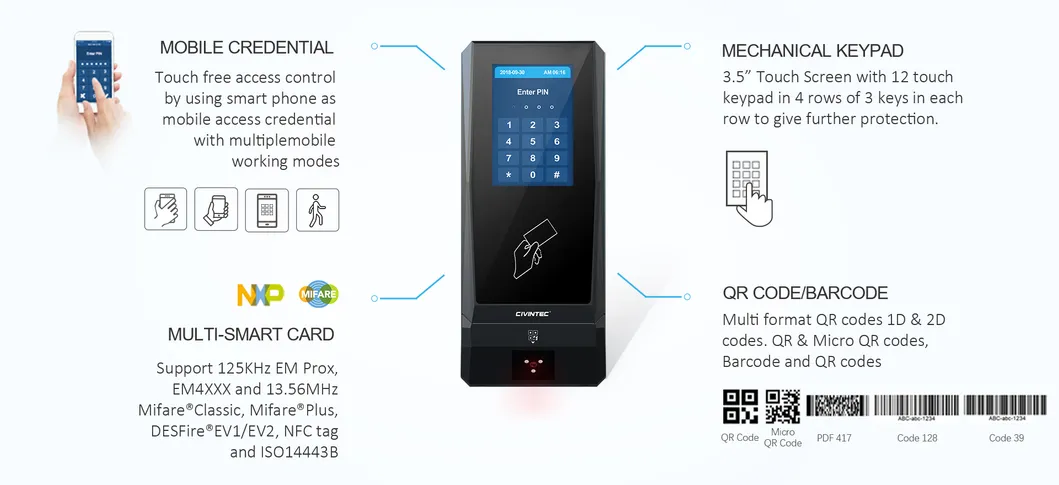

CT9 Pro incorporates 5-in-1 multiple access technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning for comprehensive visitor management.

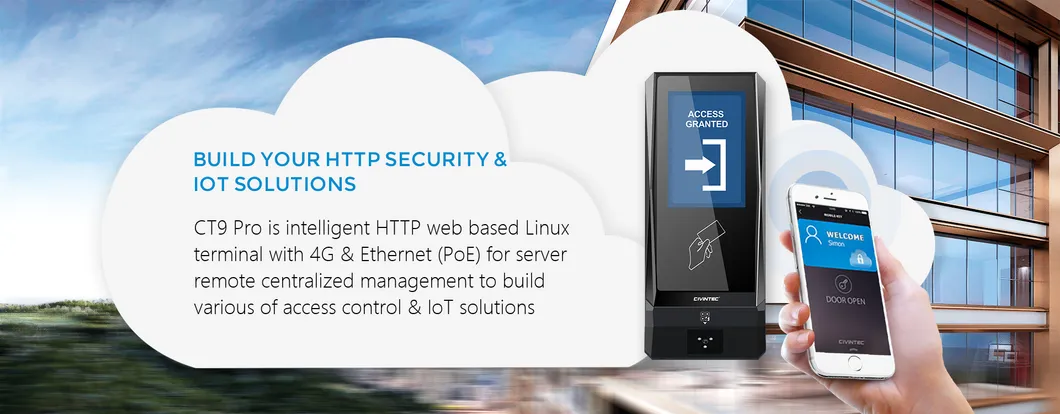

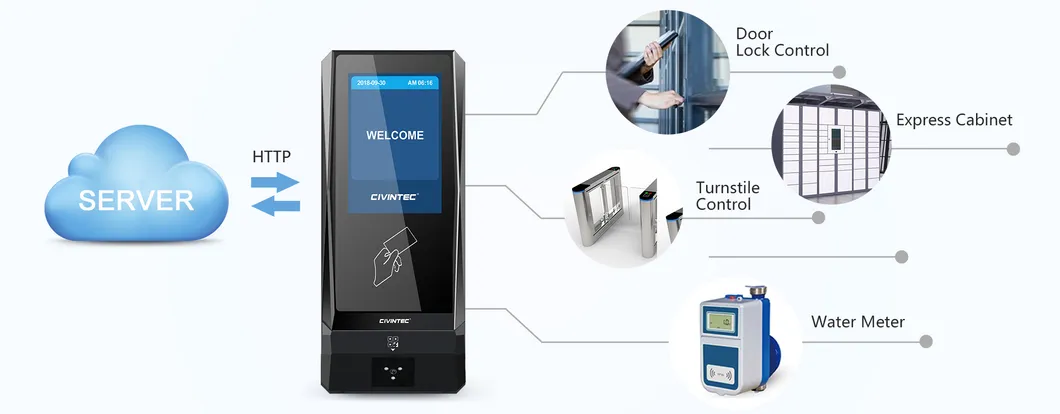

Bi-directional communication via standard HTTP & HTTPs between CT9 Pro and the server allows for remote control of door locks and various IoT facility management tasks.

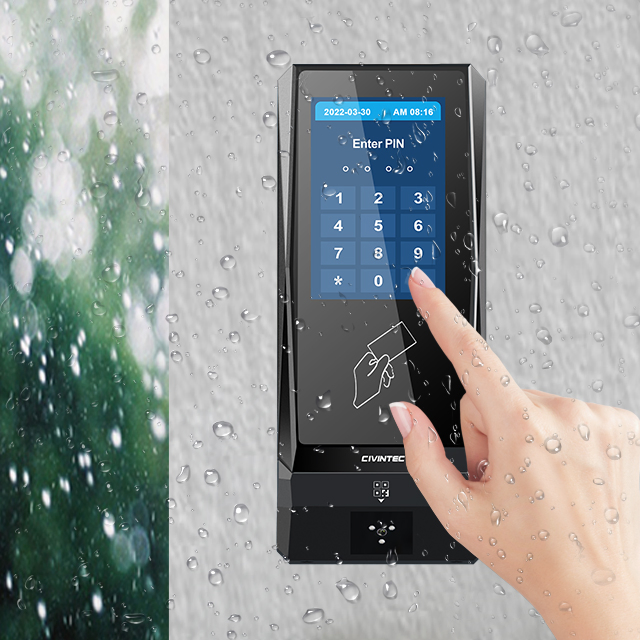

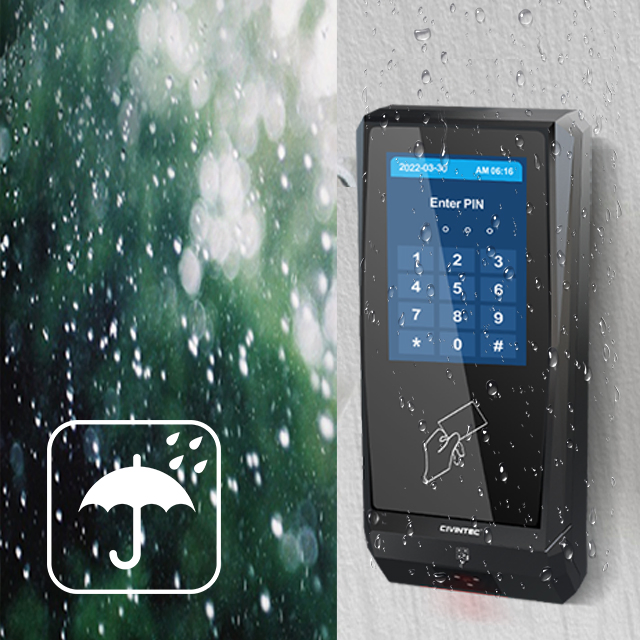

With an IP65 rating, CT9 PRO is resistant to rain, dust, and strong sunlight. It is ideal for outdoor use and low-temperature environments.
As a leading designer and manufacturer of access control devices, we offer ODM customization on hardware, reader housing, firmware, and software design services.

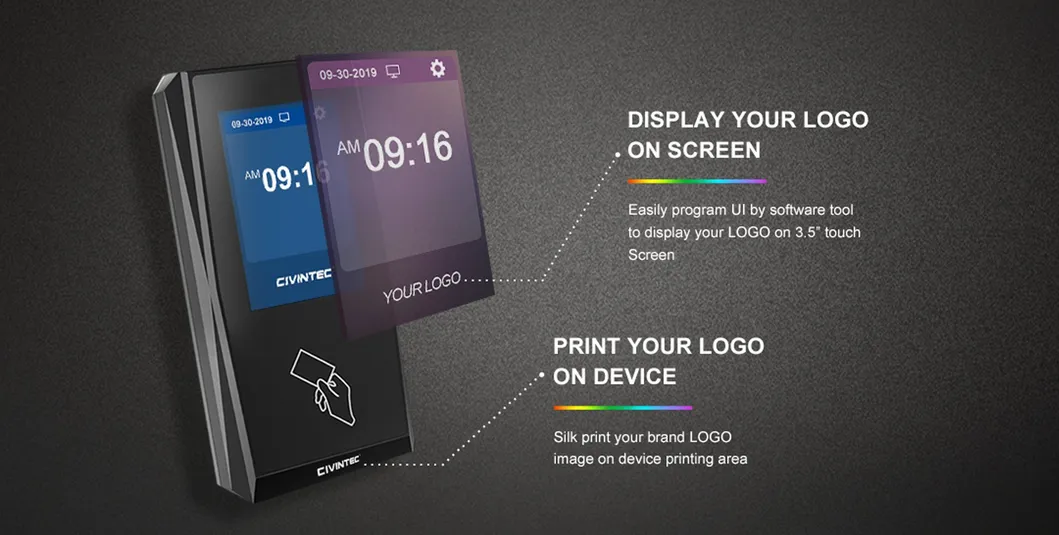

Users can program and display their own LOGO on the 3.5" touch screen. We also offer OEM LOGO printing on the reader body.
