Ap Controller Industrial Gateway Support Smart Qos, Internet Behavior Management, Network Firewall, VPN, SD-LAN, Ipv6, Vlan, Remote Access Control

📊 Basic Information

Model NO.

KS-AC500

Transfer Rate

10/100/1000Mbps

Ports

6

Application

Enterprise

Network

DHCP/Static IP/Pppoe

CPU

Intel@ Baytrail J1800 2.4GHz

User Capacity

Max 1000 Users

AP Management

Max 500PCS Wireless AP

VPN Support

L2TP, PPTP, OpenVPN, IPsec

Architecture

Single Bus CPU

📝 Product Description

Industrial Gateway & AP Controller

The KS-AC500 is a high-performance large-sized enterprise gateway based on the MQTT protocol, specifically designed for robust network environments.

7 Gigabit RJ45 ports with multiple WAN support and load balancing.
Integrated smart QoS, network firewall, and Internet behavior management.

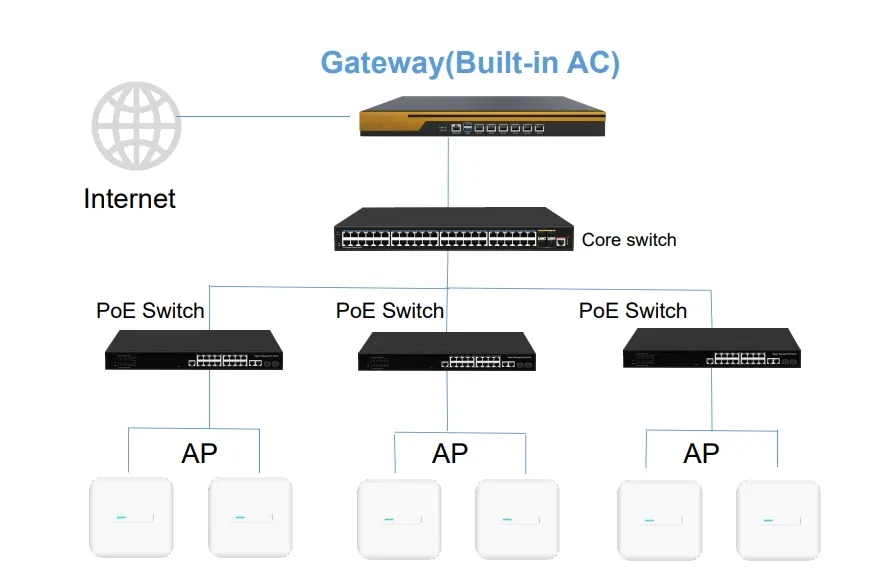

Centrally manages up to 500 wireless APs simultaneously.

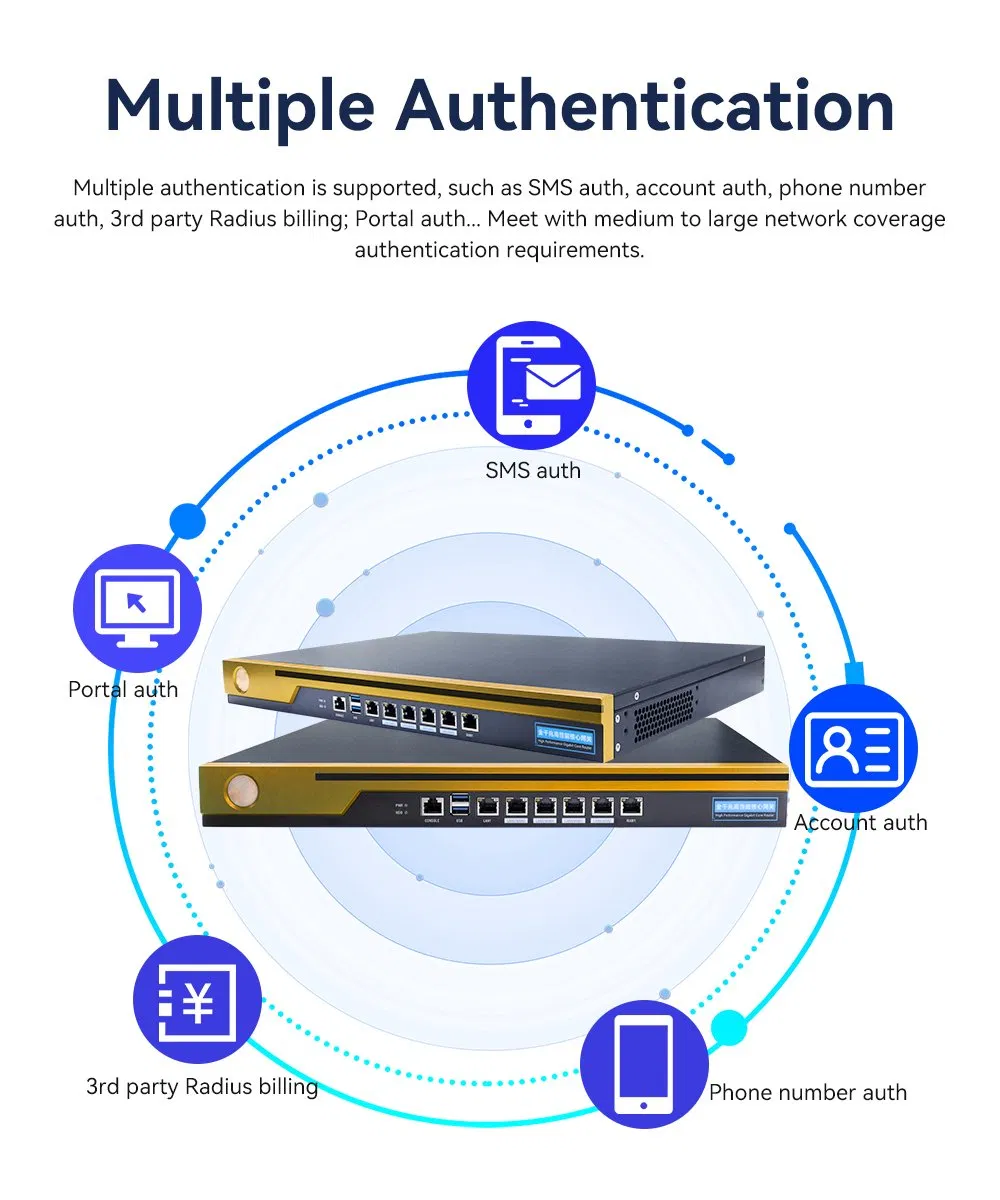

Supports SMS, Radius, Portal, and Account authentication for flexible access control.
Ideal for Enterprises, Hotels, Shopping Malls, Schools, and Hospitals.

⭐ Main Features

Industrial Strength: Strategic routing based on IP, MAC, and domain names.

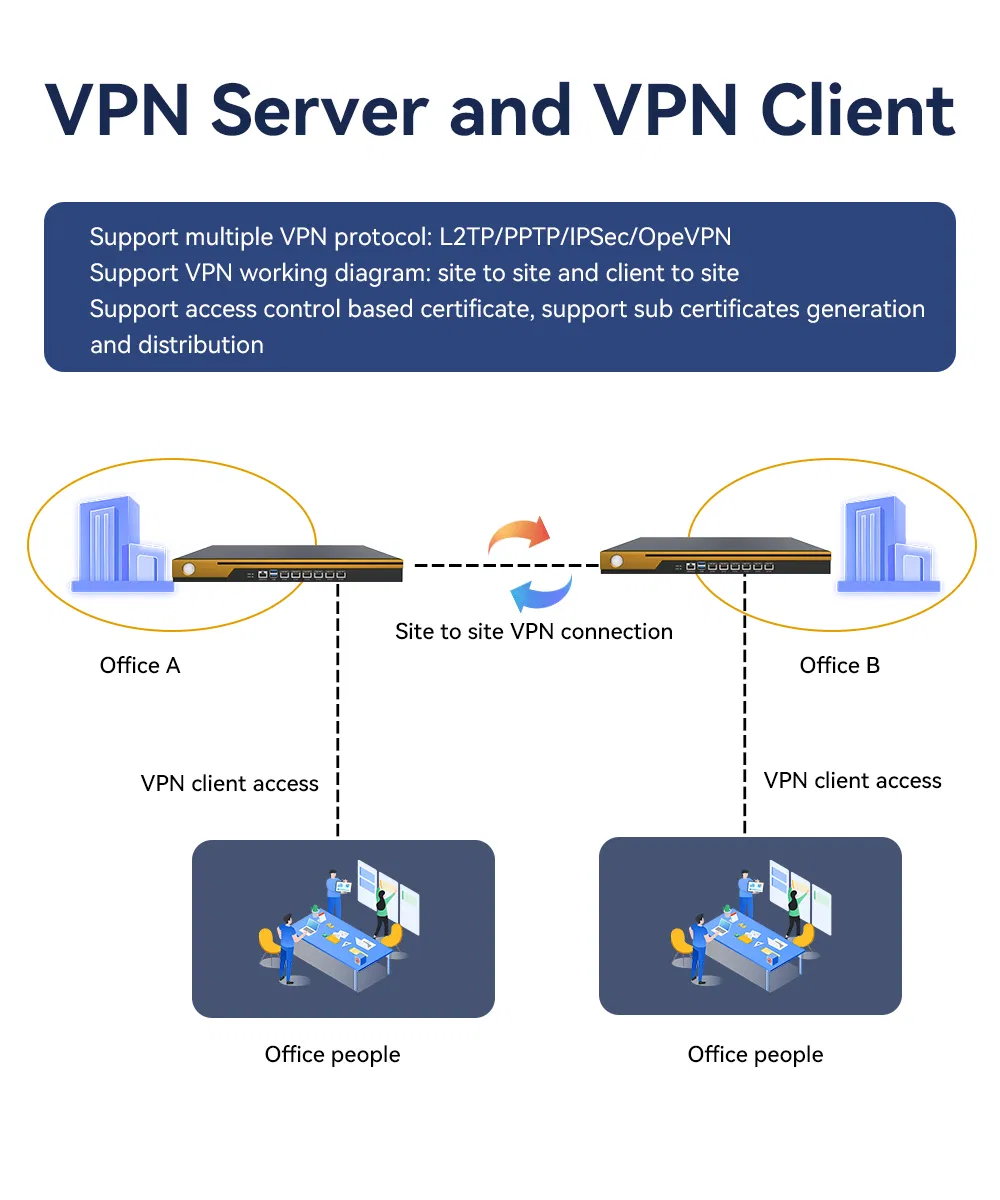

Advanced VPN: Site-to-site and client-to-site support with certificate management.

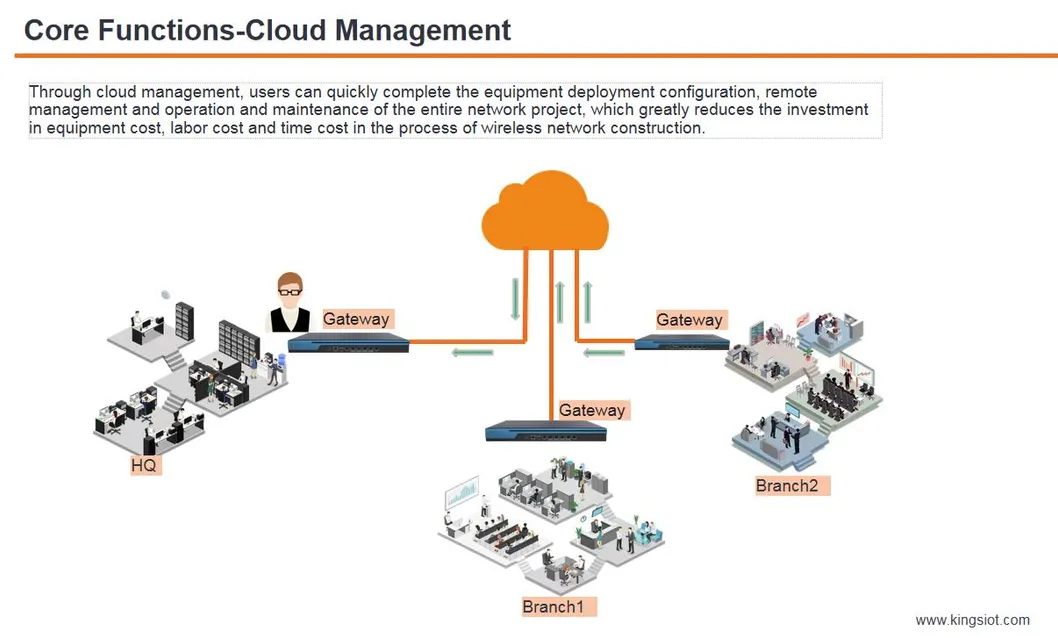

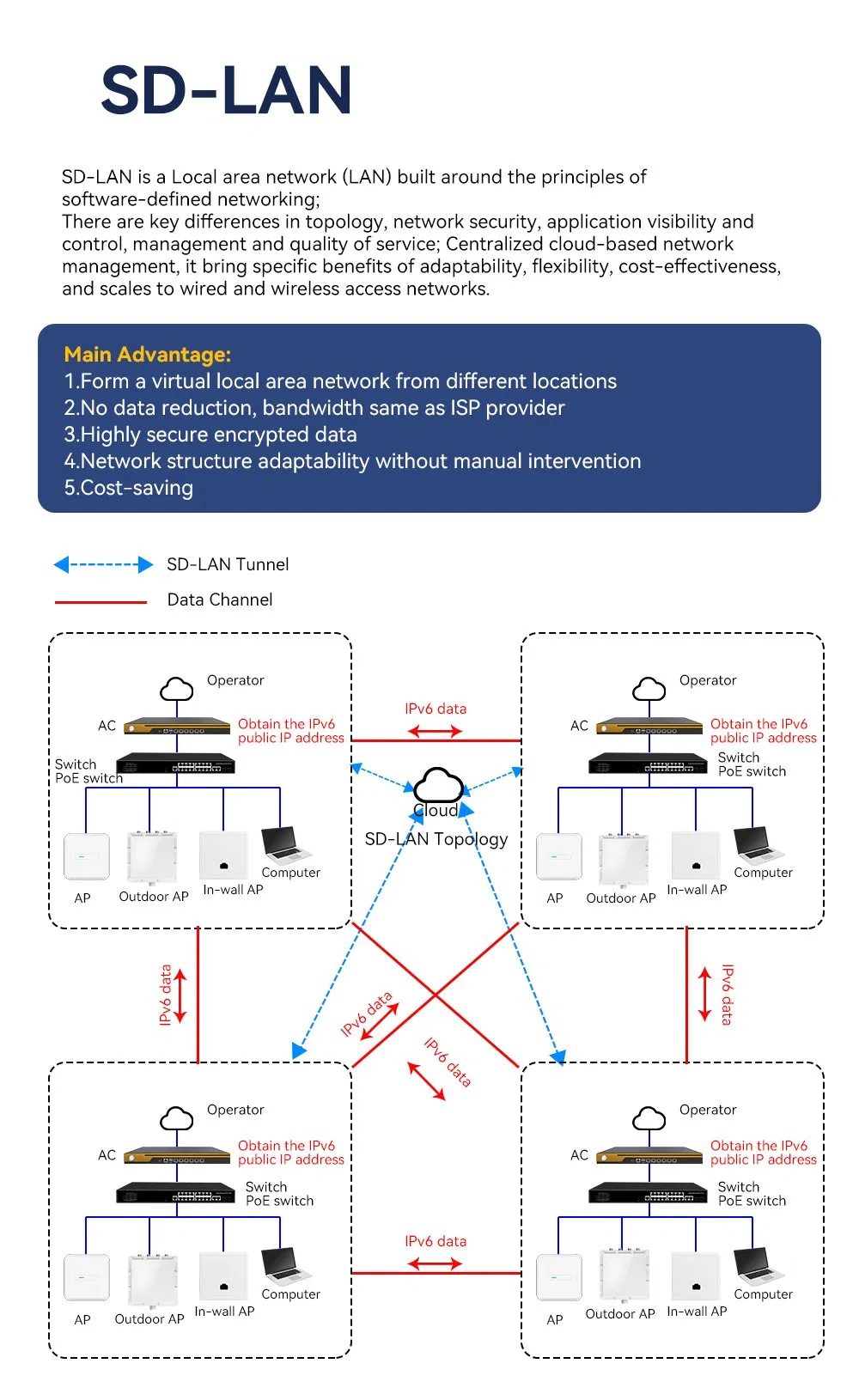

SD-LAN & Cloud: Centralized cloud-based management for adaptability and scalability.

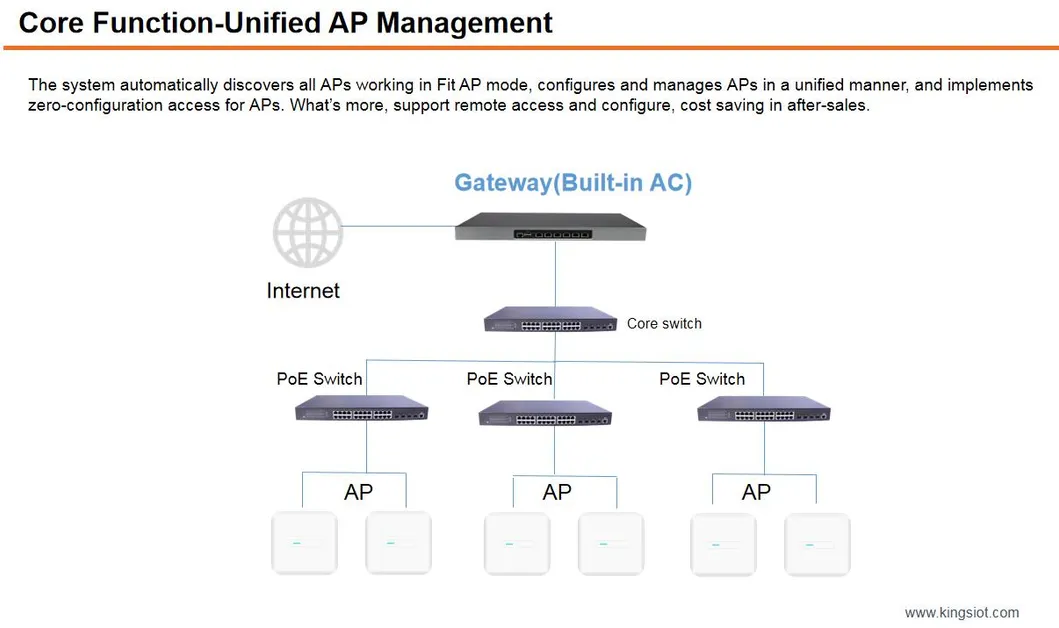

Smart Management: Zero-configuration grouping and intelligent channel analyzer to minimize interference.
Seamless Roaming: Support for 802.11kvr, VLAN tagging, and IPv6.

🖼️ Detailed Photos

⚙️ Technical Parameters

Platform & Hardware
CPU	Intel® Baytrail J1800 2.4GHz
BIOS	SPI AMI EFI BIOS
Memory (Flash)	DDR3 1333/1600 (Default 2GB, Up to 8GB)
Network Interface	6 x GbE RJ45 Ports (Intel®I211AT)
Serial Port	1 x RJ45 Serial port (Cisco compatible)
Storage Options	SSD (M-SATA 8GB Default), SATAIII 2.5", CF Card, DOM
I/O & Physical
USB	2 x USB 2.0 Port
Indicators	Power (Green), Status (Orange), Bypass (Yellow)
Power Supply	Internal Open Type, AC 90V-264V
Consumption	75W
Dimensions	430(L) × 300(W) × 44(H)mm
Working Temp	0ºC - 50ºC

📦 Packaging & After-Sales

Carton Details: 51.5 * 42.5 * 30cm (5 PCS per CTN)

Gross Weight: 15.2 KGS per CTN

🛡️ After Sales Service: 2 Years Warranty

❓ Frequently Asked Questions

How many Access Points can the KS-AC500 manage?

The KS-AC500 is capable of centrally configuring and managing up to 500 wireless APs simultaneously.

What VPN protocols are supported by this industrial gateway?

It supports a wide range of VPN protocols, including L2TP, PPTP, OpenVPN, and IPsec, for both site-to-site and client-to-site connections.

Does the gateway support load balancing?

Yes, it features multiple Gigabit WAN ports with support for load balancing, Ethernet backup, and network overlay for a more stable connection.

What is the maximum number of end users that can access the network?

The KS-AC500 supports a maximum of 1000 end users for Ethernet access, ensuring high-speed network performance.

Does it provide remote management features?

Yes, it supports cloud access for remote management and SD-LAN functions, allowing administrators to monitor and maintain the network from anywhere.

What kind of authentication methods are available?

It supports multiple authentication methods such as SMS authentication, Radius billing, Portal authentication, and Account authentication.
