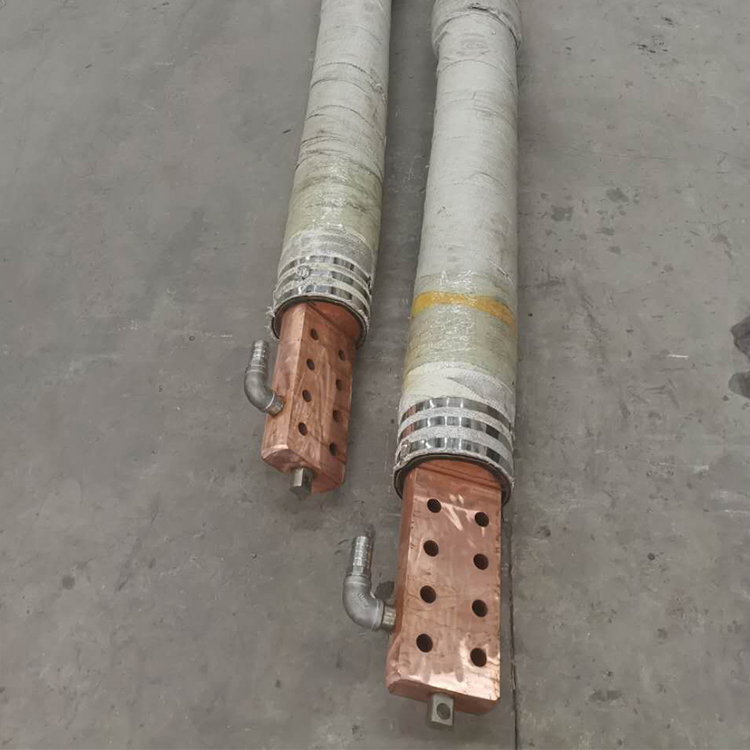

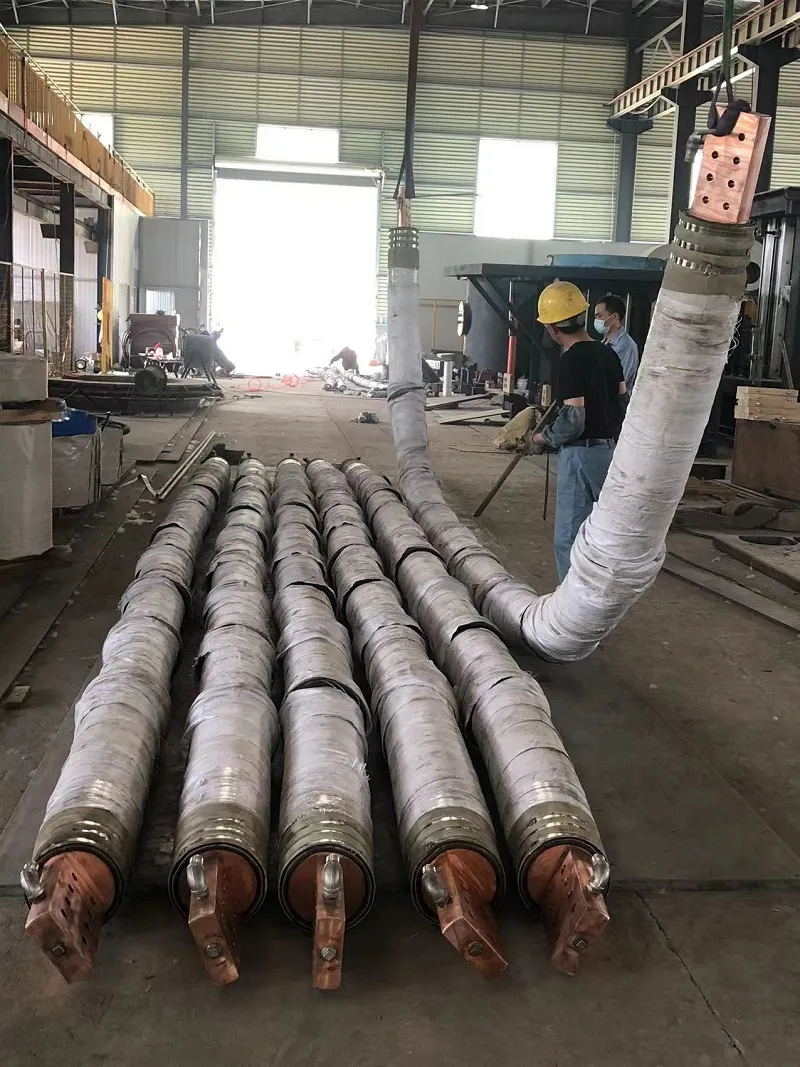

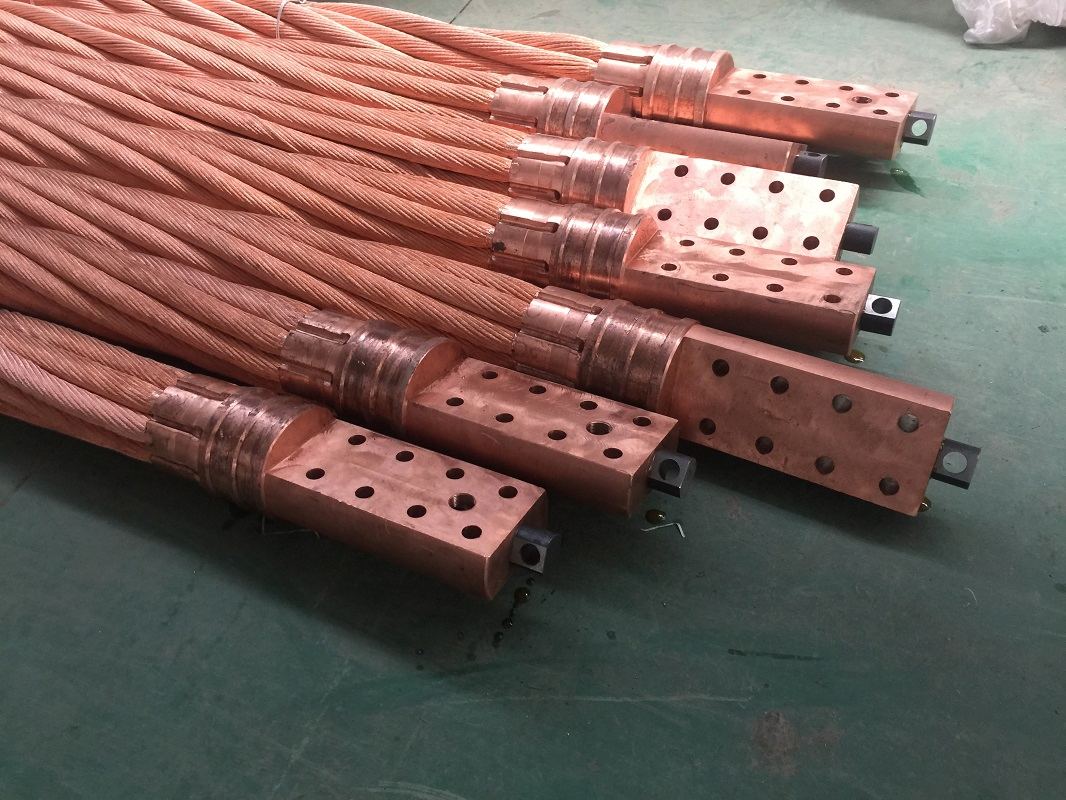

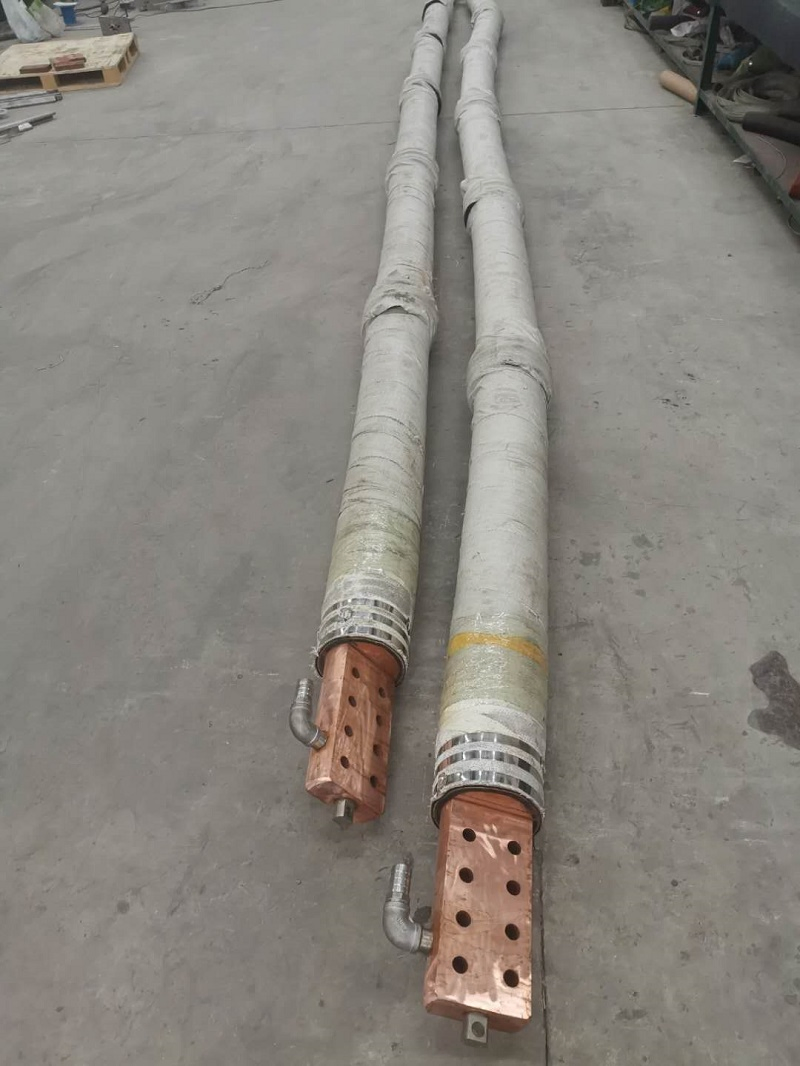

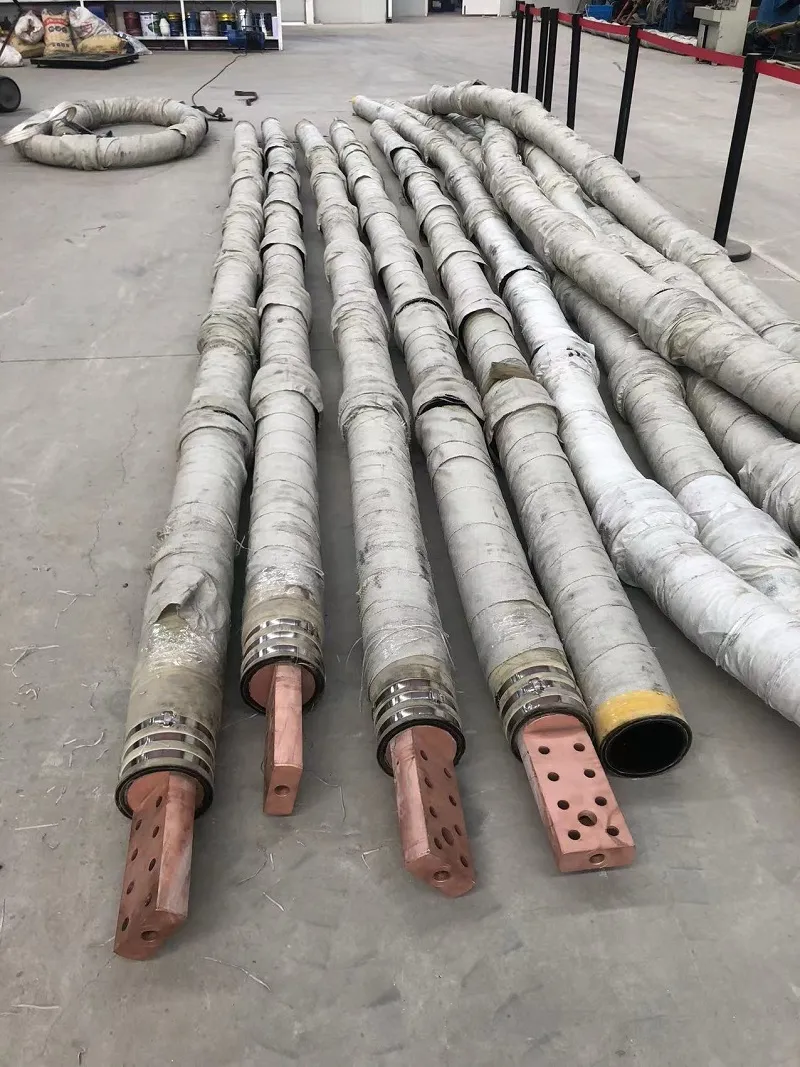

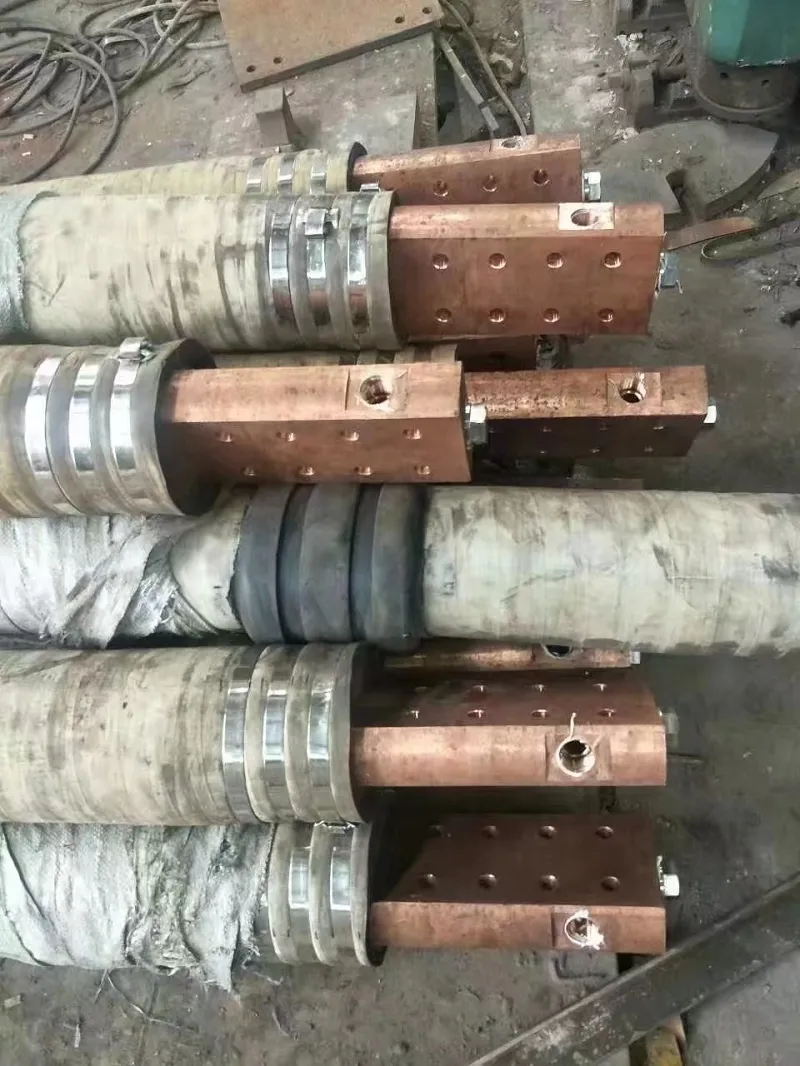

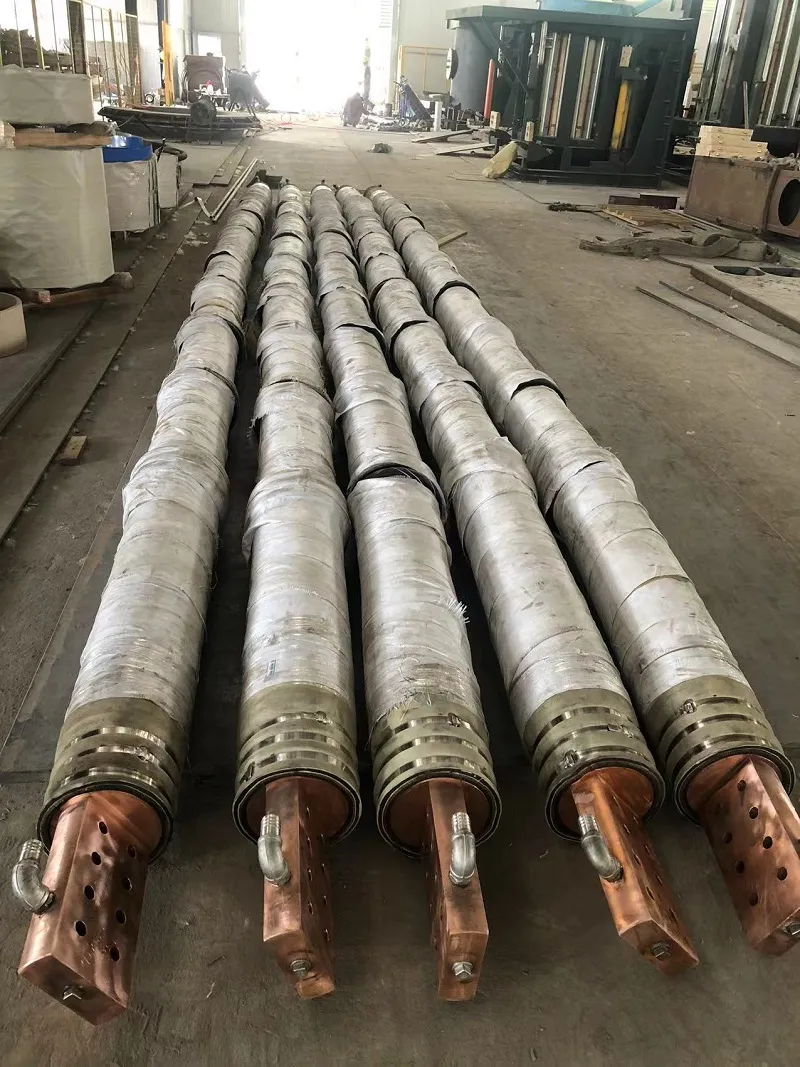

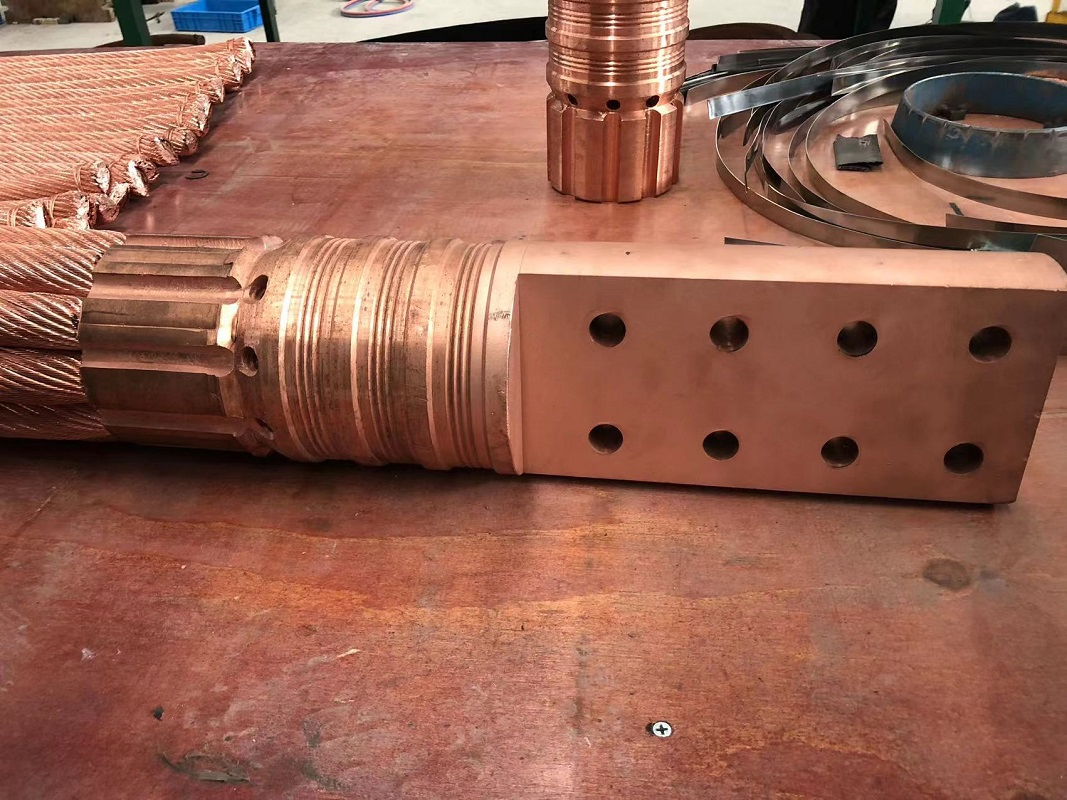

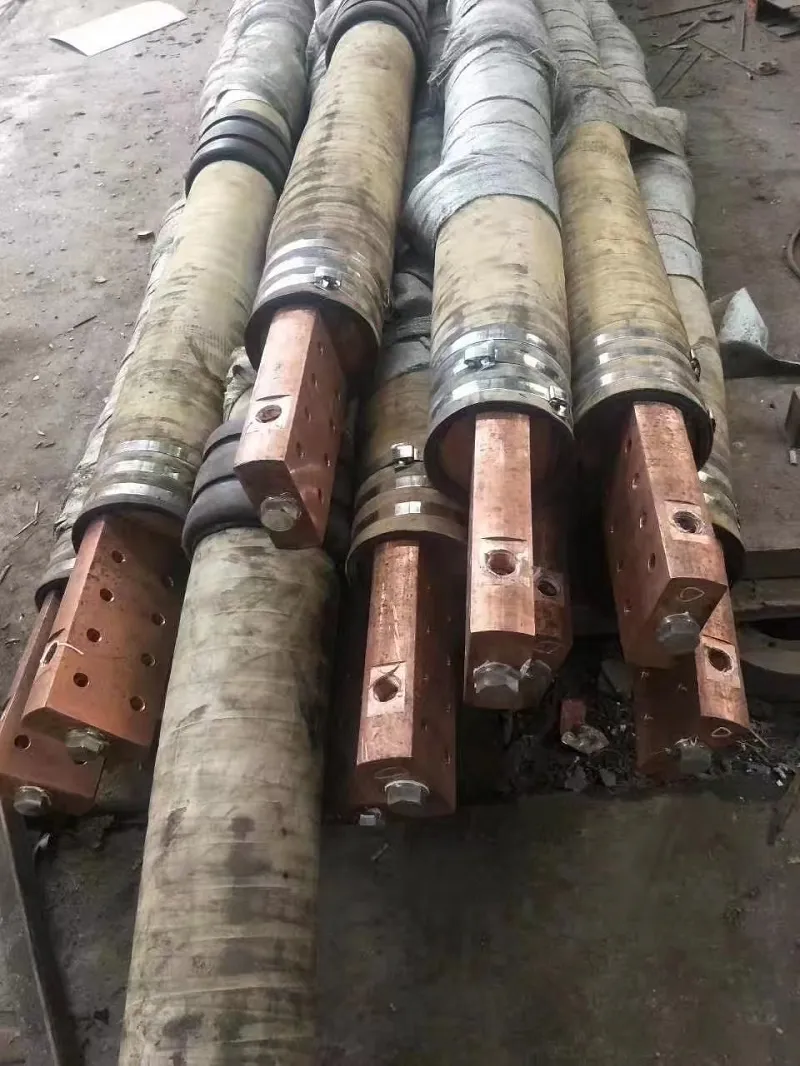

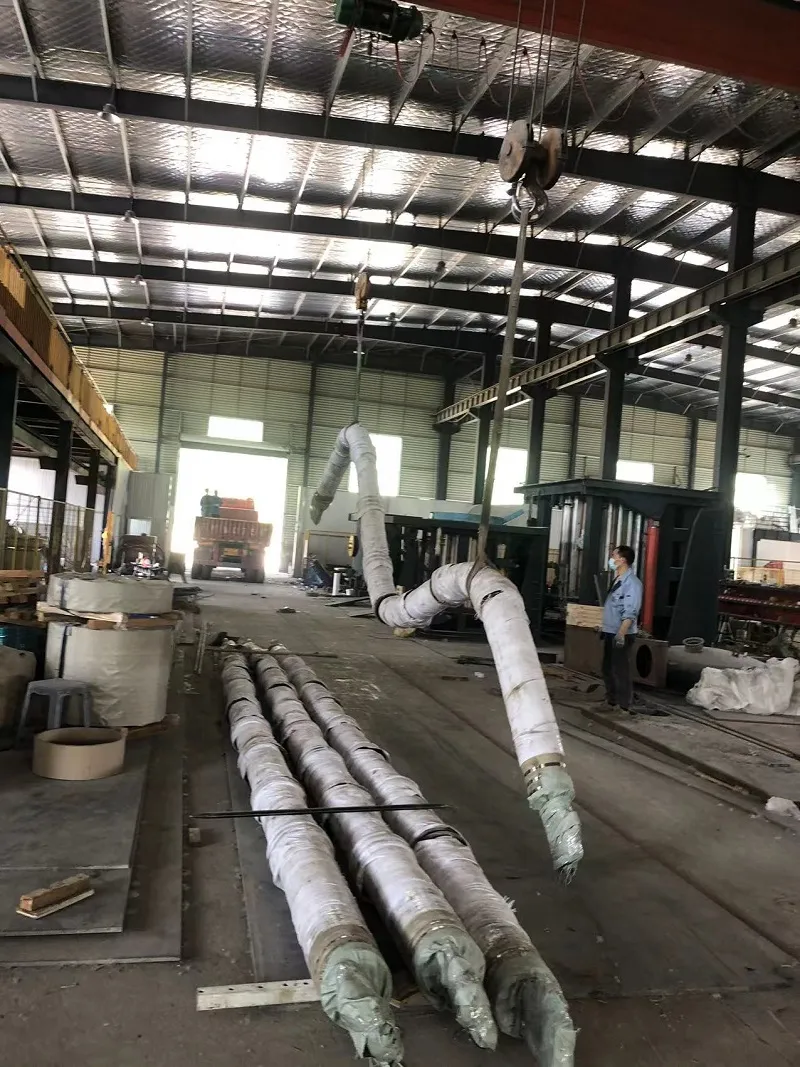

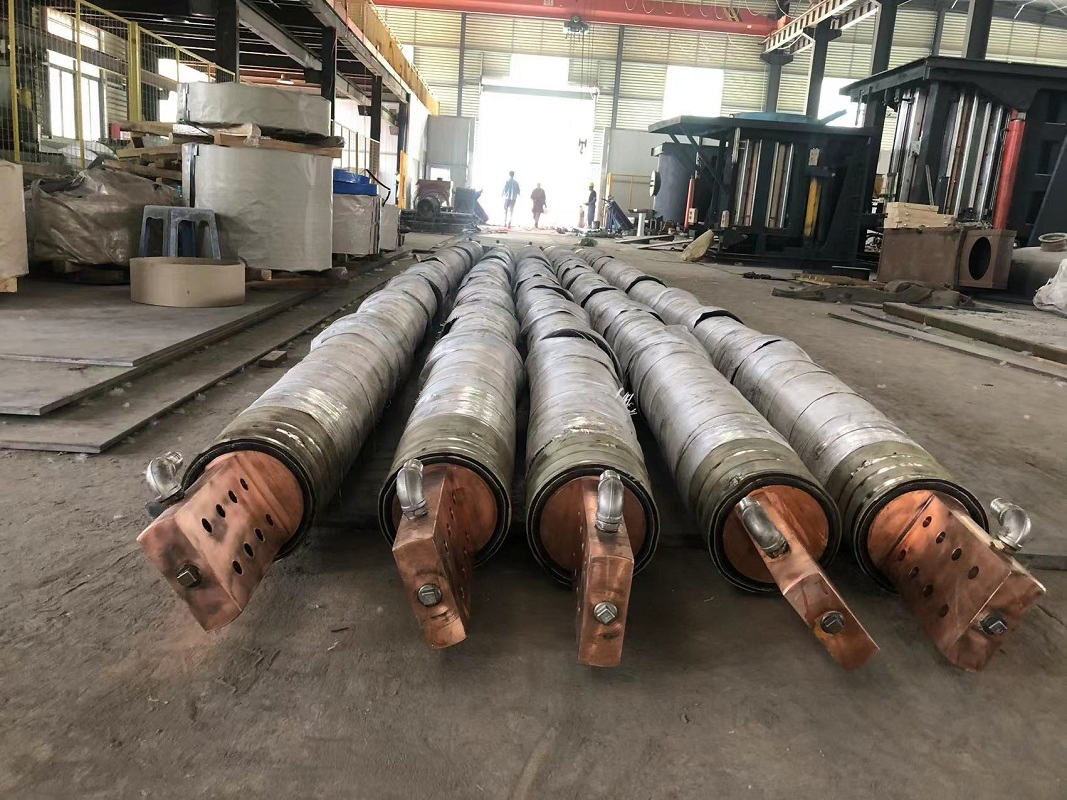

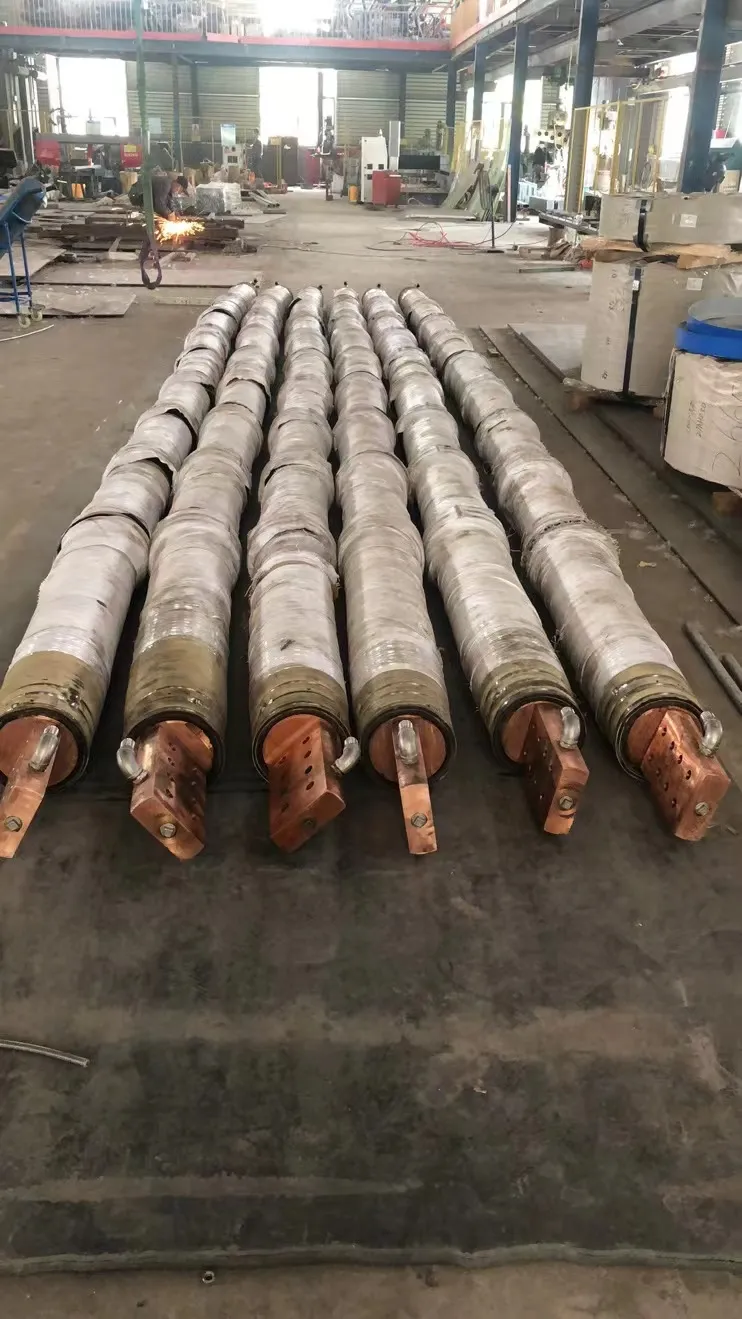

High-current Series Water Cooling Cable
The high-current series water cooling cables are mainly used in steelmaking electric arc furnaces, ladle furnaces, and induction furnaces, as well as submerged arc furnaces. The large-section water-cooled cable is used for the connection between the short network and the electric cross arm, transmits large current, and meets the movement requirements of the lift and rotation of the cross arm.
| Model | Effective cross-sectional area (mm²) | GMR (mm) | Shape and installation size (mm) | Min bending radius (mm) | Economic interception (A) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | b | m | n1 | s | n2×d | k | t | R | C | φD | φW | ΦV | |||||
| WCCB1200 | 1200 | 20 | 69 | 125 | 42.5 | 2 | 20 | 6×14 | 40 | 40 | G1/2″ | 35 | 135 | 95 | 76 | 350 | 4500±20% |
| WCCB1600 | 1600 | 25 | 85 | 175 | 50.0 | 2 | 40 | 6×14 | 50 | 65 | G3/4″ | 35 | 150 | 114 | 92 | 400 | 6000±20% |
| WCCB2000 | 2000 | 29 | 85 | 175 | 50.0 | 2 | 30 | 6×16 | 50 | 55 | G3/4″ | 35 | 165 | 114 | 92 | 415 | 7500±20% |
| WCCB2400 | 2400 | 34 | 98 | 200 | 60.0 | 2 | 40 | 6×16 | 60 | 70 | G1″ | 40 | 170 | 135 | 106 | 430 | 9000±20% |
| WCCB2800 | 2800 | 35 | 97 | 210 | 50.0 | 3 | 30 | 8×16 | 60 | 55 | G1″ | 50 | 185 | 145 | 109 | 480 | 10500±20% |
| WCCB3200 | 3200 | 44 | 120 | 210 | 50.0 | 3 | 30 | 8×16 | 65 | 55 | G1″ | 50 | 190 | 152 | 130 | 525 | 12000±20% |
| WCCB3600 | 3600 | 50 | 120 | 210 | 50.0 | 3 | 30 | 8×16 | 65 | 55 | G1″ | 50 | 220 | 178 | 130 | 580 | 13500±20% |
| WCCB4000 | 4000 | 56 | 136 | 300 | 63.5 | 3 | 50.5 | 8×18 | 76 | 83 | G1″ | 50 | 220 | 178 | 145 | 650 | 15000±20% |
| WCCB4400 | 4400 | 61 | 146 | 300 | 63.5 | 3 | 50.5 | 8×18 | 76 | 83 | G1″ | 50 | 230 | 188 | 155 | 660 | 16500±20% |
| WCCB4800 | 4800 | 65 | 146 | 300 | 63.5 | 3 | 50.5 | 8×18 | 76 | 83 | G1″ | 50 | 230 | 188 | 155 | 700 | 18000±20% |
| WCCB5200 | 5200 | 65 | 154 | 300 | 63.5 | 3 | 50.5 | 8×18 | 76 | 83 | G1″ | 60 | 250 | 208 | 166 | 750 | 19500±20% |
| WCCB6000 | 6000 | 70 | 178 | 300 | 63.5 | 3 | 55 | 8×22 | 85 | 87 | G1″ | 60 | 280 | 232 | 184 | 900 | 22500±20% |

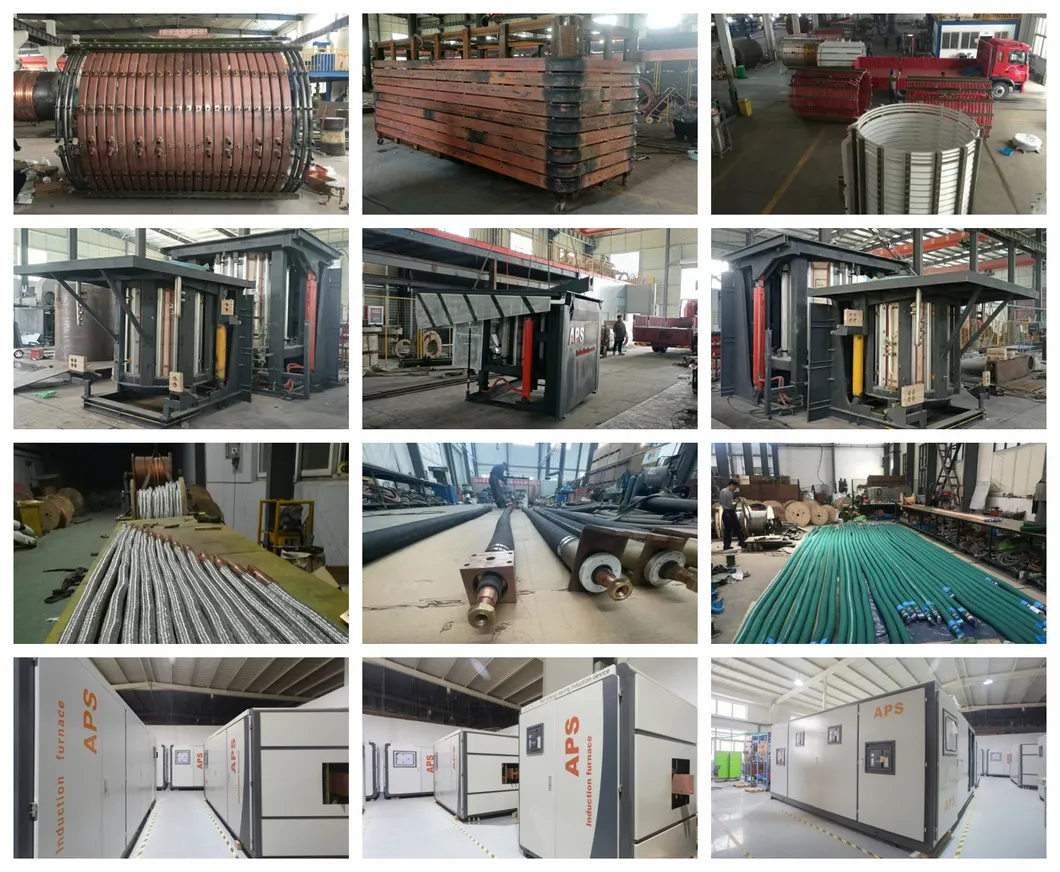

We are a professional manufacturer of intermediate frequency induction melting and heating equipment. Our production lines include induction furnace accessories such as induction coils, yokes, water-cooled cables, reactors, and main control boards.
As an industrial equipment manufacturer with independent research and development capabilities, we are committed to seeking a balance between performance and price in continuous innovation to ensure cost-effective production solutions for every application.
