Bidirectional AC/DC 22kw 1000VDC Power Module for V2g V2h V2X EV Charger

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.

BEG1K075G

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

Credit Card, Mobile Remote, RFID

Charge Method

Quick Charge

Output Voltage

150VDC~1000VDC

Efficiency

≥ 96%

Certification

CE, EMC Class B

Warranty

24 Months

Product Description

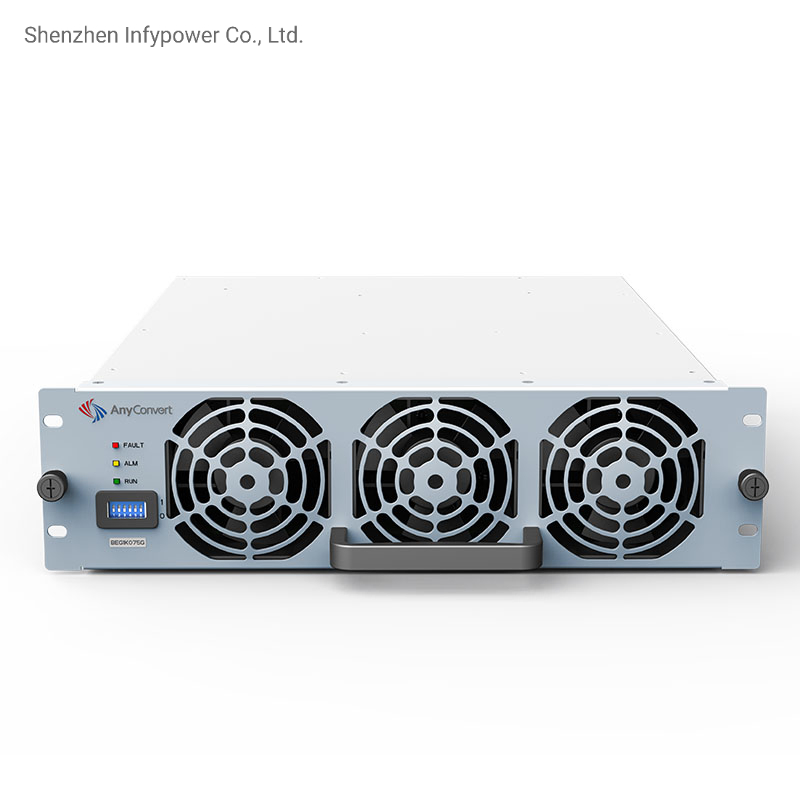

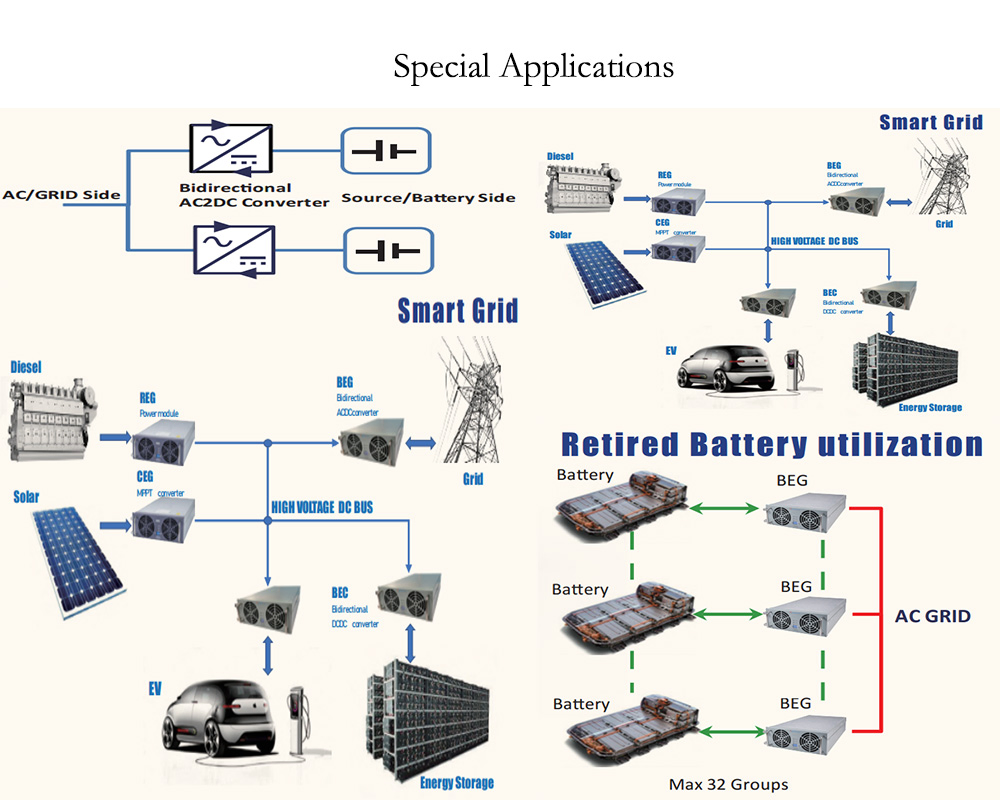

The BEG1K075G is a high-performance BIDIRECTIONAL EV charging power module, specifically designed for connecting batteries to the AC grid. It enables a maximum DC output power of 22kW and covers a wide voltage range from 150Vdc to 1000Vdc. This module is the core component for high-power fast charging, offering exceptional stability and reliability for modern electric vehicle infrastructure.

⚙️Main Features:

Bidirectional converter with smooth power flow transition.
Wide voltage range at source side, compatible with various battery packs.
Full load efficiency above 96% with low standby consumption (< 20W).
Operating temperature from -40ºC to +75ºC.
Plug & play design with Duo CAN bus communication.
Built-in protection: Over/under voltage, short circuit, and over temperature automatic shutdown.

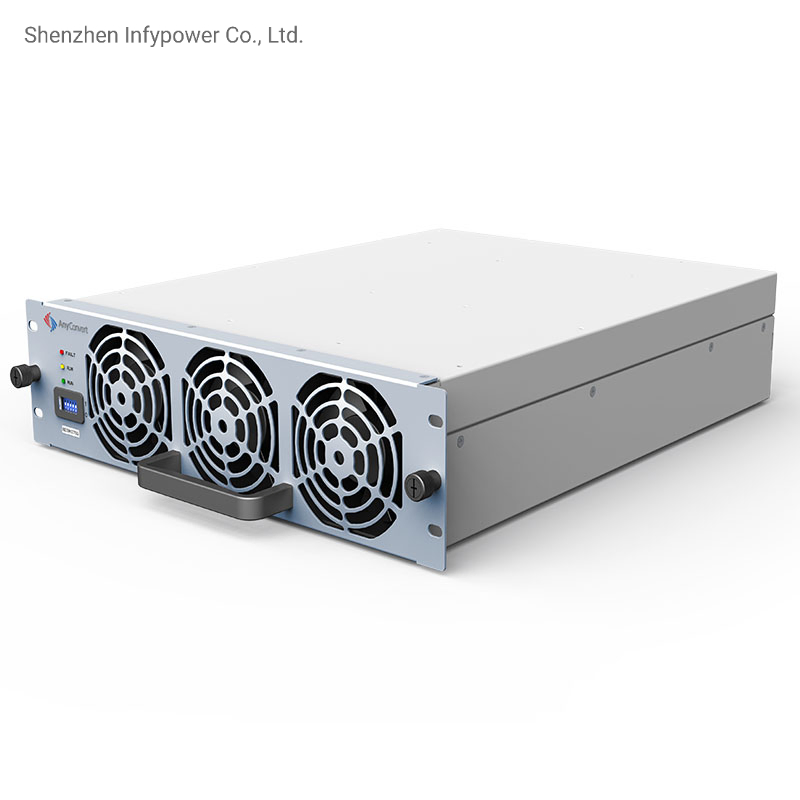

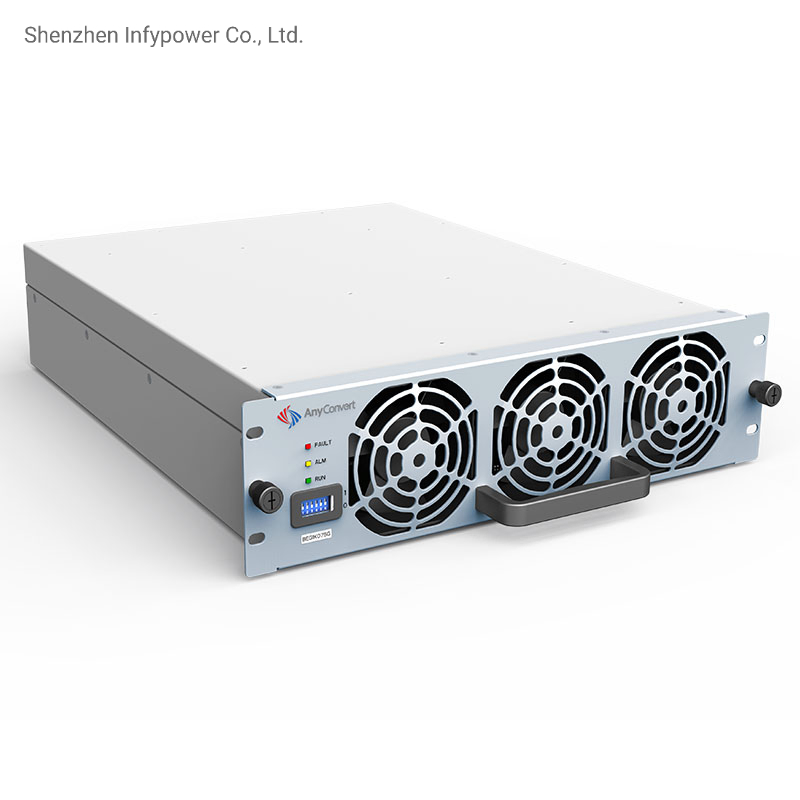

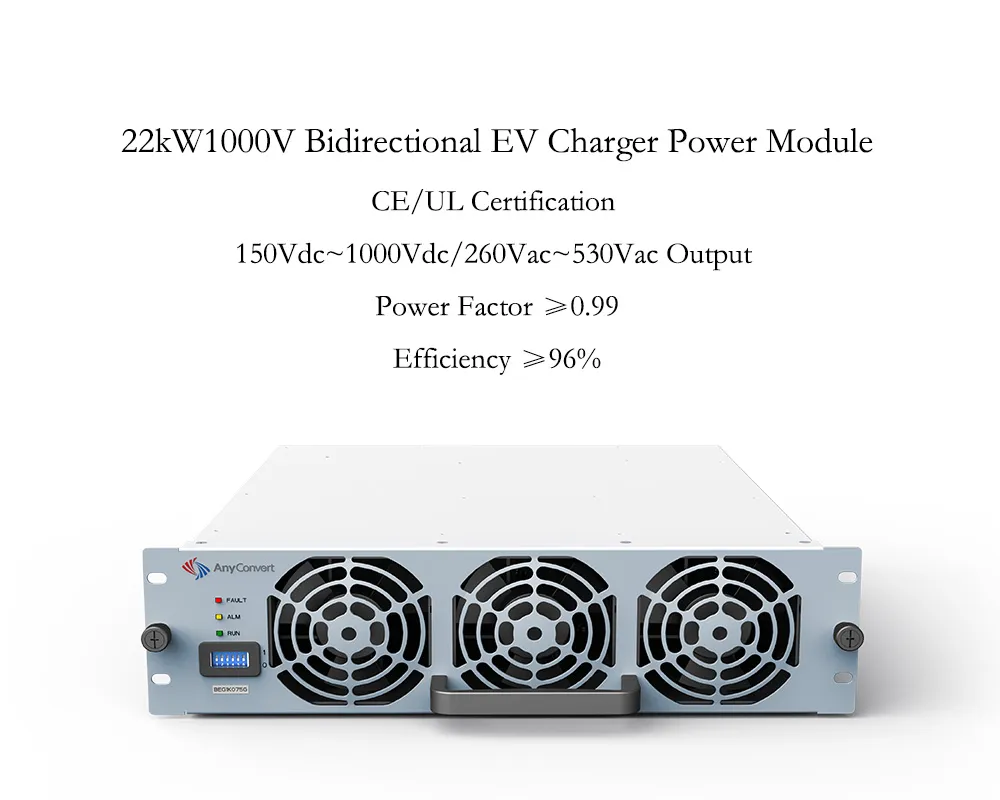

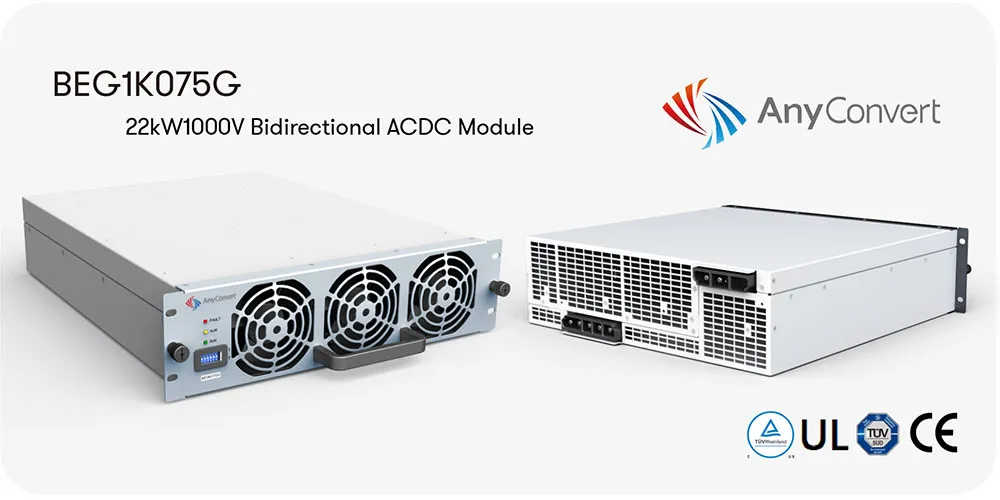

Detailed Photos

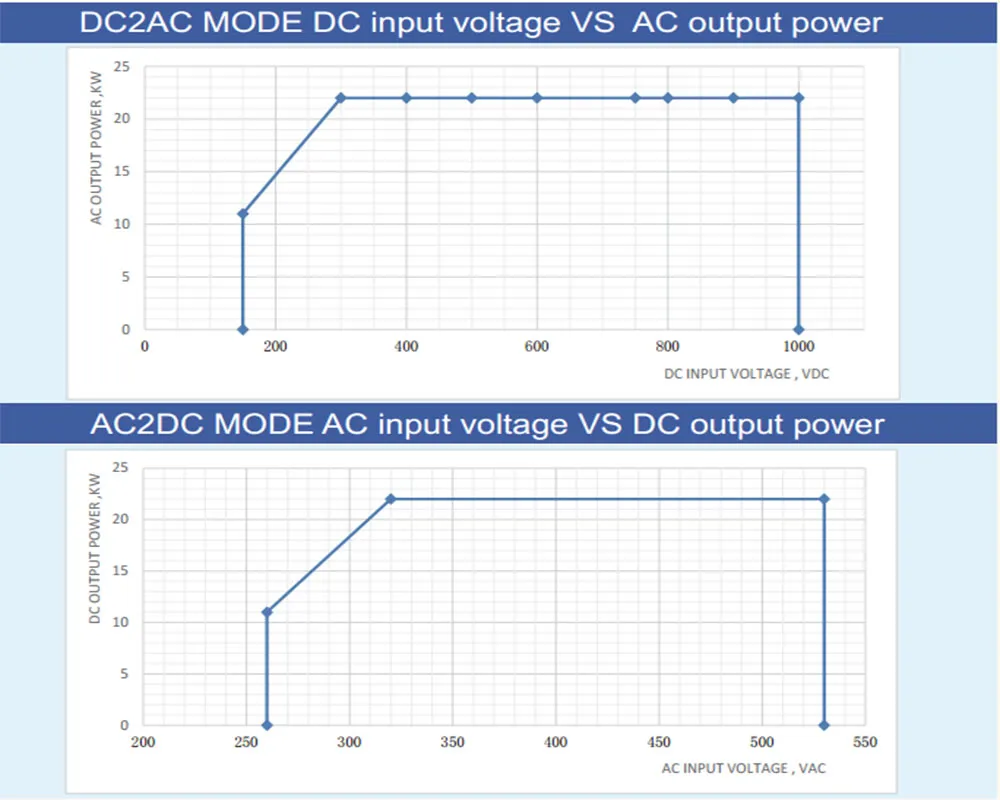

Product Parameters

Mode	Input Details	Output Details
AC to DC Mode	3L+PE, 260Vac~530Vac, PF ≥0.99	max 22kW, 150Vdc~1000Vdc, Efficiency ≥96%
DC to AC Mode	150Vdc~1000Vdc, 11kW~22kW	260Vac~530ac, 11kW~22kW, Efficiency ≥96%
Dimensions	84mm * 300mm * 395mm
Weight	≤ 17kg

Packaging & Shipping

Professional Capability

As a leading high-tech enterprise focused on power electronics and intelligent control technology, we specialize in electric vehicle charging and energy storage solutions. Our core team consists of over 70% R&D members, leading the industry with more than 150 authorized patents. We strive for a greener planet by providing high-reliability power modules and innovative system solutions.

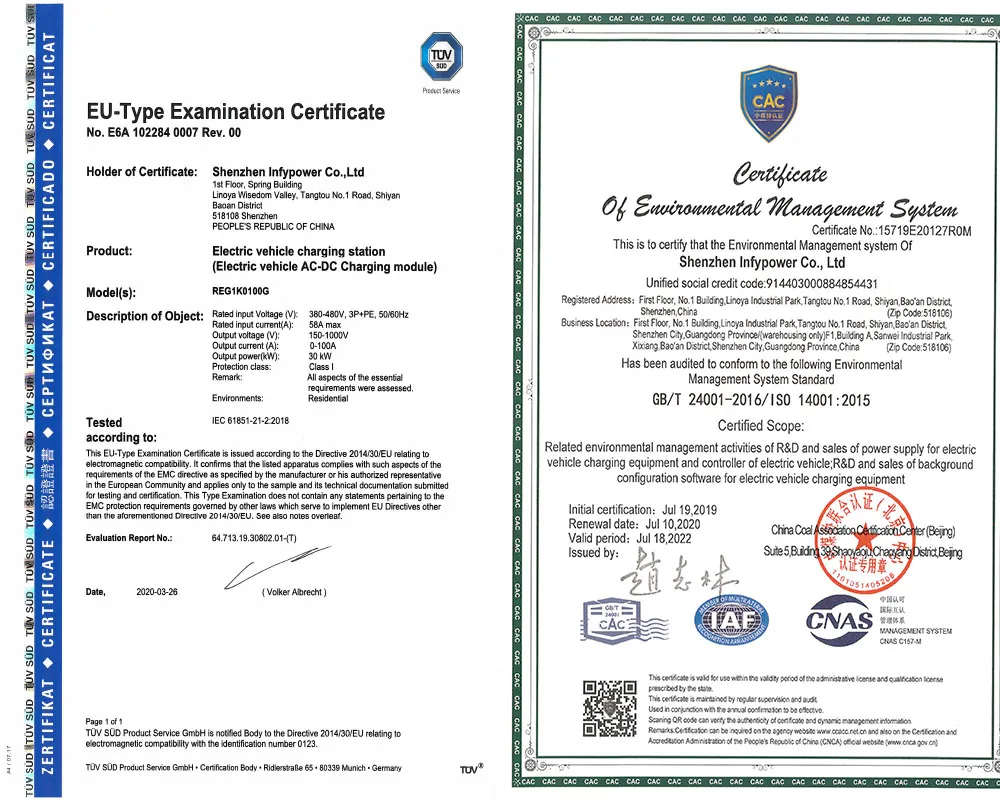

Certifications

Global Exhibitions

Frequently Asked Questions

How do you handle shipments for international orders?

For small orders, we utilize express services like FedEx, DHL, or UPS on a door-to-door basis. Large shipments are typically sent via sea or air in containers.

What is the standard delivery time?

Normally, preparation takes approximately 30 days. For high-volume or customized orders, the lead time may be extended slightly.

What are the accepted payment terms?

Our standard term is 100% T/T advance. However, terms are negotiable for long-term strategic partners.

Do you offer customized OEM/ODM services?

Yes, we provide flexible professional customized services based on your requirements. Minimum Order Quantities (MOQ) vary depending on the customization level.

What is the warranty period for the power modules?

We offer a 24-month warranty from the date of receipt under normal operating circumstances.

What certifications do your products hold?

Our modules are fully certified for global markets, including CE for Europe, UL for the United States, and KC for South Korea.
