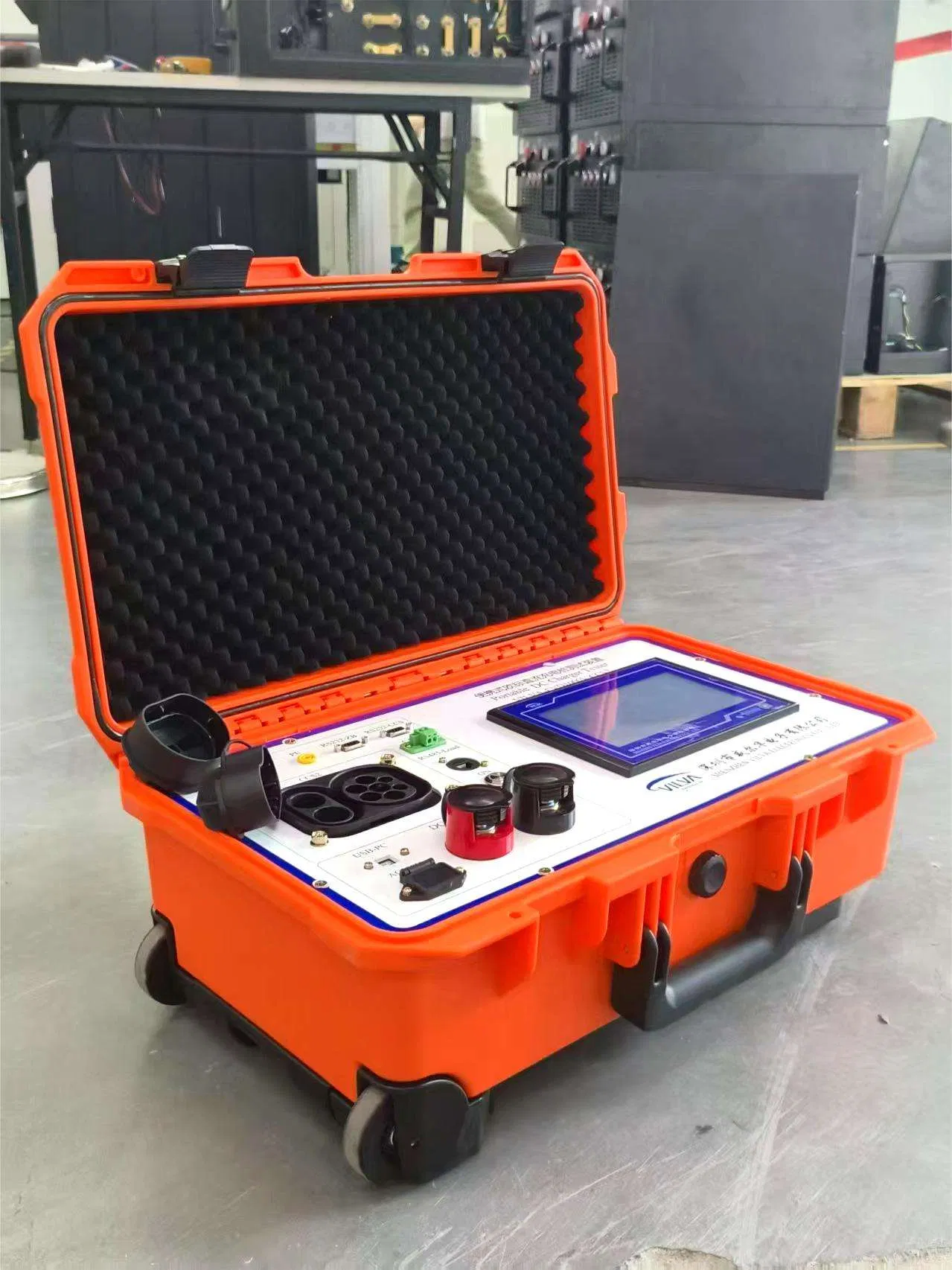

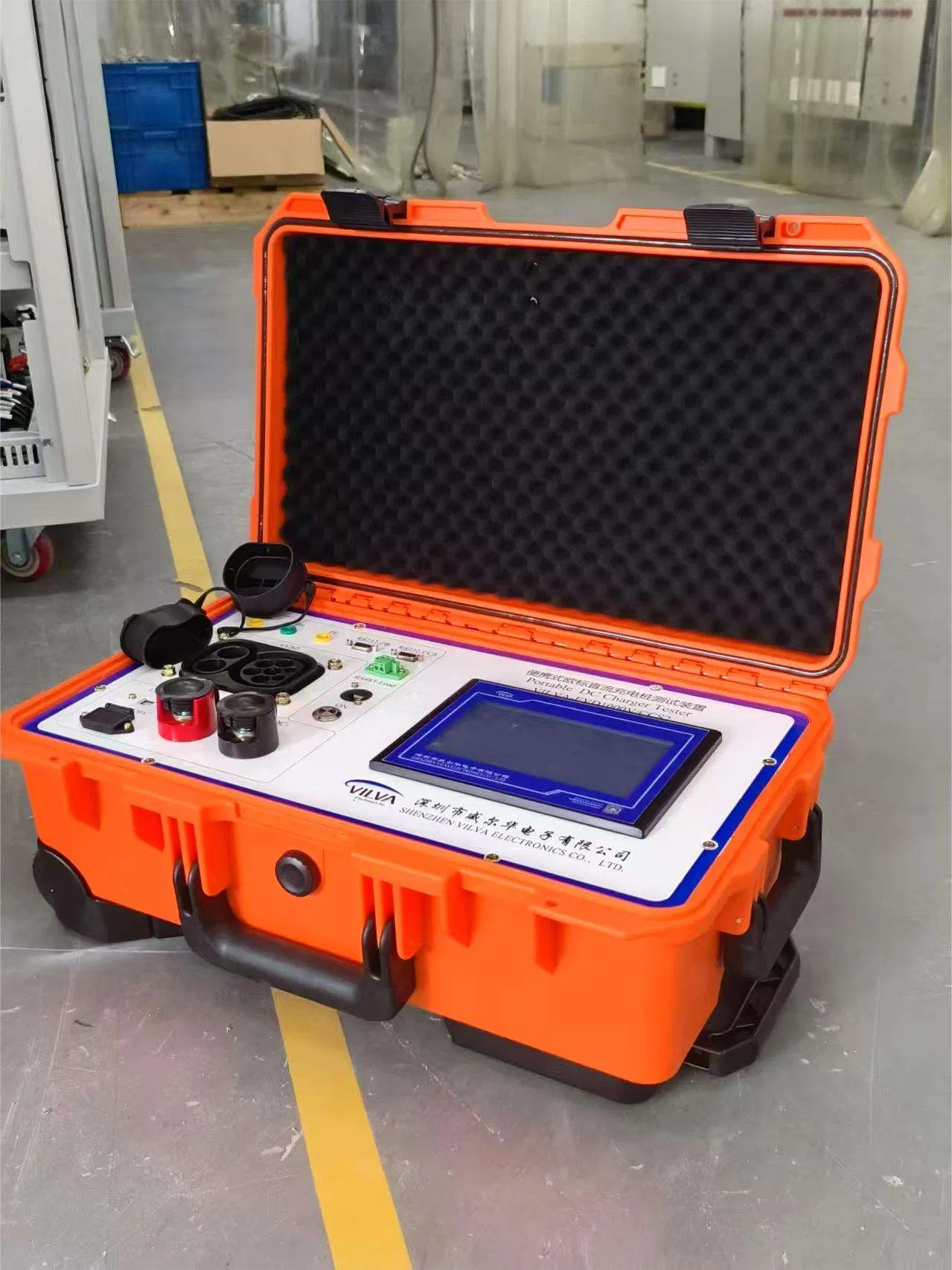

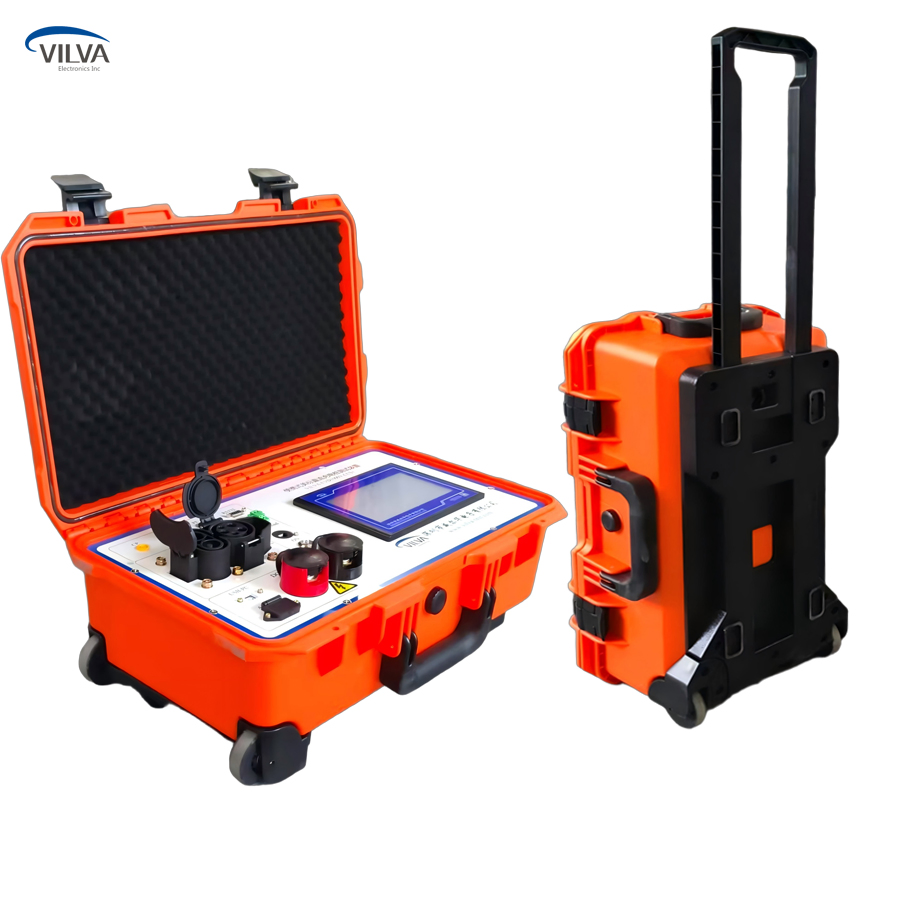

CCS2 DC EV Charger Simulator Test Deveice for Evse Charging Station

Customization:	Available
After-sales Service:	Yes
Application:	Electrical & Electronics

Basic Information

Model NO.

DC CCS2 EV Charging Tester

Protection Class

IP20

Load Accuracy

-5%~+2%

Noise Level

65db~85db

Rated Voltage

DC600V/1000V

Ambient Temp

-10°C~+50°C

Testing Data

Acquisition/Recording/Download

Dimensions

364*570*276mm

Product Description

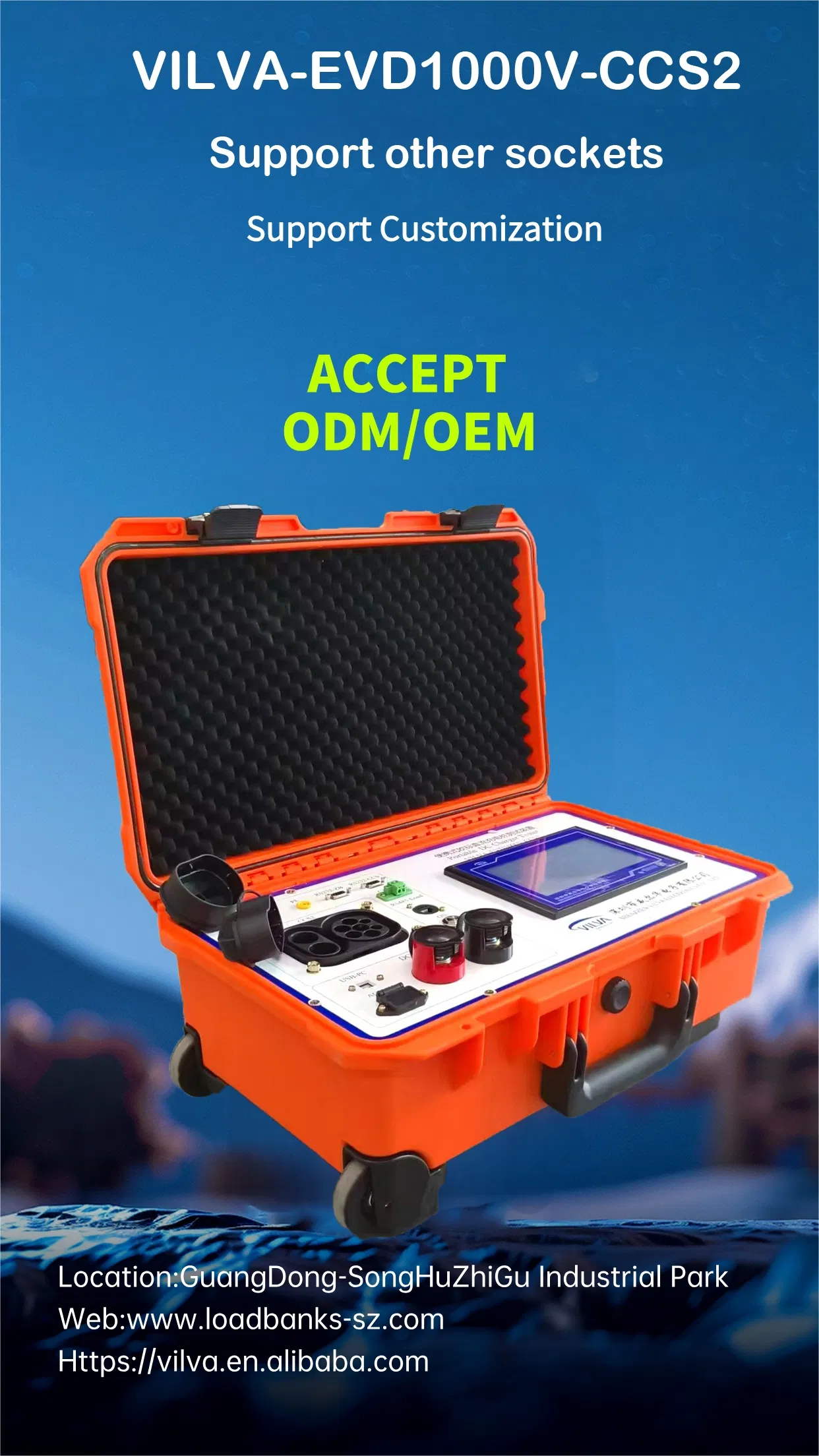

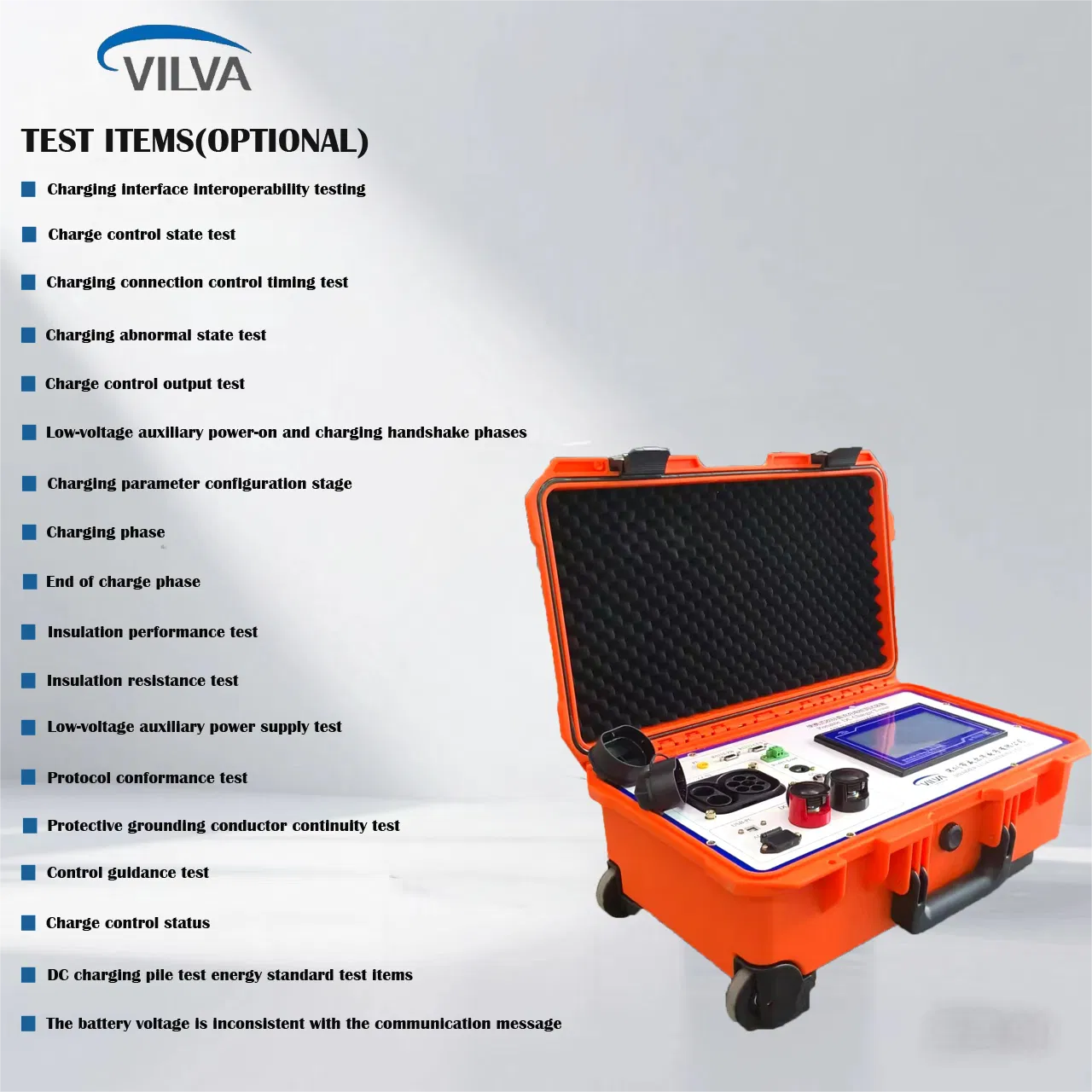

DC EV Charger Pile Tester

1. Multi-Protocol Compatibility Supports mainstream charging protocols including GB/T, CCS (EU/US), CHAdeMO, and Tesla Supercharger. Automatically identifies and matches protocols to simulate communication.

2. Precise DC Output Measurement Equipped with high-precision voltage/current sensors (≤ 0.1%) to measure DC output parameters (0–1000V, 0–500A) including steady-state, ripple, and dynamic response.

3. Charging Sequence Simulation Simulates complete EV charging process: physical connection, handshake, configuration, and start/stop to verify standard operating sequences.

4. Fault Injection Function Manual injection of common faults (communication interruptions, overvoltage, insulation failure) to test diagnosis and protection safety.

5. Energy Measurement & Efficiency Integrates a high-precision meter to calculate charging energy, power factor, and efficiency for load curve analysis.

6. Communication Protocol Analysis Decodes and monitors CAN bus or Ethernet data in real time, helping diagnose failures and verify protocol compliance.

7. Load Simulation Capability Built-in programmable DC electronic load (0–500kW) to simulate various battery capacities and charging modes (CC, CV, CP).

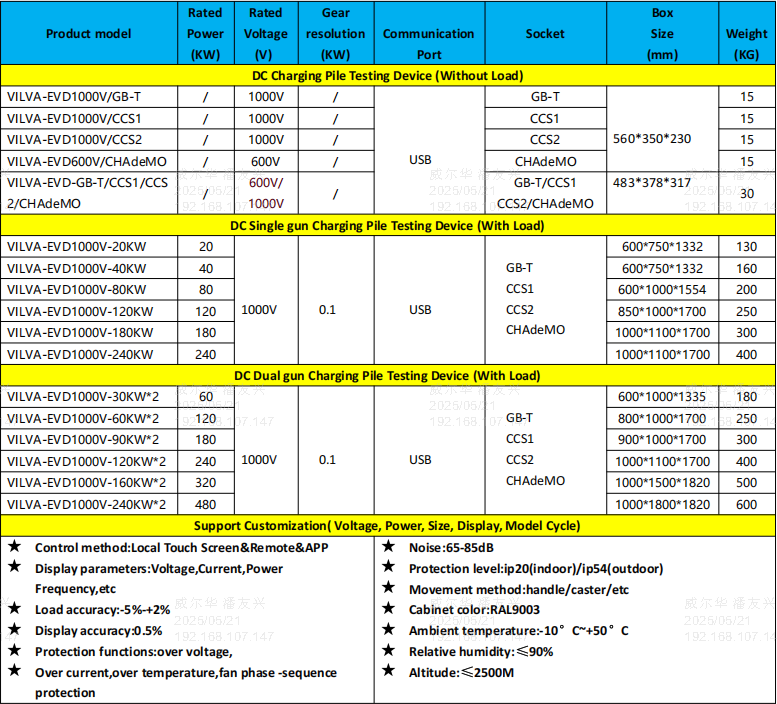

Specification Details

Protect Name	DC EV Charger Pile Simulator Tester CCS2/CCS1/GBT/ChAdeMO
Rated Voltage	DC 200V~1000V
Testing Data	Data Acquisition/Data Recording/Data Download
Test Accuracy	-5%~+2%
Sampling Accuracy	0.5 class
Protection Function	Overvoltage/ Gunseat Overtemperature/ Load Overtemperature
Working Source	Single Phase 220Vac
Work Mode	Continuous work/Auto Testing
Control Mode	Touch screen/ Upper Control
Move Mode	Portable suitcase-style design

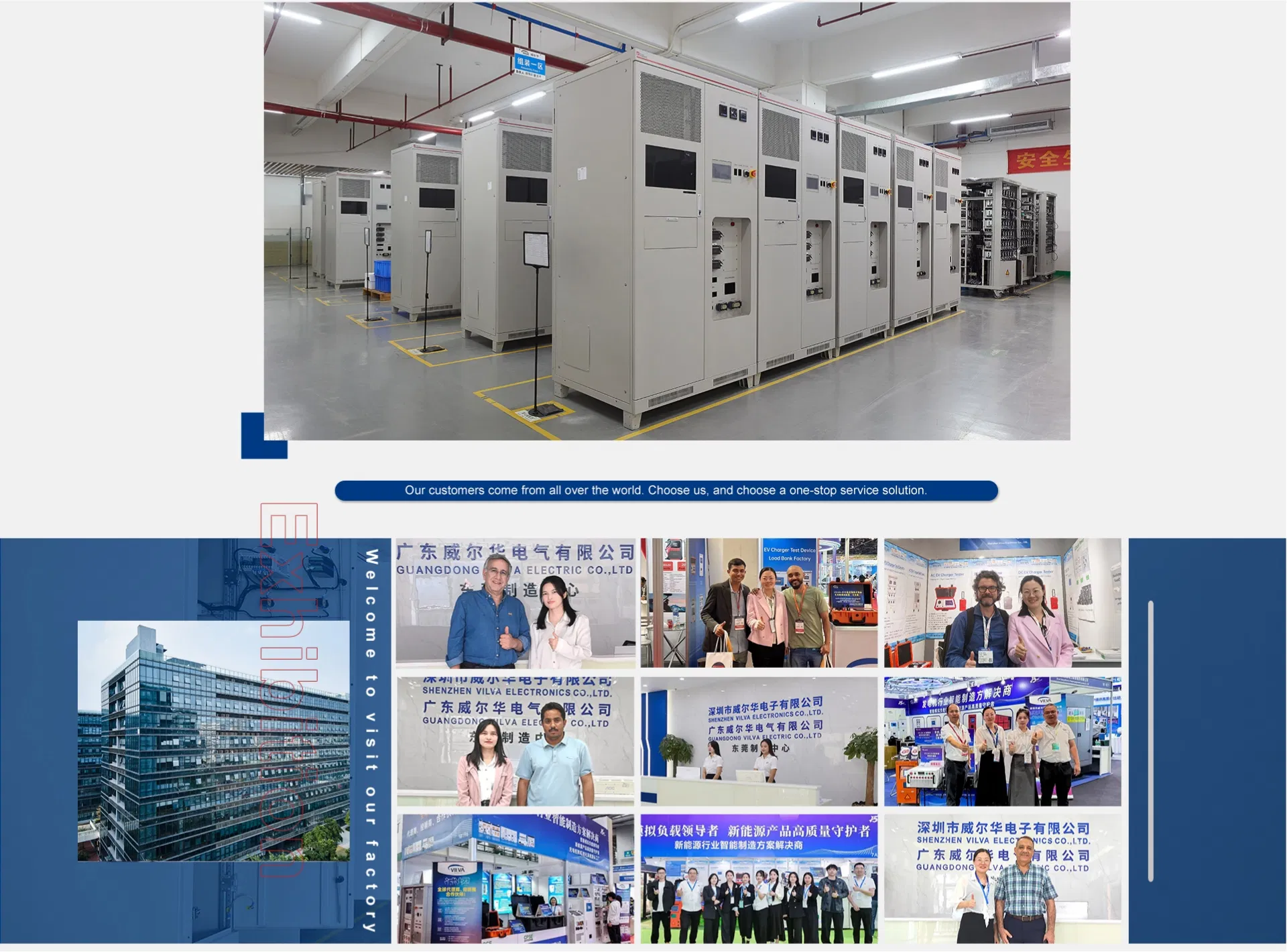

Company Pictures & Facility

Packaging & Professional Team

Frequently Asked Questions

May the Charger pile test be customized?

Yes, all products may be customized according to specific requirements.

Are you a factory or a trading company?

We are a factory specializing in the R&D, manufacturing, and service of charger tests for over 10 years.

What kind of sockets are supported?

AC supports GB-T / Type 1 / Type 2; DC supports GB-T / CCS1 / CCS2 / CHAdeMO.

Can this device clearly display the data output?

Yes, detailed statistics and waveform output of various message types are supported via touch screen operation.

Is it suitable for indoor or outdoor use?

The standard model is for indoor use (not weatherproof), but an optional outdoor type with air ducting is available.

What is the typical lead time?

The lead time is generally between 35 to 58 days depending on the customization level.

CCS2 DC EV Charger Simulator Test Deveice for Evse Charging Station

Product Description

Related Products

Chademo &amp; CCS2 EV Simulator Charging Pile Tester

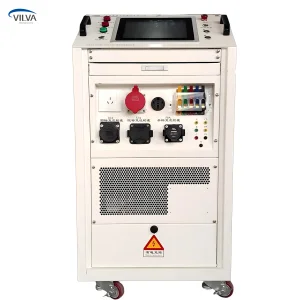

Vilva AC380V 22kw Portable EV Charger Simulator - Gbt/Type1/Type2 for EV Charger Testing

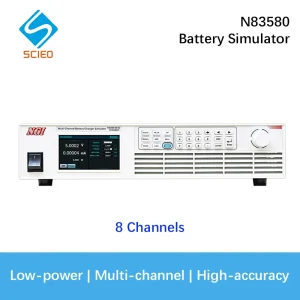

8 Channels Bidirectional Battery Simulator (6V, 5V, 15V/CH) N83580 for Energy Storage Systems (ESS) Electric Vehicle (EV) Testing

EV Simulator CCS1 Nacs Chademo Portable DC Charging Station Tester Device

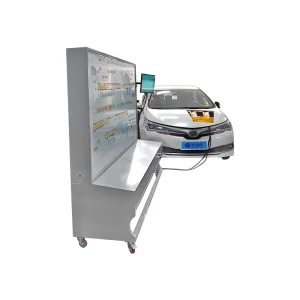

Hands-on EV Teaching Solution Educational Simulator

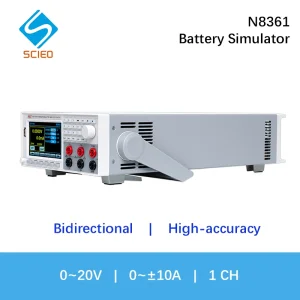

Automotive Battery Simulator N8361 with Internal Resistance Simulation for Electric Vehicle (EV) Testing

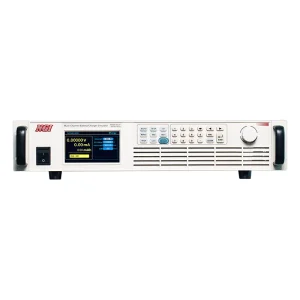

Ultra-High Accuracy Battery Simulator (16CH) N8336 Series EV Car Battery Management System Test Low Voltage Adjustable Battery Simulator

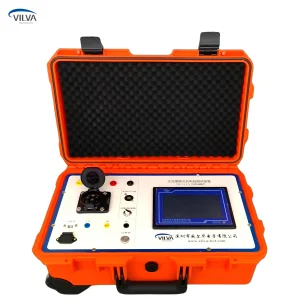

Portable 400V AC Type2 EV Charger Testing Simulator Machine

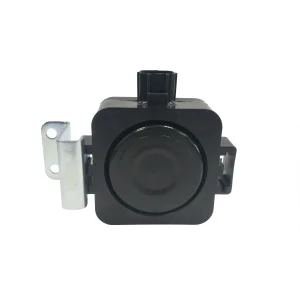

Engine Sound Simulator for EV Car
