Product Description

📋 Basic Information
Model NO.
EAC100
Transfer Rate
10/100/1000Mbps
Firewall
Supported
Ports
6
Application
Enterprise
Network
Ethernet
Architecture
Radius
Origin
China
HS Code
8517623690
Capacity
100,000 PCS/Month
📦 Packaging & Delivery
Package Size
25.00cm * 25.00cm * 11.00cm
Gross Weight
3.000kg
🚀 Enterprise Gateway & WAN Controller

EAC100 is a large and medium-sized enterprise-level gateway based on the CAPWAP protocol, designed to provide robust networking and centralized management for professional environments.

Main Features:

  • Configured with 1 Gigabit WAN port (multiple WANs can be configured) with load balancing, multi-operator access, and policy routing.
  • Supports intelligent flow control, Internet behavior management, network firewall, and VPN settings.
  • Allows a maximum of 128 end users to access while ensuring high-speed network defense against network storms.
  • Dual-mode operation: Can be used as a main router or a bypass AC to manage up to 128 thin APs.
  • Remote management and maintenance capabilities, allowing administrators to monitor the network from different locations and cities.
⚙️ Hardware Specifications
ModelEAC100
CPUMTK
DDR / Flash512M / 16M

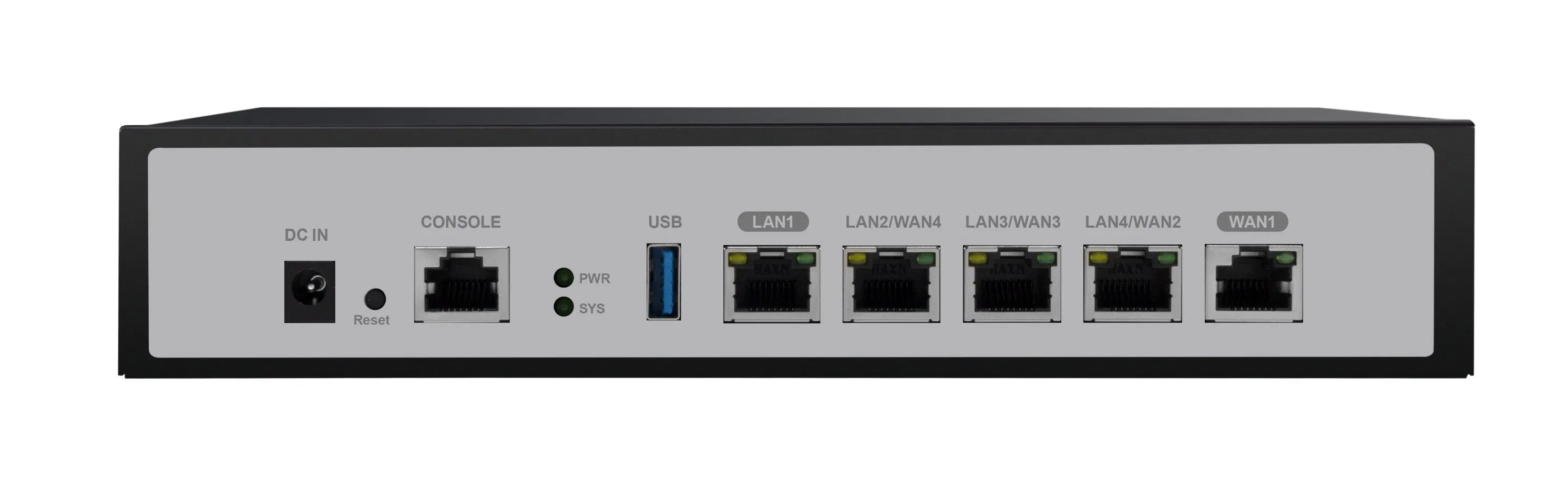

Interfaces4*Gigabit LAN (Configurable WAN), 1*Gigabit WAN, 1*Console, 1*USB 3.0
PowerDC 12V
Dimensions232.5 * 152.5 * 44.5mm
Working Temp-20ºC to 55ºC
AP ManagementSupports up to 128 APs / 128 Max Users
Flow ControlOne-click Intelligent flow control, multi-line diversion
SecurityMAC/URL/Web/IP filtering, Port forwarding, DMZ
AuthenticationMember, One-key, SMS, 3rd Party radius
🖼️ Firmware GUI & Working Diagram

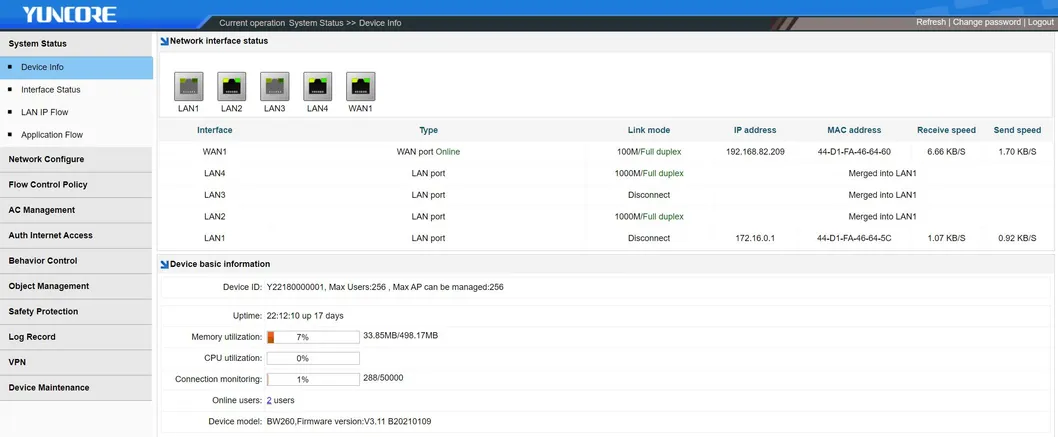

Interface 1

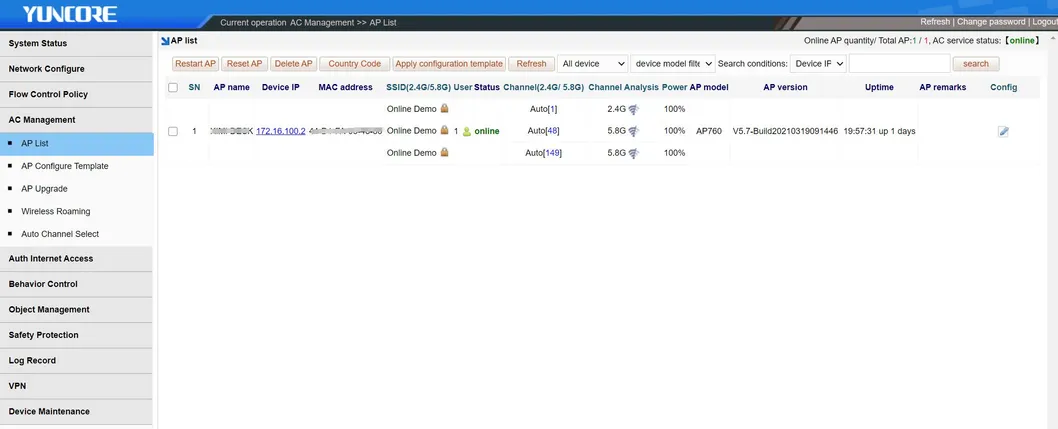

Interface 2

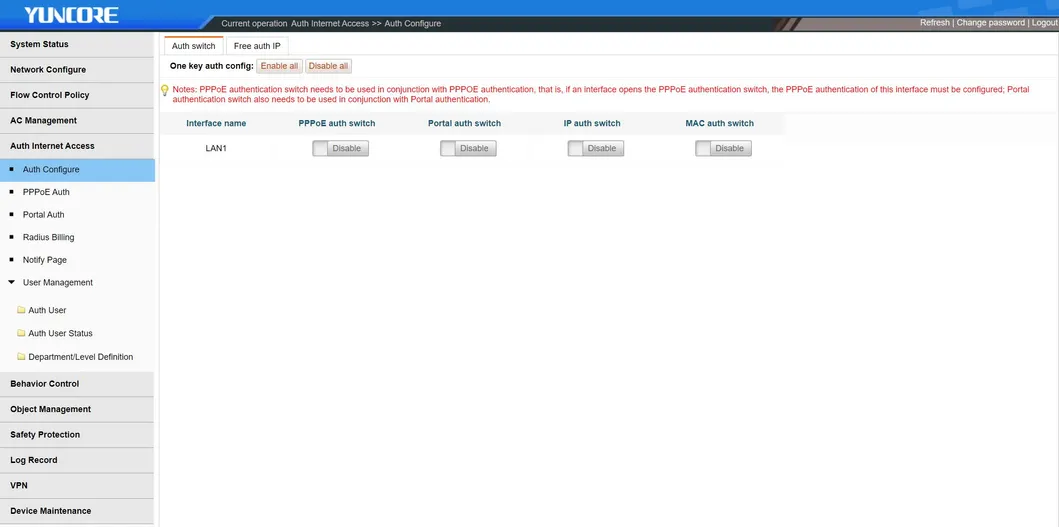

Interface 3

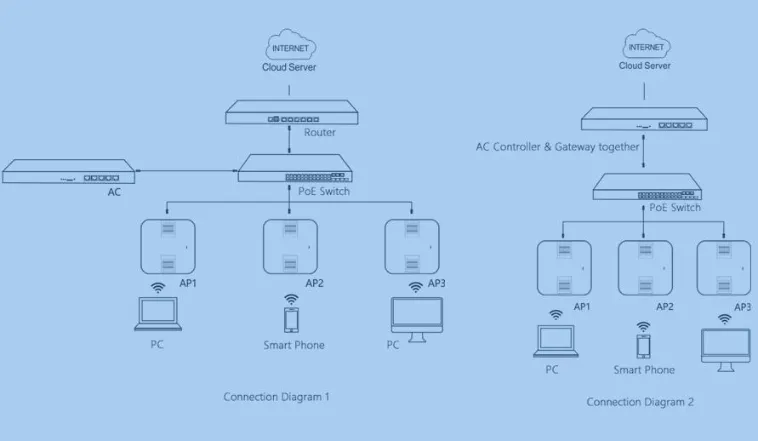

Working Diagram

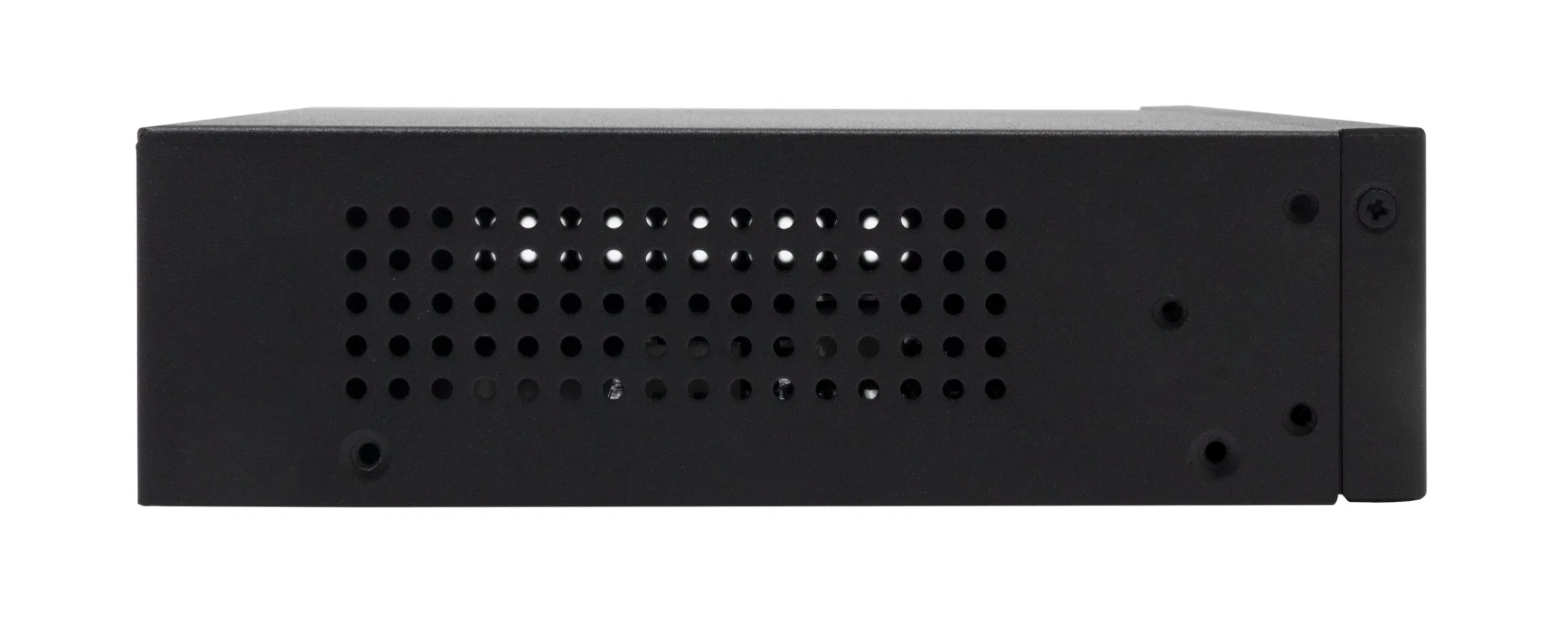

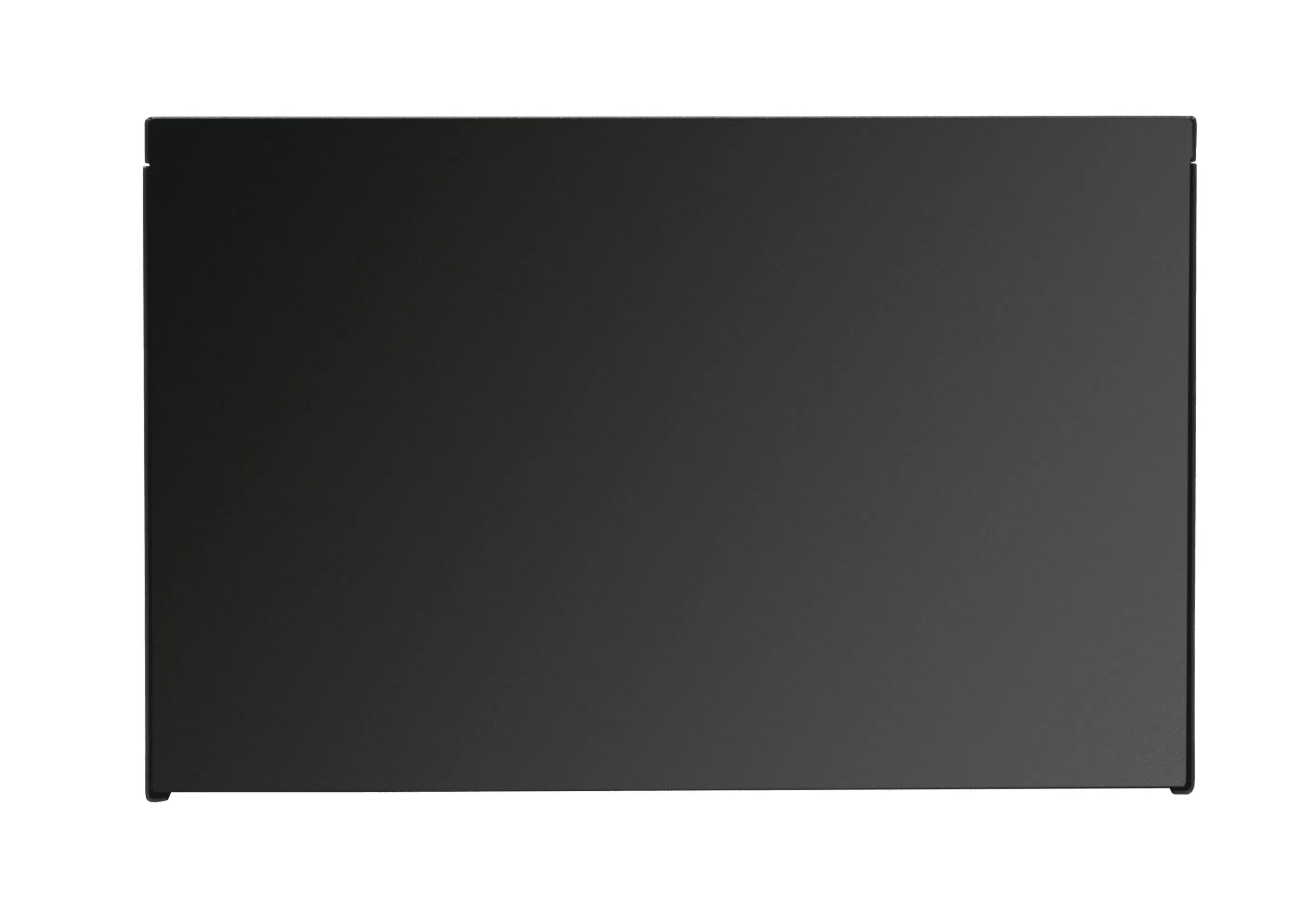

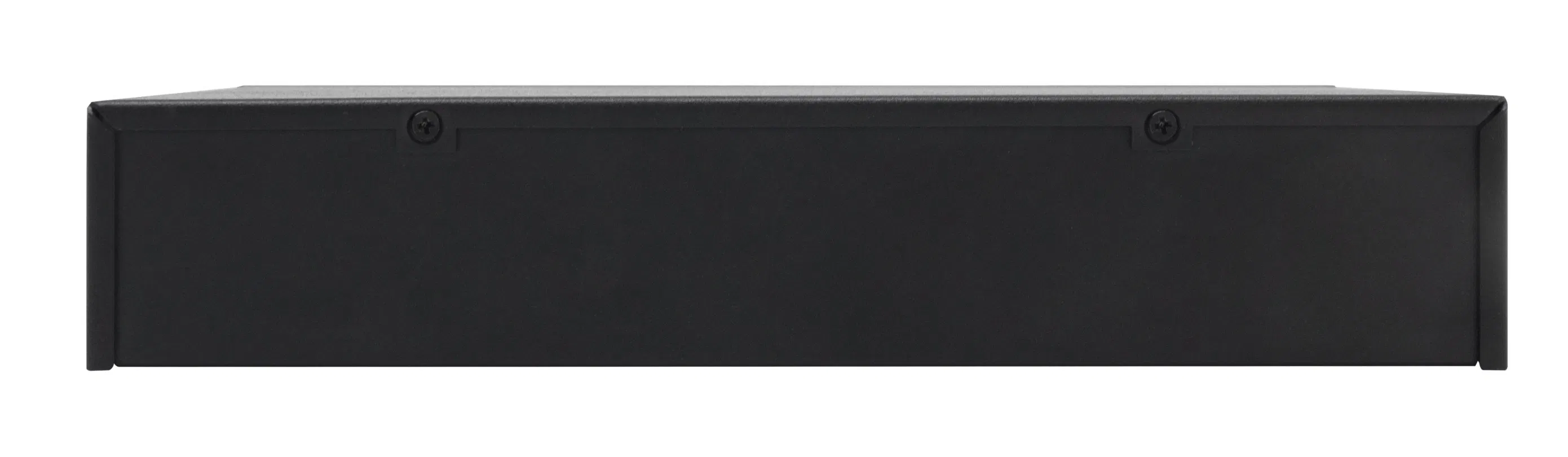

Device View
Product Layout
❓ Frequently Asked Questions
How many Access Points (APs) can the EAC100 manage?
The EAC100 can manage and configure up to 128 thin APs simultaneously, making it ideal for medium-sized enterprise networks.
Does this gateway support multiple WAN connections?
Yes, it features 1 dedicated Gigabit WAN port and 4 Gigabit LAN ports that can be configured as additional WAN ports for load balancing and line backup.
What is the maximum user capacity for this device?
The EAC100 is designed to support a maximum of 128 end users, ensuring stable performance and high-speed network access.
Can I manage the network remotely?
Absolutely. The device supports remote management and maintenance via Web, CLI, or Telnet, allowing administrators to monitor the network from different cities or networks.
What security features are included in the EAC100?
It includes a comprehensive security suite: hardware firewall, MAC/URL/IP filtering, ARP detection, and defense against TCP/UDP/ICMP flood attacks.
Does it support different types of user authentication?
Yes, it supports various authentication methods including Member login, One-key authentication, SMS, and 3rd Party Radius server integration.
