Product Description

ℹ

Basic Specifications

Model NO.:ST-G5

Interface:Serial Port, Ethernet Interface

Reading Distance:1-5m

Application:Parking, Hospital, Library, Company, Bank, Store

Protocol:ISO 18000-6c(EPC C1 G2)

Frequency:865~868MHz, 902~928MHz

Power Supply:AC220V, 10A, 50Hz

OS:Windows (Android Optional)

Package Size:300*300*80mm

Specification:520*180*1655mm

HS Code:8471900090

Capacity:10,000,000 PCS/Year

★

Product Description

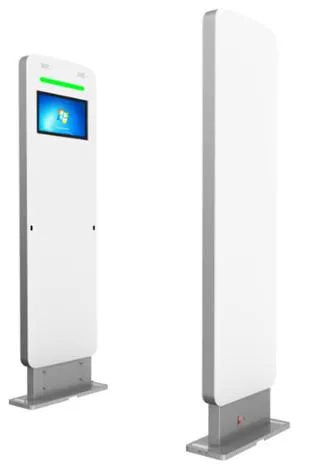

UHF Gate Antenna - ST-G5

Introduction

ST-G5 is a UHF RFID gate reader powered by Ipij 2000 RFID chip and conforms with ISO18000-6C (EPC C1G2) protocol. It features an integrated alarm light and buzzer, along with a built-in infrared sensor which can trigger tag reading or count visitor traffic. Unlike traditional EAS systems, this RFID gate reader identifies every tagged item individually, providing superior performance for inventory management and anti-theft security.

Key Features

Powered by Impi 2000 chip for maximum tag detection performance.
Built-in infrared sensor to trigger tag reading or judge entry and exit.
Visible and audible alarm signals.
Optional touch screen compatible with Android/Windows computers.
Support for RSSI, antenna detection, and online updates.
Off-line EAS functionality.

📋

Technical Specifications

Main Specifications
Model	ST-G5
Performance Specifications
RFID	UHF
Functions	RFID read&write / visible and audible alarm / infrared sensor / People Counting
Reading range	0-600mm, adjustable
Physical Specifications
Dimension	5201801655mm
Screen	14" touch screen (optional)
Communication	Ethernet interface
Installation	Fixed on ground with screws
UHF RFID Detail
Frequency range	840MHz-960MHz
Protocol	ISO 18000-6C (EPC C1 G2)
RFID Chip	ImpR 2000
Environment & Power
Power supply input	AC220V, 10A, 50Hz
Working temperature	0~60ºC
Working humidity	10%RH~90%RH

📐

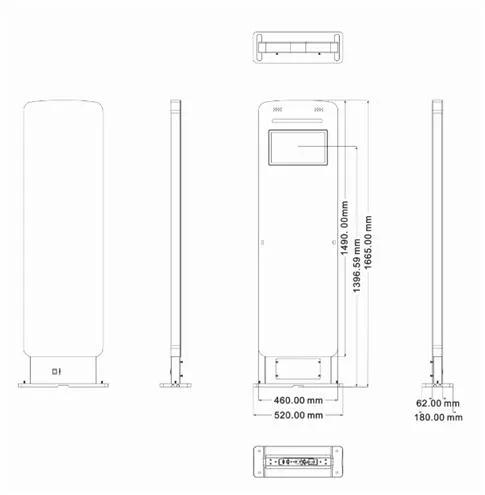

Dimensions

❓

Frequently Asked Questions

1. What is the standard reading range of the ST-G5? The ST-G5 typically offers a reading distance of 1-5m, which is adjustable depending on the environment and tag type (0-600mm adjustment in standard configurations).

2. Does this gate reader support people counting? Yes, it has a built-in infrared sensor that can be used to count incoming and outgoing visitor traffic and trigger tag reading.

3. Can I choose a different operating system? The standard OS is Windows, but we offer an optional configuration for Android systems depending on your software requirements.

4. What happens when an unauthorized tag passes through? The gate is equipped with both visible (light) and audible (buzzer) alarms to immediately notify security personnel of unauthorized item movement.

5. Is a touch screen included with the device? A 14-inch touch screen is an optional feature. You can choose to include it for a more interactive stand-alone management experience.

6. Which communication interfaces are supported? The ST-G5 supports Ethernet interfaces and Serial Ports for stable and reliable data transmission to your management system.
