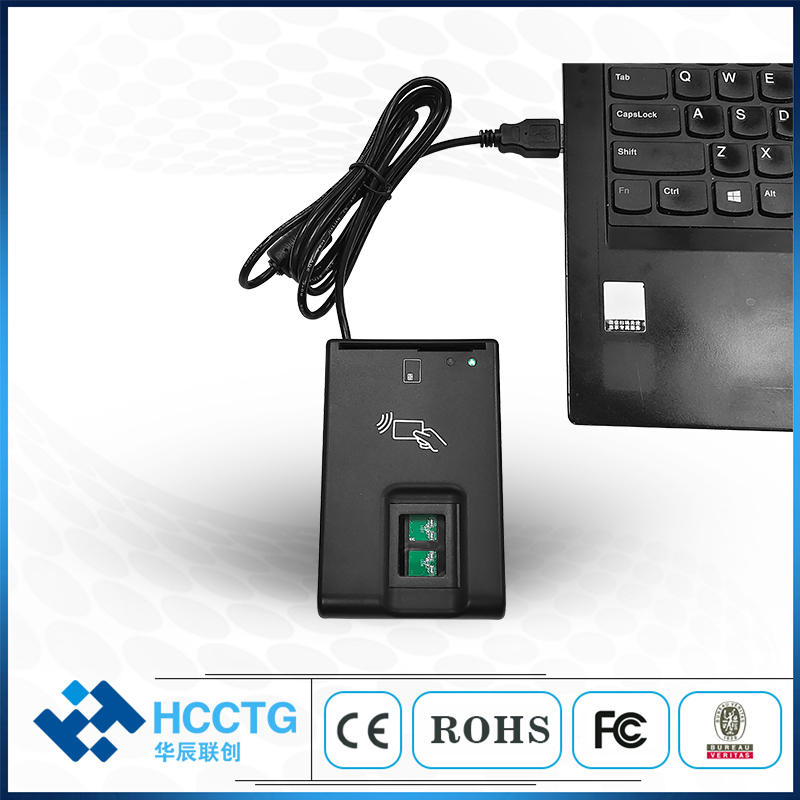

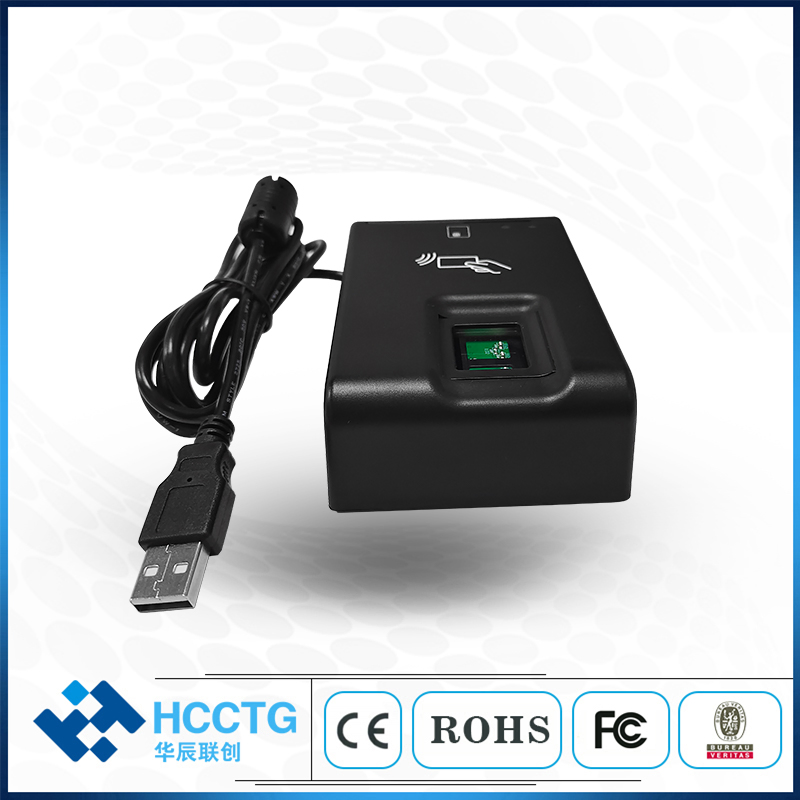

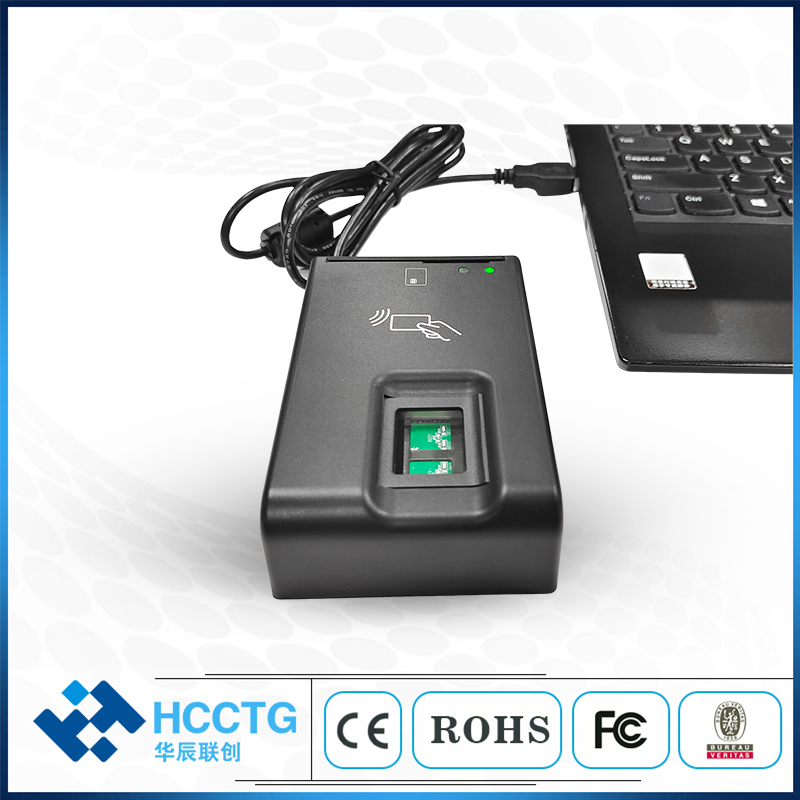

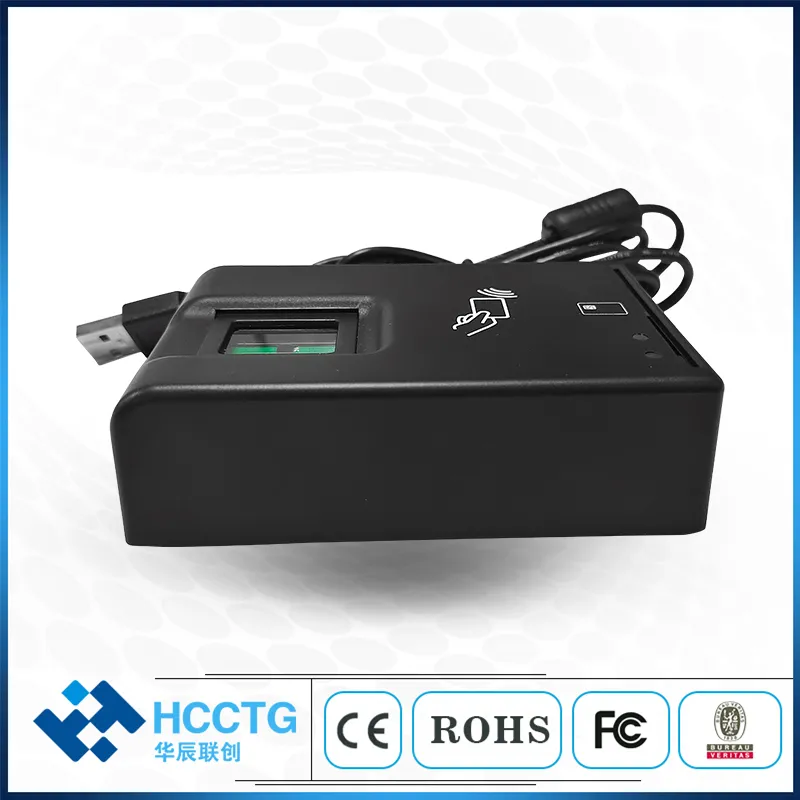

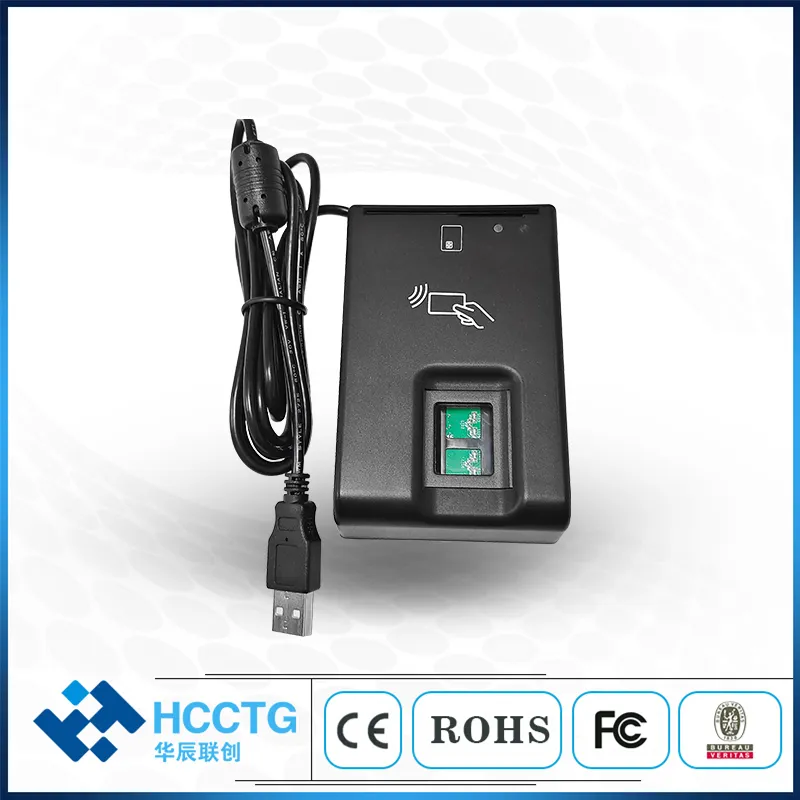

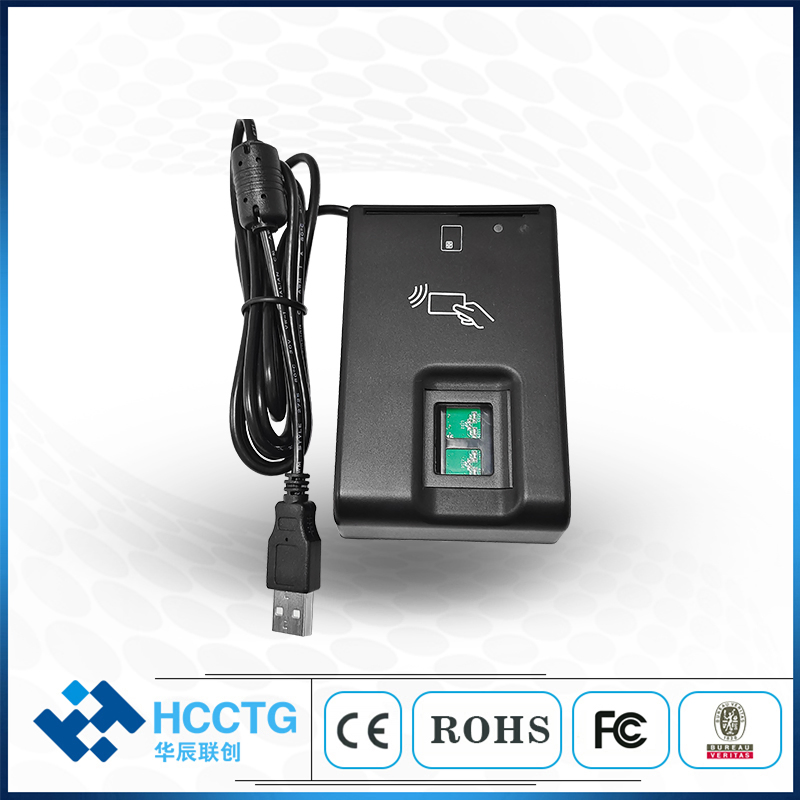

The SFR02 utilizes advanced pressing optical fingerprint technology, characterized by low power consumption, high sensitivity, and a high signal-to-noise ratio. Its adaptive recognition algorithm automatically optimizes image quality in real-time, effectively handling dry, wet, or rough fingers. This device is fully compliant with FBI PIV-071006 and Mobile ID FAP 20 standards.

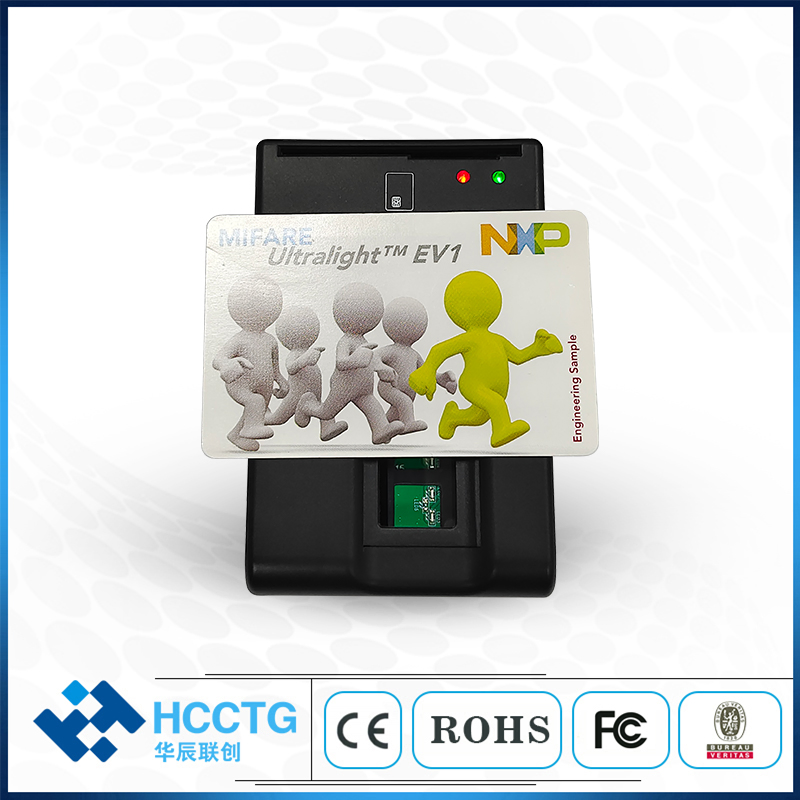

It is a versatile multi-function device supporting ISO/IEC 7816 contact cards, 13.56 MHz contactless smart cards, and ISO18092 NFC protocols. Connected via USB TYPE A, it is ideal for secure identity authentication, PKI key authentication, and digital signature applications.
| Basic Parameters | |
|---|---|
| Host Interface | USB 2.0 CCID (Compliant USB 1.1 and 3.0) |
| Power Supply | USB Bus Power Supply (5V/2A) |
| Contactless Frequency | 13.56 MHz (ISO 14443 Part 1-4, ISO 18092) |
| Fingerprint Resolution | 500DPI ± 1% |
| Sensing Area | 15.24mm x 20.32mm |
| OS Support | Windows 7, Android 4.0 and above |
| Dimensions | 130 * 90 * 52mm |
| Weight | 430g |
