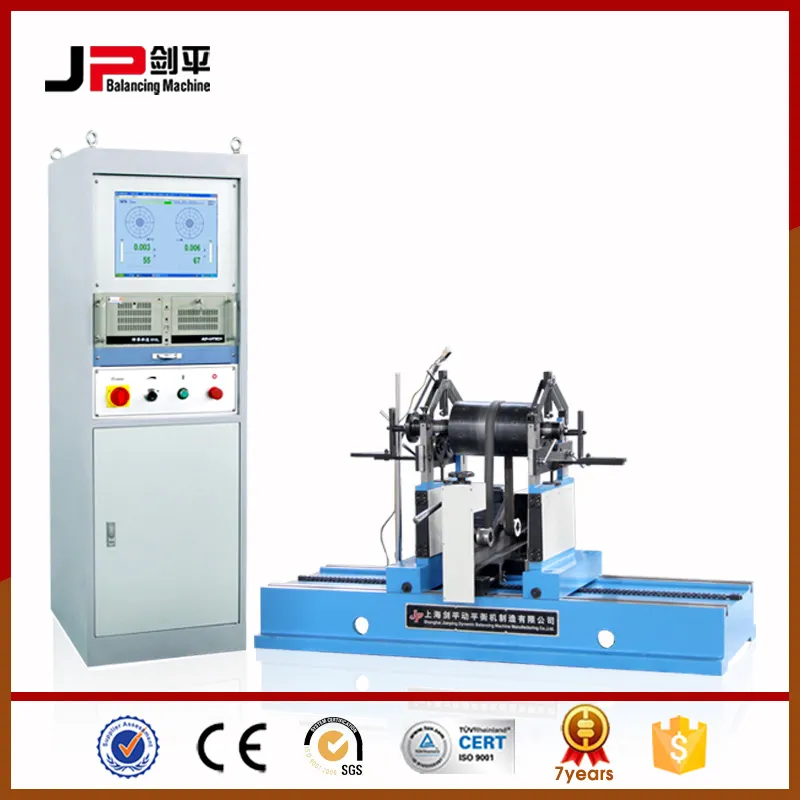

Belt Drive Balancing Machine PHQ-500H Series
| Technical data | PHQ-50 | PHQ-160H | PHQ-300H | PHQ-500H |
|---|---|---|---|---|
| Max Mass of Workpiece (kg) | 50 | 160 | 300 | 500 |
| Max Diameter of Workpiece (mm) | Φ700 | Φ1000 | Φ1220 | Φ1500 |
| Bearing Distance (mm) | 80~700 | 130~1270 | 130~1270 | 130~1270 |
| Journal Diameter Scope (mm) | Φ 8~80 | Φ 15~75 | Φ 15~75 | Φ 15~75 |
| Driving Belt Diameter (mm) | Φ18~200 | Φmax400 | Φmax500 | Φmax600 |
| Motor Power (kw) | 0.75 | 1.5 | 1.5 | 2.2 |
| Min Achievable Unbalance | ≤0.5g·mm/kg | ≤0.5g·mm/kg | ≤0.5g·mm/kg | ≤0.5g·mm/kg |

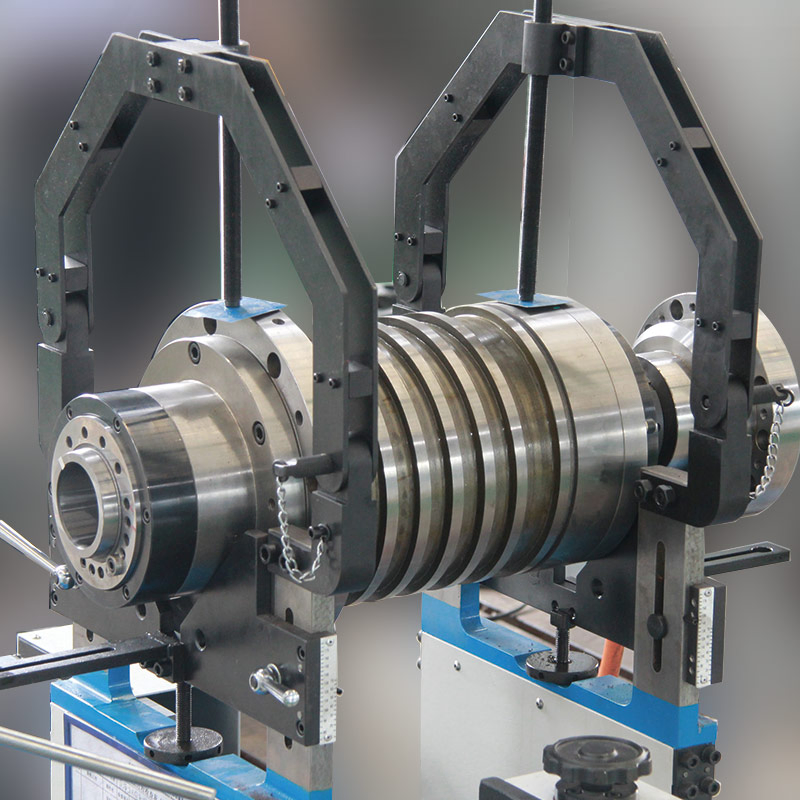

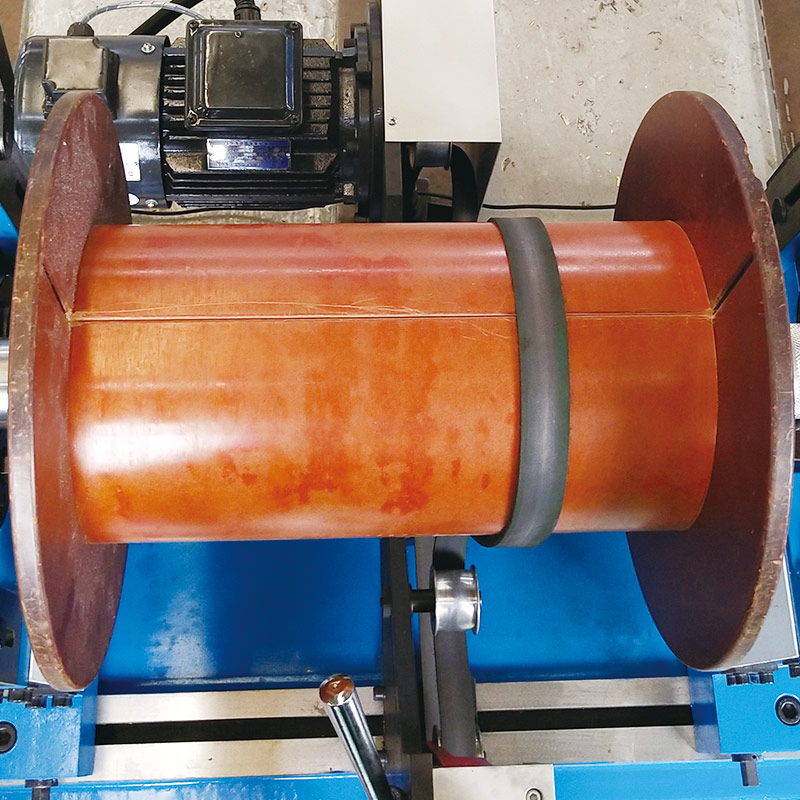

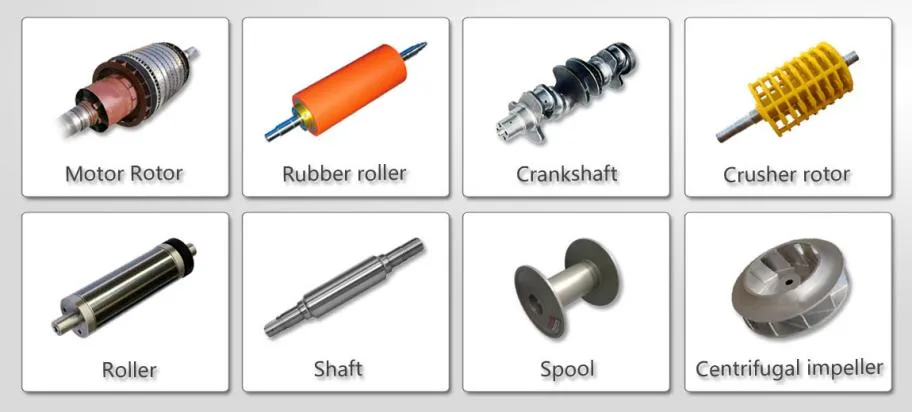

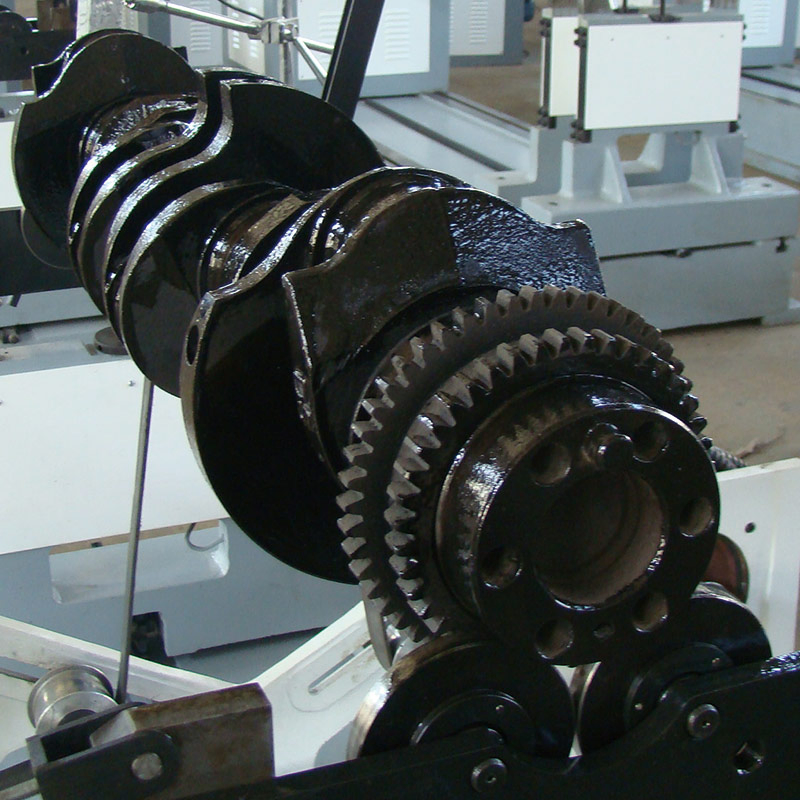

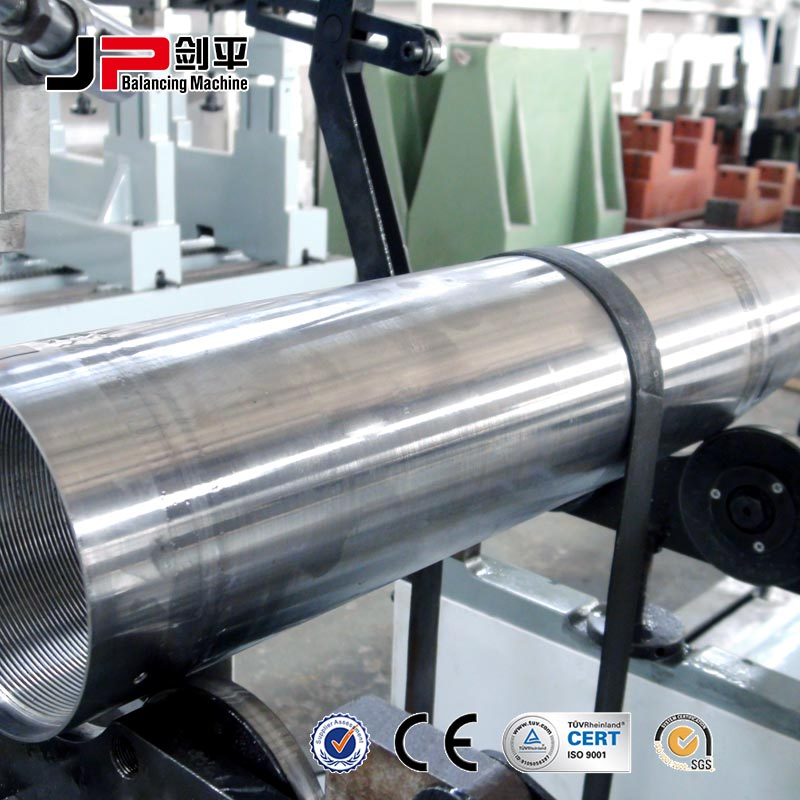

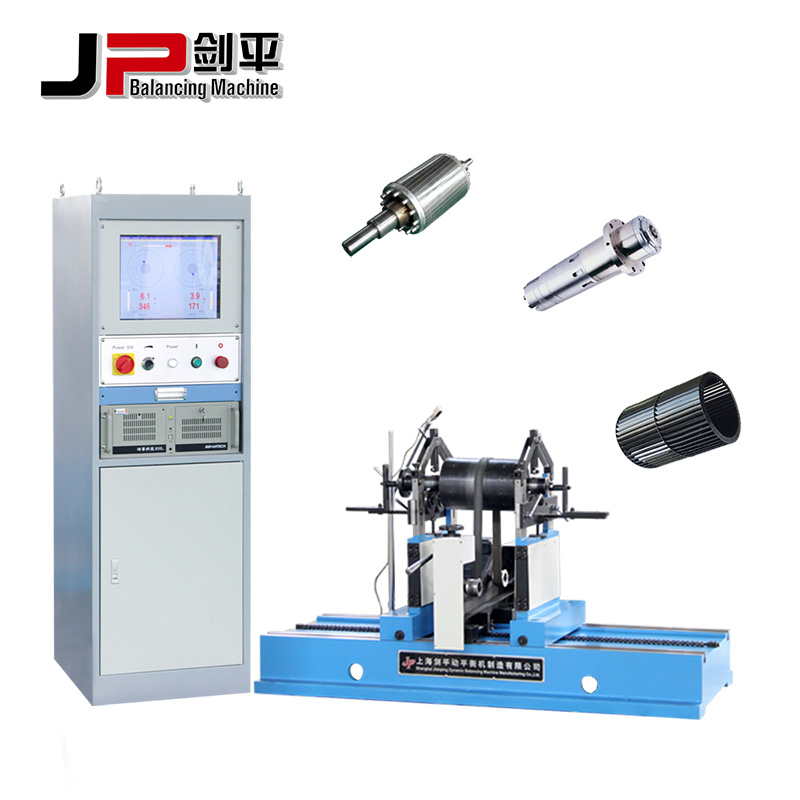

This balancing machine is widely used in balancing rotatable bodies, such as medium-sized and small-sized motor rotors, impellers, fans, crankshafts, turbochargers, water pumps, rollers, grinding wheels, and main shafts of machine tools. Driven by belt and equipped with a variable speed motor, it ensures high quality balancing, precision, and high efficiency.

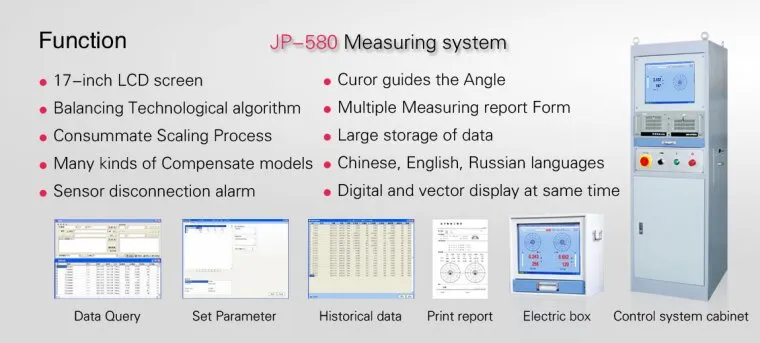

The JP-580 Electrical Measuring Unit is a system of top function and precision. It features an industrial computer with a 17-inch LCD screen and Windows Operating System. It offers high running speed, reliability, and strong dustproof/shakeproof abilities, making it applicable to various industrial environments.
We provide ten series and more than 40 models of balancing machines, including belt drive, universal joint drive, and automatic positioning models. Our facilities cover 10,000 square meters and maintain rigorous quality standards.
