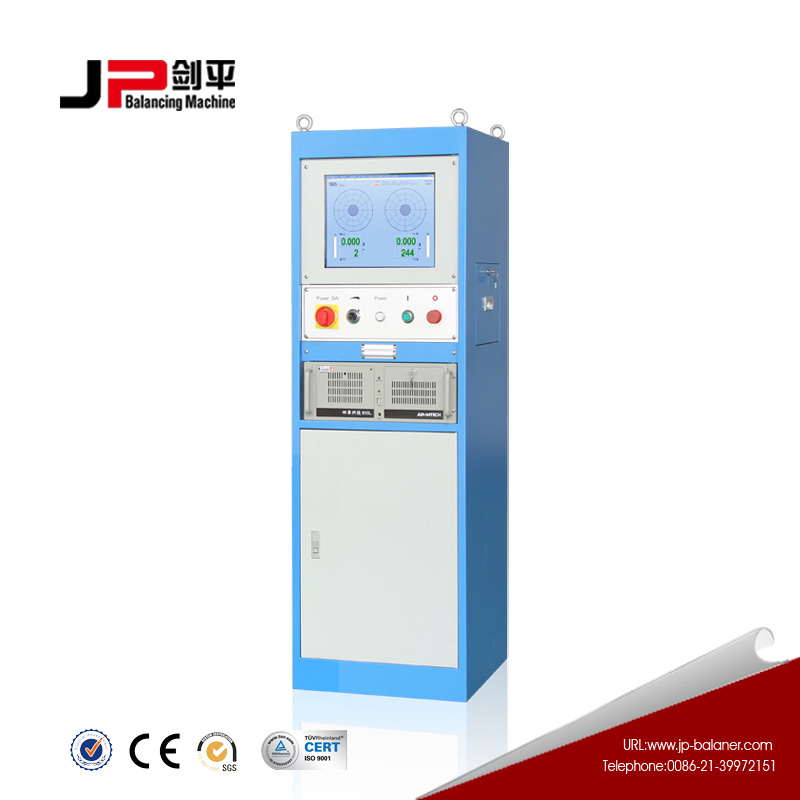

Electric Measuring System (JP-580)

Customization:	Available
Type:	Vibration Testing Machine
Maxcapacity:	>1000KN

Send Inquiry

Product Description

Basic Specifications

Model NO.

JP-580

Accuracy Grade

0.5

Load Way

Electronic Load

Loading Method

Dynamic Load

Display

Digital

Control

Computer Control

Weight

100-500Kg

Power Source

AC380V

Oil Cylinder Position

Under

Transport Package

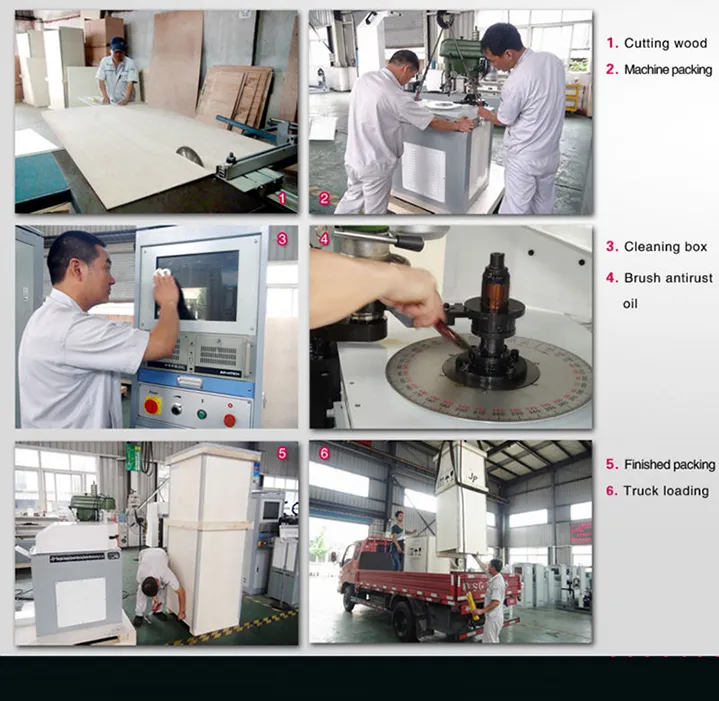

Packed in Fumigated Wood Box

Specification

ISO. CE. SGS

HS Code

90311000

Production Capacity

1000 Sets/Month

Product Description

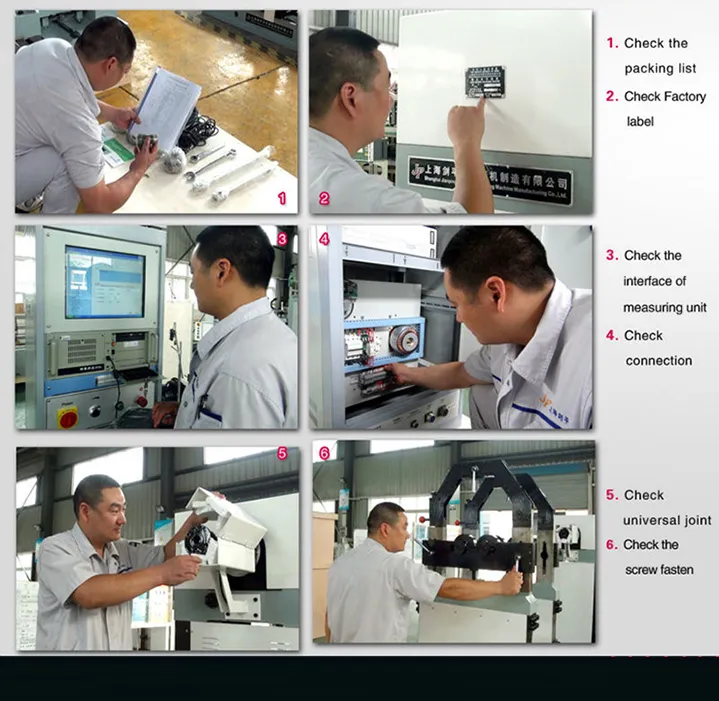

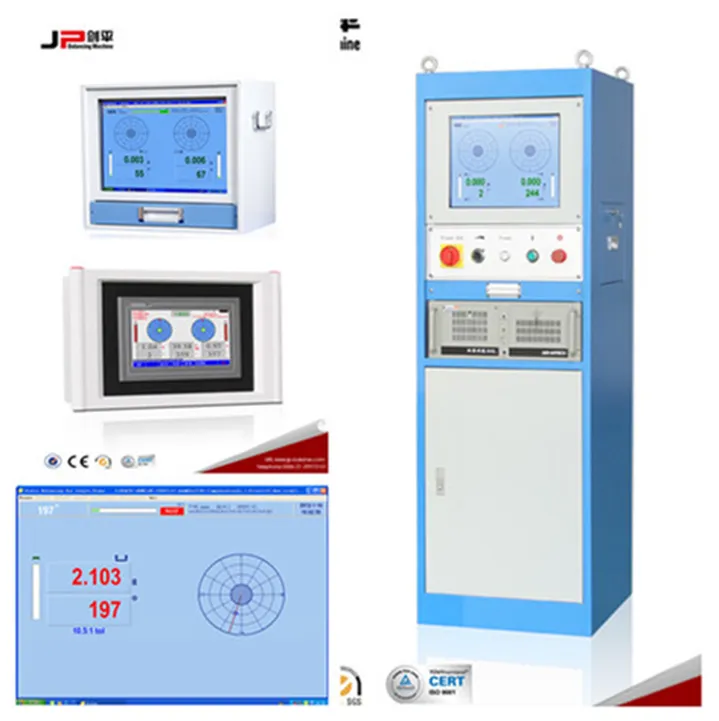

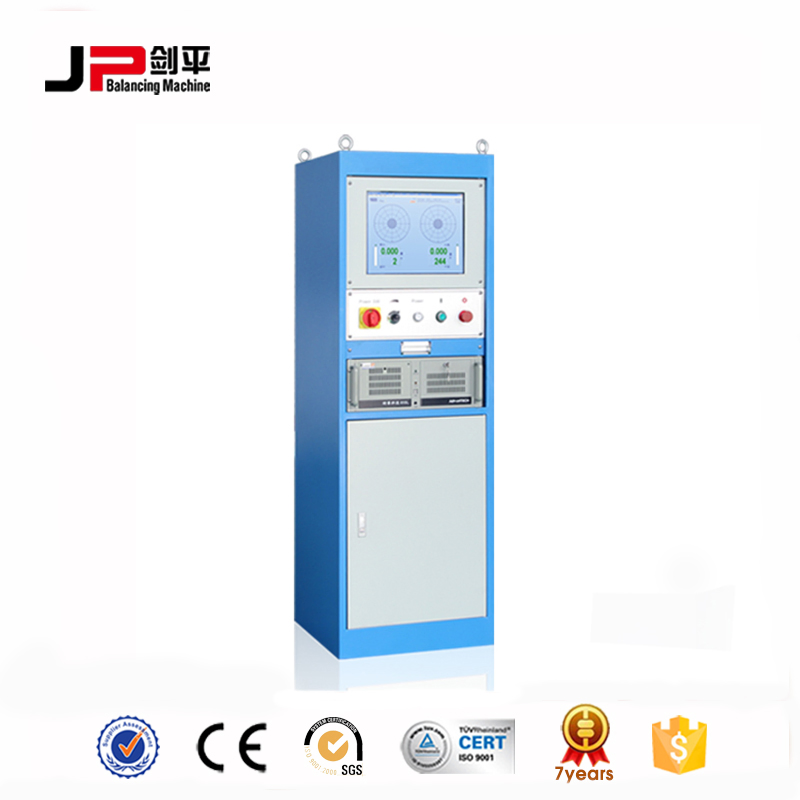

JP-580 Piano Type Electric Testing System is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliability strong dustproof and shakeproof ability, it is applicable to various industrial environments.

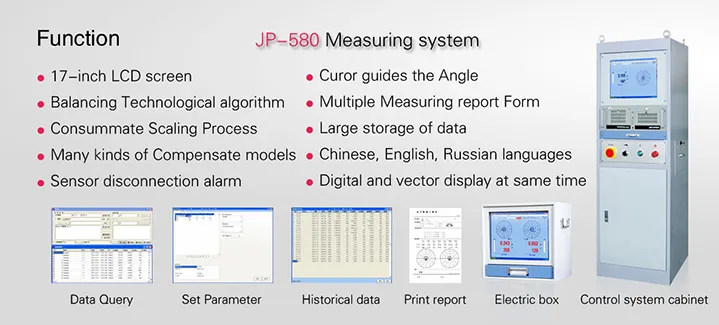

Key Features

LCD of 17 inches
Windows XP Operating System
Chinese or English Display
Storage for 1000 sorts of rotor parameter and 10000 items of measuring records
Sophisticated balancing software
Multi-methods of algorithms
10-stage calibration offers higher precision
Multi-methods of Compensation
Auxiliary display for drilling and cutting

Technological Data

Scope of RPM

120-5000 r/min

Minimum Resolution

0.01mg

Shortest Measuring Time

Measurable Dynamic Range

1: 100000

Advanced Product Features

Measuring & Precision

Various Measuring Methods: Dynamic balancing, static balancing or both, ten support modes, adding or reducing weight and CW or CCW rotating can be customized flexibly.
High Precision: Multi-Calibration coefficient combination, automatically adjust the system sensitivity, no shift-skip, dual wave filtration by both hard and soft-ware, highspeed data compression, faster, more stable and accurate measurement.
DIY unit: Balance unit displayed, angle unit and precision displayed can be defined by user. A real-time unit conversion is available.

Algorithm & Calibration

Technological algorithm: Indexing Algorithm, Drilling Algorithm, Milling Algorithm and Crankshaft Algorithm.
Consummate Calibration Process: Specialized Calibration interface provides more convenience for maintenance. Up to 10 Calibration segments with linear chart verification.
Compensation: Complete compensation, flat key compensation, fixture compensation, up to 9 times of dislocation of fixtures.

Operation & Data Management

Large Storage: Database storage for limitless rotor data, jig data and 10,000 pieces of measured loop records.
Bilingual Support: Optional English or Chinese for display and report printing.
Reporting: Measurement report-form, Balance Report-form, and Single-plane Measurement Report-form available. Files can be opened in MS Office.
Sensor Alarm: Automatic diagnosis of sensor disconnection to evade false balance.

Optional Configuration

Multi-balancer Management: Monitor-center for synchronous monitoring of multiple balancers and data manipulation.
Cursor Guides the Angle: Show phase position of the rotor to help users find the unbalance point quickly.

Frequently Asked Questions

Q: What is the minimum resolution and measuring time of the JP-580? A: The system offers a minimum resolution of 0.01mg and a shortest measuring time of only 3 seconds.

Q: Does the system support both dynamic and static balancing? A: Yes, it supports dynamic balancing, static balancing, or both, with ten customizable support modes.

Q: What operating system and hardware does the unit use? A: It features an industrial computer with a 17-inch LCD screen running on a Windows XP Operating System for high reliability.

Q: How many rotor parameters and records can be stored? A: The system can store 1000 sorts of rotor parameters and up to 10,000 items of measuring records in its database.

Q: Is the system suitable for harsh industrial environments? A: Yes, the unit is designed with strong dustproof and shakeproof abilities to ensure stable operation in various industrial settings.

Q: Can the measurement data be exported? A: Yes, database files can be opened in MS Office, allowing for operations like Find, Stats, Filter, and Leadout via ancillary software.
