Electric Measuring System (JP-580B)

Customization:	Available
Type:	Vibration Testing Machine
Maxcapacity:	>1000KN

Send Inquiry

Product Description

Basic Information

Model NO.

JP-580B

Accuracy Grade

0.5

Load Way

Electronic Load

Loading Method

Dynamic Load

Display

Digital

Control

Computer Control

Weight

100-500Kg

Power Source

AC380V

Oil Cylinder Position

Under

Transport Package

Packed in Fumigated Wood Box

Specification

ISO. CE. SGS

HS Code

90311000

Production Capacity

1000 Sets/Month

Product Description

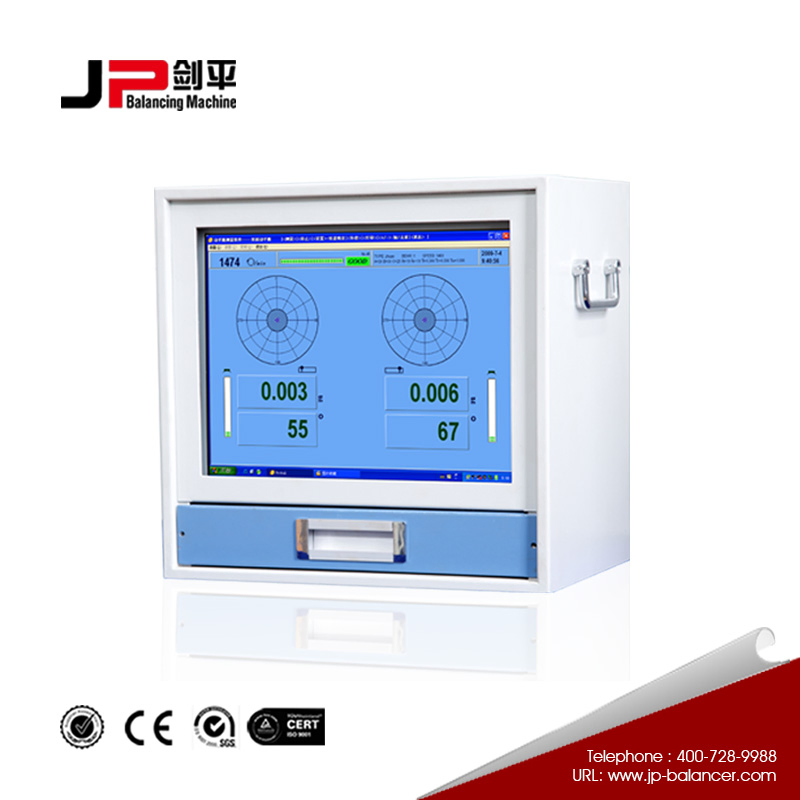

JP-580 Piano Type Electric Testing System is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer which equipped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliability, strong dustproof and shakeproof ability, it is applicable to various industrial environments.

Key Features

LCD of 17 inches
Windows XP Operating System
Chinese or English Display
Storage for 1000 sorts of rotor parameter
10000 items of measuring records
Sophisticated balancing software
Multi-methods of algorithms
10-stage calibration offers higher precision
Multi-methods of Compensation
Auxiliary display for drilling and cutting

Technological Data

Scope of RPM:

120-5000 r/min

Min Resolution:

0.01mg

Measuring Time:

Shortest 3s

Dynamic Range:

1: 100000

Inspection & Logistics

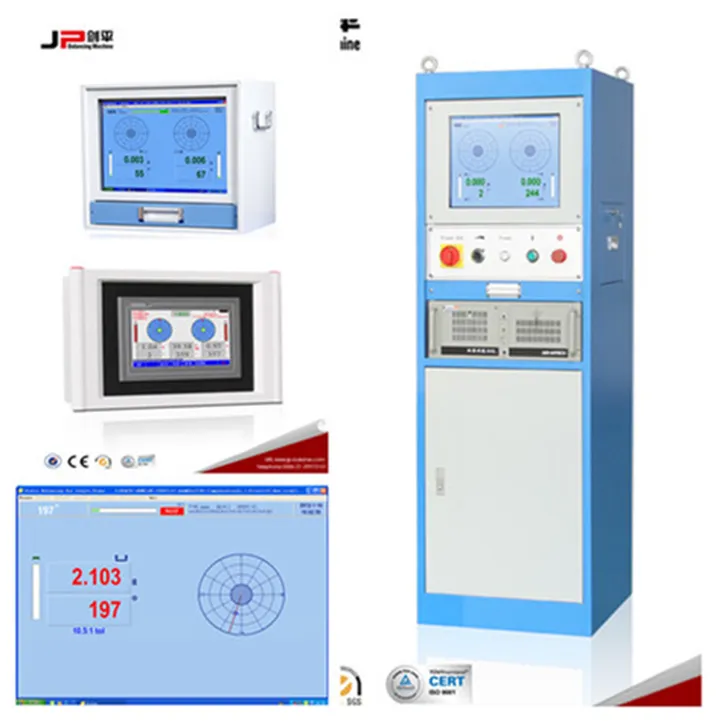

Detailed Product Features

Various Measuring Methods: Dynamic balancing, static balancing, ten support modes, customizable weight addition/reduction.
High Precision: Multi-Calibration coefficient combination, dual wave filtration, high-speed data compression.
DIY Unit: User-defined balance unit, angle unit, and precision display with real-time conversion.
Complete Compensation: Flat key, fixture compensation, and up to 9 times of dislocation of fixtures.
Technological Algorithms: Indexing, Drilling, Milling, and Crankshaft Algorithms.
Consummate Calibration: Specialized interface with up to 10 calibration segments and linear chart verification.
Sensor Alarm: Automatic diagnosis of sensor disconnection to evade false balance.
Large Data Storage: Limitless Rotor and jig data storage plus 10,000 piece measurement records.
Data Compatibility: Database files compatible with MS Office for Find, Stats, Filter, and Classify operations.

Certificates & Options

Optional Configuration:

General management of multi-balancer for synchronous monitoring.
Cursor Guides the Angle: Module to help users find the unbalance point phase position easily.

Frequently Asked Questions

1. What types of machines is the JP-580B system compatible with?

The system is highly versatile and can be applied to all kinds of single/double plate and hard/soft bearing machines. It connects easily with various velocity and pressure sensors.

2. What is the measurement precision and resolution of this system?

The JP-580B features a minimum resolution of 0.01mg and an accuracy grade of 0.5, ensuring high-precision balancing results for industrial requirements.

3. How much data can the system store?

The system includes a large database storage capacity, capable of holding parameters for 1000 sorts of rotors and up to 10,000 items of measuring records.

4. Does the JP-580B support different languages and reporting?

Yes, the system offers bilingual display options in English and Chinese. It can generate multiple report forms (Measurement, Balance, Single-plane) that are compatible with MS Office.

5. What safety and diagnostic features are included?

The system includes a sensor disconnection alarm that automatically diagnoses connection issues to prevent false balance readings, alongside a 10-stage calibration process for stability.

6. Is the system suitable for harsh industrial environments?

Absolutely. The industrial computer unit is designed with strong dustproof and shakeproof abilities, making it reliable for various demanding industrial environments.
