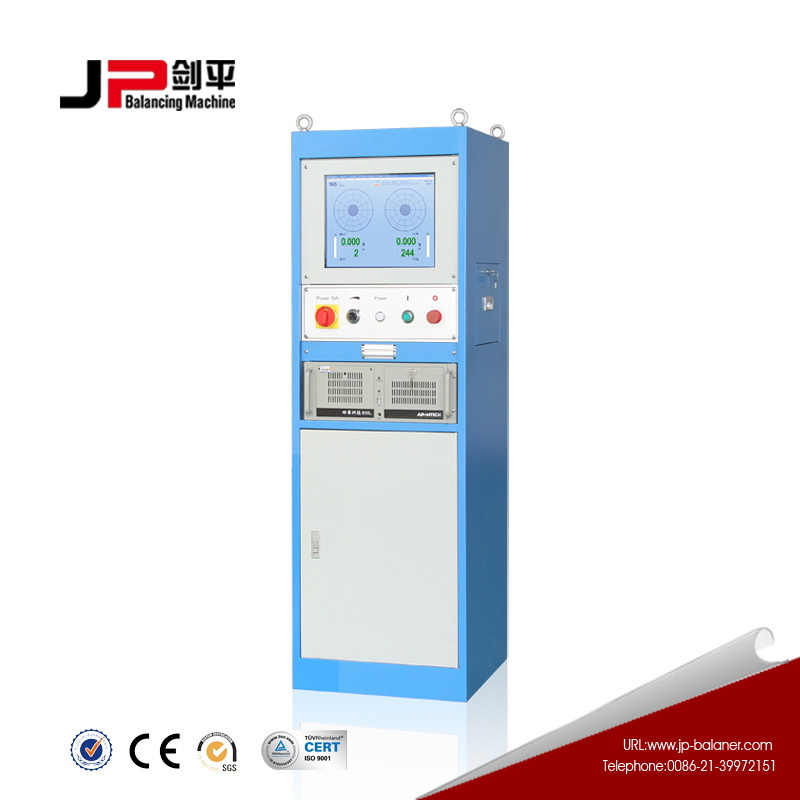

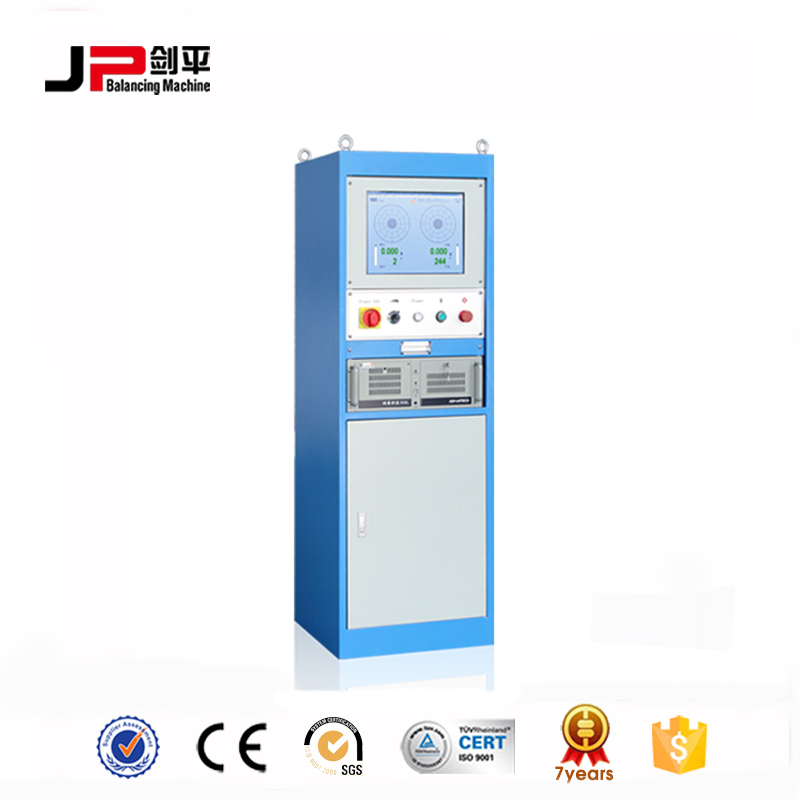

Electric Measuring System (JP-680)

Customization:	Available
Type:	Vibration Testing Machine
Maxcapacity:	>1000KN

Send Inquiry

Product Description

Basic Specifications

Model NO.

JP-680

Accuracy Grade

0.5

Load Way

Electronic Load

Loading Method

Dynamic Load

Display

Digital

Control

Computer Control

Weight Range

100-500Kg

Power Source

AC380V

Cylinder Position

Under

Power Supply

380V or Custom

Gross Weight

70kg

Dimensions

1730mm x 670mm x 680mm

Delivery Time

Within 10 Days

Measuring System

Electric Measuring

Package

Fumigated Wood Box

Specification

ISO, CE, SGS

HS Code

90311000

Production Capacity

1000 Sets/Month

Product Overview

Electric Measuring System (JP-680) is a high-precision solution designed for professional balancing requirements.

★

Core Features

17-inch High Definition LCD
Windows XP Operating System
Bilingual Display (Chinese/English)
1000 Rotor Parameter Storage
10000 Measuring Record Items
Sophisticated Balancing Software
10-Stage High Precision Calibration
Drilling & Cutting Auxiliary Display

Technological Specifications

RPM Range	120-5000 r/min
Minimum Resolution	0.01mg
Measuring Time	Shortest 3s
Dynamic Range	1: 100000

Advanced Software Capabilities

This system offers a suite of advanced algorithms including Indexing, Drilling, Milling, and Crankshaft algorithms. It features automatic diagnosis of sensor disconnection to evade false balance results. The database integrates seamlessly with MS Office for advanced data management.

JP-680 Touch Screen Edition

The JP-680 version features a 10-inch Touch Screen with WinCE Operating System, optimized for Single and Double Plane Balance Measurement.

USB Data Export
Waveform Display
Vector Decomposition
Harmonic Analysis
Sensor Detection
Electric Compensation

Frequently Asked Questions

What is the measurement precision of the JP-680?

The system offers an accuracy grade of 0.5 with a minimum resolution of 0.01mg and a 10-stage calibration process to ensure the highest precision.

Does the system support data management?

Yes, it features a large database capable of storing limitless rotor data and up to 10,000 measurement records. Data can be exported via USB and is compatible with MS Office software.

What types of balancing can be performed?

The system supports dynamic balancing, static balancing, or both simultaneously. It includes specialized algorithms for drilling, milling, and crankshaft balancing.

Are there bilingual options for international use?

Yes, the software supports an optional language display in both English and Chinese for the interface and printed report forms.

What is the typical measurement time?

The JP-680 is designed for high efficiency with a shortest measuring time of just 3 seconds.

What safety features are included?

It includes an automatic sensor disconnection alarm and diagnosis tool to prompt the operator and prevent false balance readings.
