EV Simulator CCS1 Nacs Chademo Portable DC Charging Station Tester Device

Product Overview

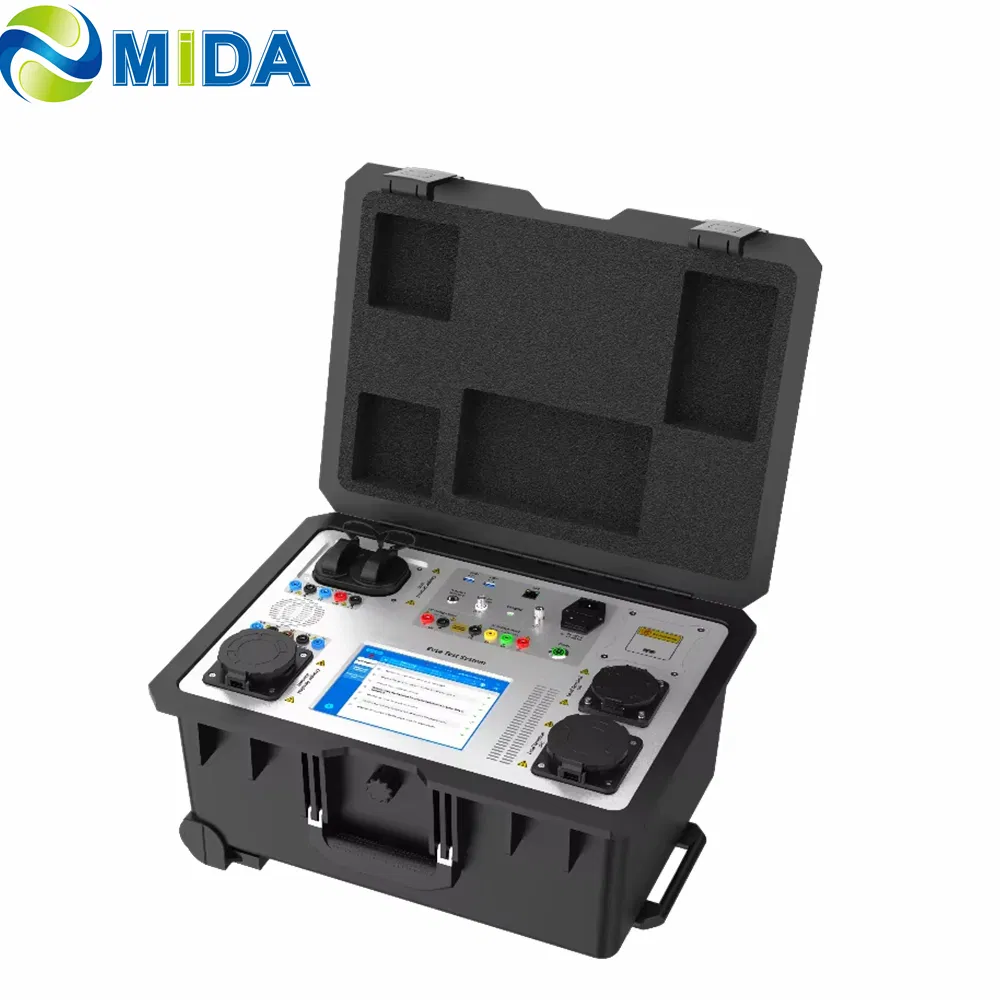

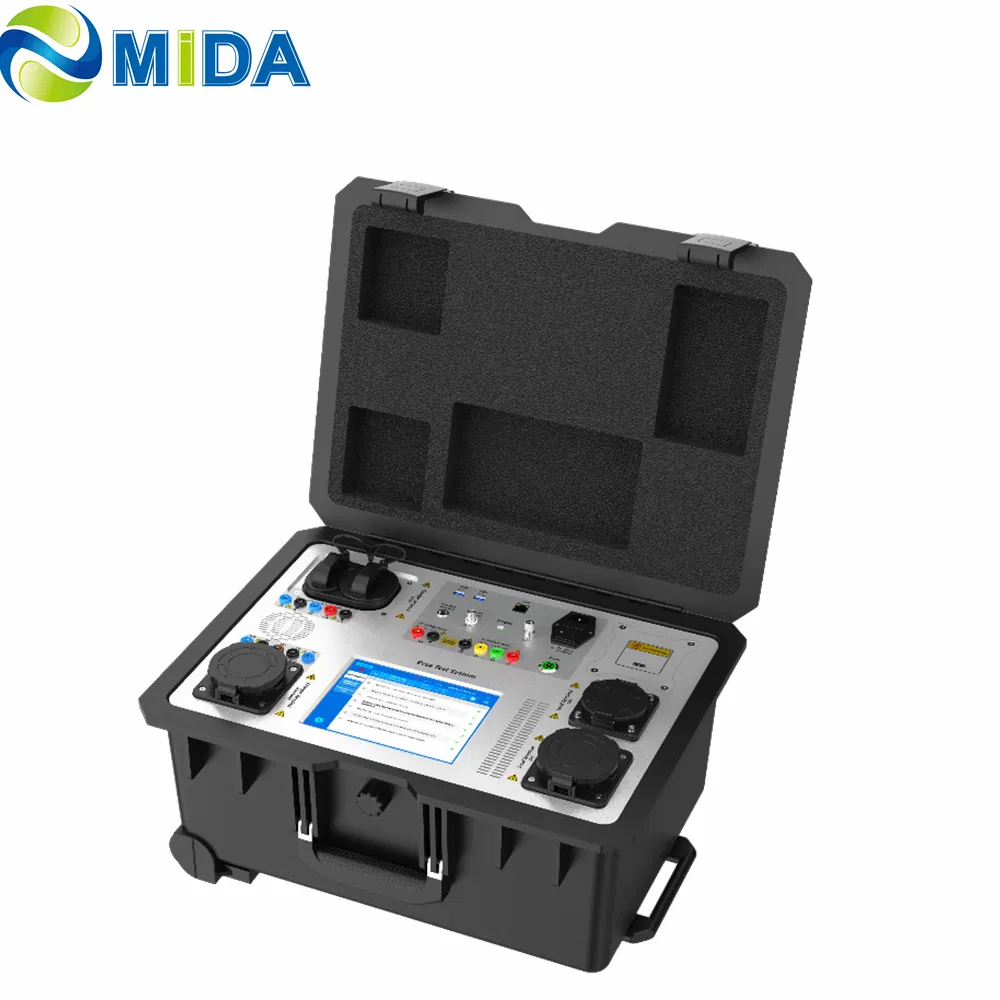

CCS1 NACS CHAdeMO Portable DC Charging Station Tester Device EVSE Analyzer

Portable Electric Vehicle Charger Equipment (EVSE) analyzers are handheld or portable devices used to test, diagnose, and troubleshoot electric vehicle (EV) charging stations and cables. These analyzers simulate charging conditions, measure electrical parameters such as voltage and current, verify communication protocols, and generate test reports to ensure safety and performance compliance.

Basic Info & Parameters

Model NO.	Portable DC-TESTER-15kW
Dimensions	800 * 600 * 1100mm
Weight	≤160kg
Safety Standard	CE, UL
Operation Voltage	AC230V ± 20%

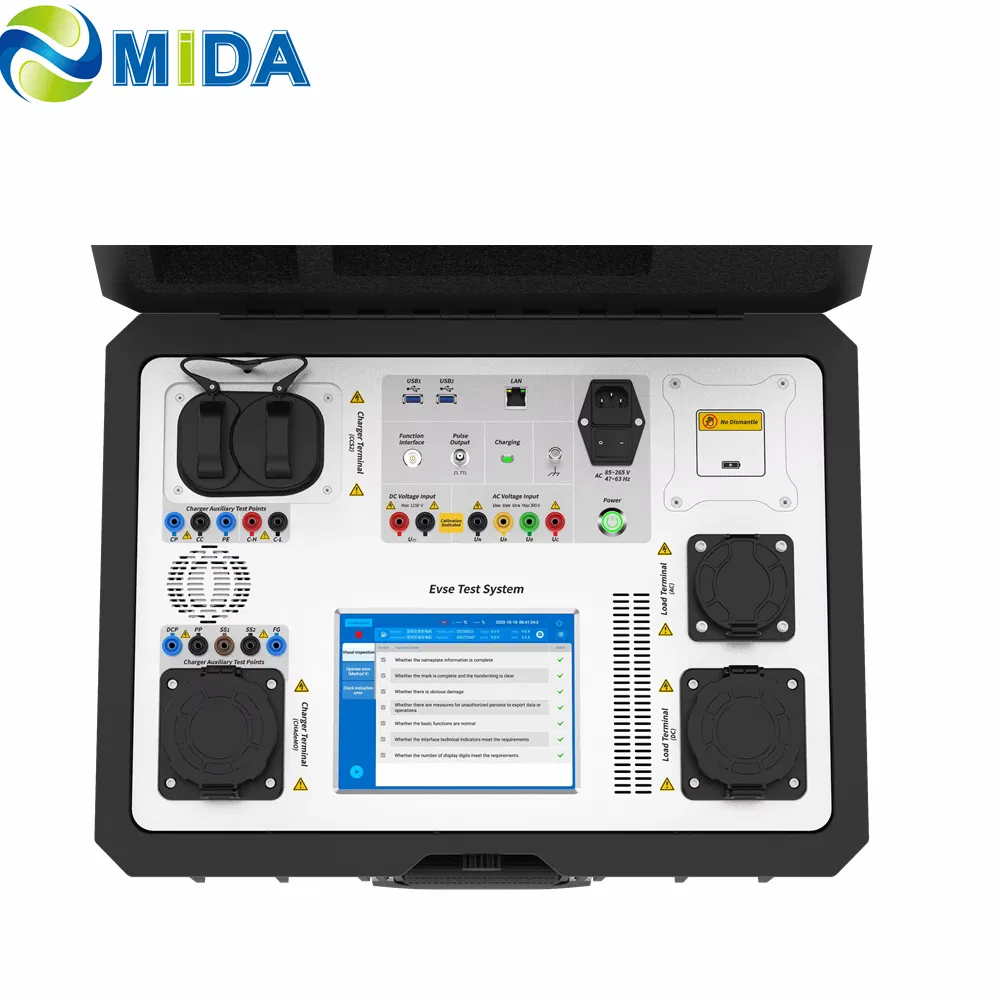

Display Method	7-inch Touch Screen
Operating Temp	-30ºC to 70ºC
Production Capacity	10,000 Units Per Month
Origin	China

Key Functions and Features

Diagnostic Testing: Verifies functionality and safety of EVSE, including charging stations and cables.
Simulation: Simulates the operation of electric vehicles to test communication and power delivery protocols.
High Accuracy Measurement: Measures voltage, current, power, and cumulative energy with precision.
Multi-Protocol Support: Compatible with multiple charging standards including CCS1, CCS2, CHAdeMO, and NACS.
Professional Report Generation: Provides pass/fail results and detailed data for compliance and record-keeping.
Rugged Portability: Designed for durable field use with independent cooling air duct design.

Types and Applications

This DC EV charger tester is optimized for various scenarios such as factory debugging, on-site testing, laboratory analysis, and R&D testing. It features a touch screen plus button design with intuitive color indicators.

Main Capabilities

Load Testing	Simulates power demand using internal or external load boxes to verify charger performance.

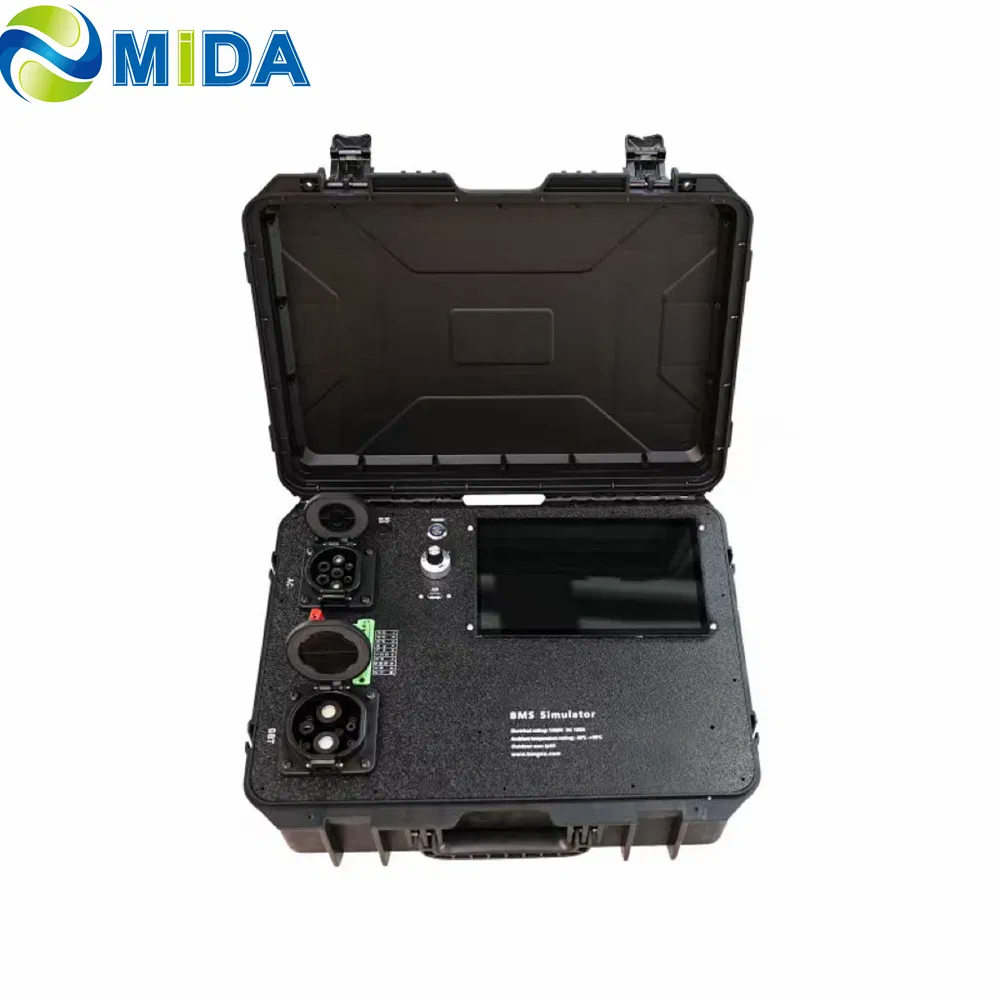

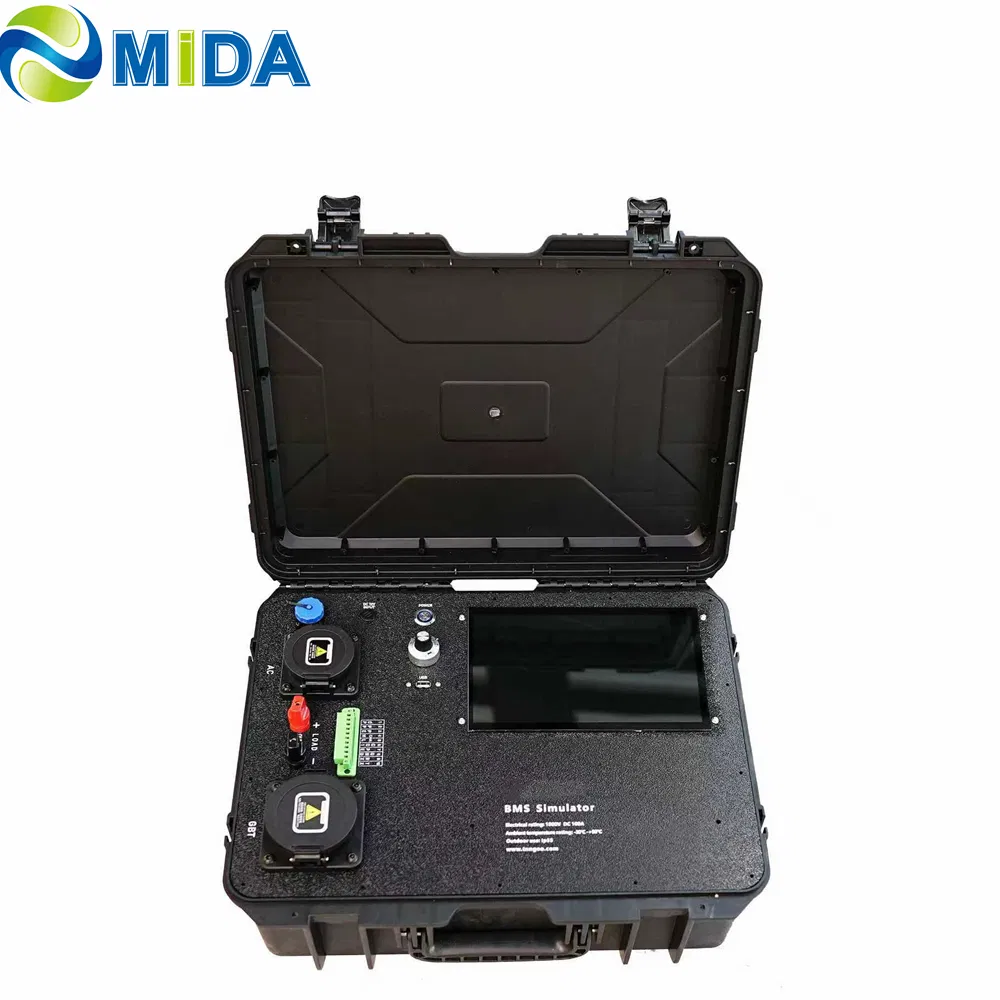

BMS Simulator	Checks critical communication between the charger and the vehicle battery system.
Safety Inspection	Tests insulation resistance, grounding continuity, and general installation safety.
Calibration	Ensures energy output measurement meets local regulatory accuracy requirements.

Frequently Asked Questions

Q1: Which charging standards does this tester support? The tester supports global standards including CCS1, CCS2, CHAdeMO, NACS (Tesla standard), and GB/T.

Q2: Can this device simulate a real electric vehicle? Yes, it includes a Battery Management System (BMS) simulator to verify the communication and handshake protocols between the station and the vehicle.

Q3: Is the software interface easy to use for international technicians? The device features a 7-inch touch screen with a simple interface that supports switching between multiple languages, including English.

Q4: Does it require an external load for testing? The unit comes with a built-in resistive load, but it can also be used in conjunction with an external adjustable resistor load box for high-power performance testing.

Q5: What safety tests can it perform? It can perform comprehensive safety checks, including insulation resistance testing, grounding continuity, and verification of safety protection mechanisms.

Q6: What is the operating temperature range for field work? The device is built for rugged environments and can operate reliably in temperatures ranging from -30ºC to 70ºC.
