| Construction Details | Technical Features |
|---|---|
| 1. Conductor: Bare Copper | 1. Rated Temp: -40ºC ~ 90ºC |
| 2. Insulation: EVI-1 | 2. Rated Voltage: 1500V.DC |
| 3. Filler: PP hemp or cotton yarn | 3. Flame Test: EN 60332-1-2 |
| 4. Tape: Non-woven fabrics | 4. Bending Radius: ≥6*OD |
| 5. Sheath: TPU (Black) | 5. Dielectric Voltage: 3.5kVac/15min |
| 6. Resistance: Oil, Crush (>11KN), Weather | 6. Standards: RoHS and REACH |
Reference Standard: IEC 62893-4-2 / TUV Certificate No. R50569984
Our DC charging cables meet IEC 61851-1 mode 4 requirements and are designed for high-power fast charging systems. Equipped with signal and control lines, they ensure accurate control and safe operation in centralized charging stations, garages, and large parking facilities.

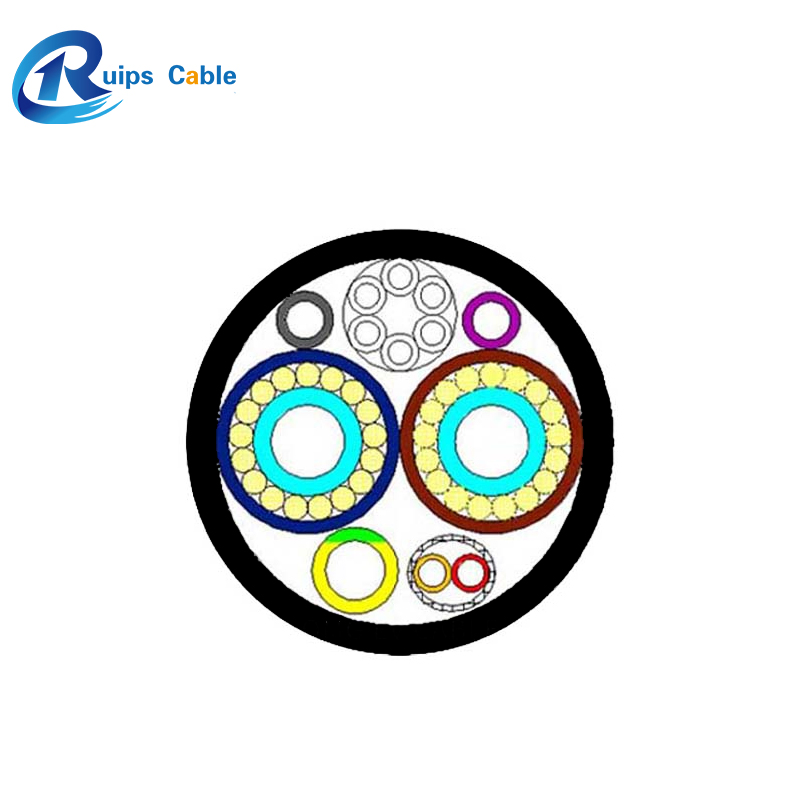

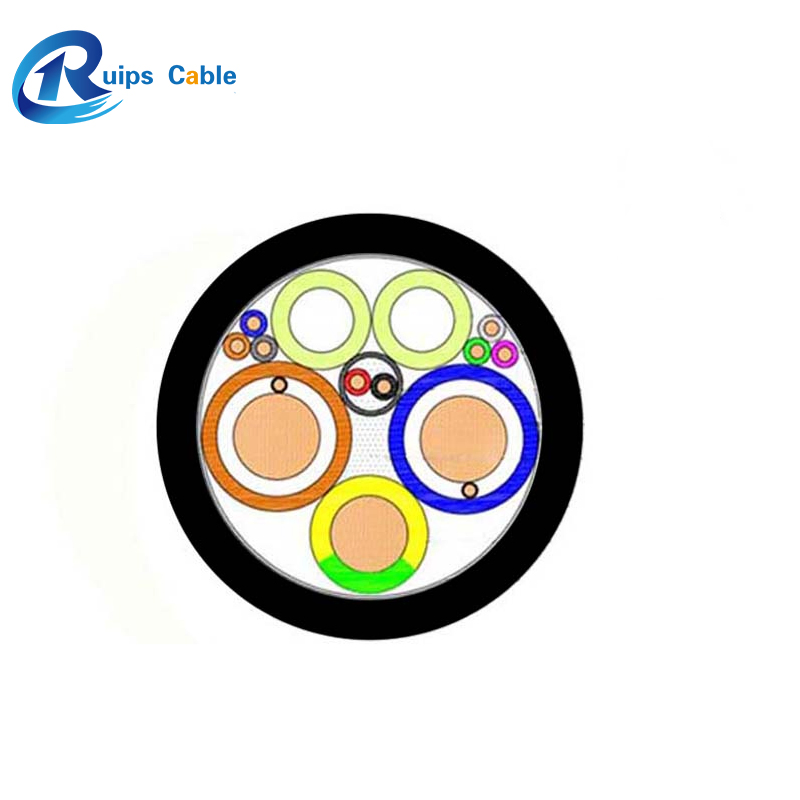

Innovative Cooling Design: DC+ and DC- conductors are immersed in a cooling medium to take away heat through circulation. This allows for larger currents through smaller conductor cross-sections, achieving efficient high-power fast charging.
Durability: Excellent resistance to oil, acid, alkali, water, wear, UV, and crushing. All materials are environmentally friendly and flame retardant.
