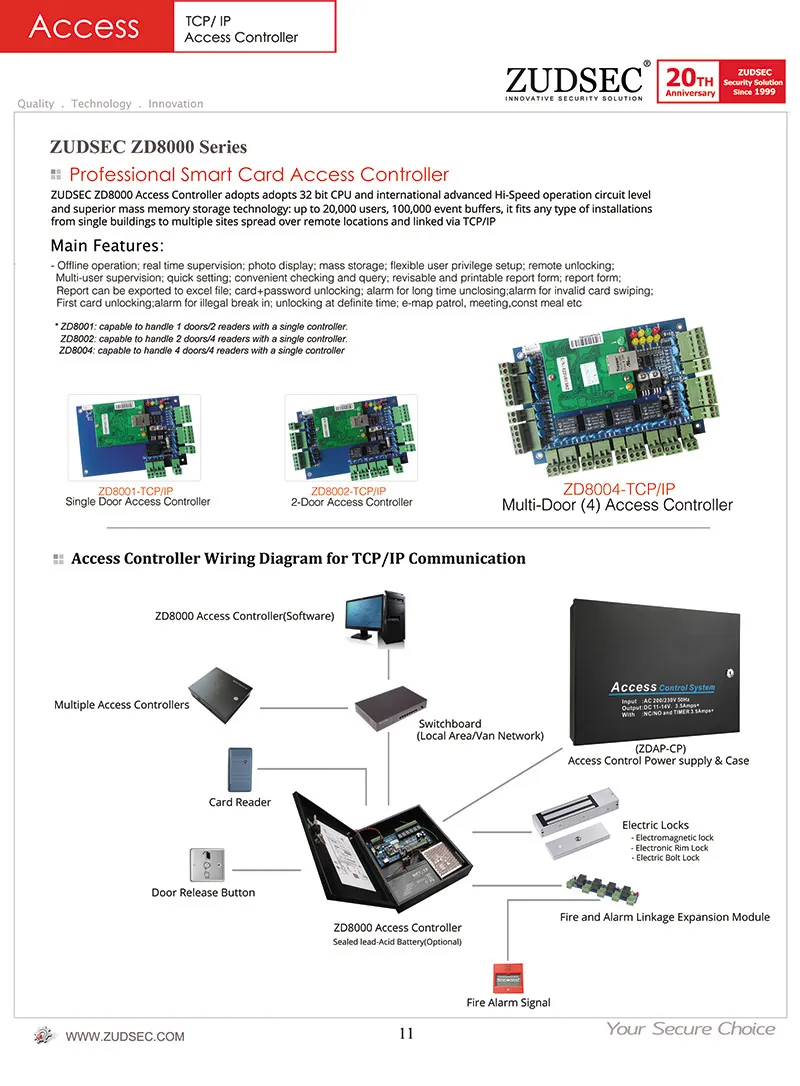

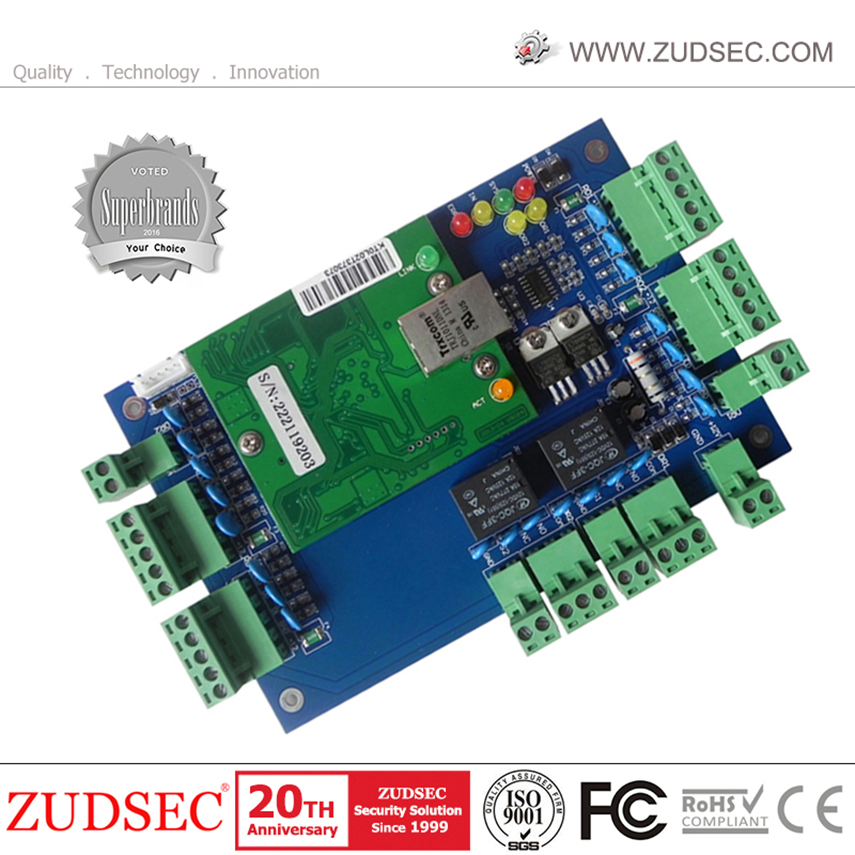

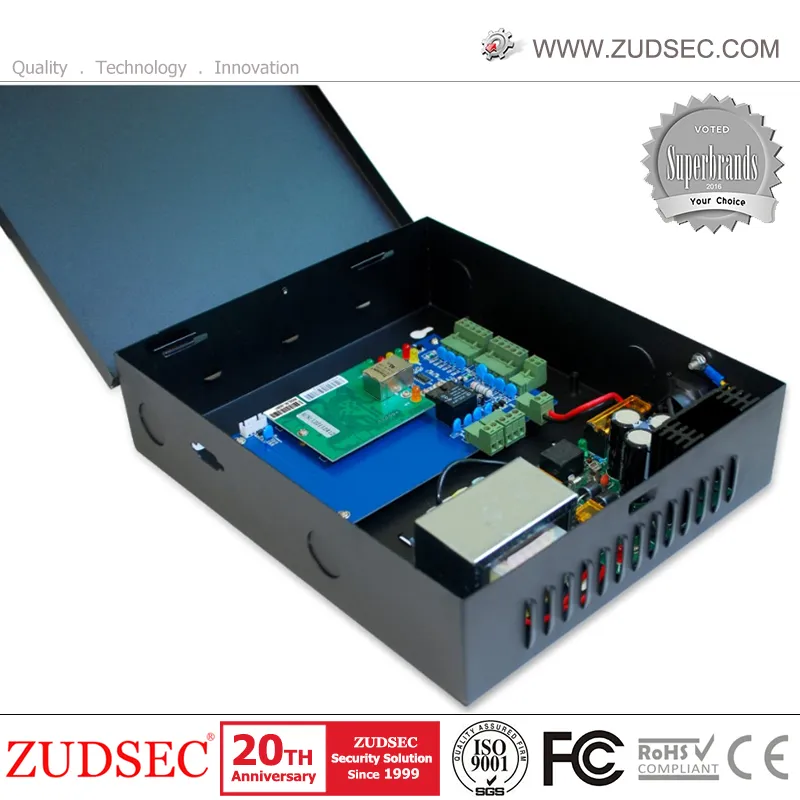

Fingerprint RFID Control Board TCP/IP Network Door Access Control with 2-Door
The access control management system integrates and optimizes automated control for a variety of client demands such as Premises Access Control and Visitor Management.
Offline operation; real-time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; card + password unlocking; alarm for long-time unclosing; alarm for invalid swiping; first card unlocking; illegal break-in alarm; electronic map.
Interface locking; intimidation alarm; integrated fire control; anti-passback and anti-tailing; interlocking; multi-card unlocking; emergency double locking; indoor population checking; unlocking based on internal and external validation.
Time attendance management system (normal and multi-shifts); fixed ration dining management; meeting attendance management; online patrol management; security alarm linkage.
| Parameter | Single Door Panel | 2-Door Panel | 4-Door Panel |
|---|---|---|---|
| Model | ZD8001-TCP/IP | ZD8002-TCP/IP | ZD8004-TCP/IP |
| Communication | TCP/IP 10M/100M adaptive | ||
| Door Controlled | 1 Door | 2 Doors | 4 Doors |
| Qty of Reader | 2 Readers | 4 Readers | 4 Readers |
| Size of PCB | 160mm * 106mm | 160mm * 106mm | 218mm * 106mm |
| User Capacity | 20,000 Users | ||
| Event Log | 100,000 Records | ||

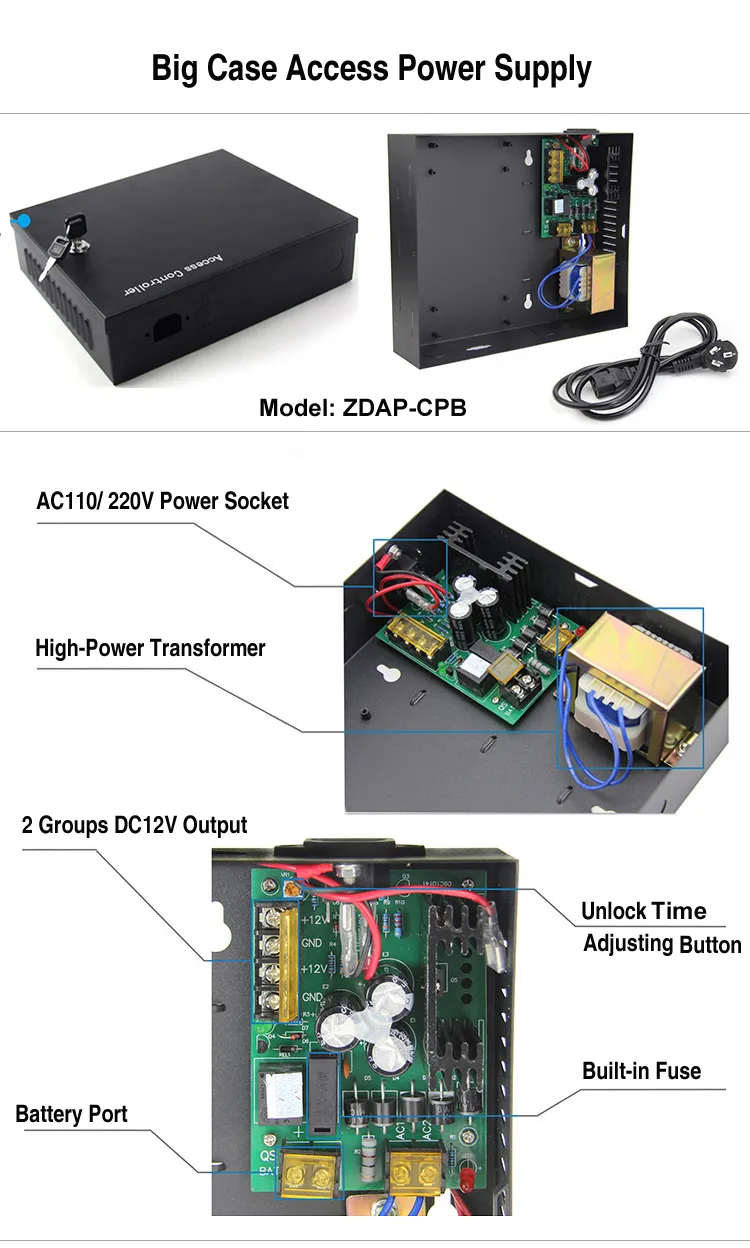

| Power Supply | 12VDC 4-7A | ||
| Reader Format | Wiegand 26 (Compatible with EM, Mifare, HID, etc.) | ||
