AC1500V HV Flexible Cable
1.5kVac Flexible HV Cables For EV Use (Reference Standard: DB44/T 2100-2018)
| Construction | Features & Performance |
|---|---|
|

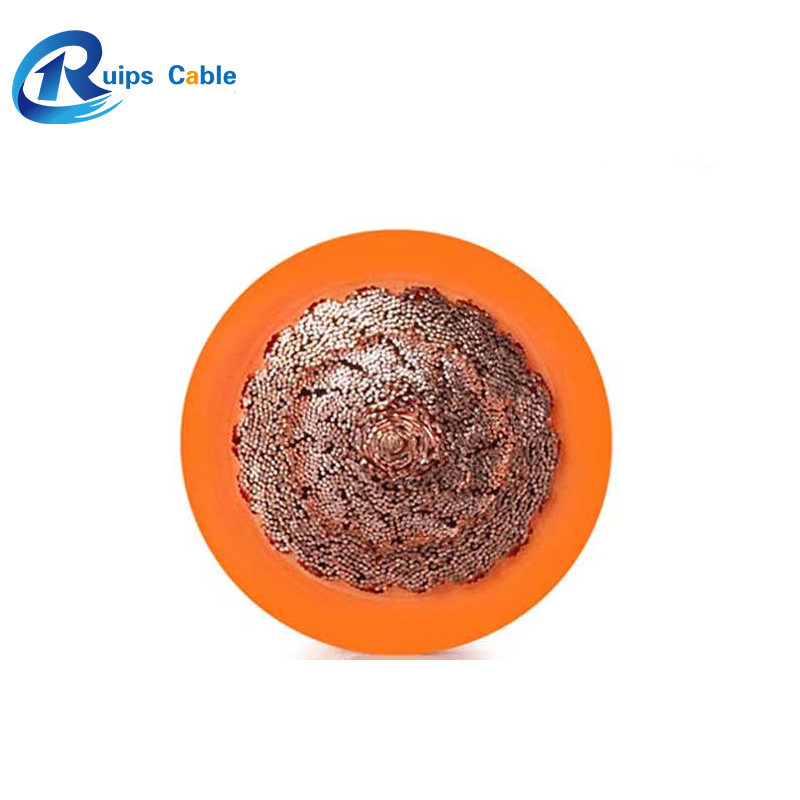

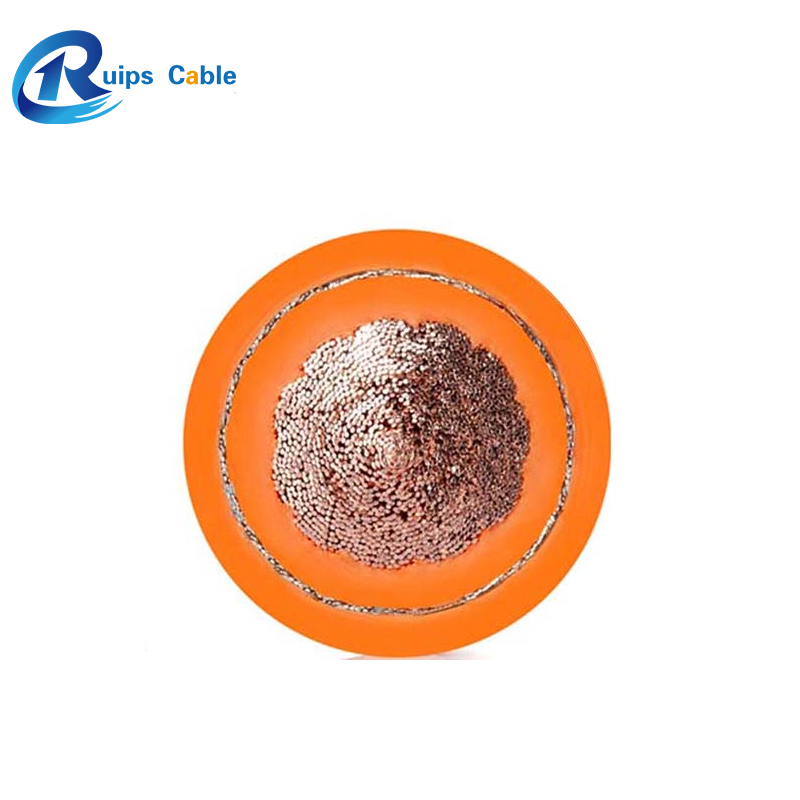

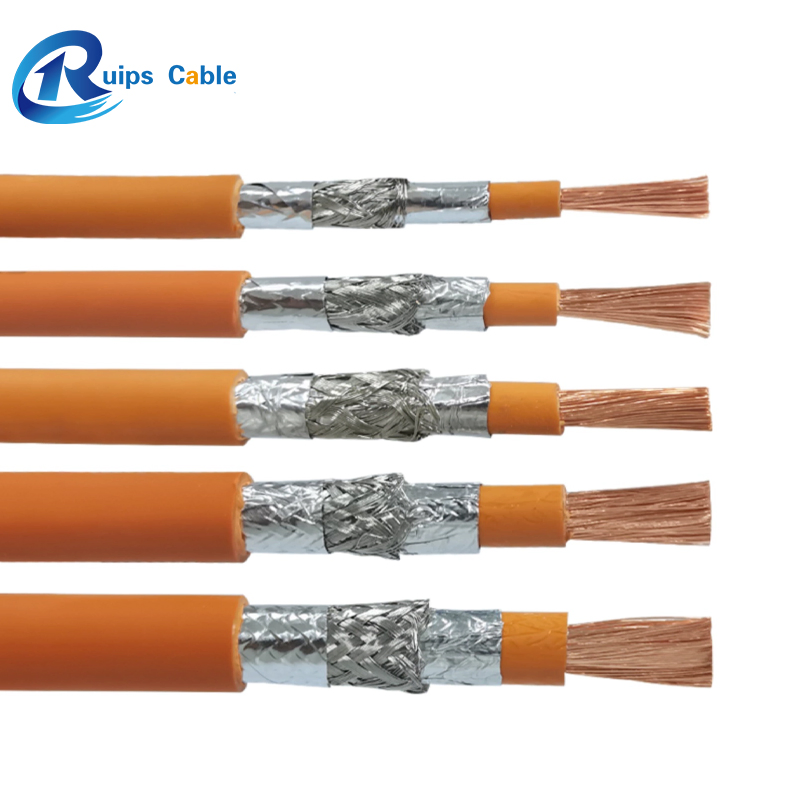

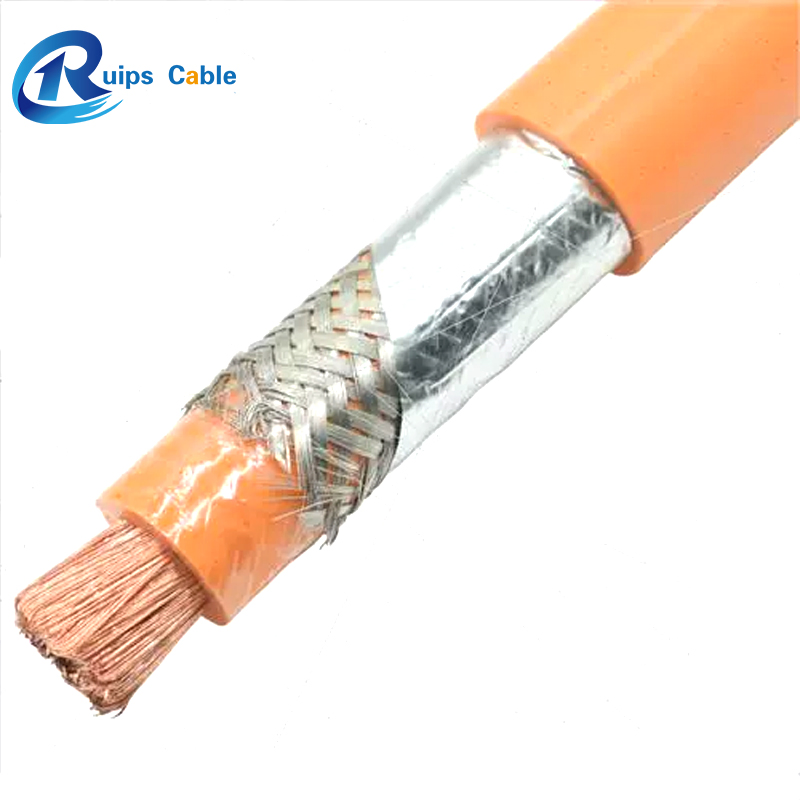

Conductor: Bare Copper Insulation: XLPE (Orange) Shielded: Tinned Copper Sheath: XLPE (Orange) |
1. Rated temperature: -40ºC to +150ºC 2. Rated Voltage: AC 1500V 3. Flame Test: VW-1 (UL 2556) 4. Oil Resistance: IRM902, IRM903 5. Dielectric Voltage: 6kVac/5min 6. Environmental: RoHS & REACH Compliant |
| Product Series | Size (mm²) | Conductor OD (mm) | Max Resistance (mΩ/m) | Ampacity (A) |
| EVR-125 / EVR-150 | 2.5 | 2.06 | 7.60 | 30 |
| 6 | 3.40 | 3.14 | 52 | |
| 16 | 5.60 | 1.16 | 95 | |
| 35 | 8.30 | 0.527 | 160 | |
| 70 | 12.10 | 0.259 | 260 | |
| 120 | 15.90 | 0.153 | 370 |
