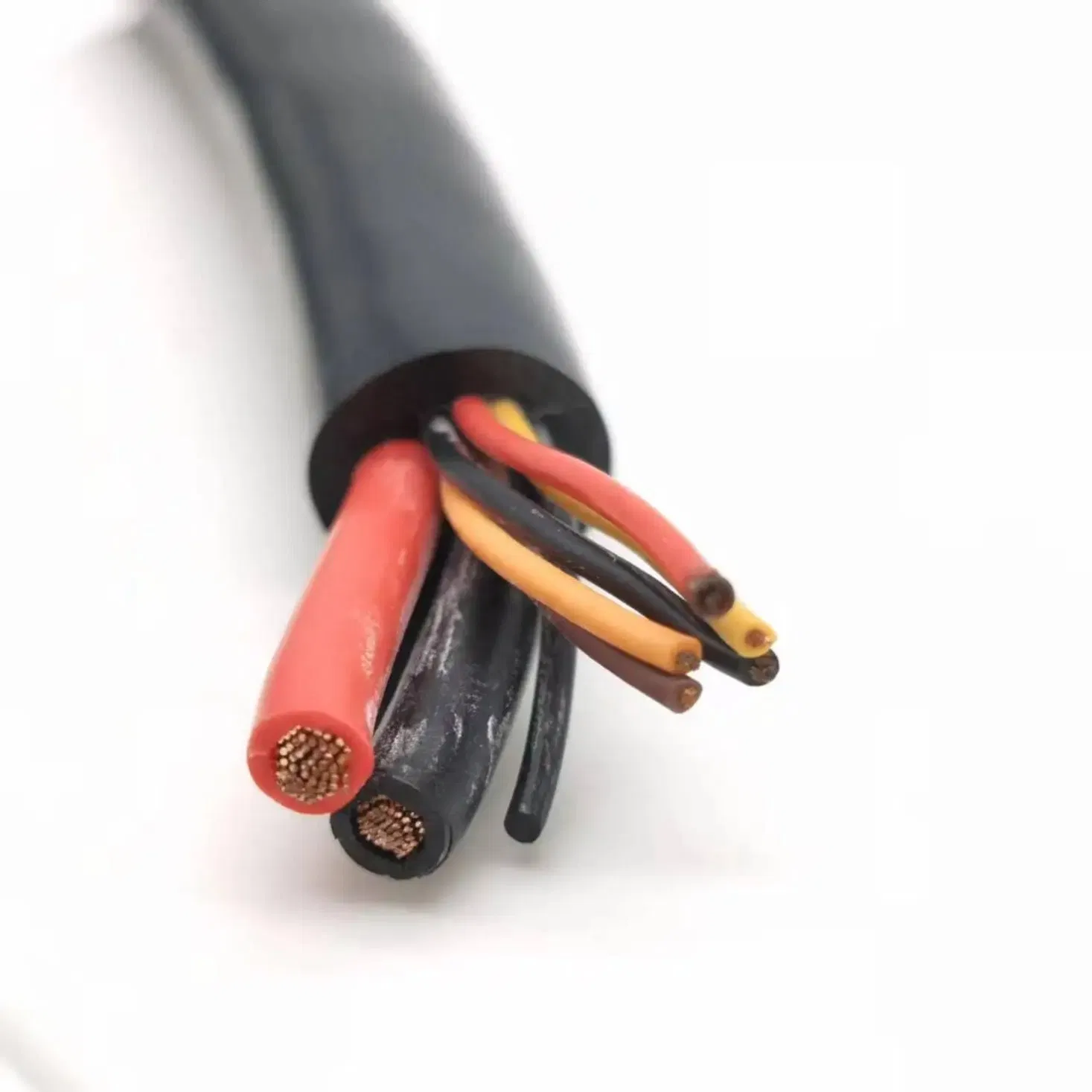

Flexible Silicone Rubber Insulated Screen EV Cable

1 / 5

Flexible Silicone Rubber Insulated Screen EV Cable

Customization:	Available
Certification:	CCC
Conductor Material:	Copper

Send Inquiry

Product Description

Technical Overview

Sheath Material

PVC

Insulating Materials

PVC

Input Power

AC&DC

Voltage Rating

Low Voltage

Operating Temp

to 105°C

Fire Resistance

BS6387 Standards (C/W/Z)

Features

Non-Flammable, Zero Toxic Smoke, Blast-Proof

Safety Approvals

CE, Ukca, RoHS

Waterproof

Excellent

Flame Retardant

Excellent

Production Capacity

100,000km/Year

Origin

China

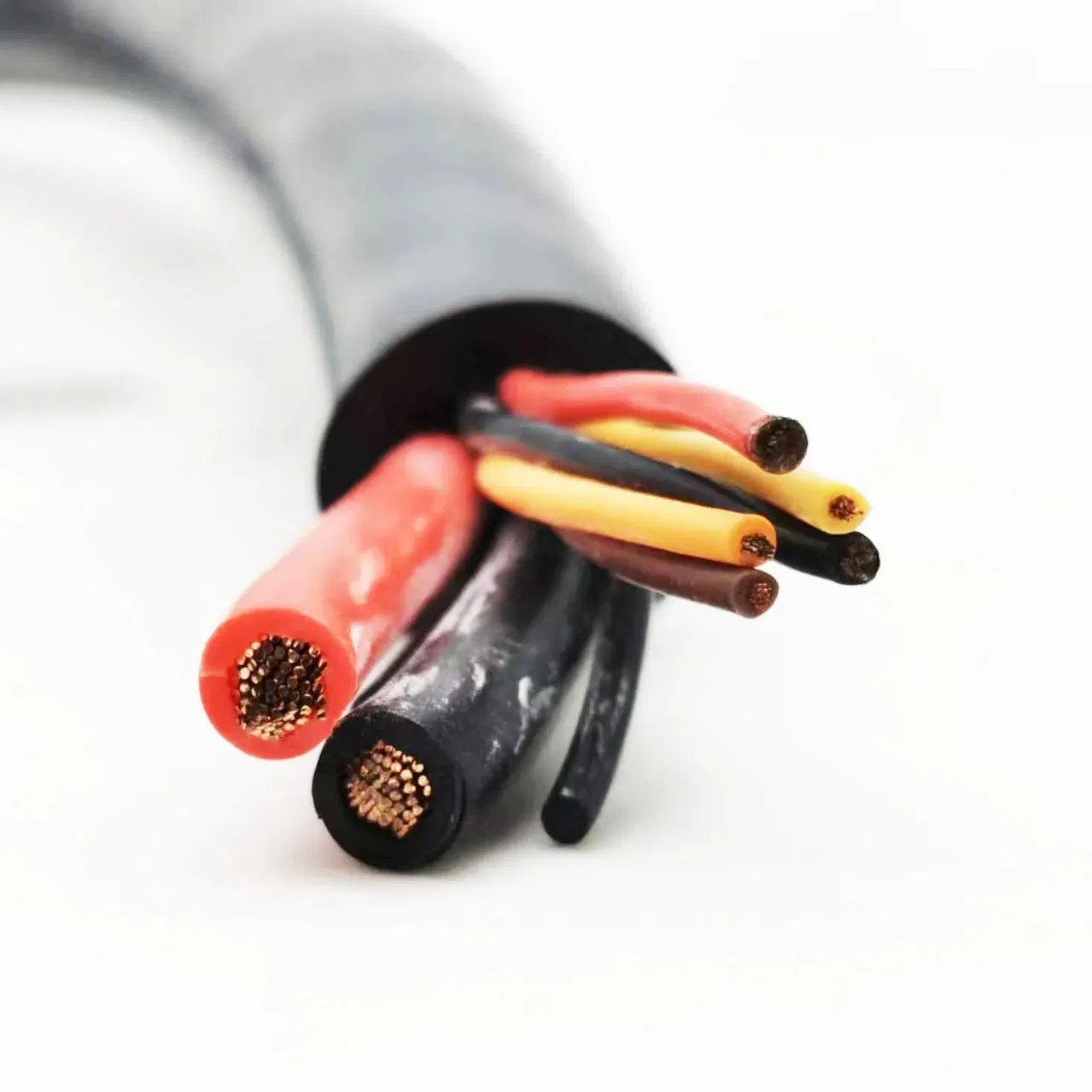

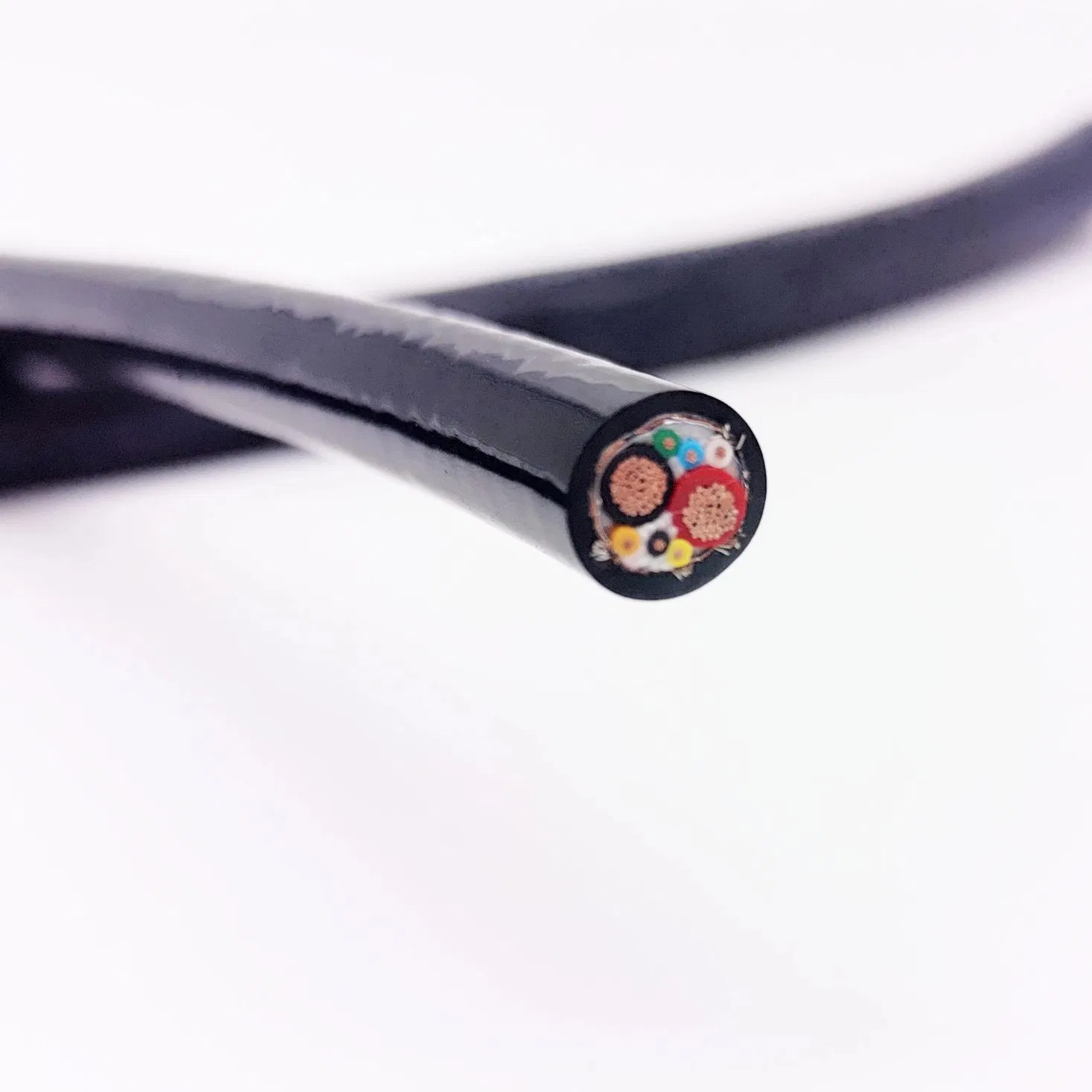

Flexible Silicone Rubber Insulated Screen EV Cable

The charging cable is the core connection component for charging of new energy vehicles, performing three functions: transmitting electrical energy, conducting signal interaction, and providing safety protection. It is responsible for safely transmitting stable power from the grid or the charging station to the vehicle's battery.

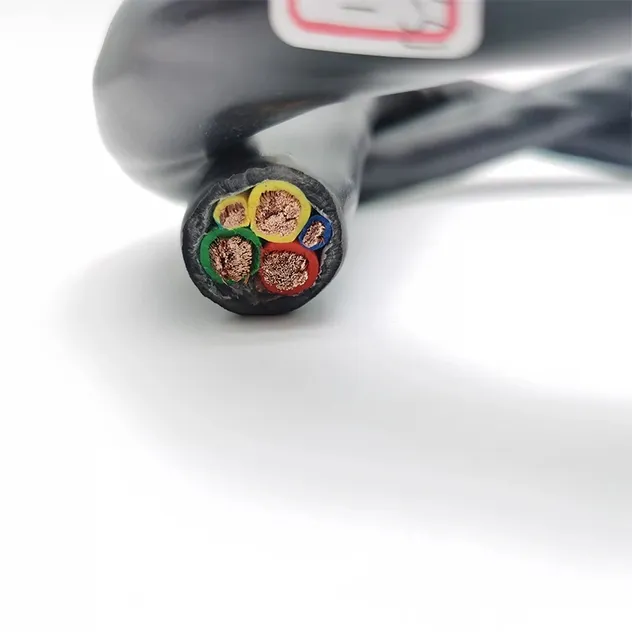

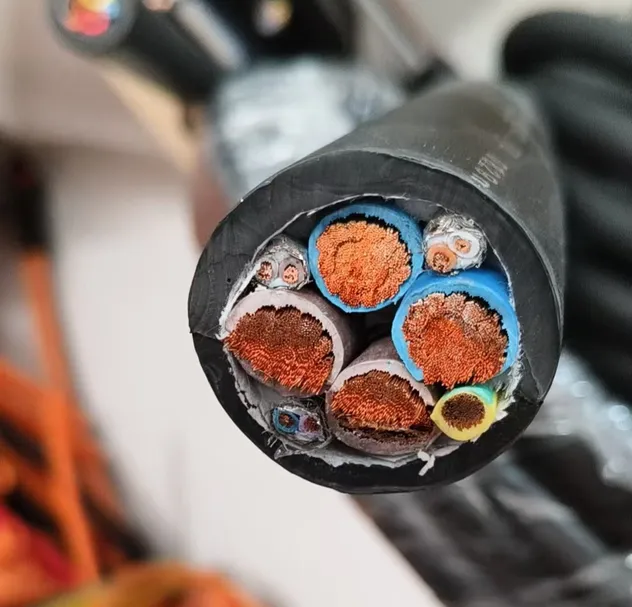

Core Raw Materials:

Conductor: High-purity oxygen-free copper with high conductivity and low heat generation.
Insulation: Special elastic materials (TPE, XLPE, EPR) resistant to temperature extremes.
Sheath: Environmentally friendly flame-retardant PVC/Polyurethane resistant to wear and UV.
Shield: Copper mesh / aluminum foil for reduced electromagnetic interference.

Applications & Significance

Promoting New Energy Transportation: Serving as the "blood vessels" for electric vehicles, making home and public charging a reality.

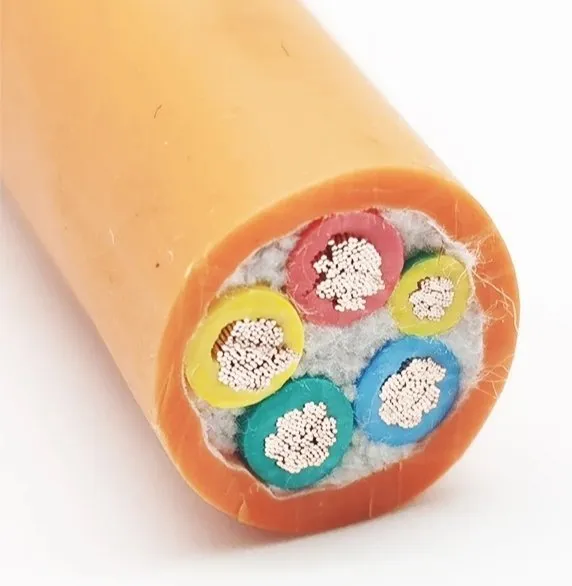

Application Scenarios: Public charging stations, home/community stations, vehicle-mounted charging, commercial logistics, and underground garages.

Technical Specifications

Type	Typical Model	Rated Voltage	Temperature Range
AC	EV-RSS, EV-RS90U	450/750V	-40℃~+90℃
AC	EV-RSSPS	450/750V	-40℃~+90℃
DC	EVDC-RSS, EVDC-RSSPS	1kV~1.8kV	-40℃~+90℃
Liquid-cooled DC	EVDC-LC	1.8kV~3kV	-40℃~+125℃

R & D Capabilities

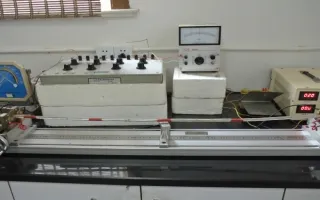

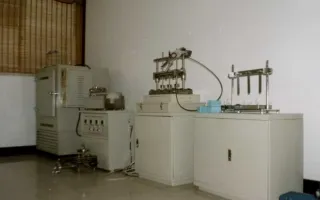

Equipped with DC resistance testing systems and heat extension testing equipment, we ensure high-standard conductor conductivity and insulation durability. Our inspectors hold expertise in materials science to maintain rigorous quality control.

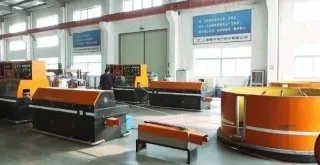

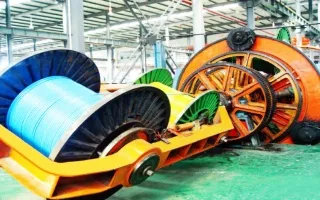

Manufacturing Excellence

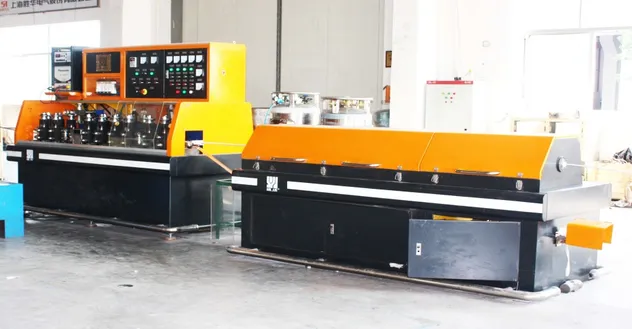

Evolved from a specialized factory into a large-scale enterprise group, we cover all categories of cables with multiple production bases. Recognized as a benchmark in manufacturing, we maintain strong international competitiveness.

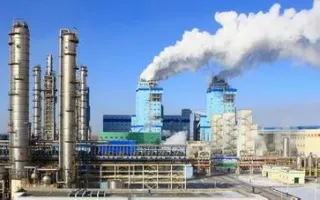

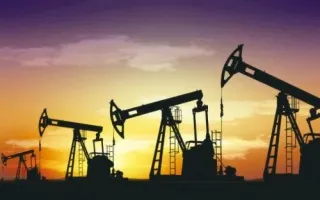

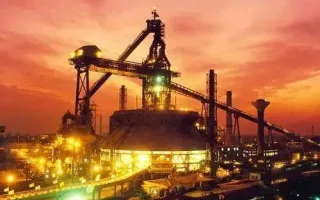

Global Projects

Key Landmarks Served:

National Stadium (Bird's Nest)
World Expo Venue Complexes
Major Battery Production Bases
Nuclear Power Projects

Our Team

Our team focuses on enhancing communication, teamwork, and execution. By fostering a strong corporate culture and values, we inject motivation and enthusiasm into providing high-quality power solutions.

Frequently Asked Questions

What's the lead time for orders?

Standard models typically ship within 15–30 days; customized cable units require 30–45 days depending on the specification.

Do you provide after-sales service overseas?

Yes, we have established partnerships with service centers in key regions to ensure technical support.

Can I request a customized cable configuration?

Absolutely! We offer tailored solutions including specific lengths, materials, and electrical parameters.

What safety standards do your cables comply with?

All products are produced strictly in accordance with GB/T 33594, CQC, or DEKRA standards, passing rigorous pressure and flame tests.

What documents are provided for export?

We provide a full export documentation package including certificates of origin, safety approvals, and technical data sheets.

How can I place an order or get a quote?

Please contact our sales department through the official inquiry channel. Once technical requirements are confirmed, we will issue a formal quote for your PO.
