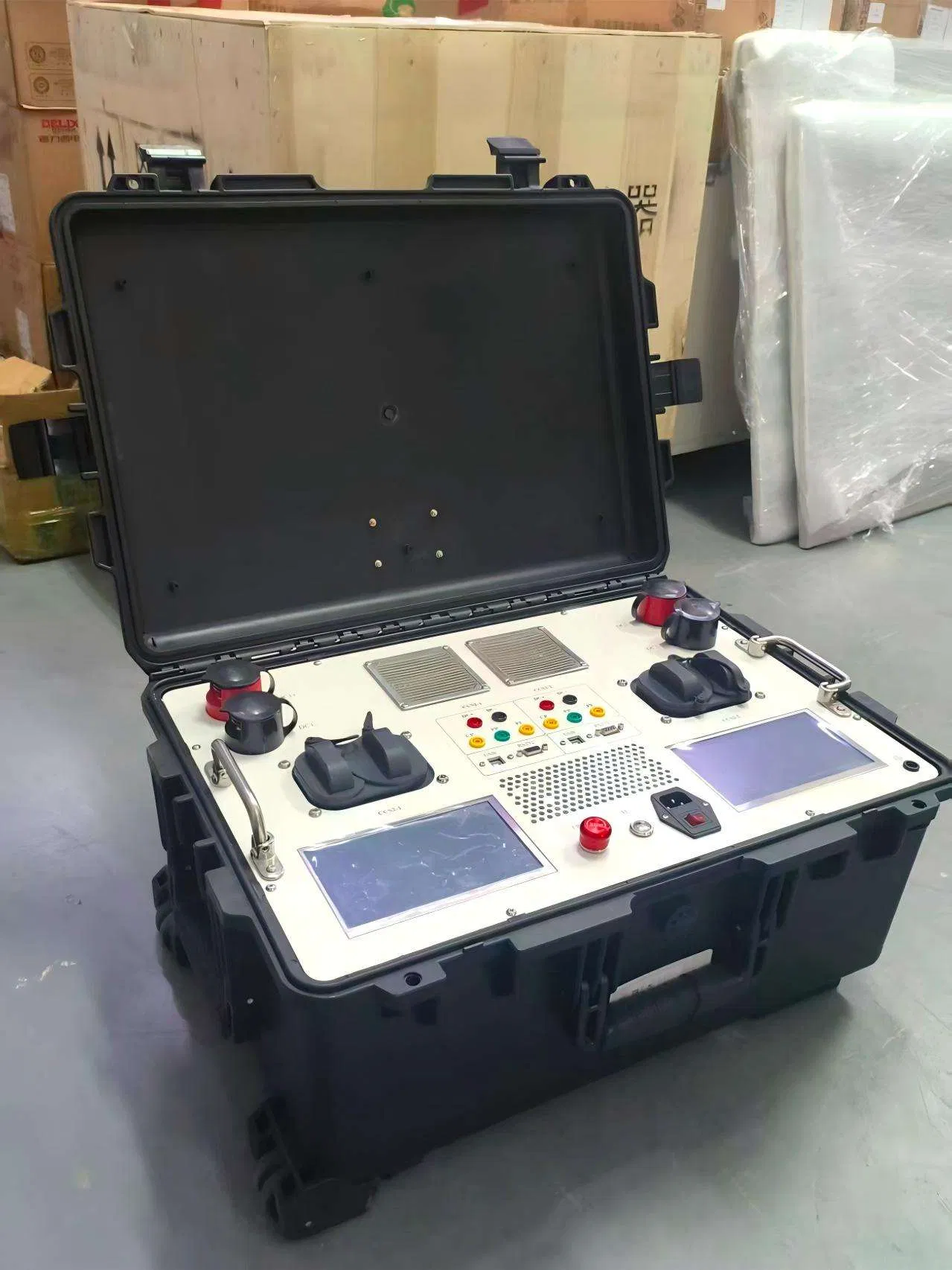

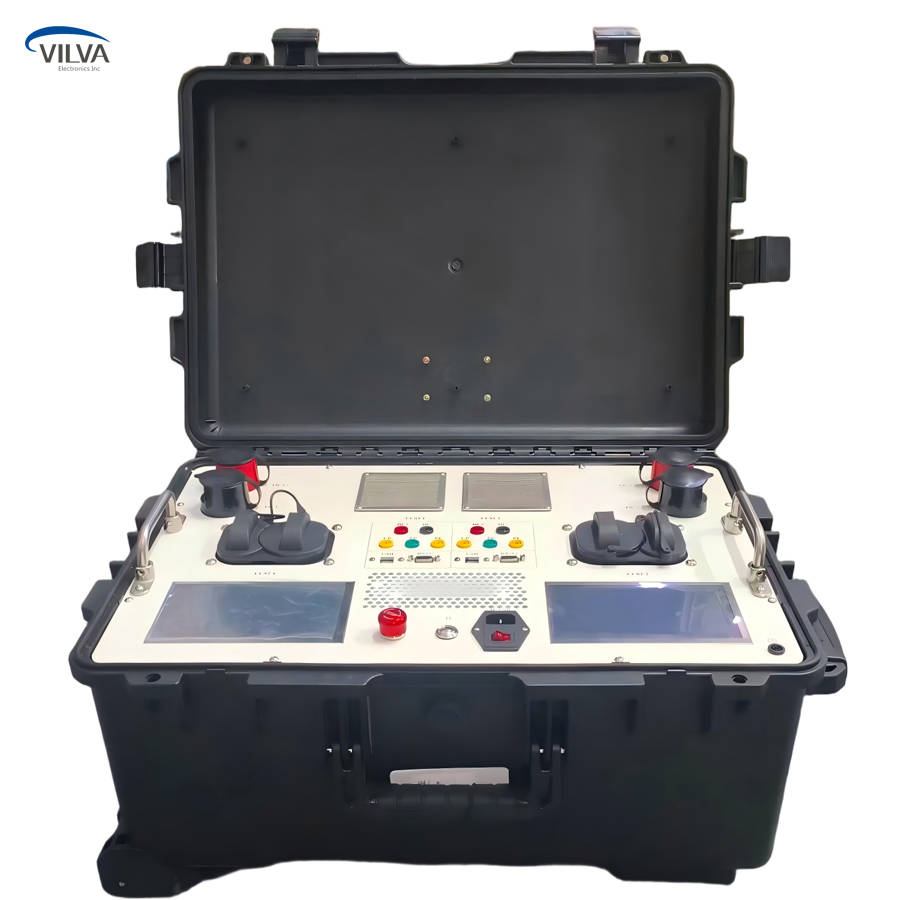

High-Performance DC EV Charger Testing Simulator for Stations

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year Warranty

📊

Basic Information

Model NO.

EVD1000V-3KW-CCS2

Protection Class

IP20

Load Accuracy

-5%-+2%

Display Class

0.5%Class/0.3class

Customized

OEM/ODM/OBM

Rated Voltage

DC1000V

Rated Power

Support Customized

Noise Level

65db~85db

Application

Auto Testing, Electrical Testing

Ambient Temperature

-10°C~+50°C

Transport Package

Wooden

Specification

484*600*466mm(W: L: H)

💡

Product Description

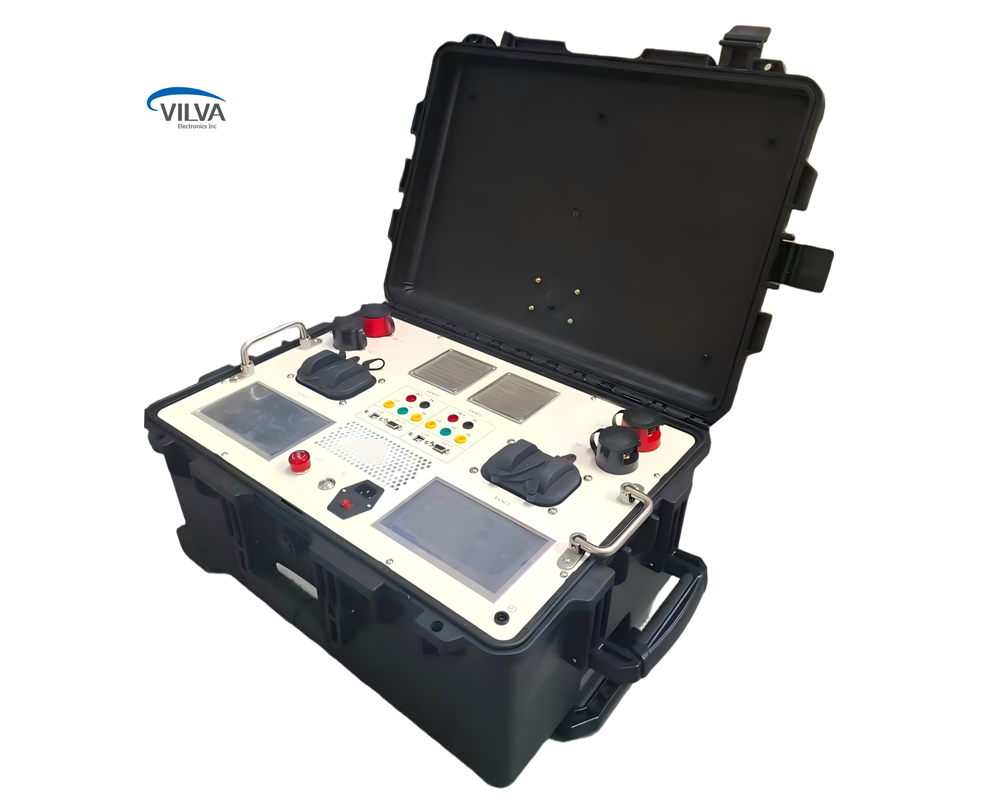

DC EV Charger Pile Tester

1

Multi-Protocol Compatibility Supports mainstream charging protocols including GB/T, CCS (EU/US), CHAdeMO, and Tesla Supercharger. Automatically identifies and matches protocols to simulate communication.

2

Precise DC Output Measurement High-precision sensors (≤ 0.1%) measure voltage (0–1000V) and current (0–500A), ripple voltage, and dynamic response characteristics.

3

Charging Sequence Simulation Verifies physical connection, low-voltage power supply, communication handshake, parameter configuration, and fault disconnection.

4

Fault Injection Function Manual injection of communication interruptions, overvoltage, insulation resistance reduction, and signal abnormalities to test protection safety.

5

Energy Measurement & Efficiency Analysis High-precision energy meter calculates charging energy and efficiency (output/input), supporting load curve analysis.

6

Communication Protocol Analysis Decodes CAN bus and Ethernet data in real time, displaying frame content and error codes for diagnostics.

7

Load Simulation Capability Built-in programmable DC electronic load (0–500kW) to simulate EV battery capacities and various charging modes (CC/CV/CP).

📋

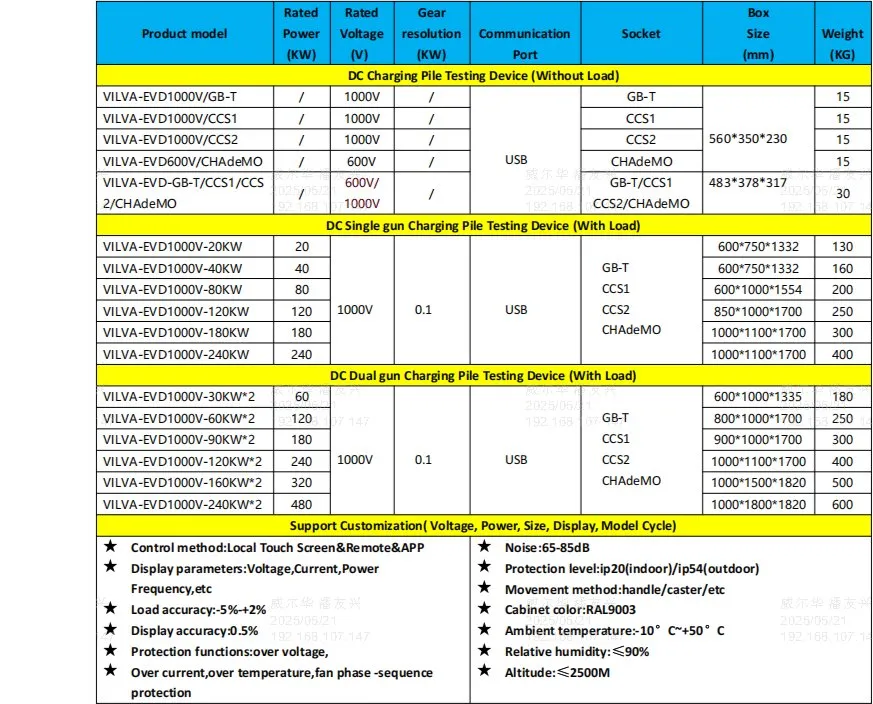

Specification

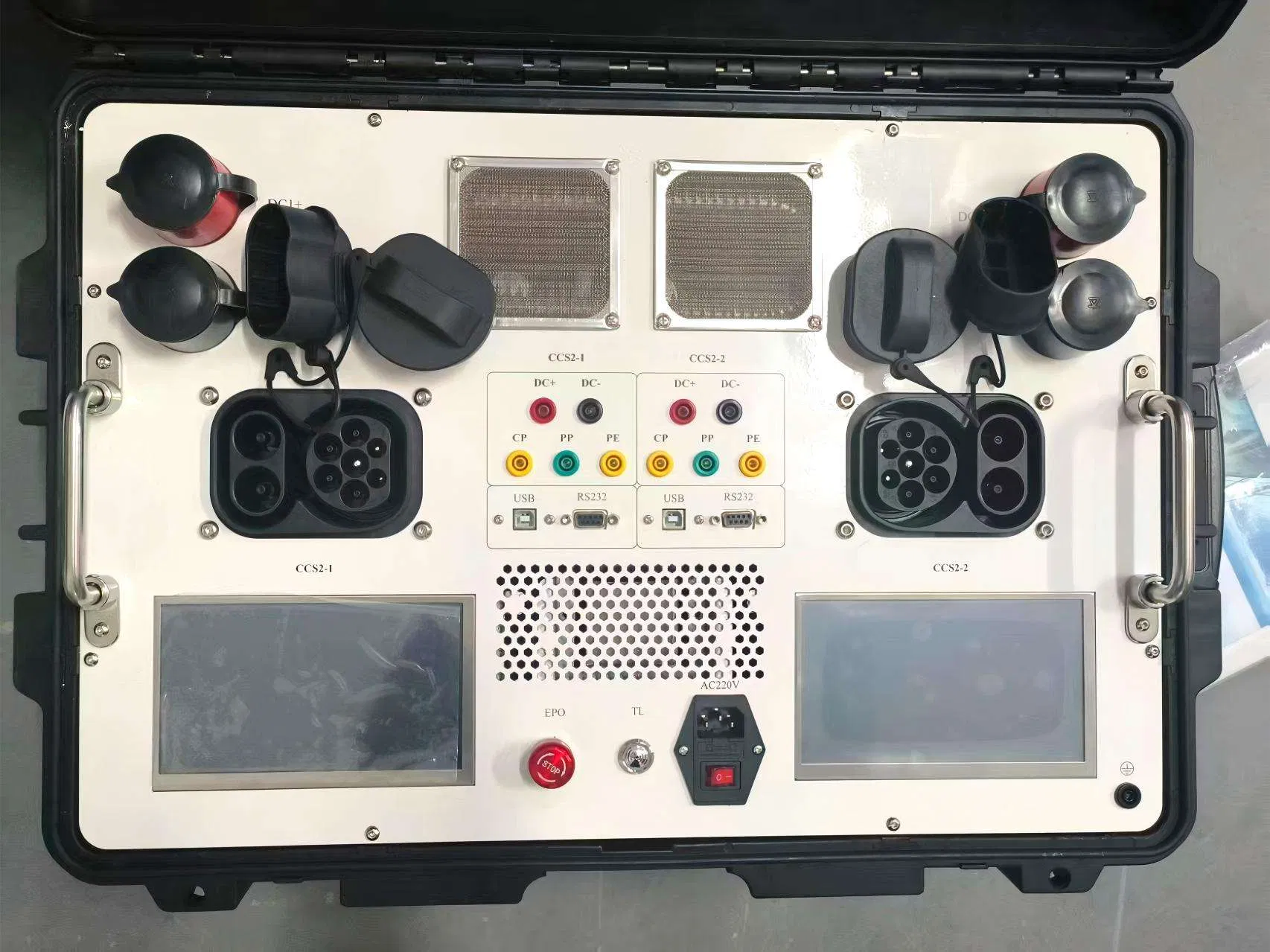

Protect Name	DC 200V~1000V EV Charger Pile Tester with Dual Sockets CCS2*2
Rated Voltage	DC 200V~1000V
Rated Power	0.8/1
Test Accuracy	-5%~+2%
Sampling Accuracy	0.5 Class
Application	Verify voltage/current accuracy, protocol handshake, load simulation, fault response, energy metering.
Protection	Overvoltage / Gunseat Overtemperature / Load Overtemperature
Working Source	Single Phase 220Vac
Protection Level	IP20 (Indoor)
Control Mode	Touch Screen / Upper Control

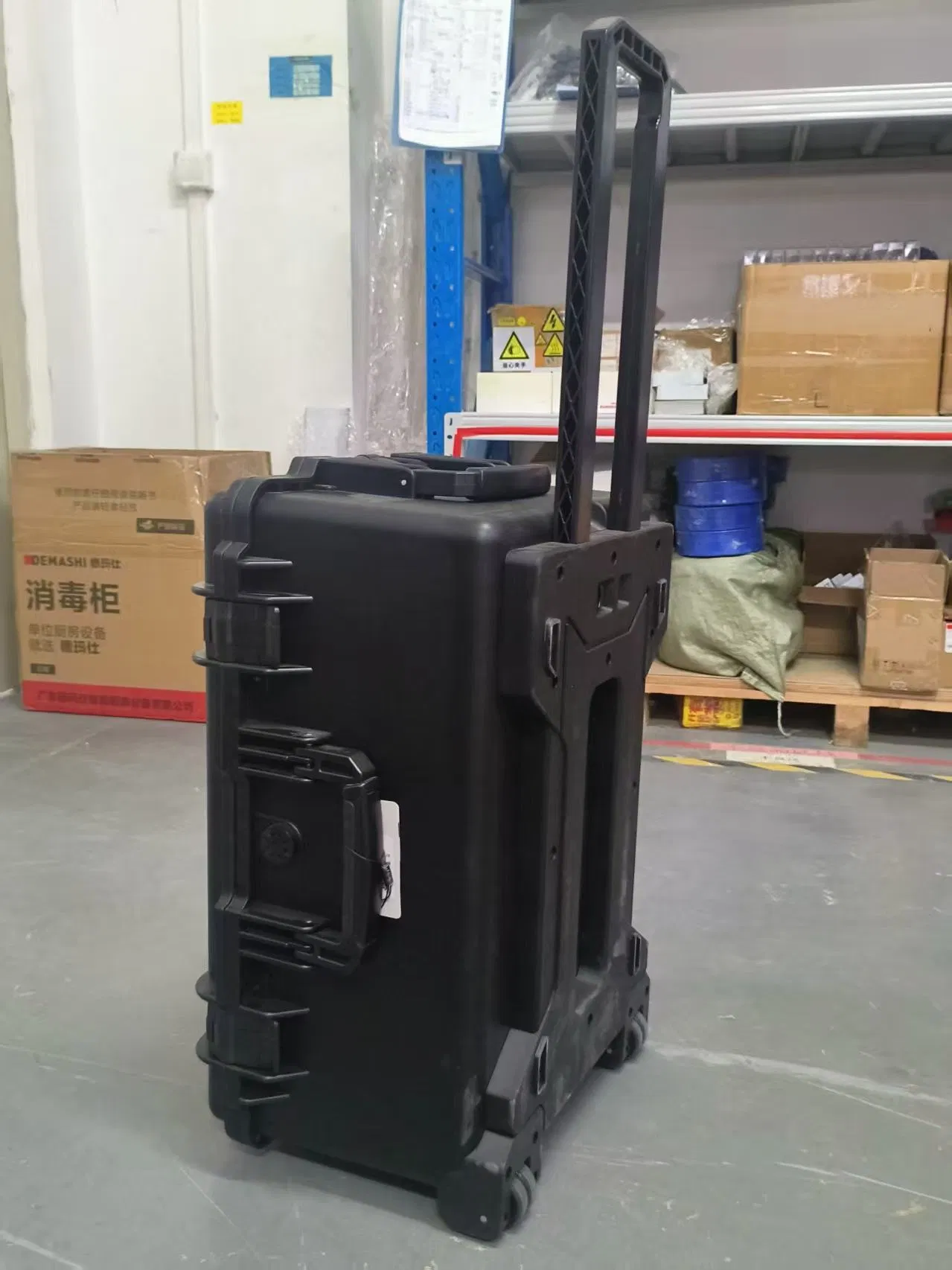

Move Mode	Portable suitcase-style design
Ambient Temp	-10℃ to +50℃

🏢

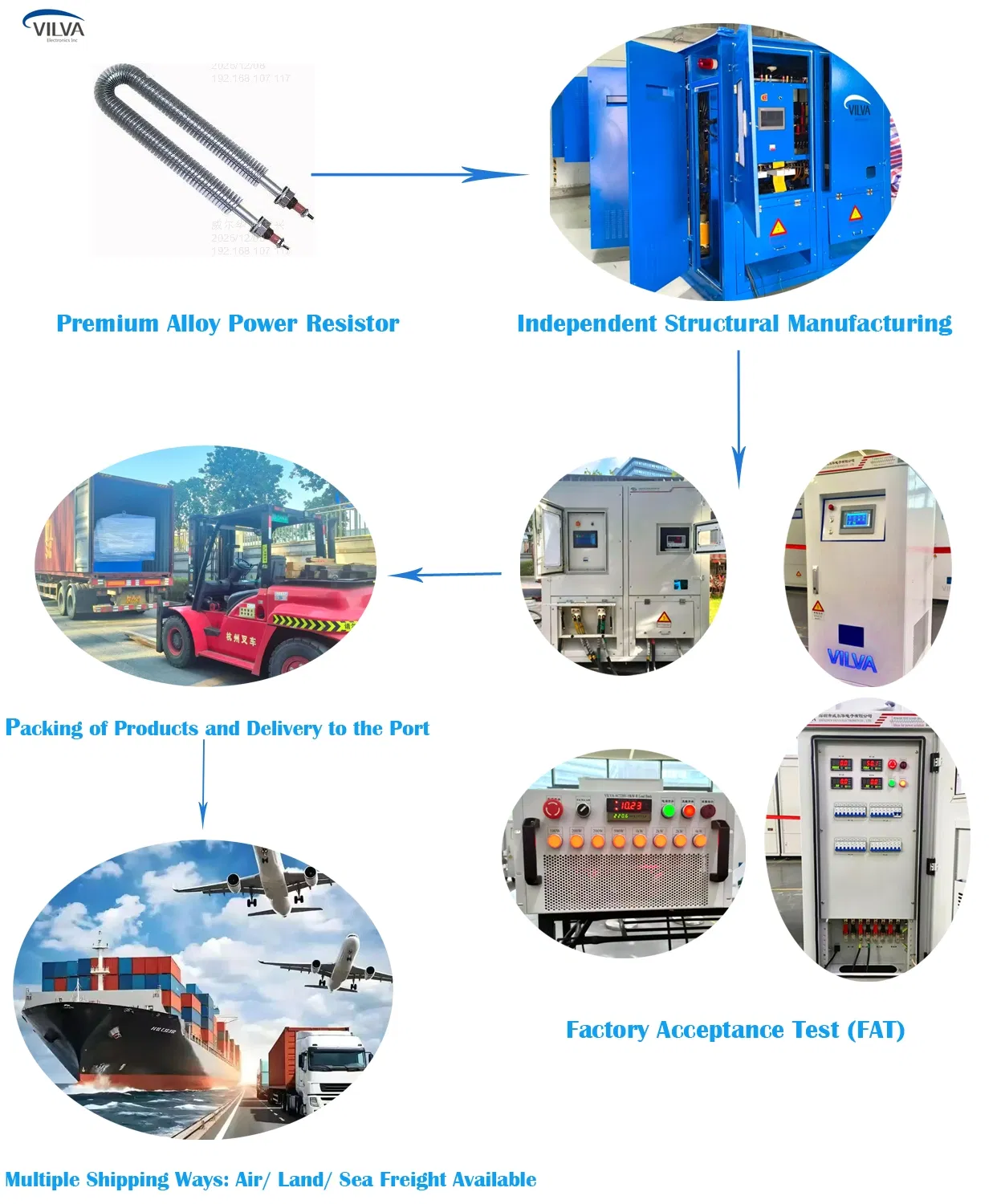

Production Environment

📦

Packaging & Shipping

❓

Frequently Asked Questions

May the Charger pile test be customized?

Yes, all products may be customized according to your specific requirements.

Do you have this device in stock?

While most equipment is customized, we do maintain stock for some standard testers.

How about the lead time?

The typical lead time is approximately 35-58 days depending on the customization level.

What kind of sockets are supported?

AC supports GB-T, Type 1, and Type 2. DC supports GB-T, CCS1, CCS2, and CHAdeMO.

Can this device clearly display the test data?

Yes, it provides detailed statistics and waveform outputs for various message types and supports touch screen operation.

Is this an indoor or outdoor type device?

The standard version is for indoor use. An optional outdoor version with air ducts is available to enable weatherproofing.
