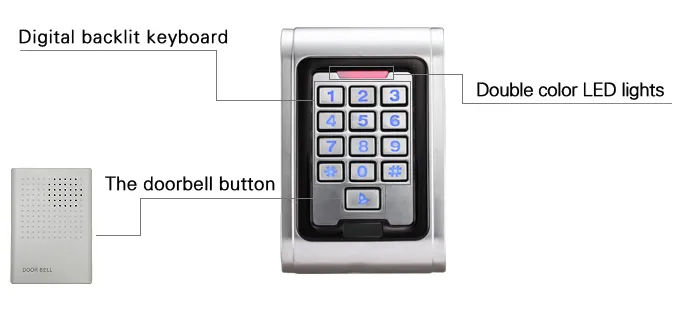

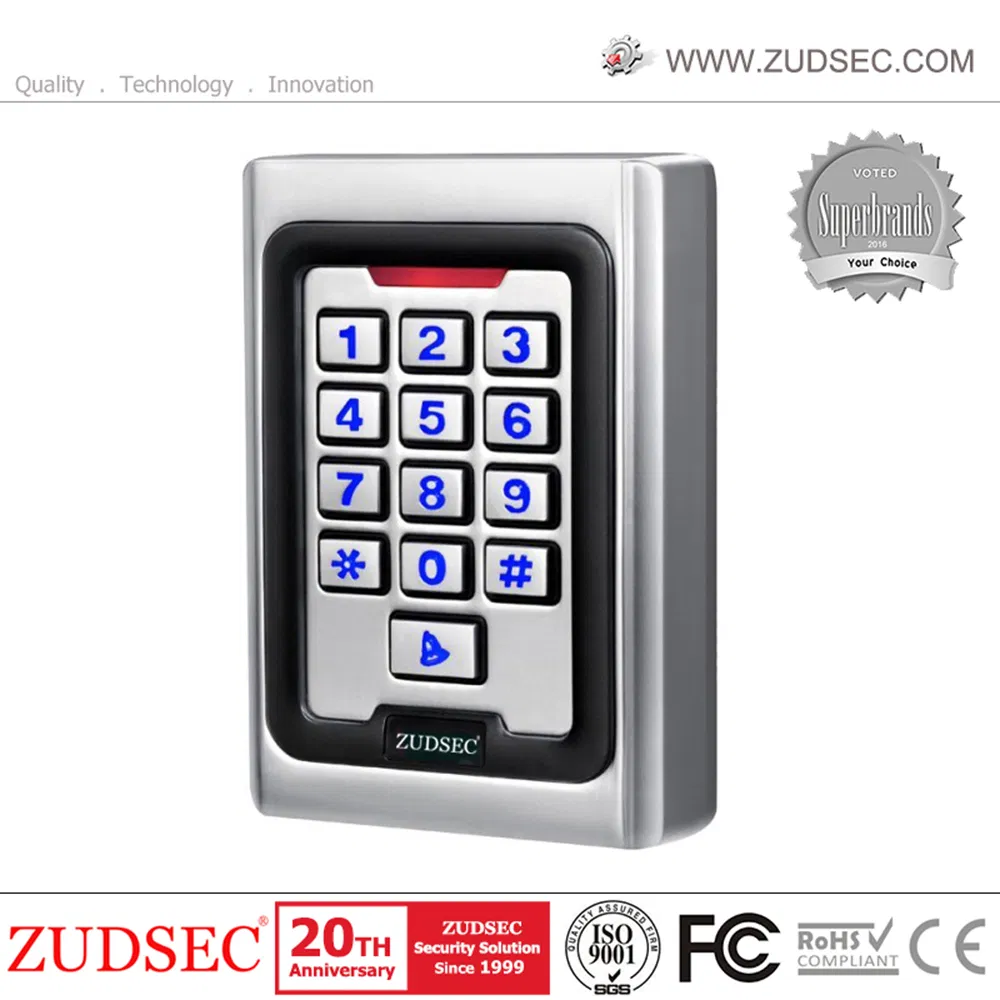

The ZDAC-2300 is a powerful standalone door access control solution designed with a robust metal shell, making it suitable for mounting either indoors or in harsh outdoor environments. Featuring an exquisite non-masking metal housing and keystroke backlight, it supports up to 2000 users. Authentication can be performed via Card, a 4-digit PIN, or a combination of both. Its Wiegand output and doorbell functionality make it an ideal choice for residential, commercial, and industrial applications including factories, warehouses, and banks.
| Model | ZDAC-2300 |
| Card Types | EM or EM compatible |
| Operating Voltage | DC 12V±10% |
| User Capacity | 2000 |
| Card Reading Distance | 3~6cm |
| Active Current | <60mA |
| Lock Output Load | Max 3A |
| Operating Temperature | -45ºC~60ºC |
| Operating Humidity | 10%- 90% RH |
| Adjustable Door Relay time | 0 -99 seconds |
| Adjustable Alarm Time | 0- 3 minutes |
| Wiegand Interface | Wiegand 26 bit |
| Wiring Connections | Electric Lock, Exit Button, External Alarm |
* Packing Size: 19*12.7*6CM, Weight: 0.55kg/pc
