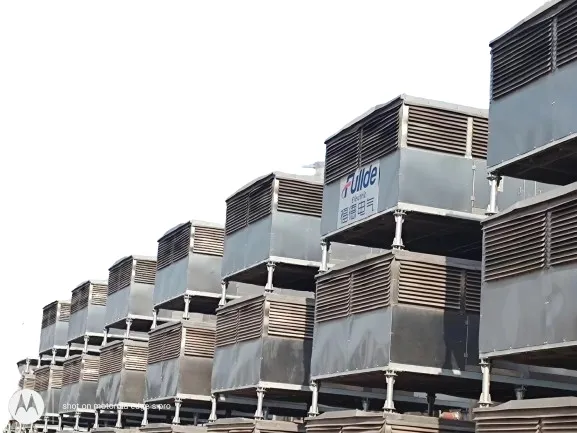

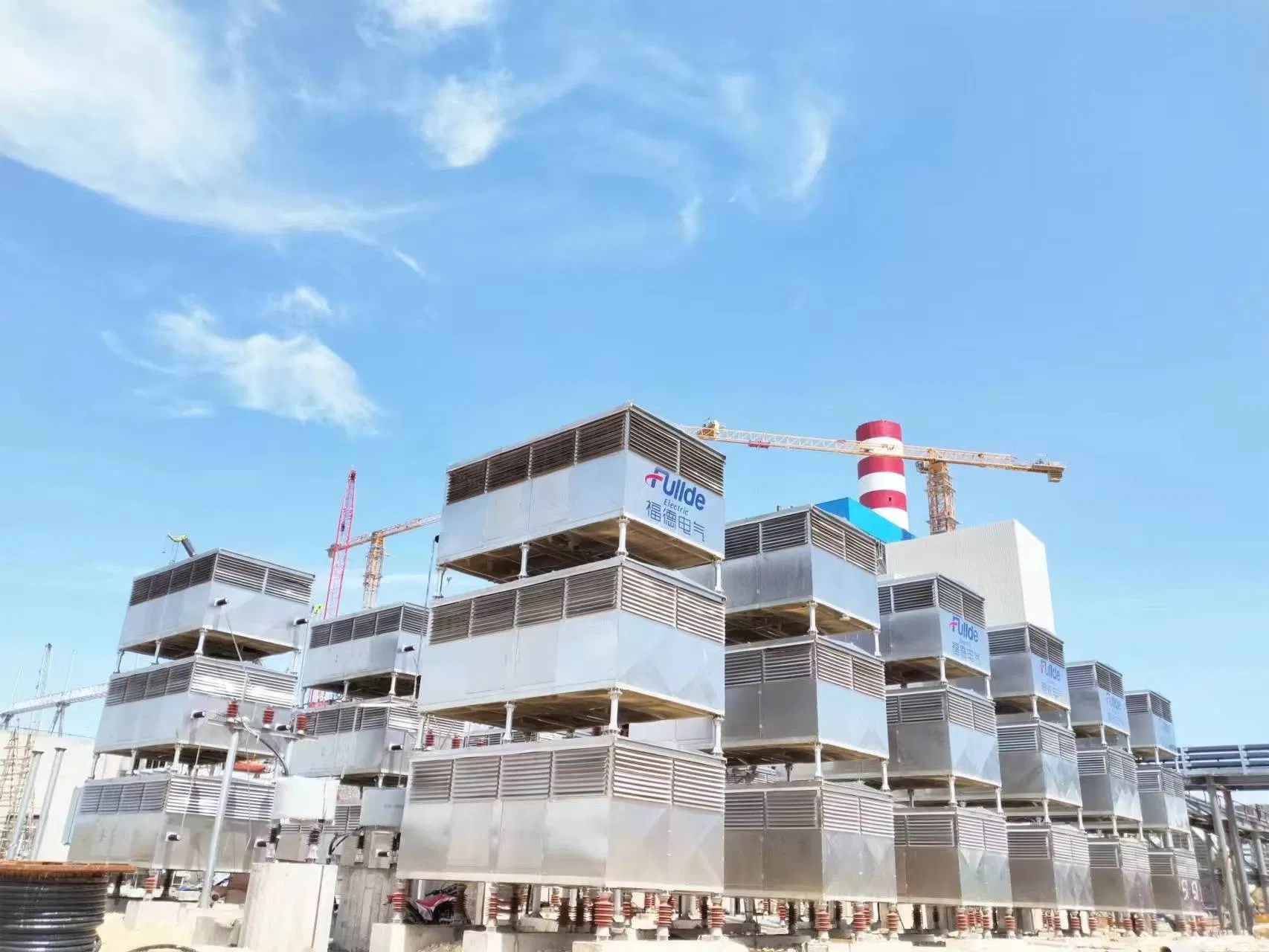

Electronic load is a flexible electric load power balance system based on power electronics technology, with kilowatt-level precise control, millisecond-level rapid response performance and flexible control strategy. It is essential for stabilization control systems and grid black start coordination, particularly in isolated grid operations. It protects power plants from severe impacts when high-power loads start or stop suddenly, ensuring grid stability.
Rapidly adjust power consumption to maintain frequency stability.
Dynamic compensation to stabilize voltage and suppress harmonics.
Flexibly adjust load demand for reasonable power distribution.
Quickly respond to emergencies and fill power gaps.
| S/N | Name | Parameters |
|---|---|---|
| 1 | Rated voltage | 10kV |
| 2 | System max operating voltage | 12 kV |
| 3 | Rated power (hot state) | 30MW |
| 4 | Connection mode | Delta connection scheme |
| 5 | Cold power | ≥ 30MW |
| 6 | Hot power | ≥ 30MW |
| 7 | Resistor type | Metal resistor |
| 8 | Running time | Long term at ≤ 30MW |
| 9 | Resistance change | Hot resistance ≤ 1.4x Cold resistance |
| 10 | Overload capacity | 60S at 1.1x rated power |
| 11 | Housing Material | Carbon steel + Hot dip galvanized / SS304 |
Products are professionally secured before delivery: first wrapped with protective film, followed by pearl cotton padding, and finally enclosed in a sturdy wooden case for maximum transport safety.
