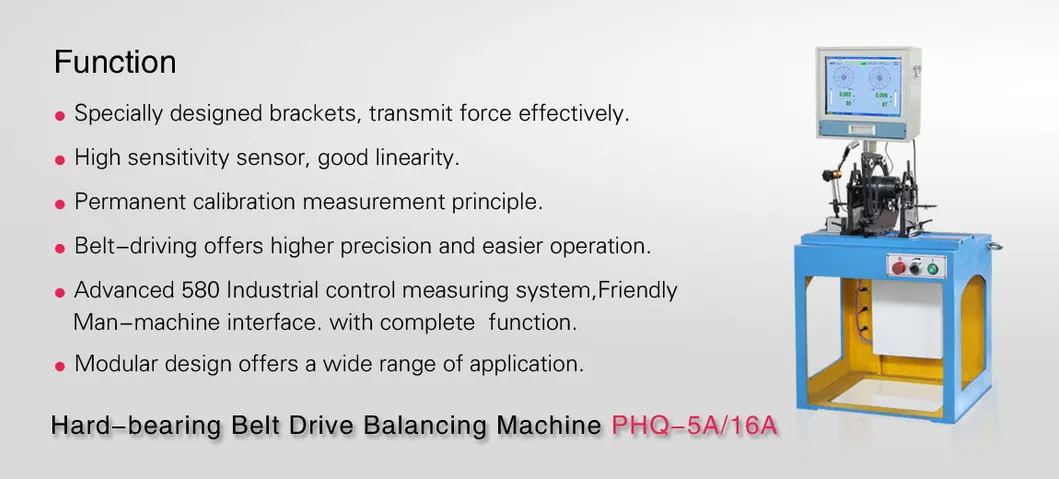

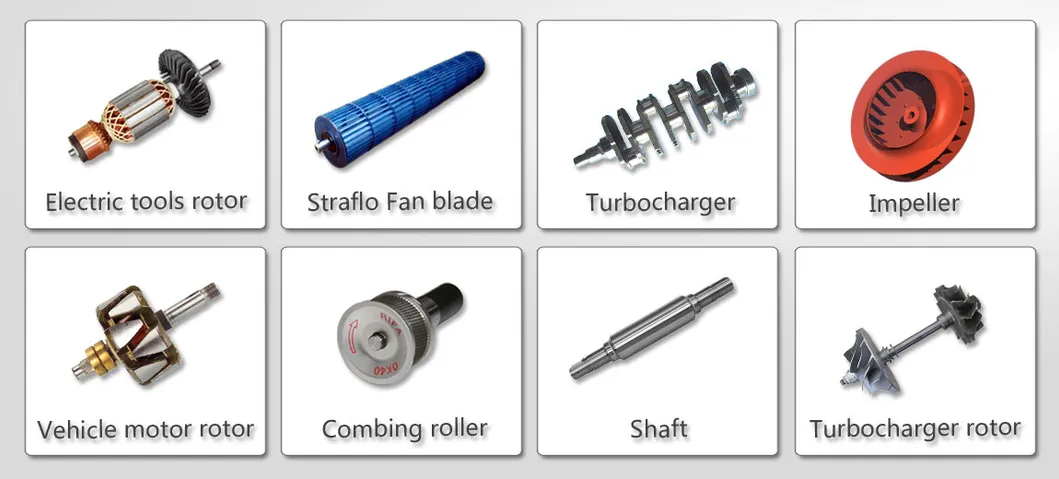

This balancing machine is widely used in balancing rotatable bodies, such as kinds of small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc... Driven by Nylon belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation, and high efficiency.
The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equipped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliability, strong dustproof and shakeproof ability, it is applicable to various industrial environments.
| Technical data at a glance | PHQ-5A |
|---|---|
| Max Mass of Workpiece (kg) | 5 |
| Max Diameter of Workpiece (mm) | 300 |
| Distance between Two Support Bearings (mm) | 60-400 |
| Journal Diameter Scope of Workpiece (mm) | 5~40 |
| Diameter Scope of Driving Belt (mm) | 15~150 |
| Rotation Speed (r/min) | ~1470 |
| Motor Power (kw) | 0.23DC Stepless regulation |
| Min Achievable Residual Unbalance (emar) | ≤ 0.3g. mm/kg |
Life-time warranty: Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts and delivery cost.
