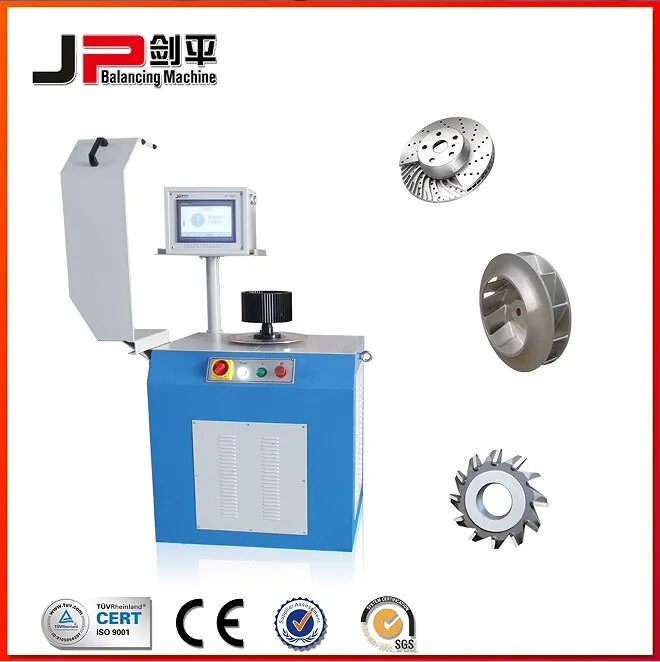

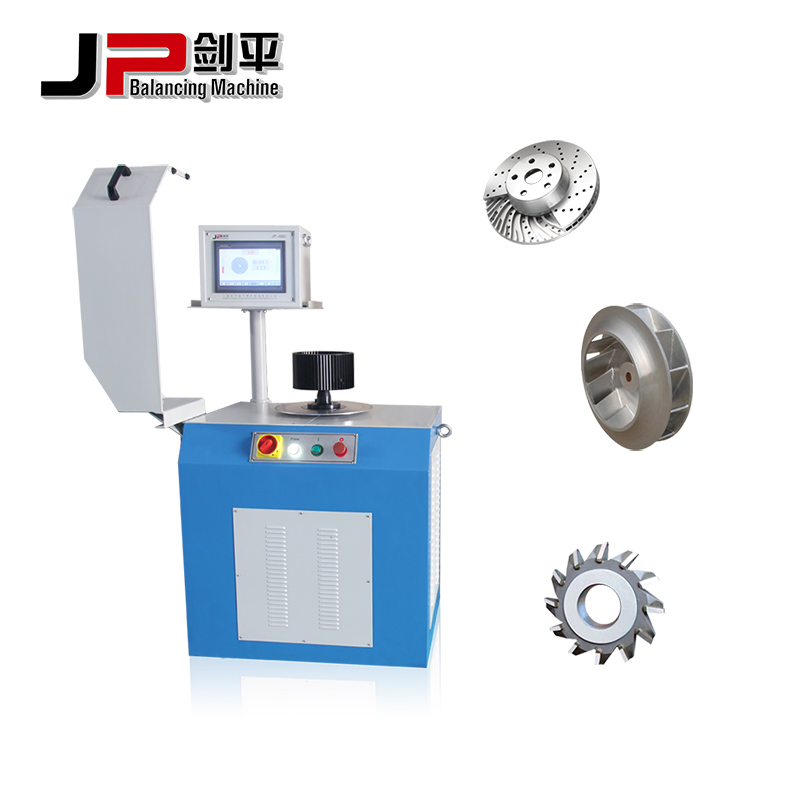

Applicable to medium workpieces. Technical data at a glance:
| Technical data | PHLD-42 | PHLD-65 | PHLD-100 | PHLD-150Q | PHLD-200 |
| Max Mass of Workpiece (kg) | 42 | 65 | 100 | 150 | 200 |
| Max Diameter (mm) | 510 / 800 | 510 / 800 | 600 / 1000 | 600 | 600 / 1000 |
| Height of workpiece(mm) | 160 | 160 | 200 | 300 | 200 |
| Spindle speed(r/min) | 800 | 700 | ~600 | ~500 | ~600 |
| Motor power(kw) | 1.5 | 2.2 | 3 | 3 | 4 |
| Min Achievable Unbalance | 3g · mm/kg | 3g · mm/kg | 5g · mm/kg | 5g · mm/kg | 5g · mm/kg |
Note: 1) With hood; 2) Without hood; 3) Frequency conversion
According to user's requirement, the machine can install de-weight device.
The measuring unit employs JP-580 Electrical Measuring unit, a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily.
As a professional balancing machines manufacturer, we have ten series and more than 40 models, including belt drive, universal joint drive, vertical, cross flow fan blade, drive shaft, self-drive, and auto-positioning balancing machines.
Our facility has passed ISO9001:2008 authentication and holds CE Certificates and Audited Supplier status by SGS-CSTC.
