Production Description:

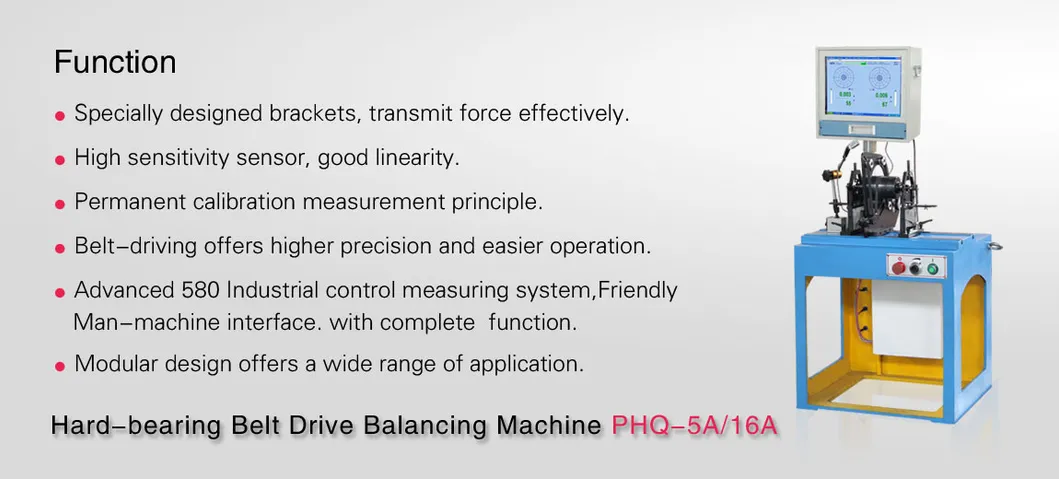

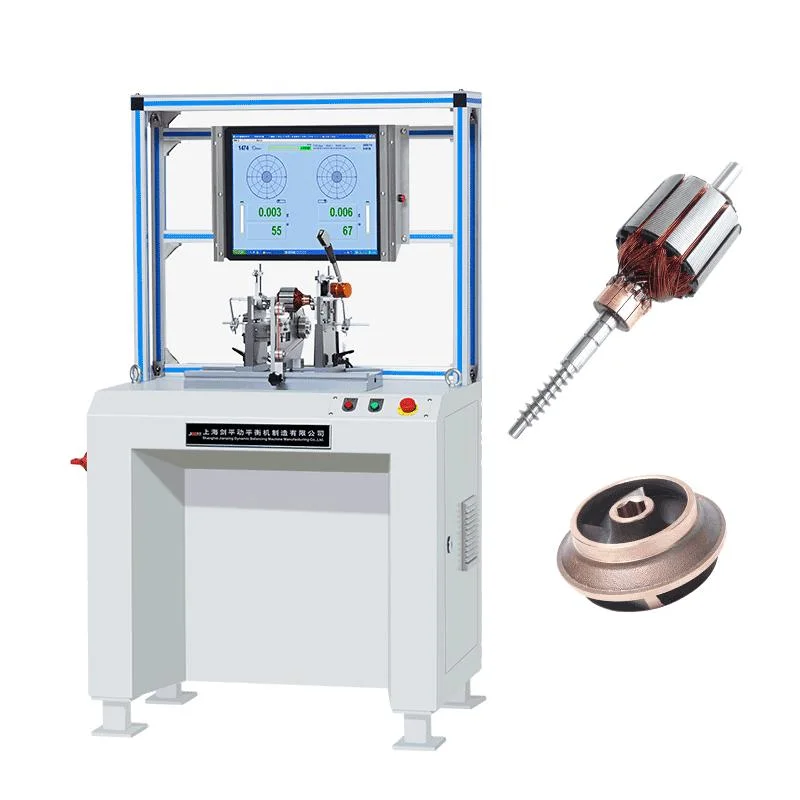

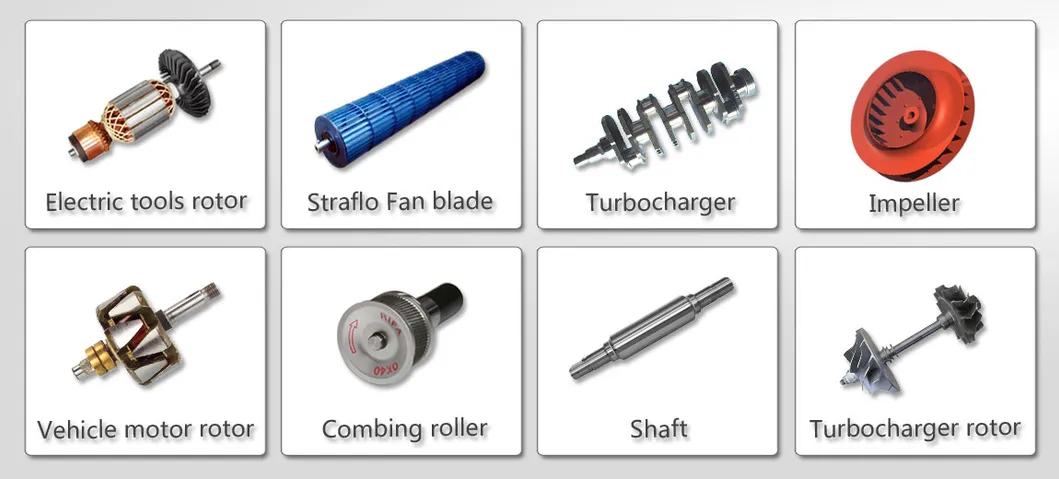

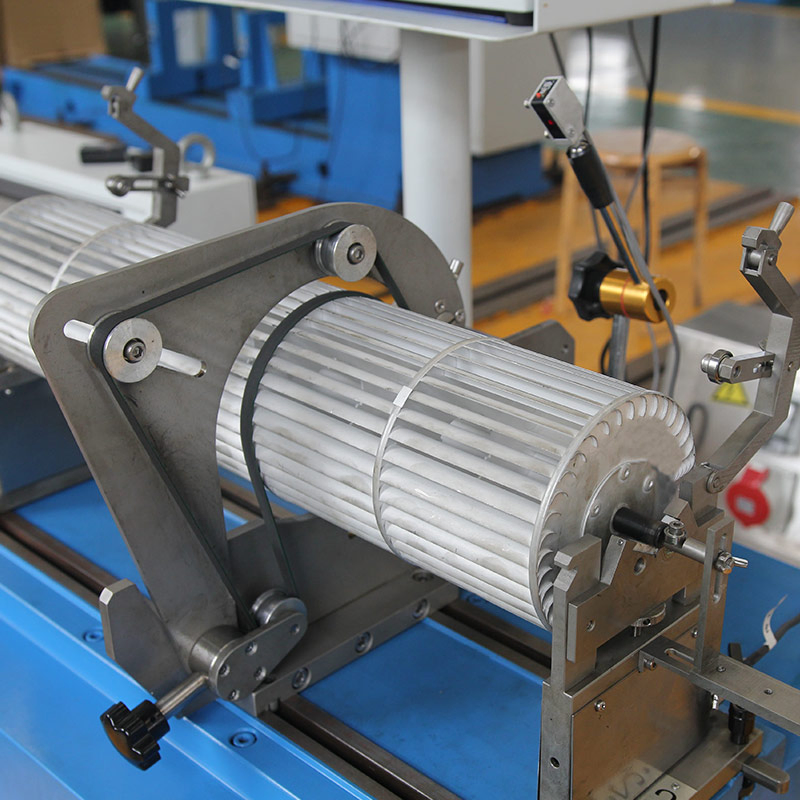

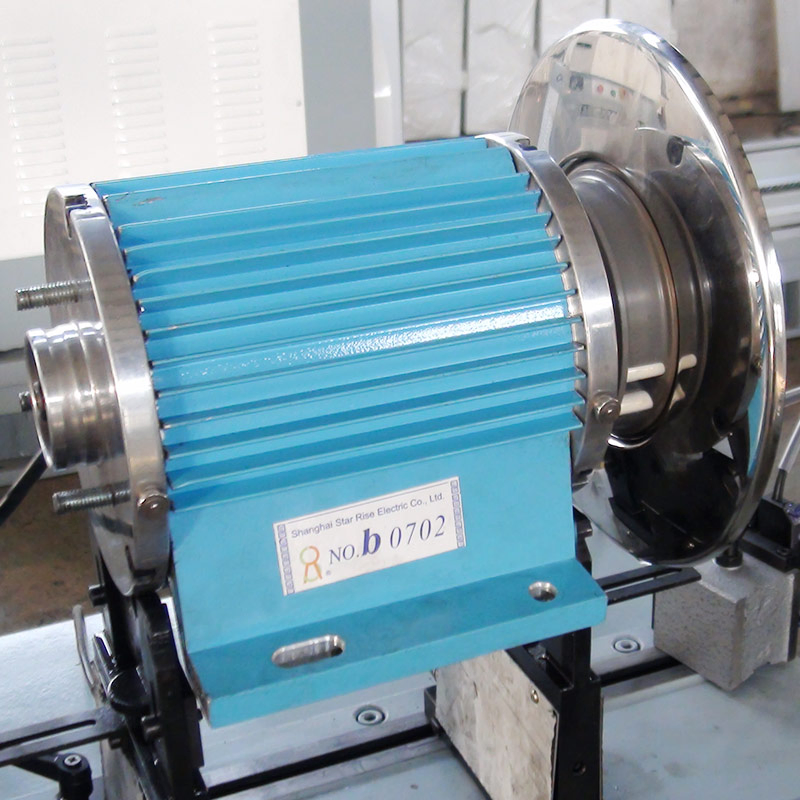

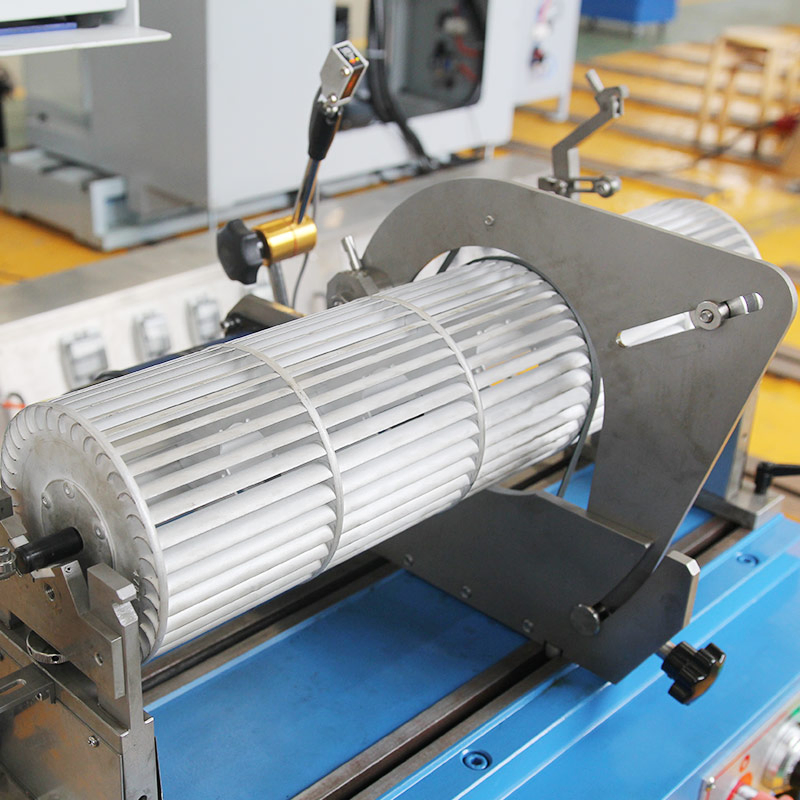

This balancing machine is widely used in balancing rotatable bodies, such as small-sized motor rotors, impellers, fans, crankshafts, turbochargers, water pumps, rollers, grinding wheels, and machine tool spindles. Driven by a Nylon belt and equipped with a Variable speed motor, it ensures high-quality balancing precision, quick booting, and high efficiency.
The measuring unit employs the JP-580B Electrical Measuring unit, featuring top-tier functionality and precision. It integrates an industrial computer mainboard with a 15-inch LCD screen, 1G Memory, and Windows operating system. Its dustproof and shakeproof design makes it ideal for diverse industrial environments.
| Technical data at a glance | PHQ-5A |
| Max Mass of Workpiece (kg) | 5 |
| Max Diameter of Workpiece (mm) | 300 |
| Distance between Two Support Bearings (mm) | 60-400 |
| Journal Diameter Scope of Workpiece (mm) | 5~40 |
| Diameter Scope of Driving Belt (mm) | 15~150 |
| Rotation Speed (r/min) | ~1470 |
| Motor Power (kw) | 0.23DC Stepless regulation |
| Min Achievable Residual Unbalance (emar) | ≤ 0.3g. mm/kg |
Service Commitment: Professional engineers and application specialists respond to requests efficiently via online tools or phone. Solutions are typically provided within 24 hours.
Warranty Period: Life-time warranty support. We provide free spare parts for repairs caused by quality issues within one year from the date of shipment. Beyond one year, spare parts are provided at cost.
