Product Description

Basic Info.

Model NO.

PHQ-5A/16A

Type

Balancing Machine

Maxcapacity

<1000KN

Accuracy Grade

Load Way

Electronic Load

Loading Method

Dynamic Load

Display

Digital

Control

Computer Control

Weight

100-500Kg

Power Source

AC220V

Transport Package

Fumigated Wood Box

Specification

ISO. CE. SGS

HS Code

903110009

Production Capacity

1000 Set/Sets Per Month Negotiation

Product Description

Tool Spindle Mechanical Spindle Balancing Systems

⚙️

Production Description

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

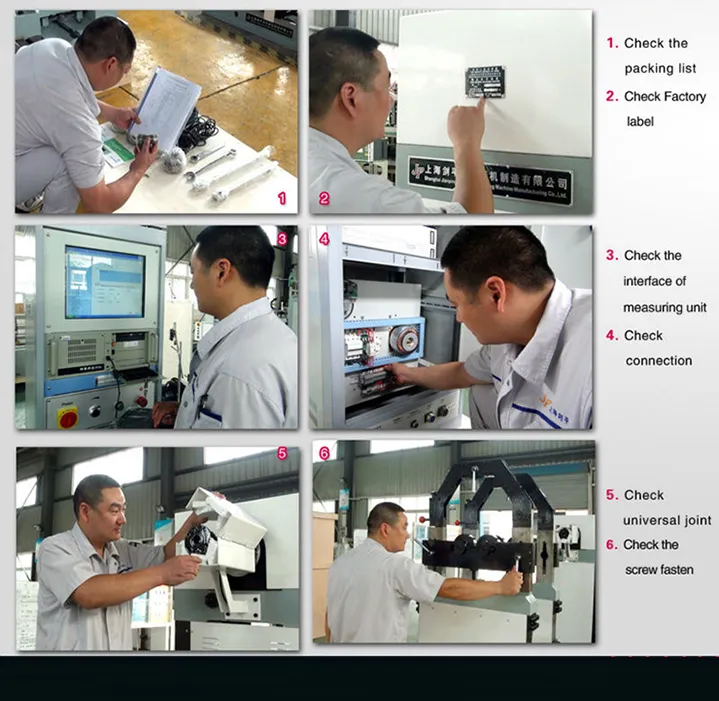

Delivery inspection

🎯

Range of Application

Belt Drive Balancing Machine with JP380 Measuring Unit is widely used in balancing rotatable bodies, such as kinds of small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc. Driven by Nylon belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision, quick booting, easy operation, and high efficiency.

Factory Outlook

💡

Special Features

The measuring unit employs a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equipped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows Operating System. Featuring high running speed and reliability, strong dustproof and shakeproof ability, it is applicable to various industrial environments.

Package & Quality Assurance

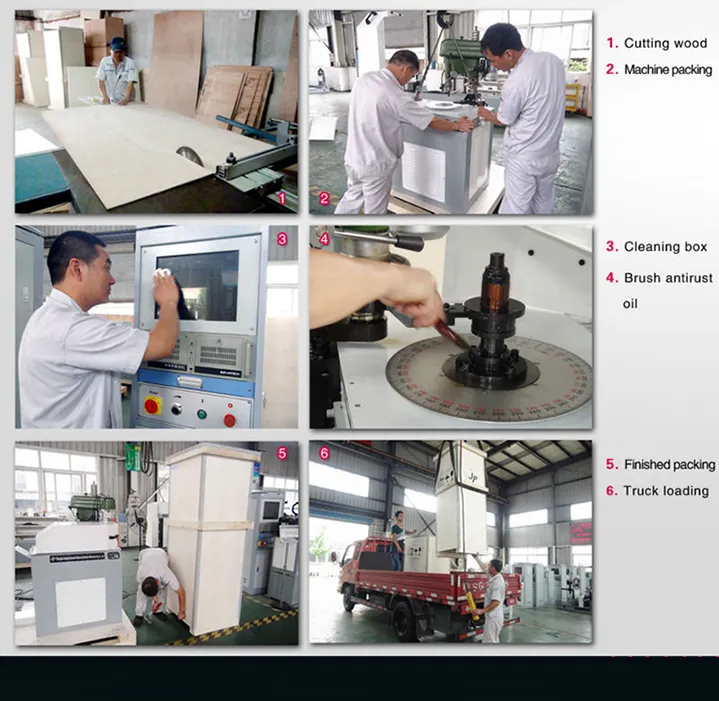

Package and transport

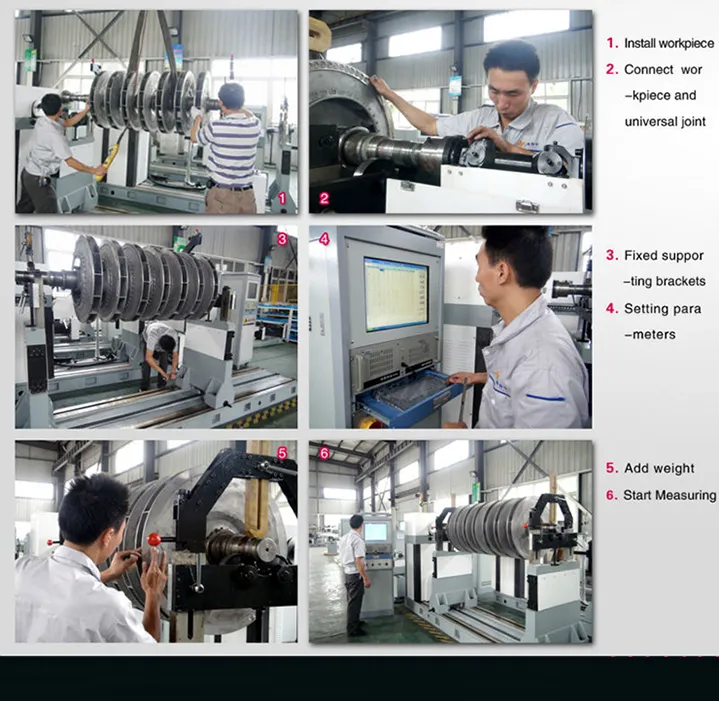

Workshop debugging

Certificates

Production Parameters

Technical data at a glance	PHQ-1.6
Max Mass of Workpiece (kg)	1.6
Max Diameter of Workpiece (mm)	260
Distance between Two Support Bearings (mm)	15-400
Journal Diameter Scope of Workpiece (mm)	3~40
Diameter Scope of Driving Belt (mm)	20~85
Rotation Speed (r/min)	185,335,390,700 Stepless regulation
Motor Power (kw)	0.15DC Stepless speed regulation
Min Achievable Residual Unbalance Amount (emar)	≤ 0.3g. mm/kg

Frequently Asked Questions (FAQ)

1. What are the main applications for the PHQ series balancing machine?

The machine is designed for balancing rotatable bodies like motor rotors, impellers, fans, crankshafts, turbochargers, and machine tool spindles. It is highly versatile for small-sized industrial components.

2. Why is a belt-drive system used in this machine?

Nylon belt-driving offers higher precision and easier operation compared to other methods. It ensures smooth transmission and high-quality balancing for delicate rotors.

3. How accurate is the electrical measuring system?

The system utilizes an advanced measuring unit with permanent calibration, achieving a minimum residual unbalance amount of ≤ 0.3g. mm/kg, which meets high industrial accuracy standards.

4. Can the machine operate in harsh industrial environments?

Yes, the measuring unit uses an industrial computer mainboard with strong dustproof and shakeproof capabilities, making it reliable for various demanding workshop environments.

5. Is the rotation speed adjustable for different workpieces?

Yes, the machine features stepless speed regulation, allowing operators to adjust the rotation speed based on the specific requirements of the driving belt and workpiece diameter.

6. What kind of power source does the machine require?

The machine standardly operates on an AC220V power source, making it compatible with most standard industrial and laboratory power outlets.
