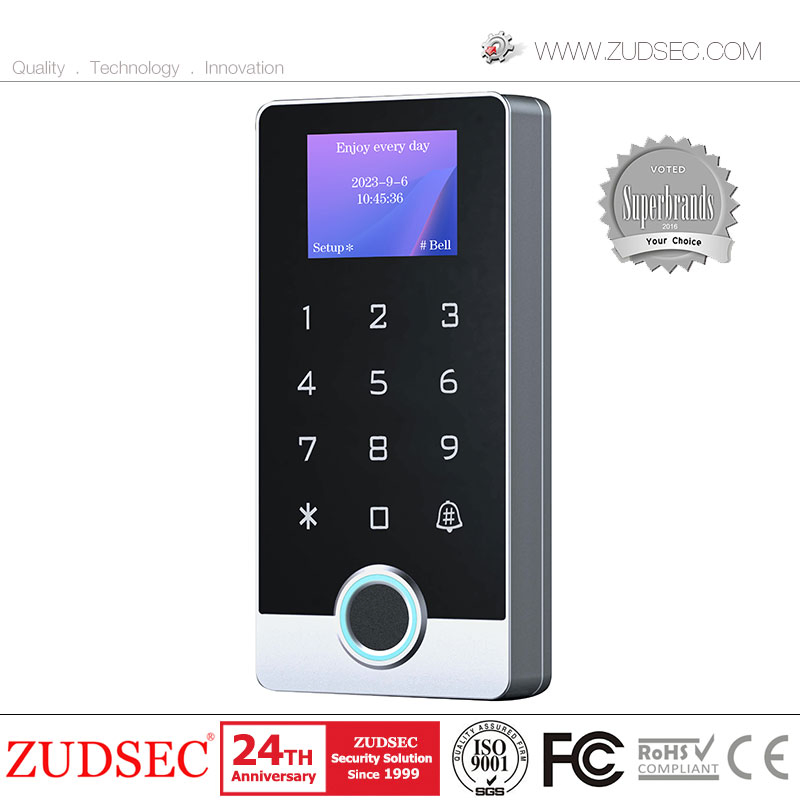

LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
1 / 5
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell

LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell

Customization: Available
Voice Service: Without Voice Service
Clock: Without Clock
Send Inquiry

Product Description

Basic Info.
Model NO.
ZDAC-T4FWL-WiFi
Color
Silver
Screen
Color Screen
Communication Interface
Wiegand 26 & WiFi
Fingerprint Capacity
10000
Item
WiFi Fingerprint Access Control
Memory Capacity
10000
Fingerprint
300
Card Capacity
10000
Card Type
125kHz Em ID Card
Waterproof
IP68
Working Way
off-Line/on-Line
Voltage
DC12V
Material
Metal Case, Anti-Vandal
Specification
CE, RoHS
HS Code
853100
Production Capacity
100000PCS/Year
Product Description

LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control

LCD screen & Voice function, Touch Keypad, Metal case, App Control(Optional) Anti-vandal, Multi-function standalone access controller and reader. This series adopts a new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. It contains reader mode and standalone access control mode, widely applied to offices, residential communities, villas, banks, and more.

Optional models:

  • ZDAC-T4FWL (Metal shell with IP68 Waterproof)
  • ZDAC-T4FWL-WiFi (Metal shell with WiFi + IP68 Waterproof)

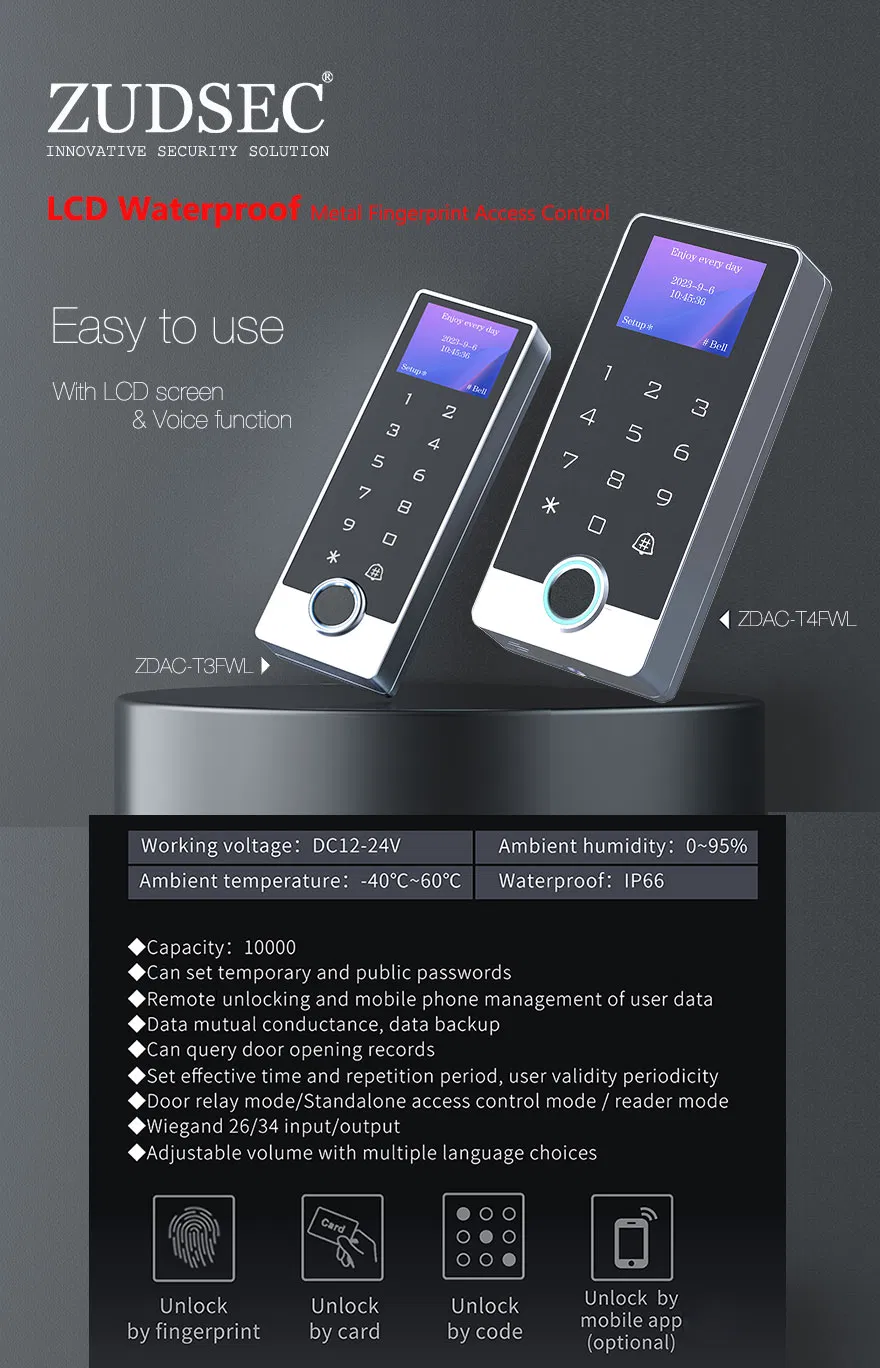

Product View
Features
  • Full message LCD menu configuration & voice function for easy setting
  • Touch Keypad, Supporting fingerprint, ID card and password
  • 300 Fingerprint users, 10000 RFID users & PIN
  • Wiegand output, wiegand input (Wiegand 26)
  • Standalone or connect to other controller as a slave reader
  • Remote control / Master card for programming
  • Metal shell, anti-vandal design
  • Anti-magnetic & lock output current short protect
  • Supports card readers with wiegand interface (HID, 13.56MHz Mifare, or 125KHz EM)
  • High speed: Searching speed < 0.1 S
  • DC input: 12DC, 100mA
Product Parameters
Access ways
Fingerprint, card, code, mobile phone App (Optional)
Card Type
125KHz Card / 13.56MHz Mifare card
Keypad
Capacitive touch keypad
Admin Card
Support admin add/delete card
Unlock Signal
NO, NC, COM output using relay
Voltage
DC12-24V
Current
Operating: ≤100mA; Standby: ≤60mA
Environment
Humidity: 0%-95%, Temp: -40ºC to 60ºC

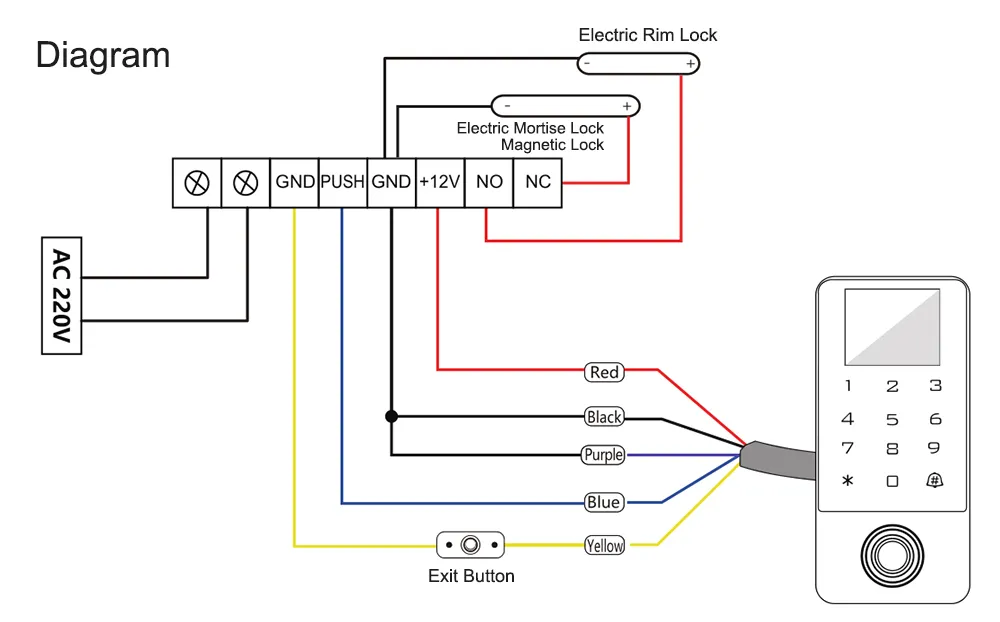

Product Parameters Diagram
Related Products
Related 1
Related 2
Related 3

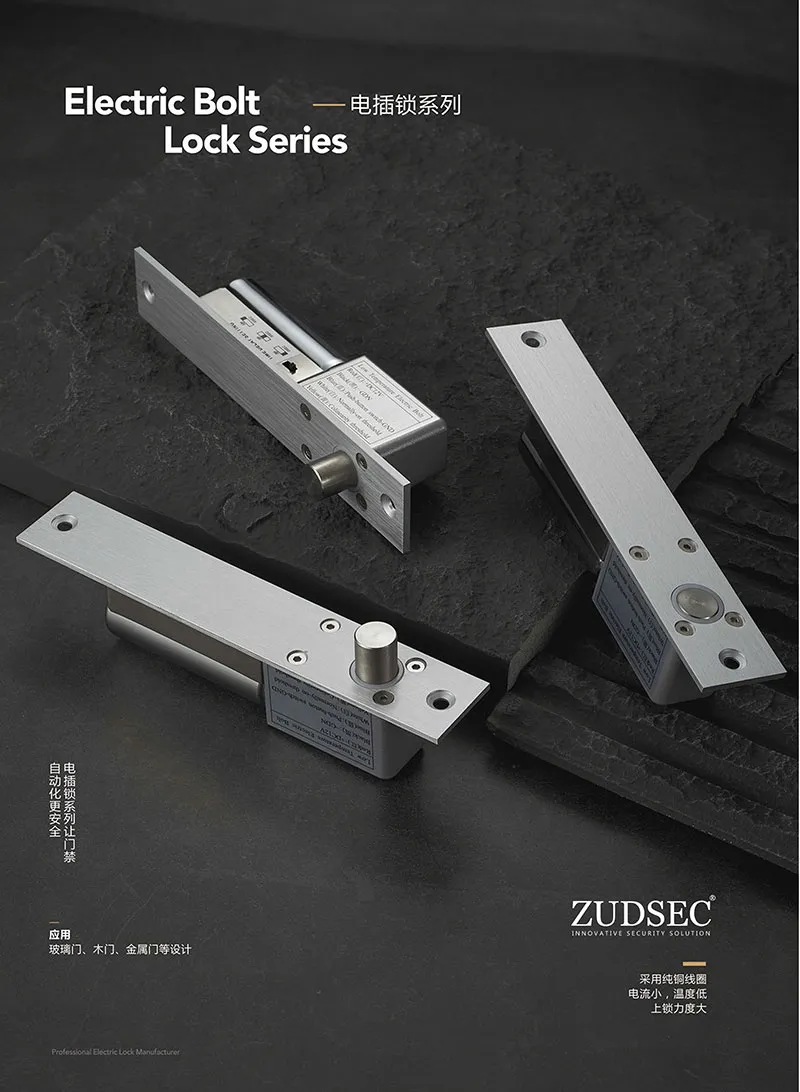

Related 4

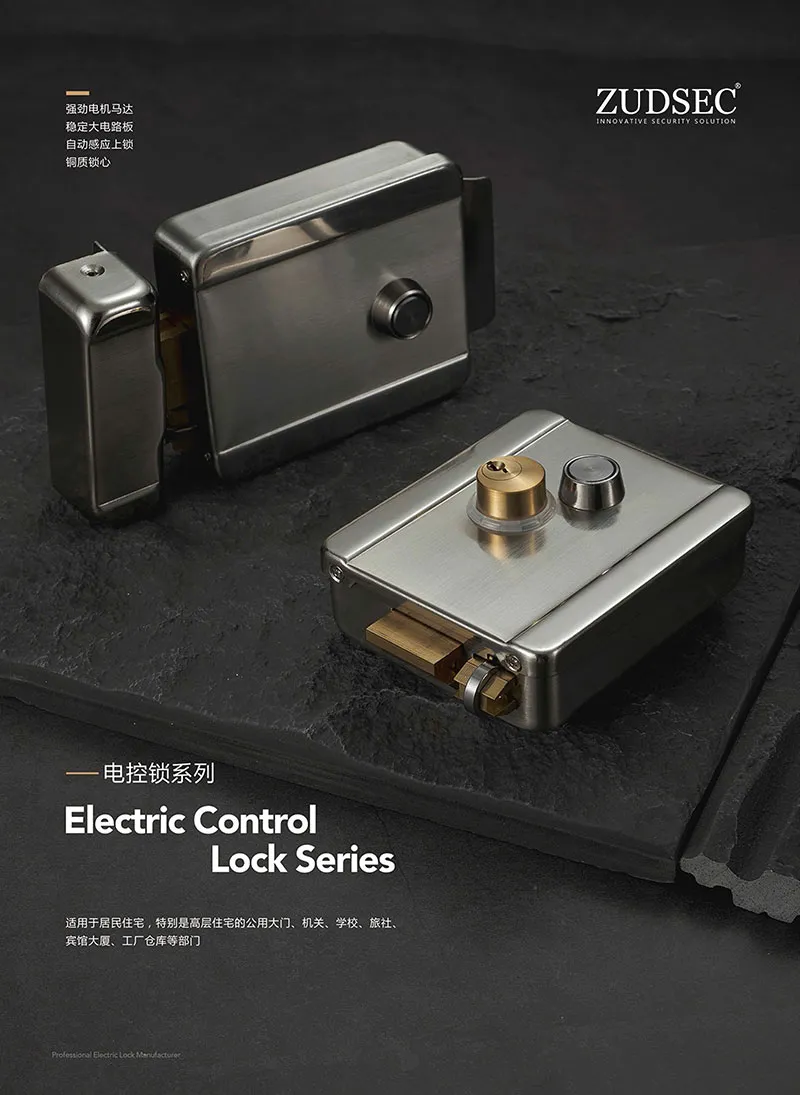

Related 5
Related 6

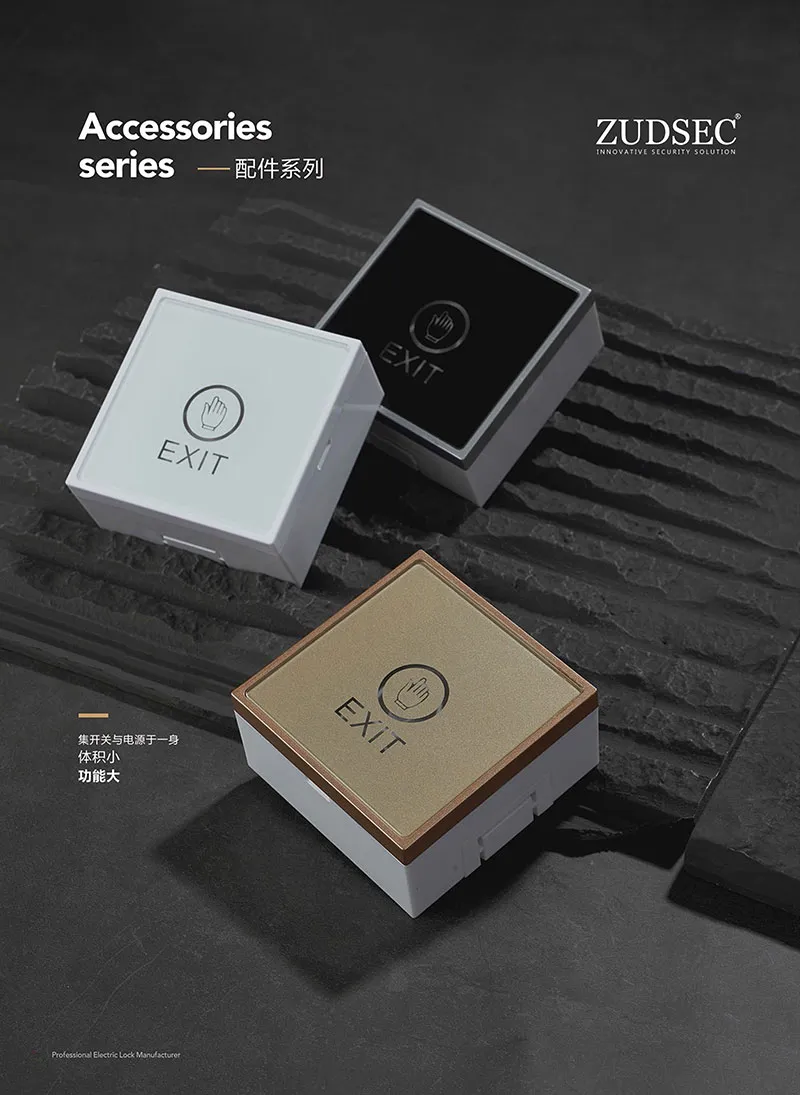

Related 7

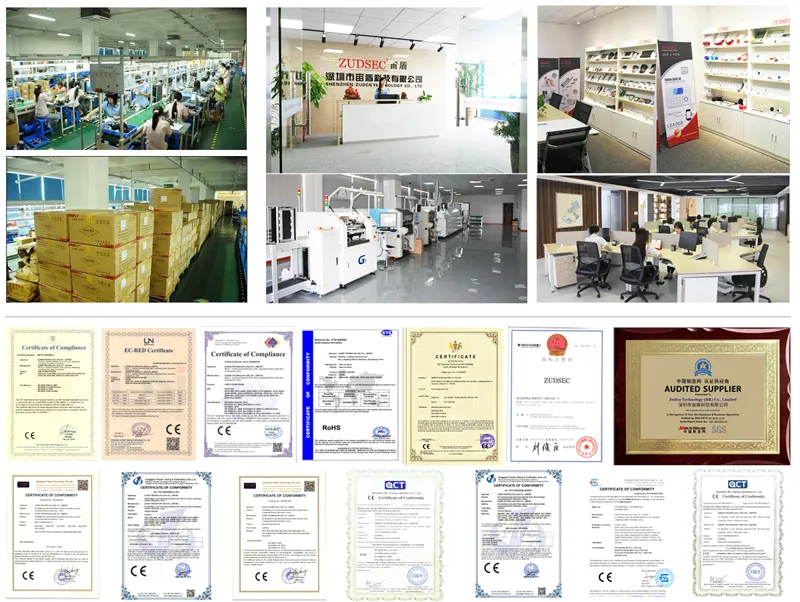

Related 8
Frequently Asked Questions
Is this access control device waterproof for outdoor use?
Yes, the device features an IP68 waterproof rating and a metal anti-vandal shell, making it suitable for both indoor and harsh outdoor environments.
How many users can the system manage?
The system supports up to 10,000 RFID card/PIN users and up to 300 fingerprint users.
Does it support mobile app control?
Yes, the ZDAC-T4FWL-WiFi model supports WiFi connectivity and can be controlled via the Tuya Smart APP.
What types of RFID cards are compatible?
The device is compatible with 125KHz EM ID cards by default, but also supports 13.56MHz Mifare cards.
Can this device be used as a slave reader?
Yes, in addition to standalone mode, it features a Wiegand 26 interface which allows it to connect to other controllers as a slave reader.
What is the operating voltage for this unit?
The device operates on a wide voltage range of DC 12V to 24V.
