Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users

Customization:	Available
Card Reader Quantity:	2
Control Gates:	One Gate

Send Inquiry

Product Description

Basic Information

Model NO.

ZDAC-2000

Technology

32-Bit Technology

Way of Control

Hand Control

Type

One-way Controller

Product Name

Standalone Access Control

Application

Office Building etc

Card Type

125kHz Em ID Cards

Access Ways

Cards, Code, Card & Code

Capacity

2000 Users

Keypad Housing

Metal

Product Description

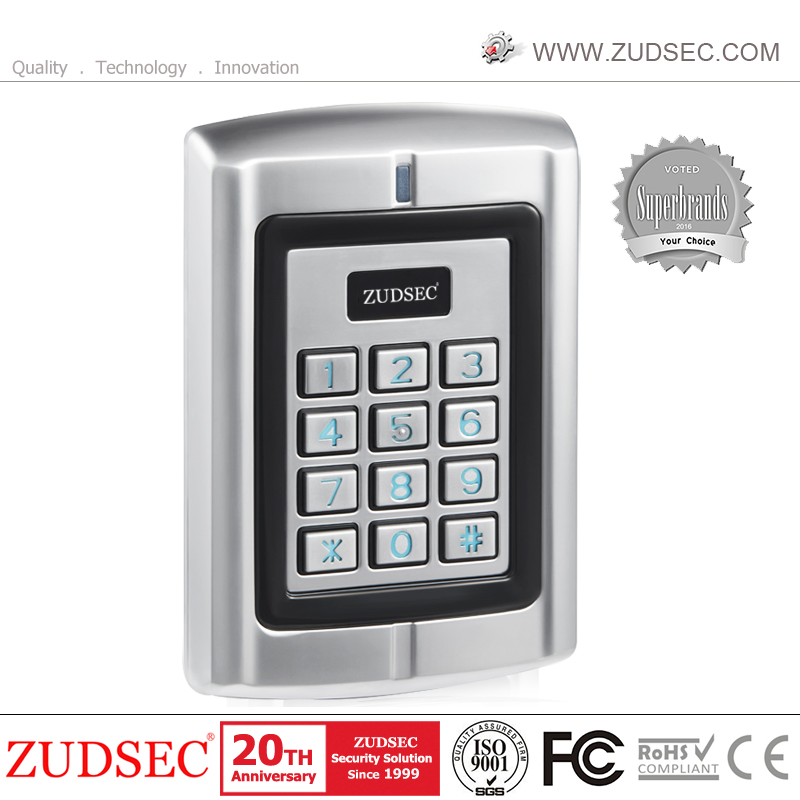

Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users

Standalone Access Control: The ZDAC-2000 is suitable for mounting either indoor or outdoor in harsh environments. It features exquisite designs with a non-masking metal shell, keystroke backlight, and Wiegand output. Supporting up to 2000 users with Card, 4-digit PIN, or Card + PIN options, it also includes a doorbell function. This makes it an ideal choice for access control in small shops, households, factories, warehouses, laboratories, banks, and more.

Core Features

Exquisite metal shell design
Illuminated keystroke backlight

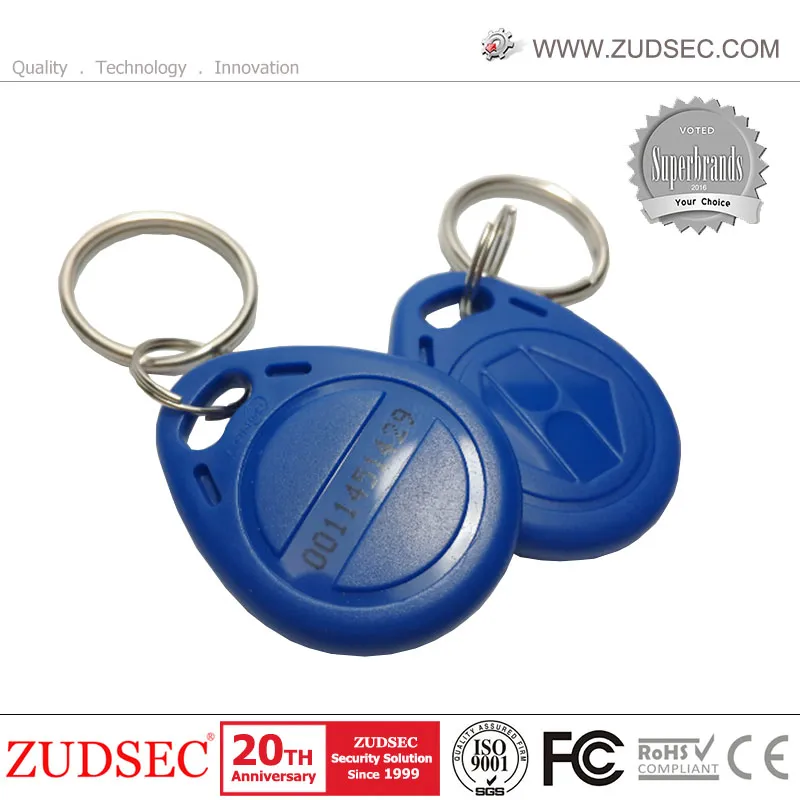

Supports 125kHz EM ID cards
WG26 output for use as an access reader
Massive 2000 user capacity
Multiple access ways: Cards, code, card & code

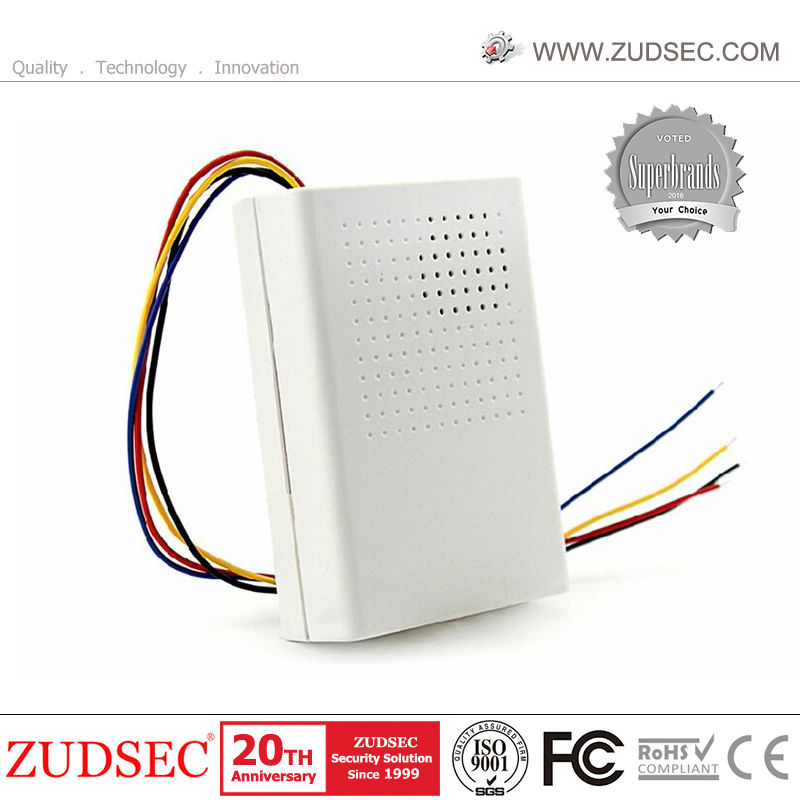

Dedicated Doorbell key for external connection
Low power consumption (Static current < 30mA)
Adjustable open-door time: 0~99 seconds
Fast search speed (less than 0.1s)
Short-circuit protection for relay/alarm outputs

Technical Parameters

Parameter	Specification
Model	ZDAC-2000
Card Types	EM or EM compatible
Operating Voltage	DC 12V±10%
User Capacity	2000
Card Reading Distance	3~6cm
Active Current	< 60mA
Lock Output Load	Max 3A
Operating Temperature	-45ºC~60ºC
Wiegand Interface	Wiegand 26 bit
Dimensions	128mm X 82mm X 28mm

Product Showcase

Related Products

Frequently Asked Questions

Q1: How many users can the ZDAC-2000 access control system support?

The system supports up to 2000 users using different access methods like cards, PINs, or a combination of both.

Q2: Can this device be installed outdoors?

Yes, it features a rugged metal shell designed for both indoor and outdoor use in various environments.

Q3: What types of RFID cards are compatible?

The device is compatible with 125kHz EM ID cards or other EM-compatible cards.

Q4: Does the keypad have a backlight for night use?

Yes, the device is equipped with a keystroke backlight, making it easy to operate in dark or low-light conditions.

Q5: What happens in the event of a short circuit?

The device includes short-circuit protection. If a short circuit occurs in the relay or alarm output, the output will automatically close within 100μS for safety.

Q6: Is the door opening time adjustable?

Yes, the open-door relay time can be adjusted between 0 and 99 seconds to suit your specific security needs.
