The products comply with IEC 62893-4-2 standard and certification for DC charging cables that meet the requirements of IEC 61851-1 mode 4. These cables are intended for use in circuit-conductive charging systems with thermal management systems as specified in IEC 61851-23 and vehicle connectors that meet IEC TS62196-3-1.
This cable is mainly used to connect electric vehicle charging devices to the infrastructure, providing fast power transmission with signal and control lines to ensure safe operation. Common scenarios include centralized charging stations, large parking lots, and garages.

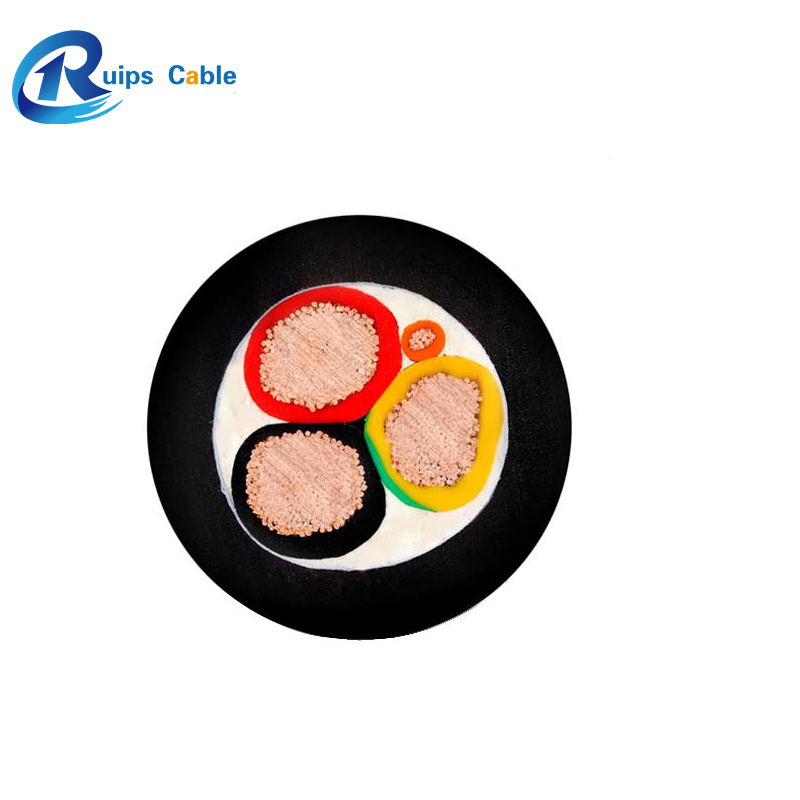

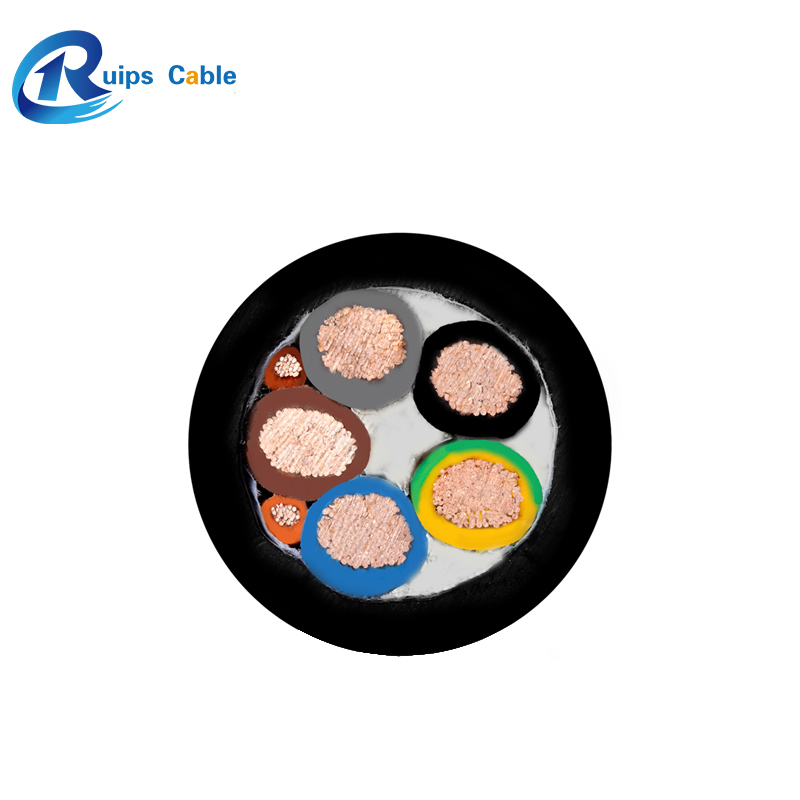

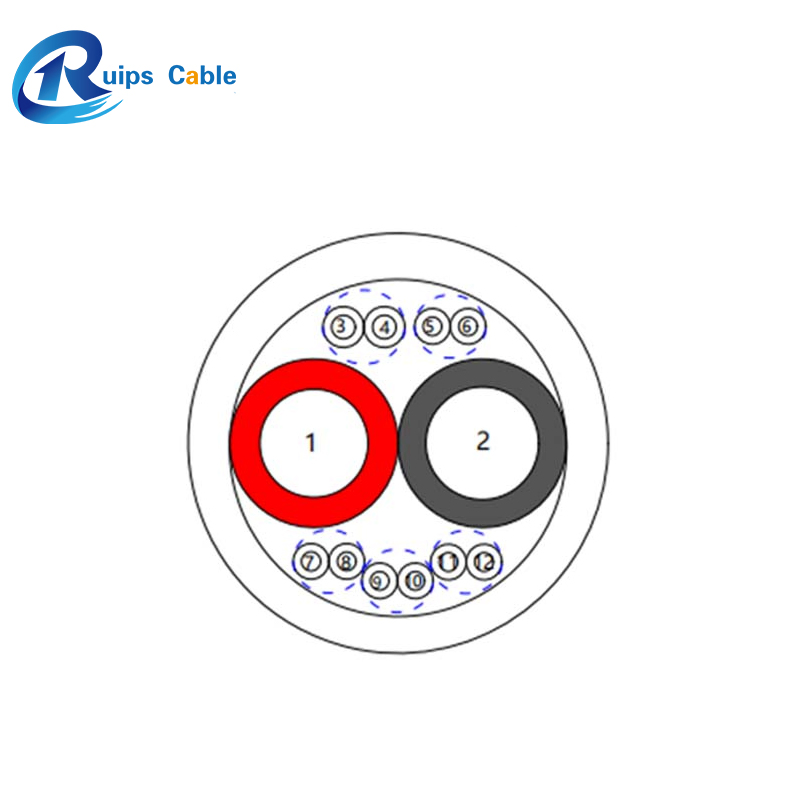

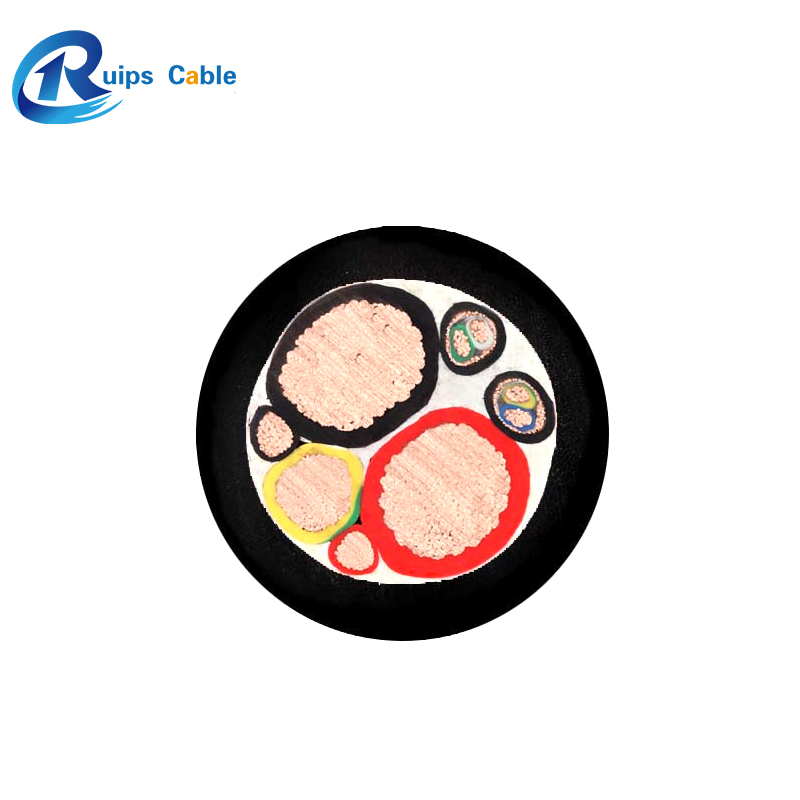

| Construction Detail | Technical Features |
|---|---|
| 1. Conductor: Bare Copper | 1. Rated Temperature: -40ºC ~ 90ºC |
| 2. Insulation: EVI-1 | 2. Rated Voltage: 1500V DC |
| 3. Filler: PP hemp or cotton yarn | 3. Flame Test: EN 60332-1-2 compliant |
| 4. Tape: Non-woven fabrics | 4. Min Bending Radius: ≥6*OD |
| 5. Sheath: TPU (Black) | 5. Oil Resistance: IRM902 compliant |
| Environment: RoHS & REACH | 6. Crush Resistance: >11KN |

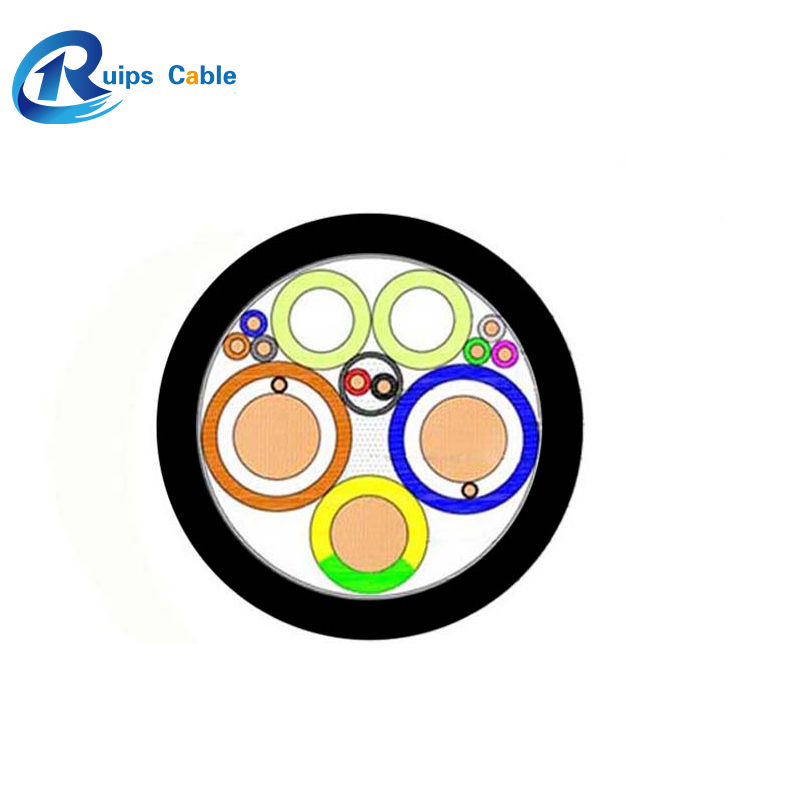

Advanced Cooling Technology: DC+ and DC- conductors are immersed in a cooling medium to dissipate heat efficiently. This allows the cable to carry larger currents with smaller conductor cross-sections, achieving high-power fast charging.
Durability: The cable is oil-resistant, acid-alkali-resistant, water-resistant, wear-resistant, crush-resistant, UV resistant, and flame retardant.
