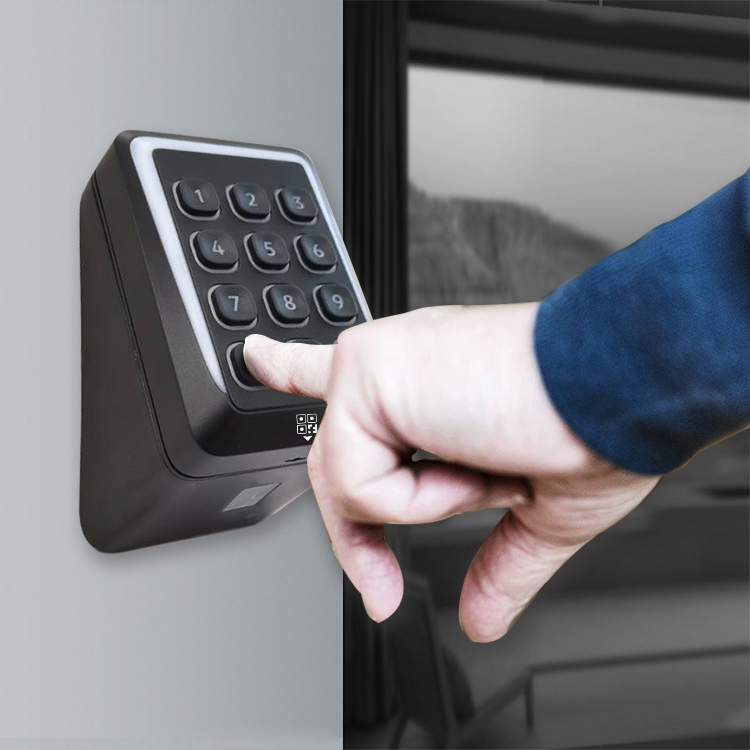

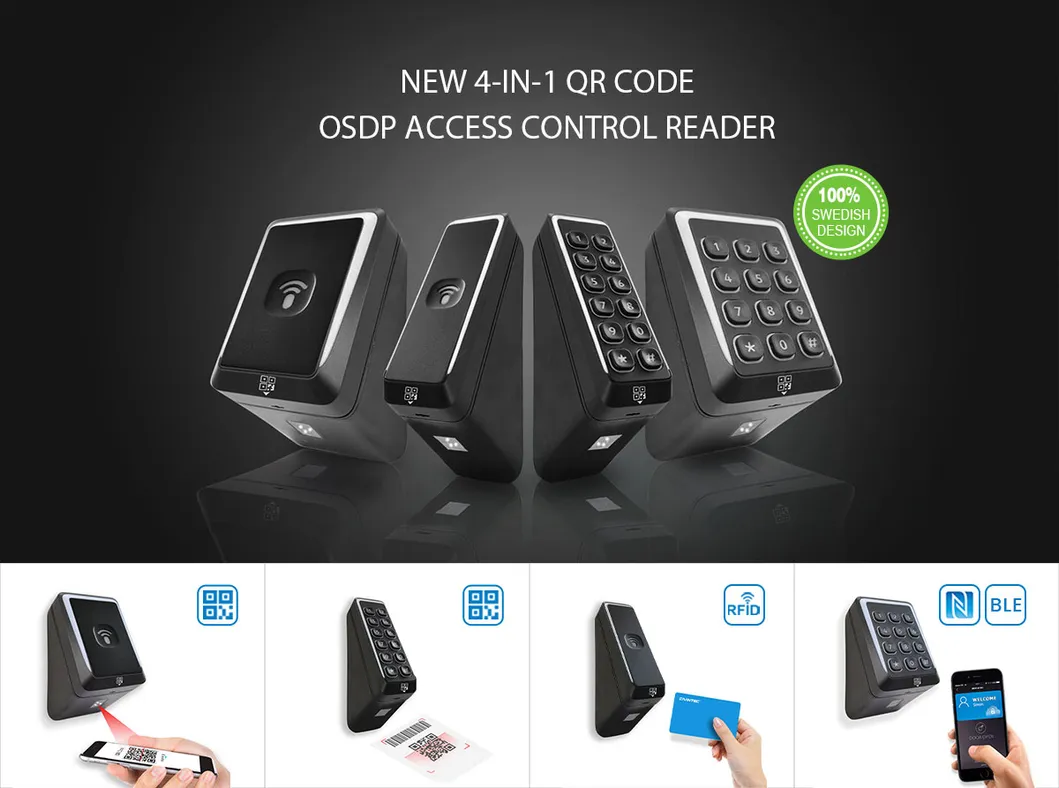

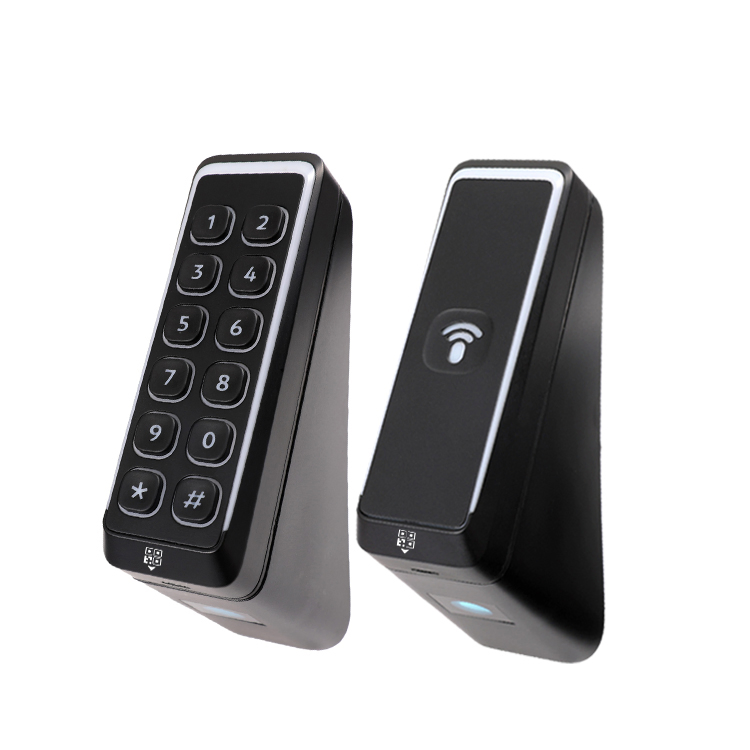

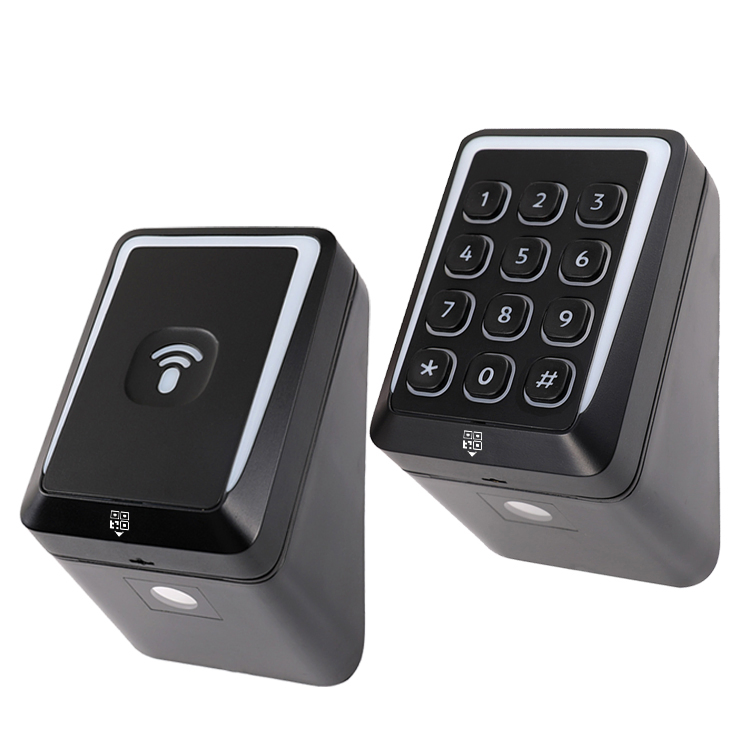

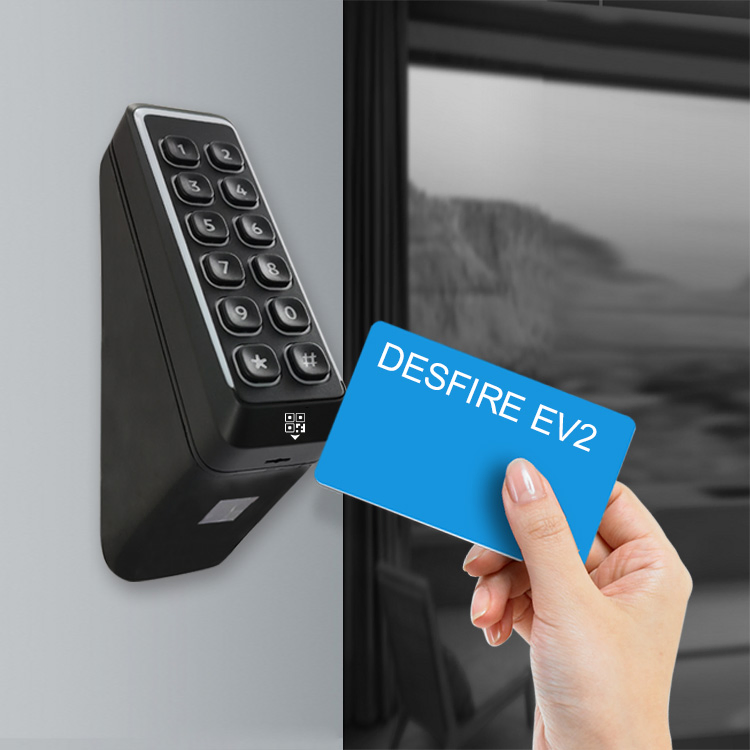

The Cidron QR Code access control reader's compatibility with secure RFID-technologies, BLE, NFC mobile credential and QR code incorporated in a robust, yet timeless design, makes them ideally suited for both indoor and outdoor installations in all kinds of physical access control applications.
| Operating Frequency | 125kHz & 13,56MHz |
| Contactless ISO Standard | ISO14443A/B, ISO18092 NFC |
| Contactless Cards | EM Prox, EM4100, EM4200, MIFARE Classic, MIFARE Plus, MIFARE DESFire EV1/EV2, ISO18092 NFC tags |

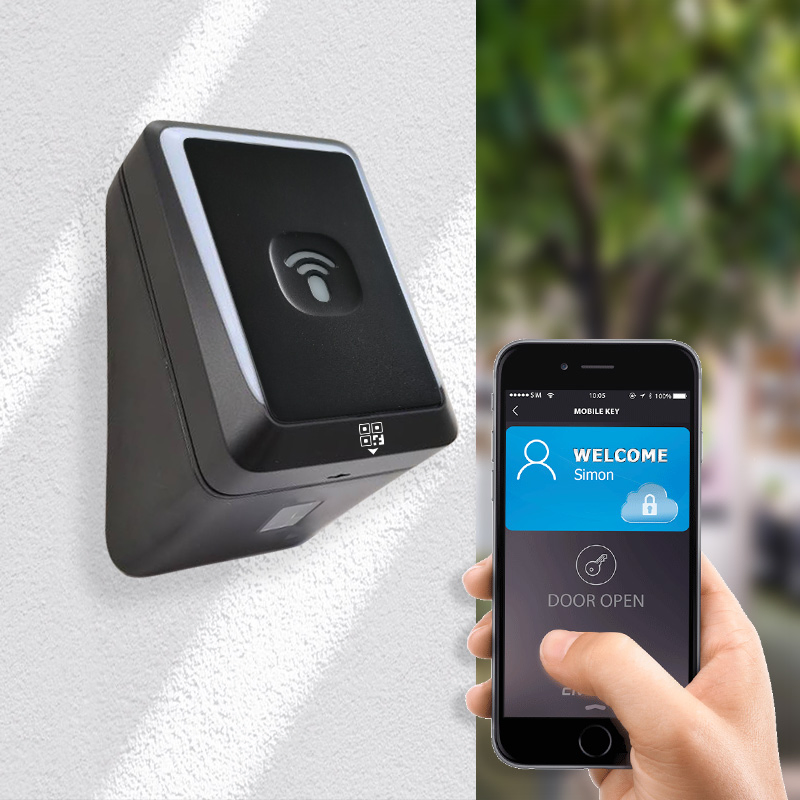

| Mobile ID | ISO18092 NFC, BLE |
| QR Code | Area image 640 x 480 pixels, Field of View 68°(H) x 51(V); Decode range: 20mm-150mm; Supports QR, Micro QR, PDF417, Code 128, Code 39. |
| Secure Access Module | MIFARE SAM AV2, SAM card connection slot |
| Communication | Wiegand, Clock/Data, RS485 (OSDP 1, OSDP 2, Secure channel), BLE |
| Operating Temp | -40° ~ +70°C |

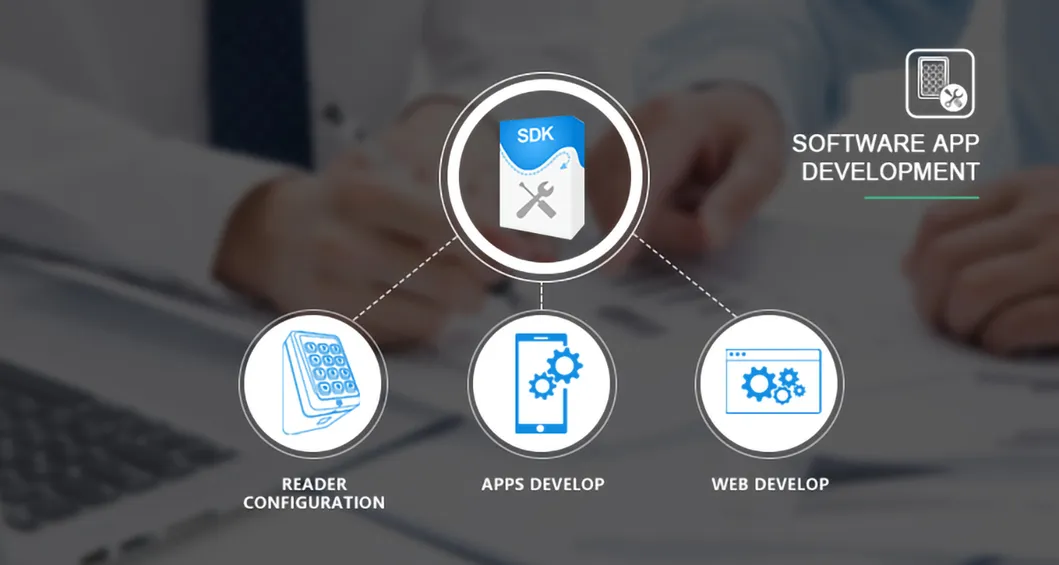

Software APP Development: We offer a Software Development Kit (SDK) for developers to customize their own smartphone APP software for use with the Cidron QR Code reader.
As a leading designer and manufacturer of access control devices, we offer ODM customization on hardware, reader housing, firmware, and software design services.
In today's competitive market, standing out is essential. We provide profiling opportunities for your readers, including laser-engraved or printed logos in single or full color to match your graphic profile.
