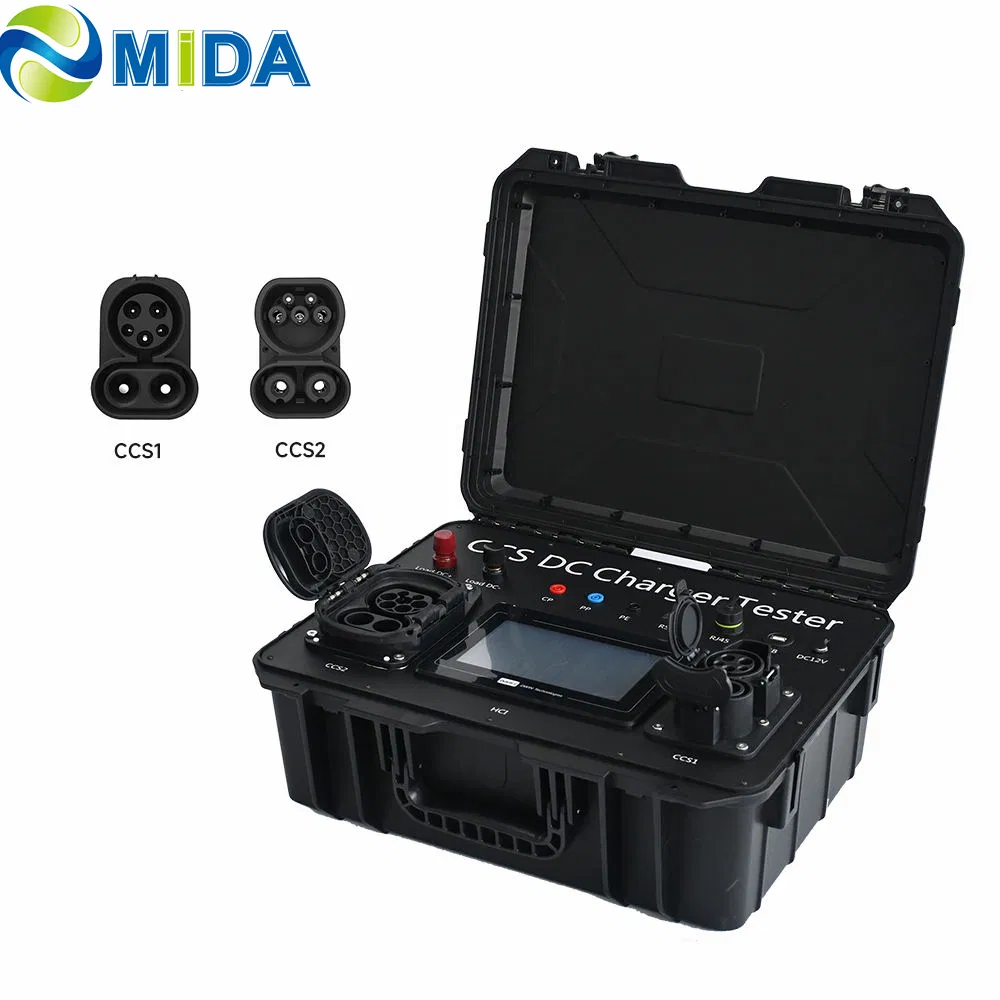

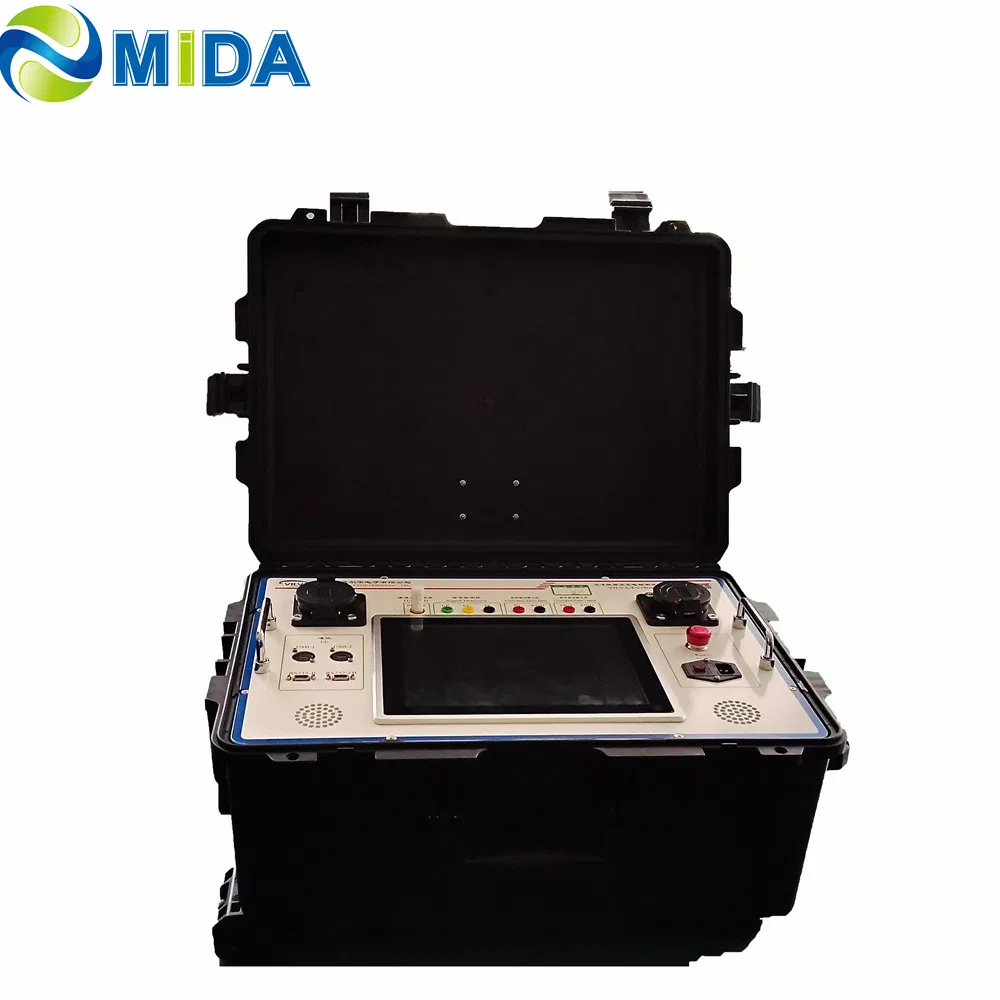

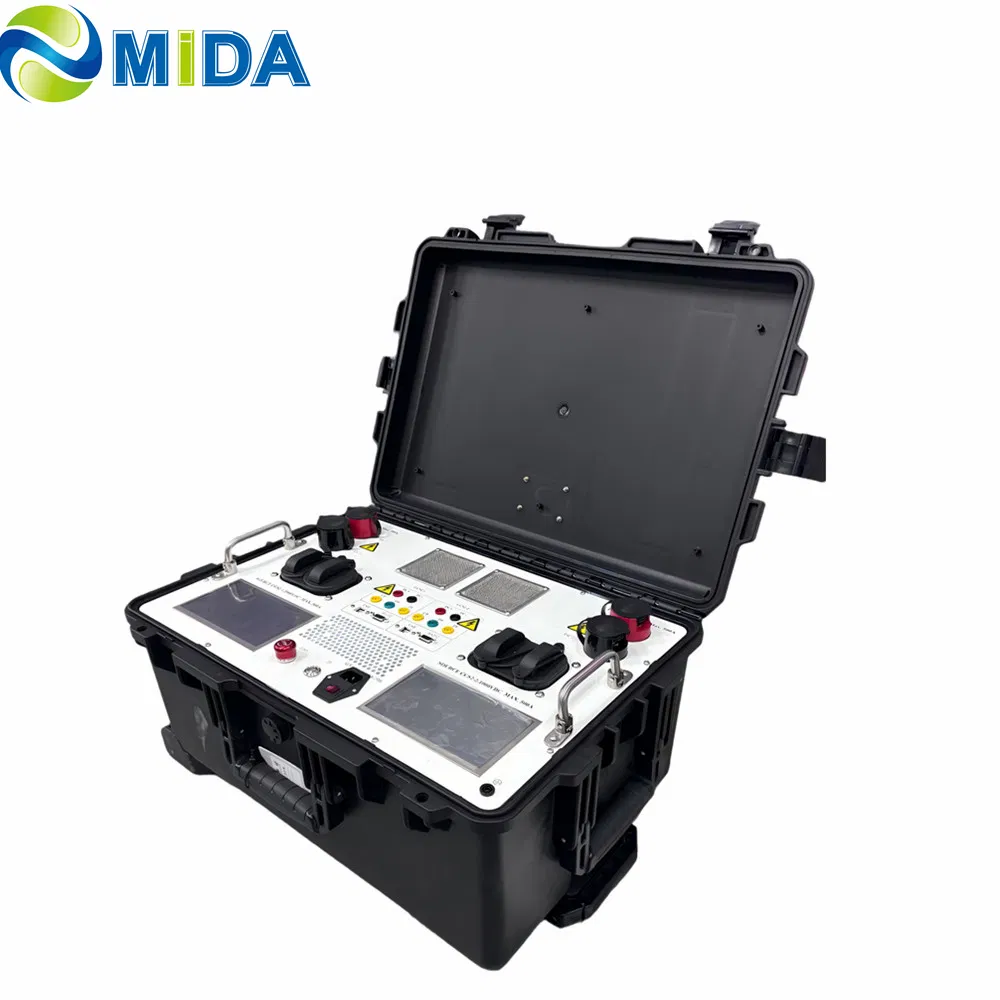

Portable CCS2 Chademo EV Charger Testing Device for Simulators

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Product Name: CCS1 NACS CHAdeMO Portable DC Charging Station Tester Device EVSE Analyzer DC Charging Station CCS2 CBT CHAdeMO EV Simulator System

Technical Specifications

Basic Information
Model NO.	DC Charging Tester
Size	8006001100mm
Weight	≤160kg
Safety Std	CE, UL
Transport Package	Standard Export Cartons
Specification	700800600mm
Origin	China
Production Capacity	10000 Carton/Per Month

Packaging & Delivery
Package Size	900.00cm * 800.00cm * 950.00cm
Package Gross Weight	120.000kg

Product Description

Portable Electric Vehicle Charger Equipment (EVSE) analyzers are handheld or portable devices used to test, diagnose, and troubleshoot electric vehicle (EV) charging stations and cables. These analyzers simulate charging conditions, measure electrical parameters such as voltage and current, verify communication protocols, and generate test reports to ensure safety and performance compliance.

🔍

Diagnostic Testing: The analyzer performs a variety of tests to verify the functionality and safety of the EVSE, including testing charging stations and cables.

⚡

Simulation: The analyzer can simulate the operation of electric vehicles and charging stations to test communication and power delivery.

📊

Measurement: Key electrical parameters such as voltage, current, power, and cumulative energy are measured with high accuracy.

🌐

Protocol Support: Compatible with multiple charging standards, including AC/DC CCS, CHAdeMO, and NACS.

📋

Report Generation: Generates professional reports with pass/fail results and detailed measurement data for compliance.

🚀

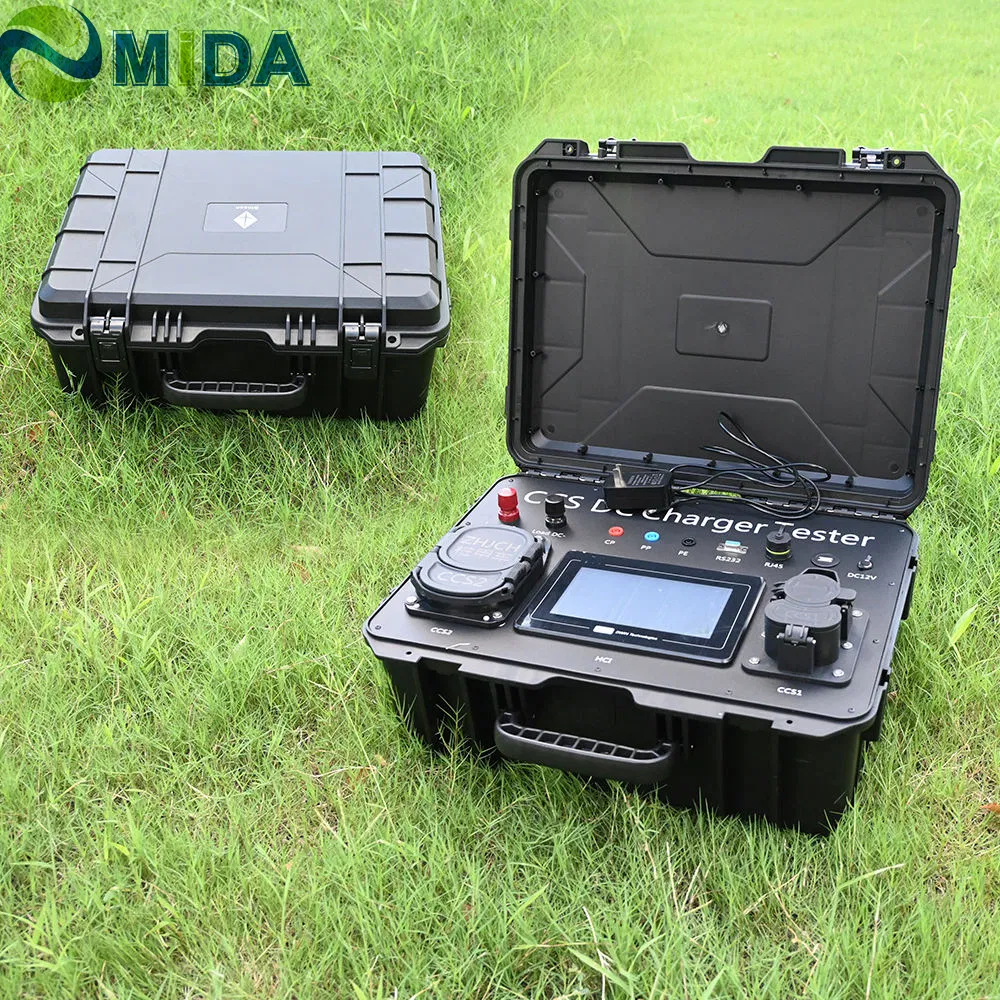

Portability: Rugged, durable, and portable design tailored for field use and easy transport.

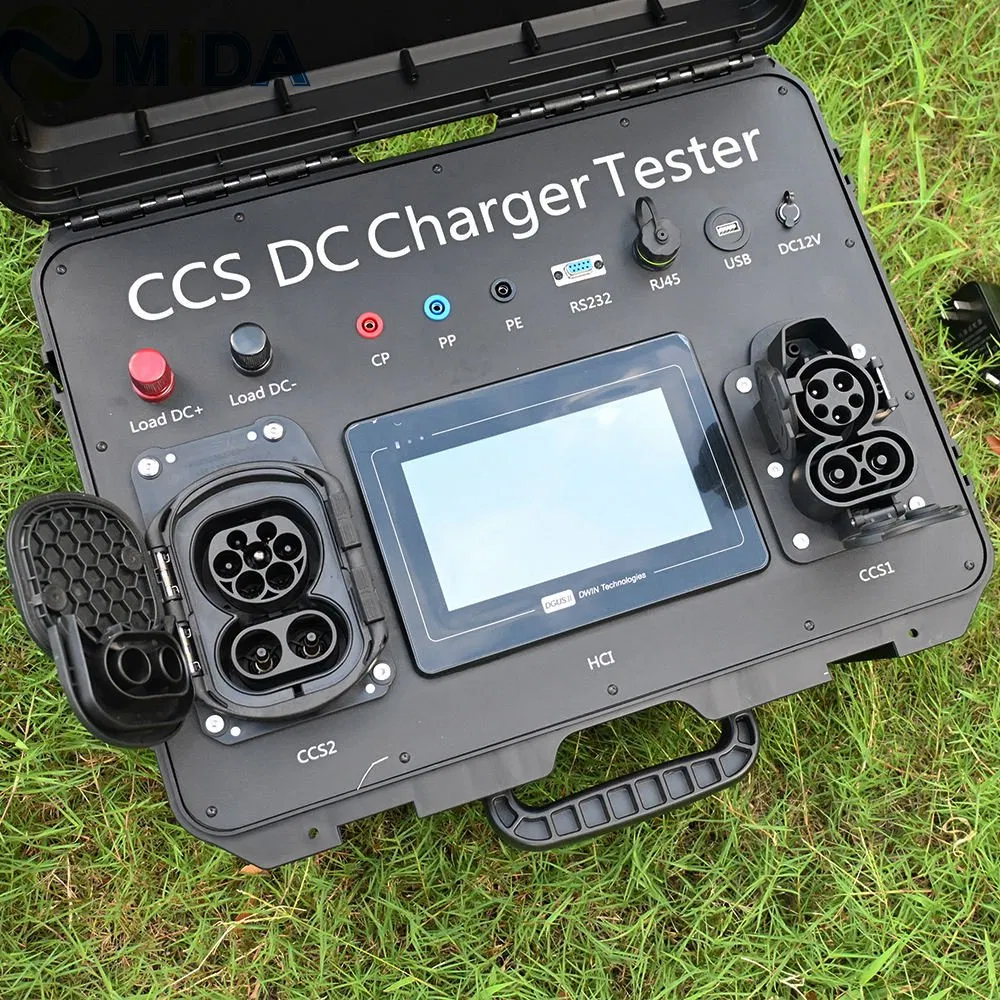

The DC EV charger tester supports GB/T, CHAdeMO, CCS1, CCS2, and Tesla. It is suitable for factory debugging, on-site testing, laboratory evaluation, and R&D. Featuring a touch screen and button design with color indicators, it includes a resistive load and independent cooling air ducts. The interface supports Chinese and English switching for improved detection efficiency.

Product Parameters Detail

Product Name	DC Charge Station Tester
Operation Voltage	AC230V±20%
Display Method	7-inch touch screen
Operating Temperature	-30ºC-70ºC
Size	8006001100mm
Weight	≤160kg

Frequently Asked Questions (FAQ)

Q1: What is the primary purpose of a DC charging station tester?

A: It is an instrument used to verify the functionality, safety, and accuracy of DC EV charging stations by simulating an electric vehicle and performing power, communication, and safety protocol checks.

Q2: Which charging standards does this analyzer support?

A: The device is compatible with multiple global standards, including CCS1, CCS2, CHAdeMO, GB/T, and NACS (Tesla).

Q3: Can the device perform tests under load conditions?

A: Yes, it includes built-in resistive loads and can be used with external adjustable resistor load boxes to verify performance under high-power conditions.

Q4: Is the tester suitable for outdoor field maintenance?

A: Absolutely. It is designed to be rugged, durable, and portable, making it ideal for on-site debugging and field maintenance by technicians.

Q5: What safety parameters can the analyzer check?

A: It can inspect safety characteristics such as insulation resistance, grounding continuity, and general installation safety to ensure compliance with regulatory requirements.

Q6: Does it support communication testing with vehicle batteries?

A: Yes, it features a Battery Management System (BMS) simulator to verify the critical communication link between the charger and the vehicle's battery system.
