Technical Specifications

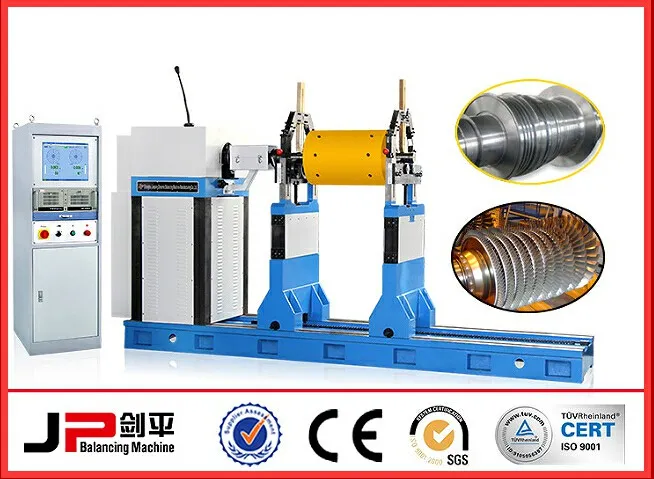

Universal joint drive balancing machine PHW-5000 (JP 580)
| Technical data at a glance |
PHW-1000H |
PHW-2000H |
PHW-3000H |
PHW-5000 |
| Mass Scope of Workpiece(kg) |
1000 |
2000 |
3000 |
5000 |
| Max Diameter of Workpiece(mm) |
Φ1600 |
Φ1800 |
Φ2100 |
Φ2400 |
| Distance Between Support Bearings(mm) |
Min 60 |
Min 60 |
Min 60 |
Min 320 |
| Journal Diameter Scope(mm) |
Φ25~120 |
Φ25~120 |
Φ25~120 |
Φ40~380 |
| Max Distance Driving Flange to Bearing(mm) |
1600 |
1900 |
1900 |
2500 |
| Motor Power (kw) |
4 |
7.5 |
7.5 |
15 |
| Min Residual Unbalance (emar) |
≤1g· mm/kg |
≤1g· mm/kg |
≤1g· mm/kg |
≤1g· mm/kg |
1) Frequency conversion; 2) Stepless speed regulation capability.

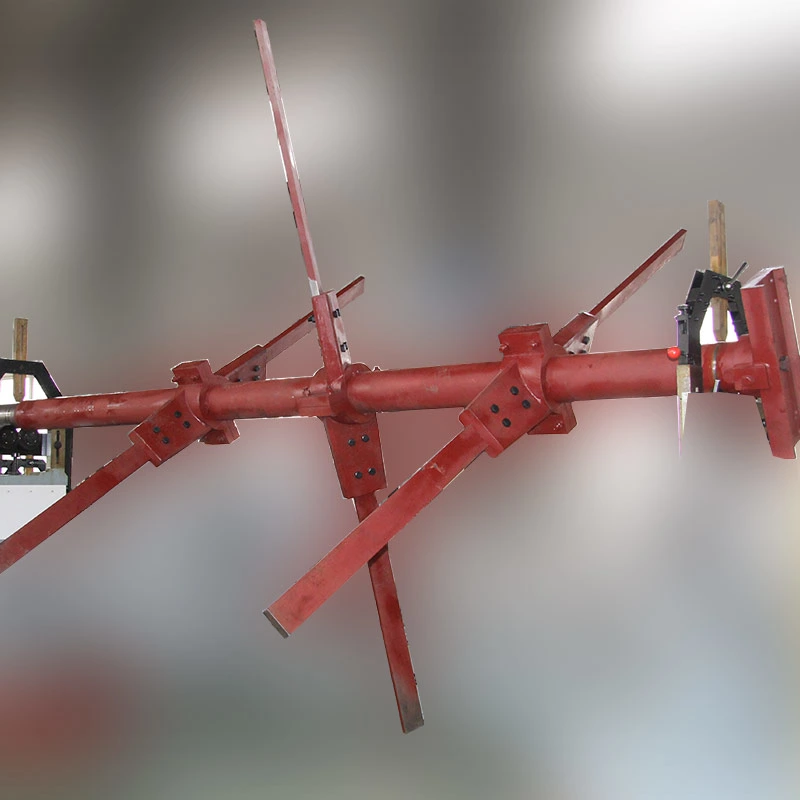

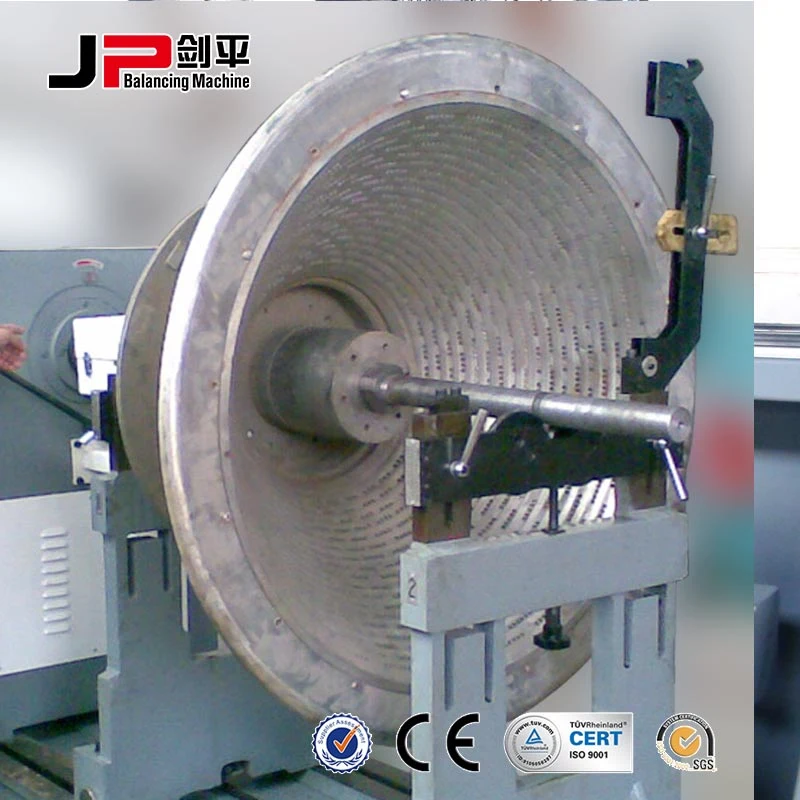

Range of Application

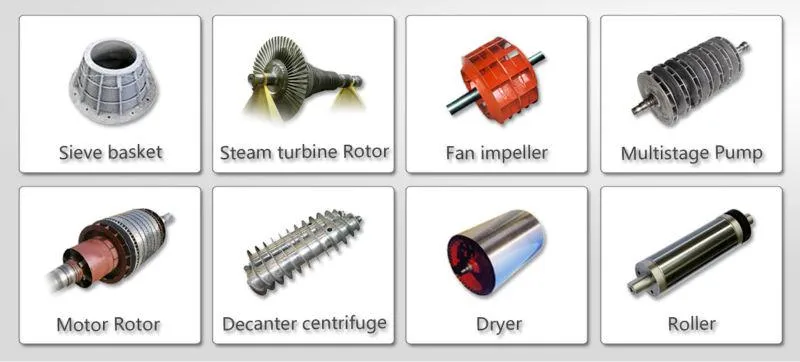

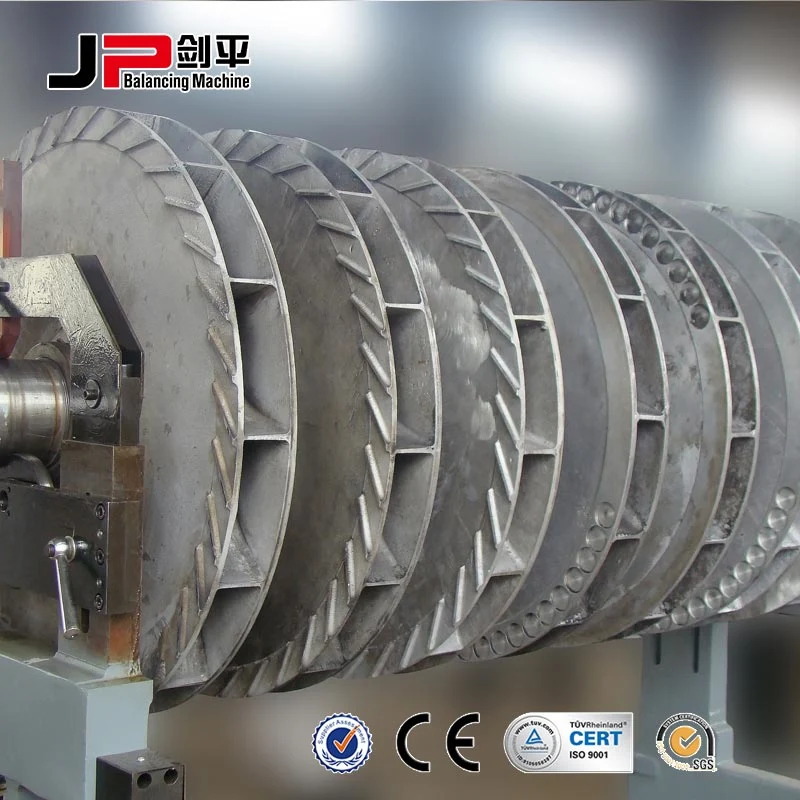

This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized and medium-sized motors, spindles of machine tools, blower, centrifuges, generator rotor, clinopodiums, pump impeller, drying cylinder, ceramic machinery, rollers, rubber sticks, etc. Driven by gear box universal coupling, equipped with Variable speed motor to drive, which ensures high quality balancing and precision.
Electrical Measuring System

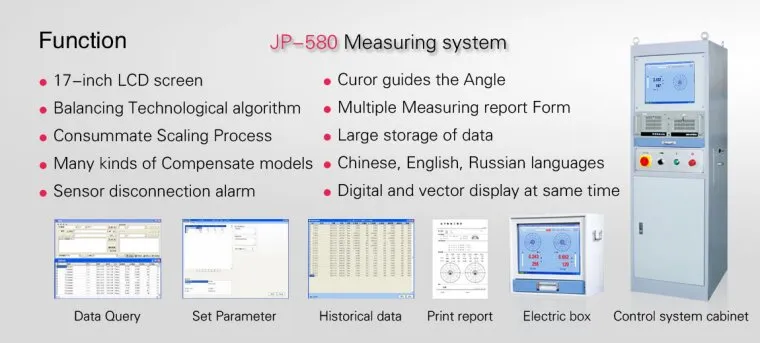

The measuring unit employs the JP-580 Electrical Measuring unit, a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines. The unit adopts an industrial computer equipped with a 17-inch LCD screen and Windows Operating System, featuring high running speed, reliability, and strong dustproof/shakeproof abilities.

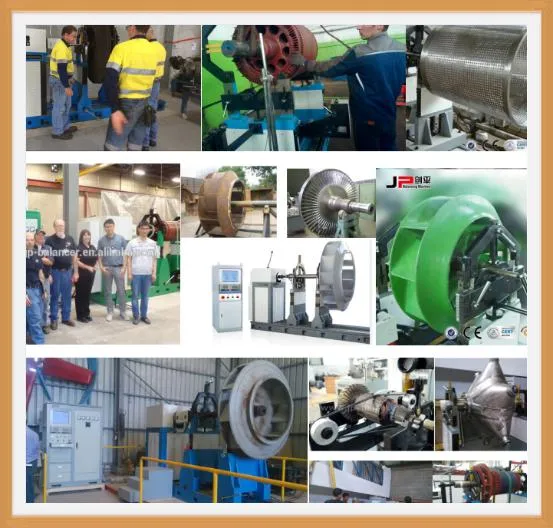

Customer Use & Quality Control
We are a professional balancing machines manufacturer. We have ten series and more than 40 models of balancing machines, including belt drive, universal joint drive, vertical, cross flow fan, and auto-positioning balancing machines. All products are audited by SGS-CSTC and have passed ISO9001:2008 and CE Certification.
Frequently Asked Questions (FAQ)
What is the maximum workpiece weight the PHW-5000 can handle?
The PHW-5000 is designed to handle a mass scope of up to 5000kg.
What industries is this balancing machine suitable for?
It is ideal for motors, blower rotors, machine tool spindles, generators, pump impellers, and various industrial rollers.
What type of measuring system does the machine use?
It utilizes the JP-580 Electrical Measuring unit, which includes an industrial computer with a 17-inch LCD and Windows-based software.
Is the machine compatible with different power standards?
The standard power source is AC380V, suitable for most industrial environments.
Does the machine come with international certifications?
Yes, the equipment is certified under CE, ISO, SGS, and BV standards to ensure safety and quality.
What is the unbalance reduction rate?
The machine achieves a Minimum Achievable Residual Unbalance Amount (emar) of ≤1g· mm/kg, with an unbalance reduction rate of approximately 90%.
