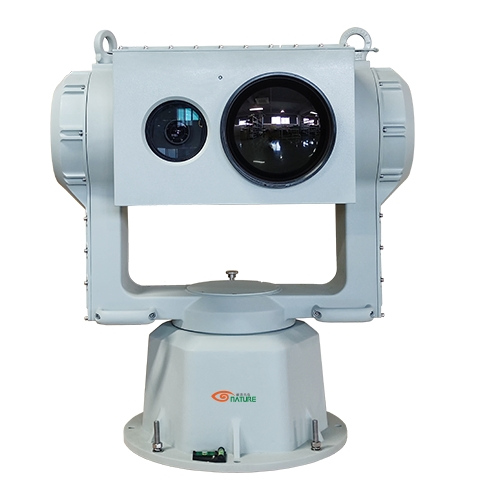

Precision Servo Load System for Enhanced Target Recognition

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt

Product Description

Basic Specifications

Model NO.Nvt-9600- (XXX series)
TypeCCTV Camera
SensorCMOS
HDMI Format1080P
Horizontal Resolution650tvl
KindAutofocus Lens
CertificationCE
Effective Distance≧30m
Sensor Size1/3 inch
Remote ControlWith Remote Control
Image Resolution Ratio1920*1080 @25fps
Focal Length of LensF12.3-800mm (65X Optical Zoom)
Optical CharacteristicsColor, B&W, Optical Fog Penetration
Focus ModeAuto/Manual
Specification672mm×445mm×780mm
Production Capacity100PCS/Month

Packaging & Delivery

Package Size67.20cm * 44.50cm * 78.00cm
Package Gross Weight80.000kg

Product Features

Ultra long focal length variable focus with optical fog transmission and non-cooled thermal imaging for 24-hour uninterrupted defense.
Full screen object classification detection, automatic search, locking, and tracking of heat source targets.
Synchronized image encoding and intelligent computing with over 80 efficient target recognition classifications.
Low latency tracking control (within 80ms) with a high-speed direct drive servo system and accurate geodetic position reporting.
Specially designed servo system with a pitch range of -45° to 90°, supporting multiple devices for synchronized operation.
Supports advanced applications: coordinate conversion, third-party data forwarding, and collaboration.
Expandable features: Electromagnetic interference, laser ranging, Beidou GPS, gyroscope anti-shake, and angle deflection.
Compatible with third-party radar, radio detection, and identification friend or foe (IFF) systems.
Precision Servo System
Recognition Detail

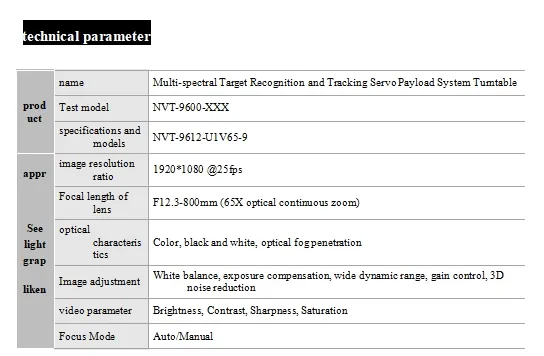

Target Tracking

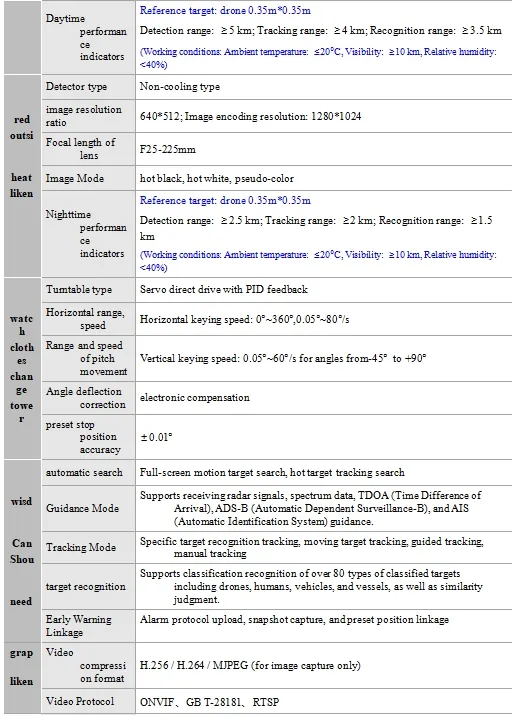

Internal Structure

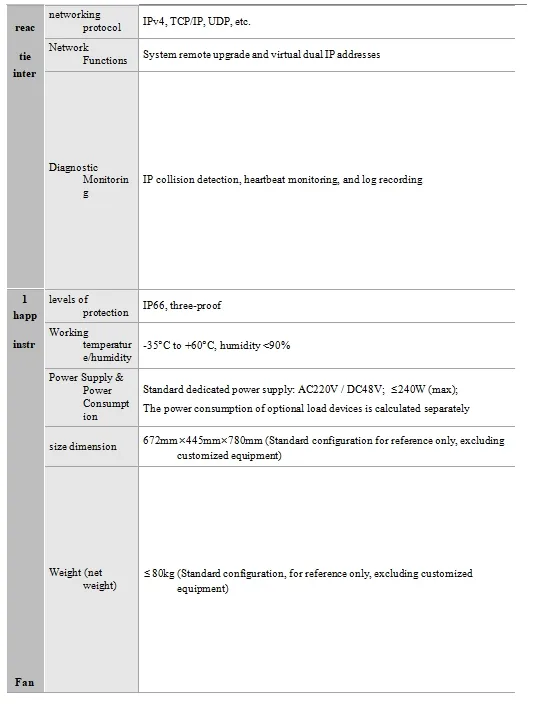

Control System

Frequently Asked Questions

What is the maximum optical zoom of this camera?
The system features a 65X optical continuous zoom with a focal length ranging from 12.3mm to 800mm.
How does the camera perform in foggy conditions?
It is equipped with optical fog penetration technology and non-cooled thermal imaging to ensure clear target imaging in adverse weather conditions.
What is the latency for target tracking?
The target imaging to tracking calculation is highly efficient, completing within 80 milliseconds thanks to the high-precision direct drive servo control system.
Can this system be integrated with third-party hardware?
Yes, it can access third-party radar, radio detection systems, and supports third-party data forwarding and coordinate conversion.
What is the movement range of the servo system?
The specially designed servo system offers a wide pitch range from -45° to +90°.
What are the primary industry applications?
It is typically used for monitoring low, small, and slow targets in the air within a 1-5KM range, ideal for 24-hour defense operations.
