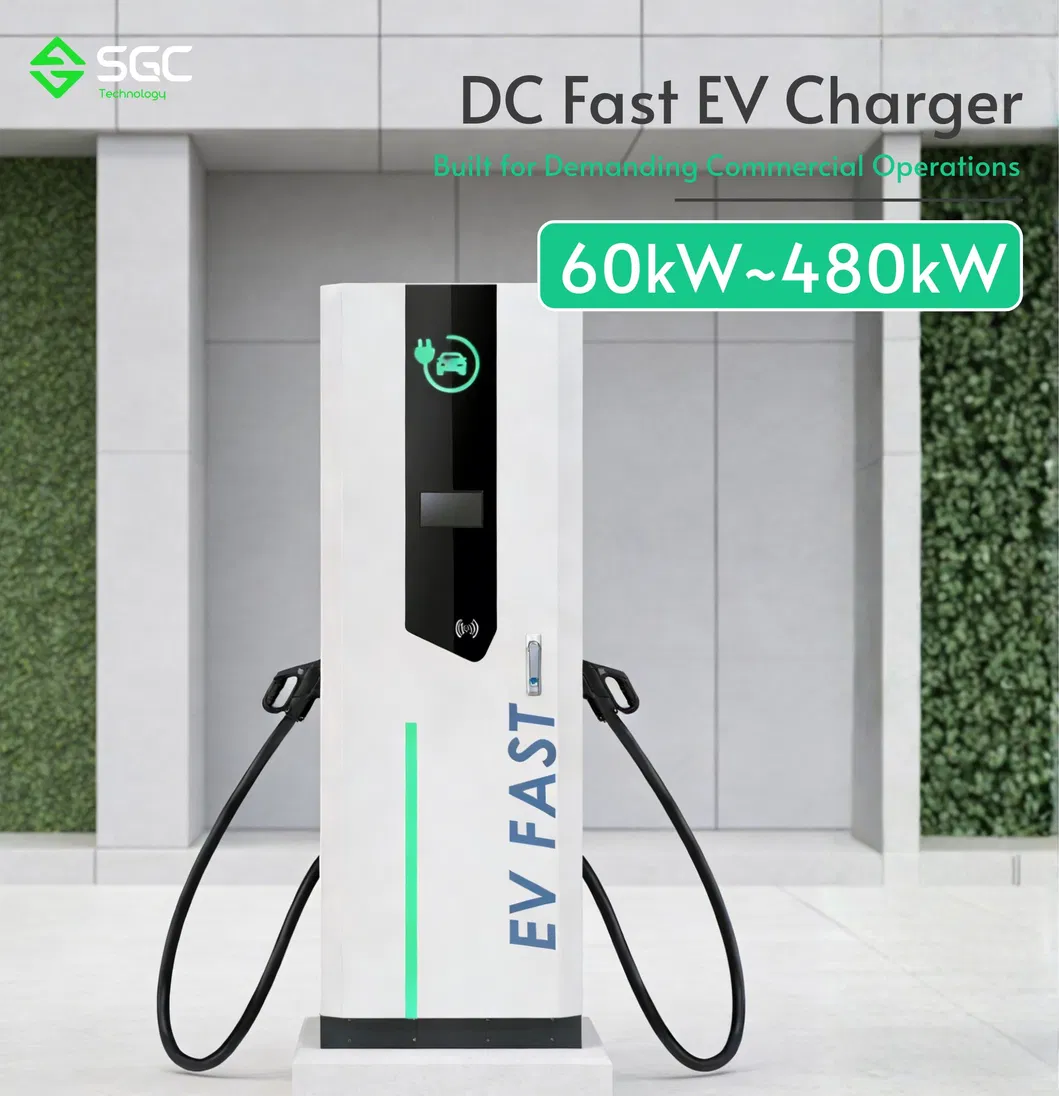

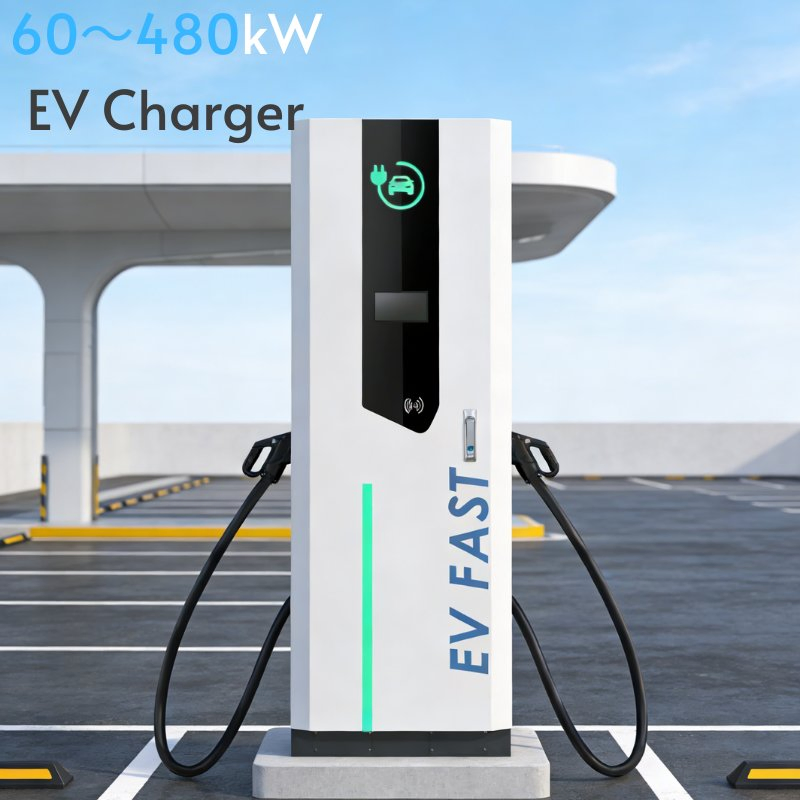

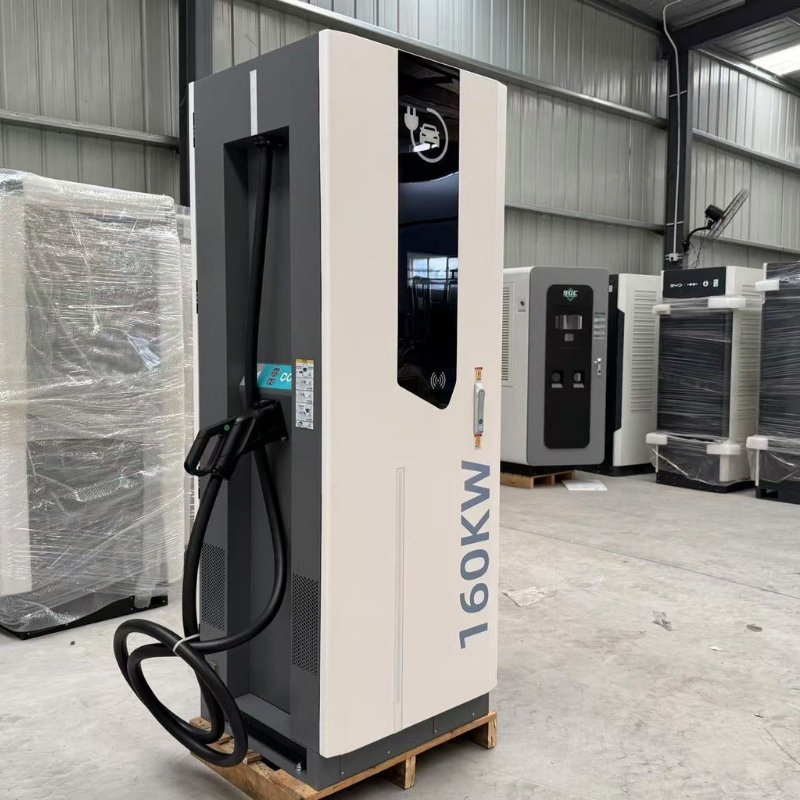

60-480kW All-in-One DC Fast Charging Station

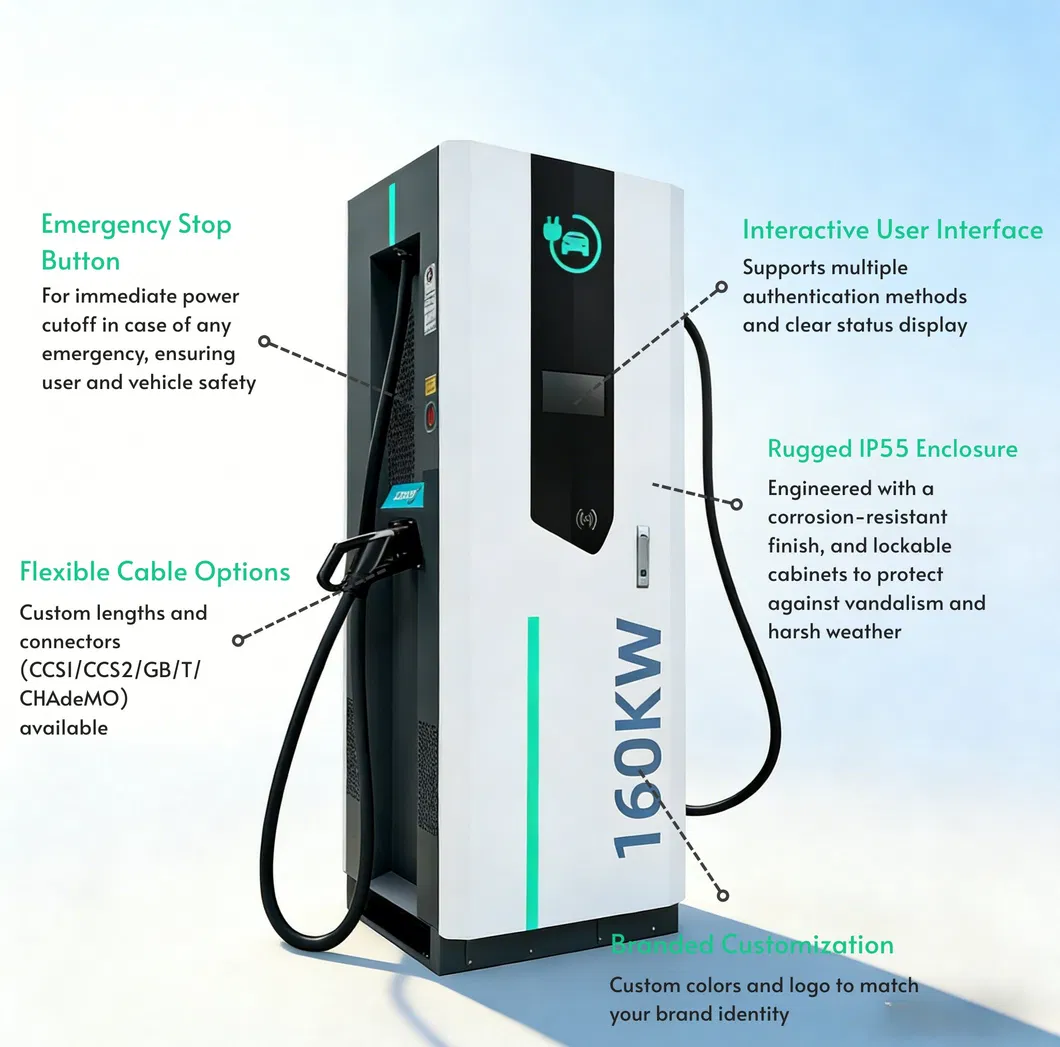

This scalable solution is designed for commercial and public EV charging networks, including fleet operations and highway rest stops. The station supports dual-gun charging with intelligent power allocation and is compatible with major global standards (CCS1, CCS2, GB/T and CHAdeMO).

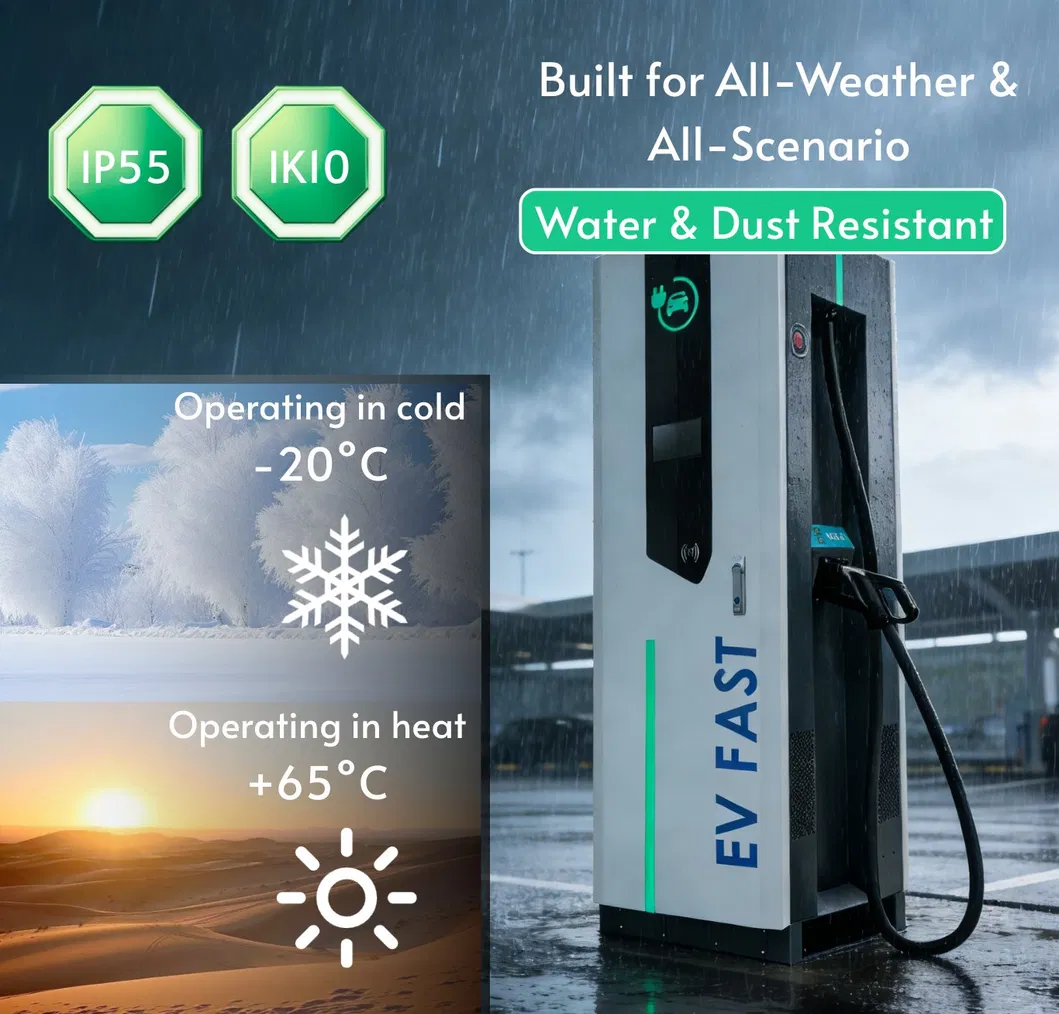

Key functionalities include Plug & Charge (ISO 15118), OCPP 1.6J/2.0 compliance for network integration, and compatibility with energy management systems. It operates reliably in a wide temperature range (-20°C to 65°C) and features robust IP55/IK10 protection.
| Electrical & General Specifications | |
|---|---|
| Product Name | Integrated DC Fast Charger |
| Output Power | 60KW - 480KW (Scalable) |
| Output Voltage | 50~1000VDC |

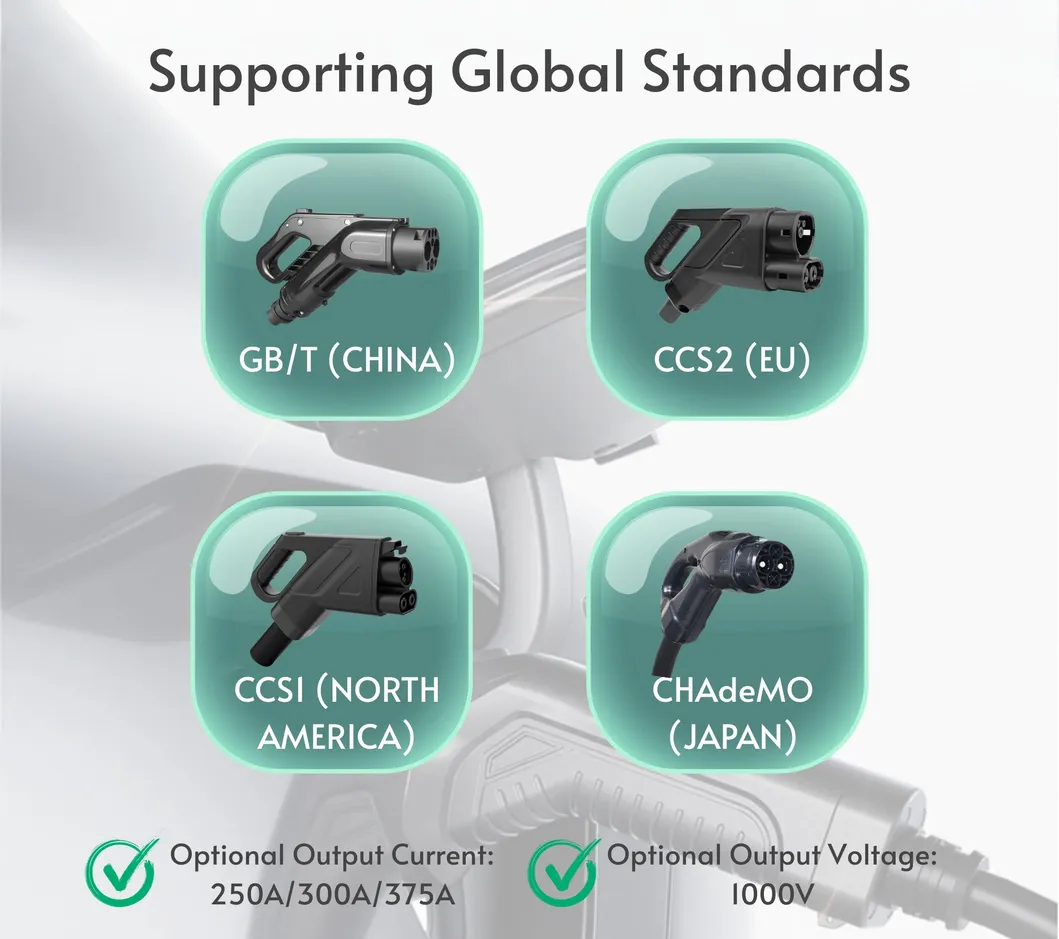

| Connector Type | CCS1 / CCS2 / GBT / CHAdeMO |
| Input Voltage | AC380V±15% (3P+N+PE) |

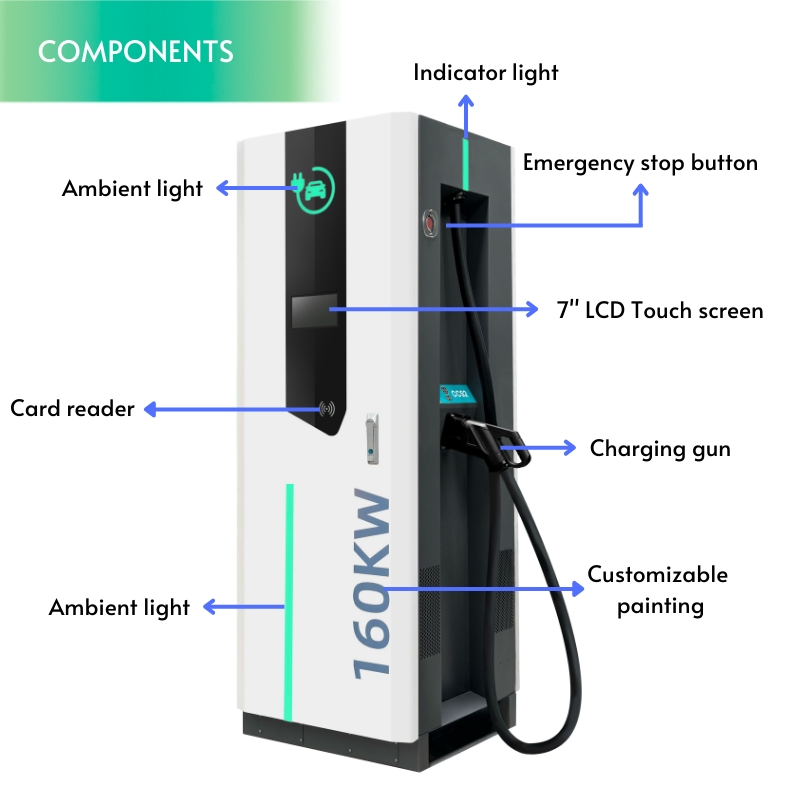

| Display | 7~10" LCD Touch Screen |

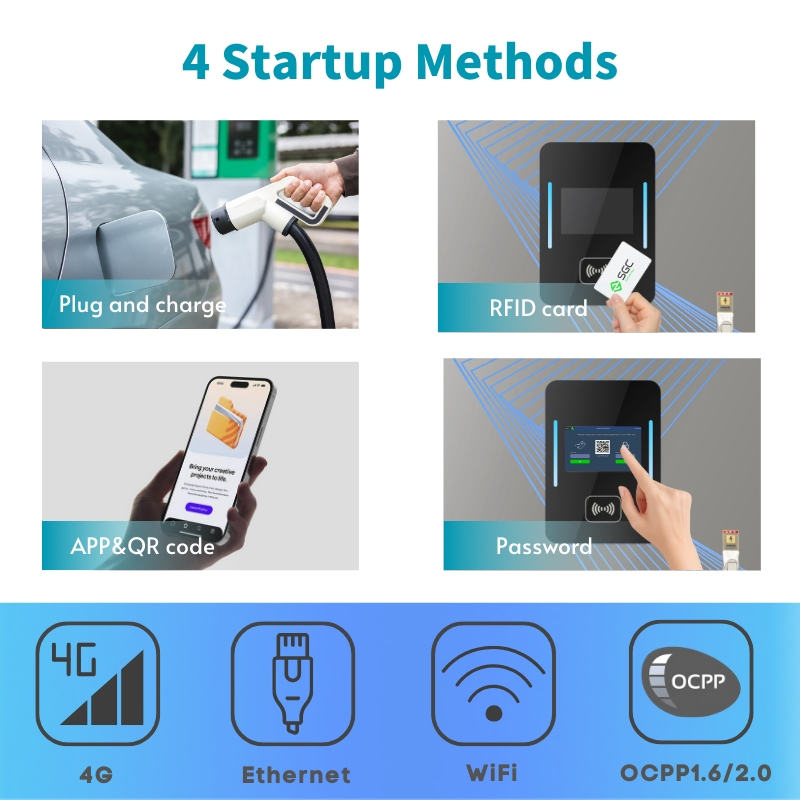

| Connectivity | 4G / Ethernet / WiFi (OCPP 1.6J) |
| Protection Rating | IP55 / IK10 |
| Operating Temp | -20°C to +55°C (Full load) |
| Efficiency | ≥94% |
| Warranty | 2 Years (Extensions available) |
As a leading manufacturer and comprehensive solution provider in the EV charging industry, we specialize in the R&D, production, and sales of high-power DC fast chargers, AC chargers, and mobile charging solutions. With full in-house capabilities across hardware, software, and platform development, we have a proven track record of supporting major international infrastructure projects.
