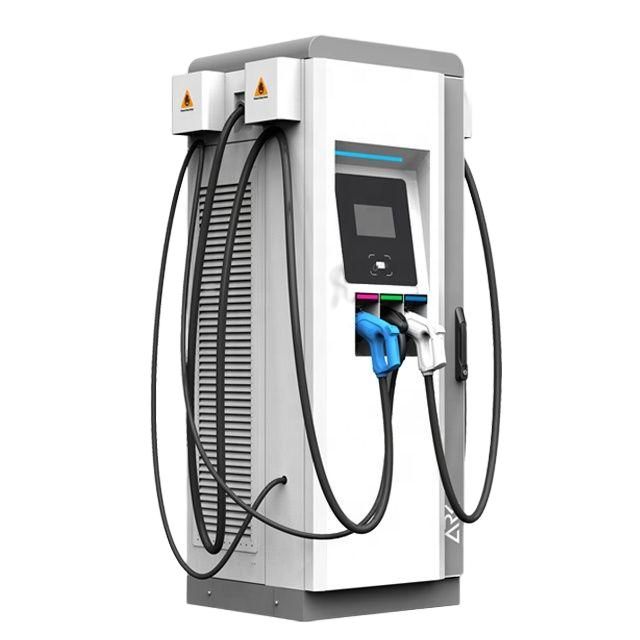

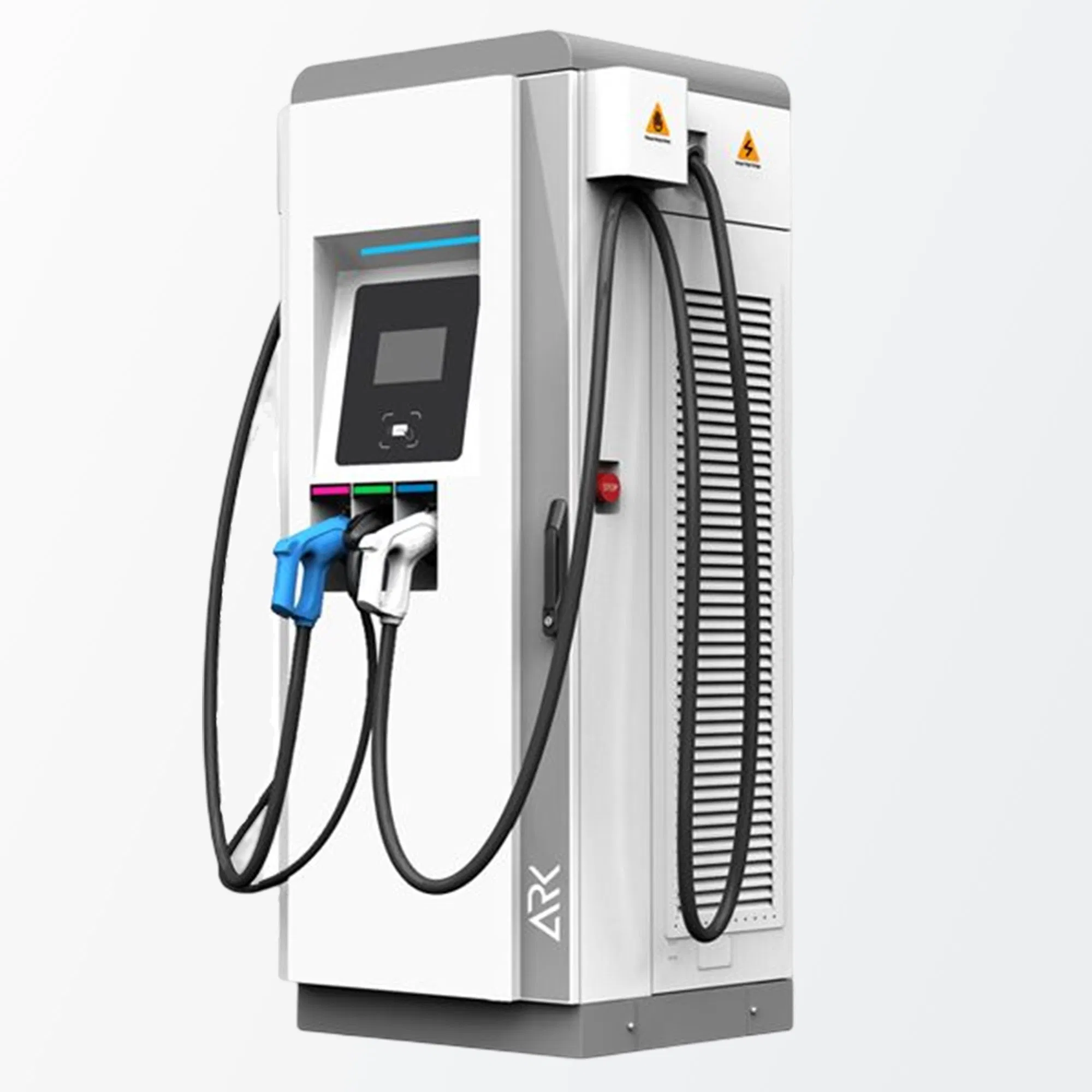

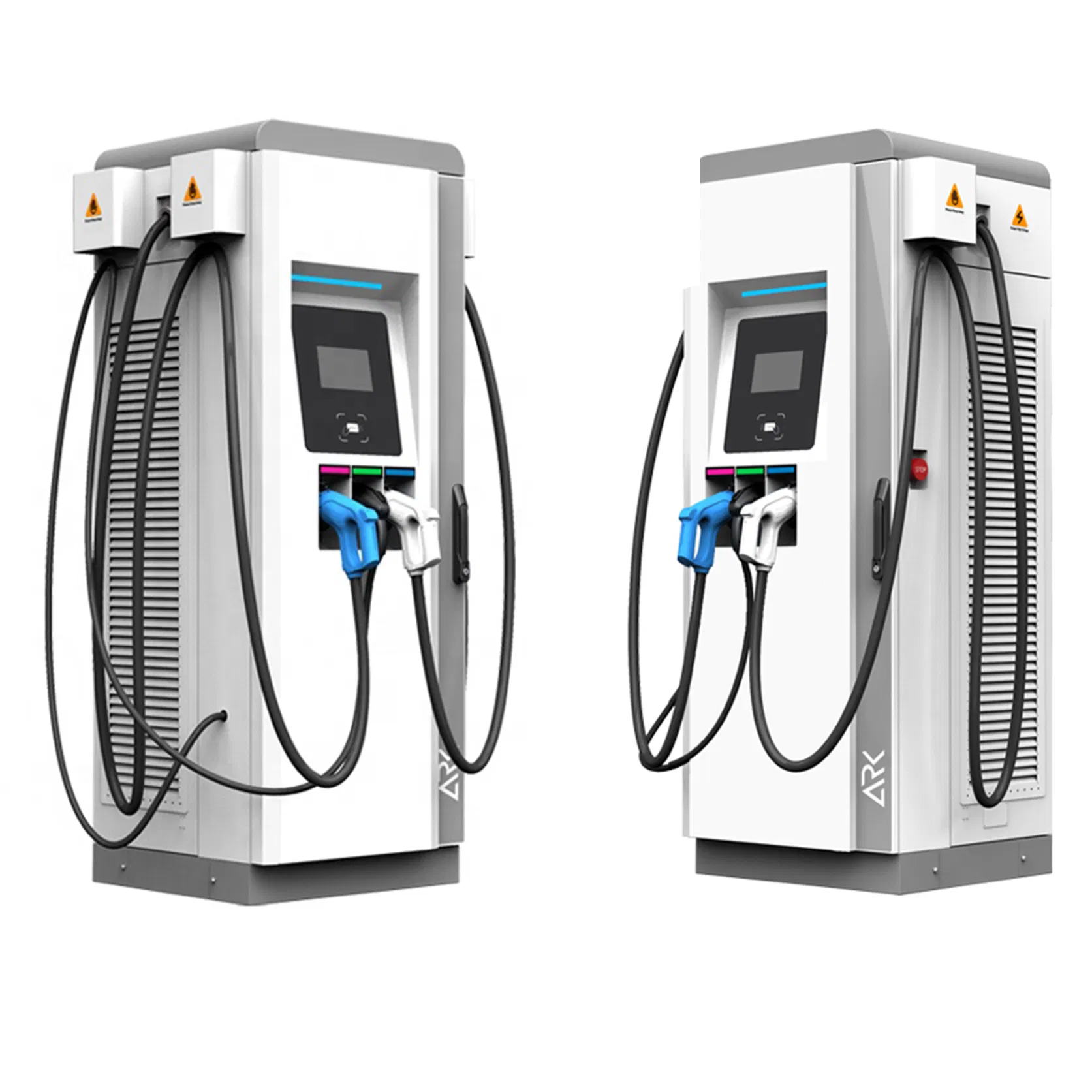

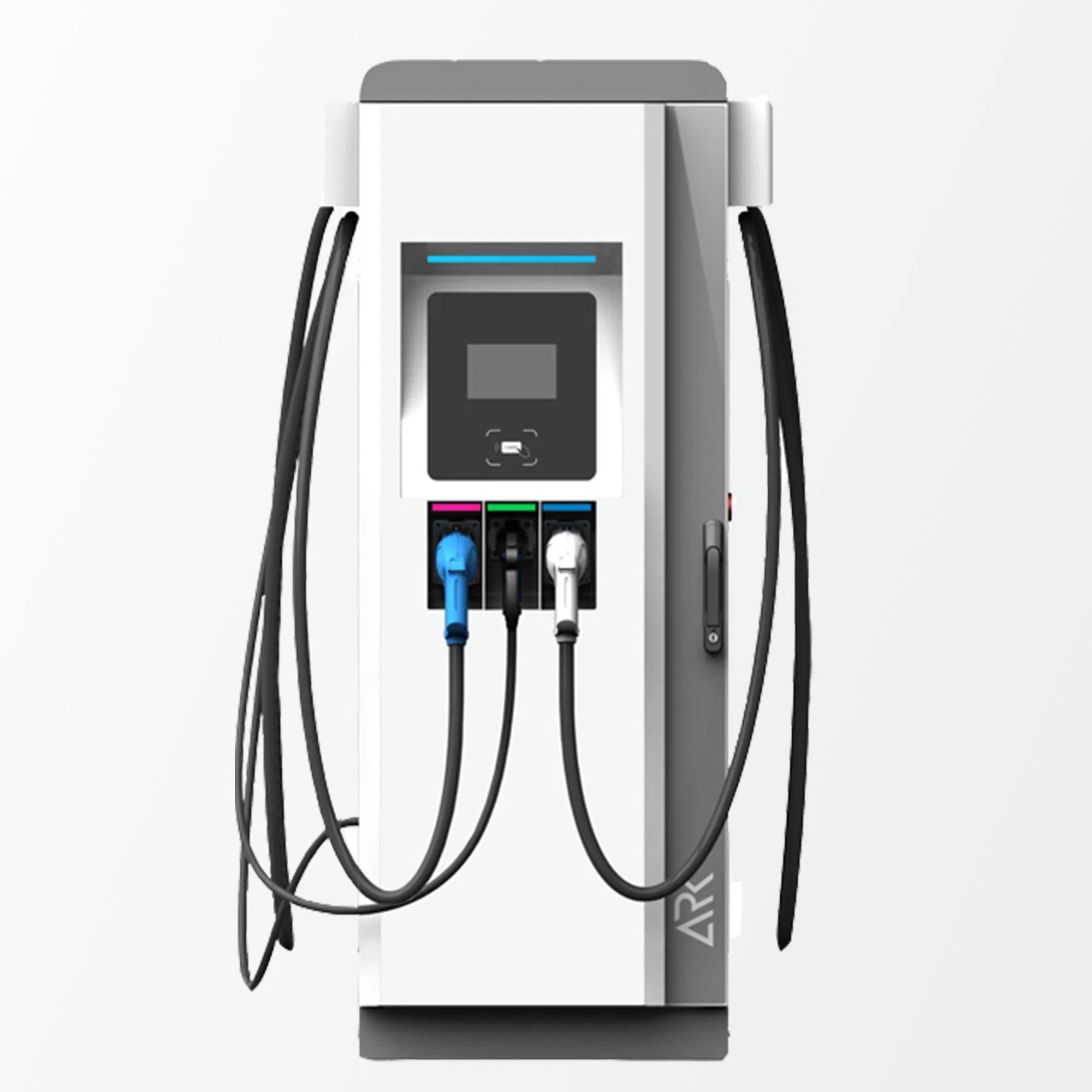

Public Universal Level3 Ocpp Quick Charger 150kw CCS Chademo Protocol Standard
Public Universal Level3 Ocpp Quick Charger 150kw CCS Chademo Protocol Standard
Public Universal Level3 Ocpp Quick Charger 150kw CCS Chademo Protocol Standard
Public Universal Level3 Ocpp Quick Charger 150kw CCS Chademo Protocol Standard
Public Universal Level3 Ocpp Quick Charger 150kw CCS Chademo Protocol Standard
1 / 5
Public Universal Level3 Ocpp Quick Charger 150kw CCS Chademo Protocol Standard
Public Universal Level3 Ocpp Quick Charger 150kw CCS Chademo Protocol Standard
Public Universal Level3 Ocpp Quick Charger 150kw CCS Chademo Protocol Standard
Public Universal Level3 Ocpp Quick Charger 150kw CCS Chademo Protocol Standard
Public Universal Level3 Ocpp Quick Charger 150kw CCS Chademo Protocol Standard

Public Universal Level3 Ocpp Quick Charger 150kw CCS Chademo Protocol Standard

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
EF160
OCPP
Ocpp1.6j Supported
Screen
7 Inch Touch Screen
Protection Grade
IP54, IK10
Charging Type
Mode 4
Standard
IEC 61851-1, IEC 61851-23, Chademo
Type
Fast EV Charging Station
Certification
CE, TUV
Warranty
12 Months
Specification
1900 x 725 x 700mm
Origin
China
HS Code
8504409999
Product Description

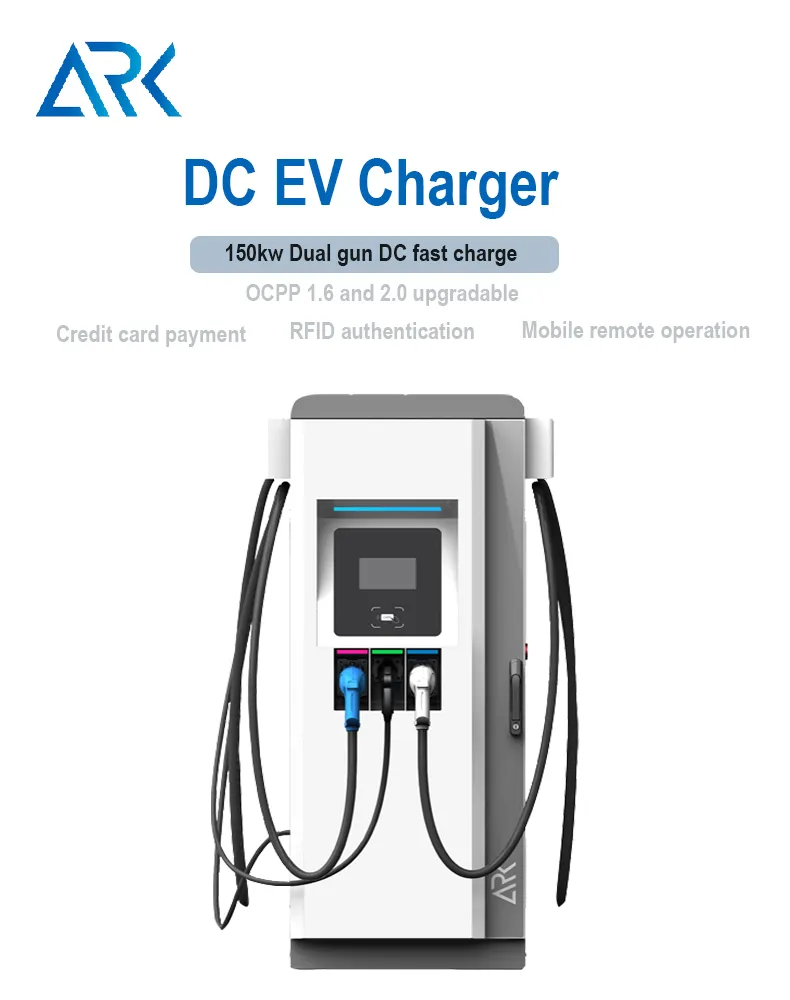

EV Charger Detail 1 EV Charger Detail 2

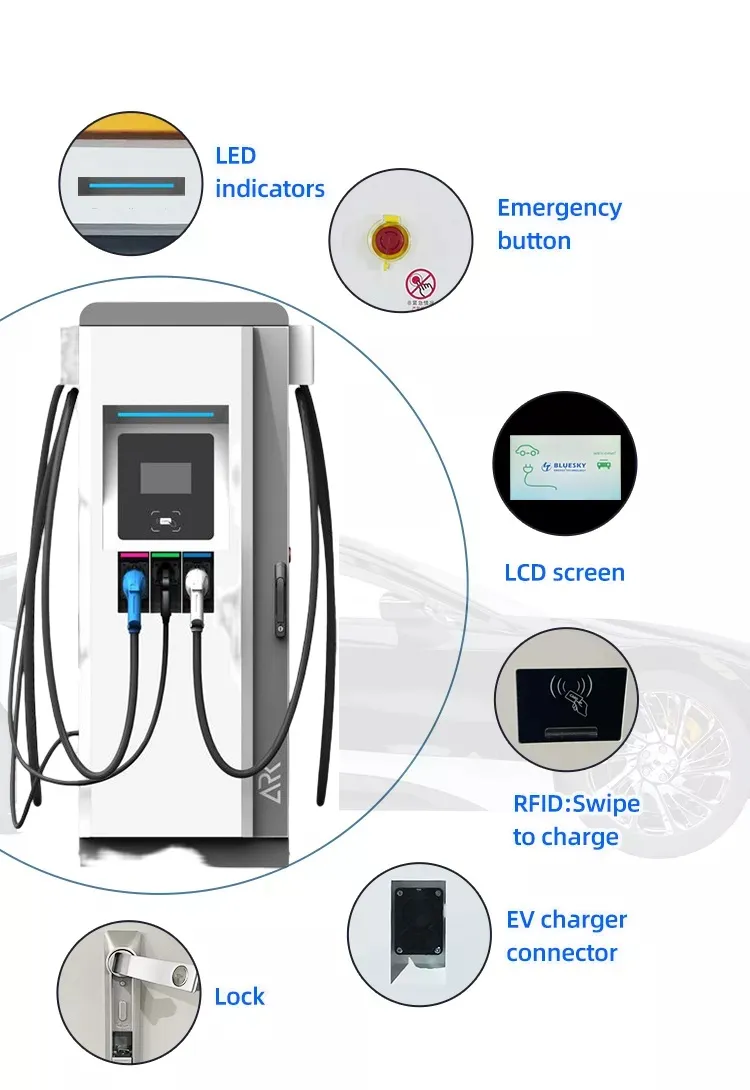

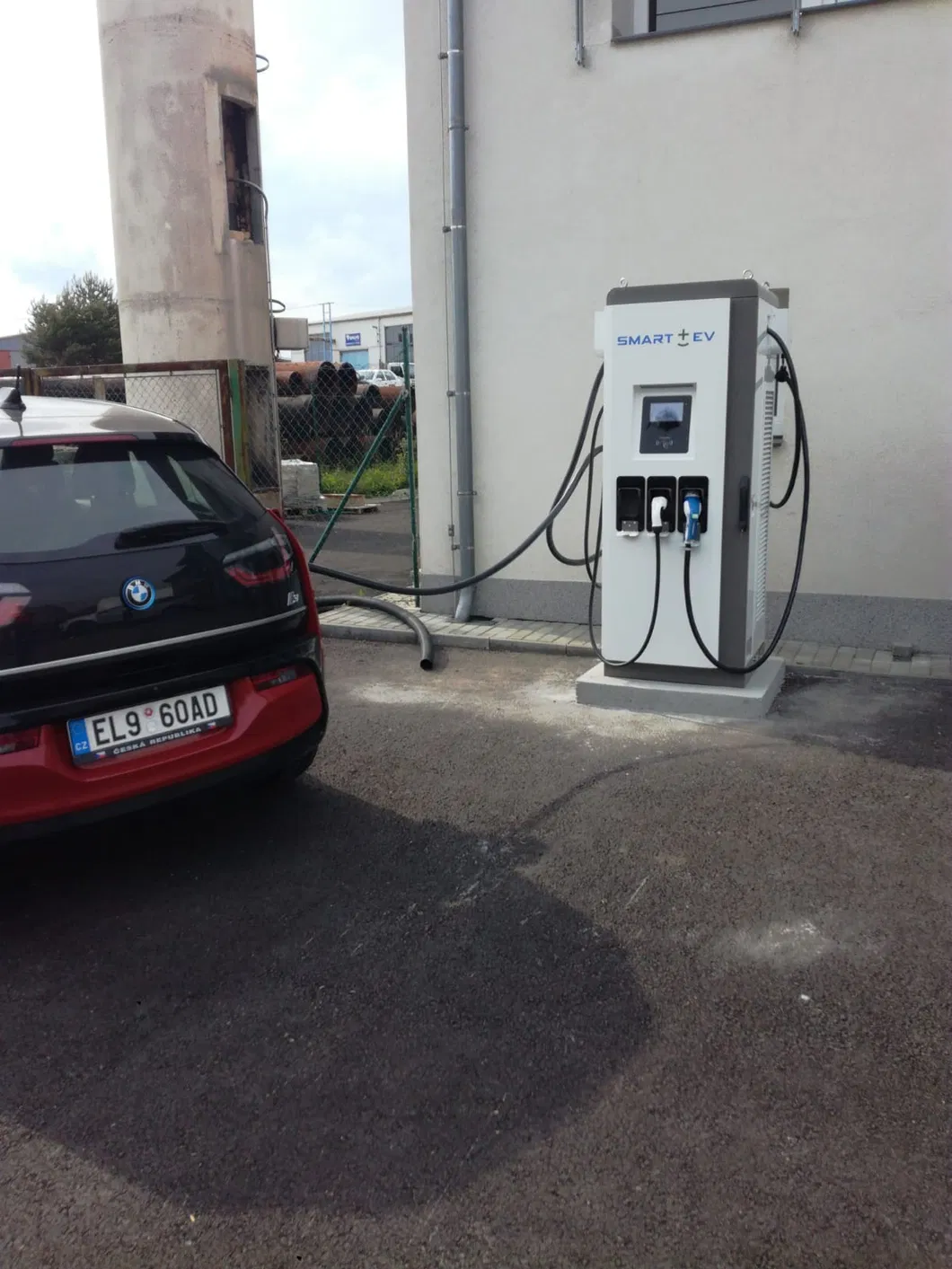

EV Charger Detail 3 EV Charger Detail 4

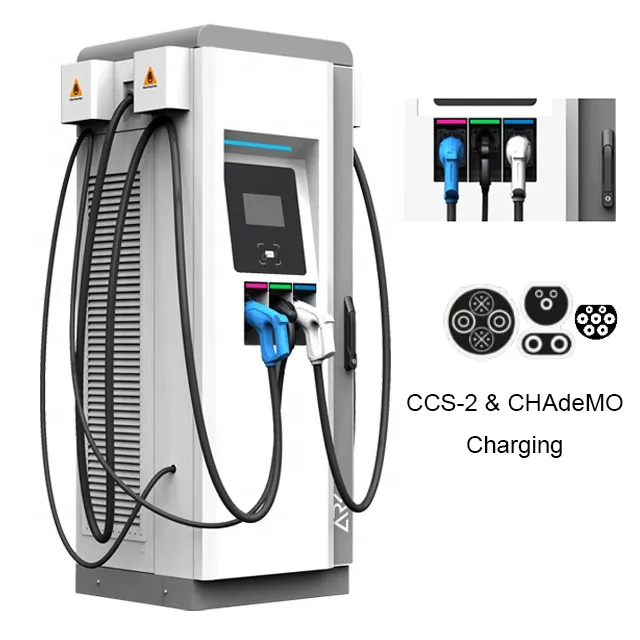

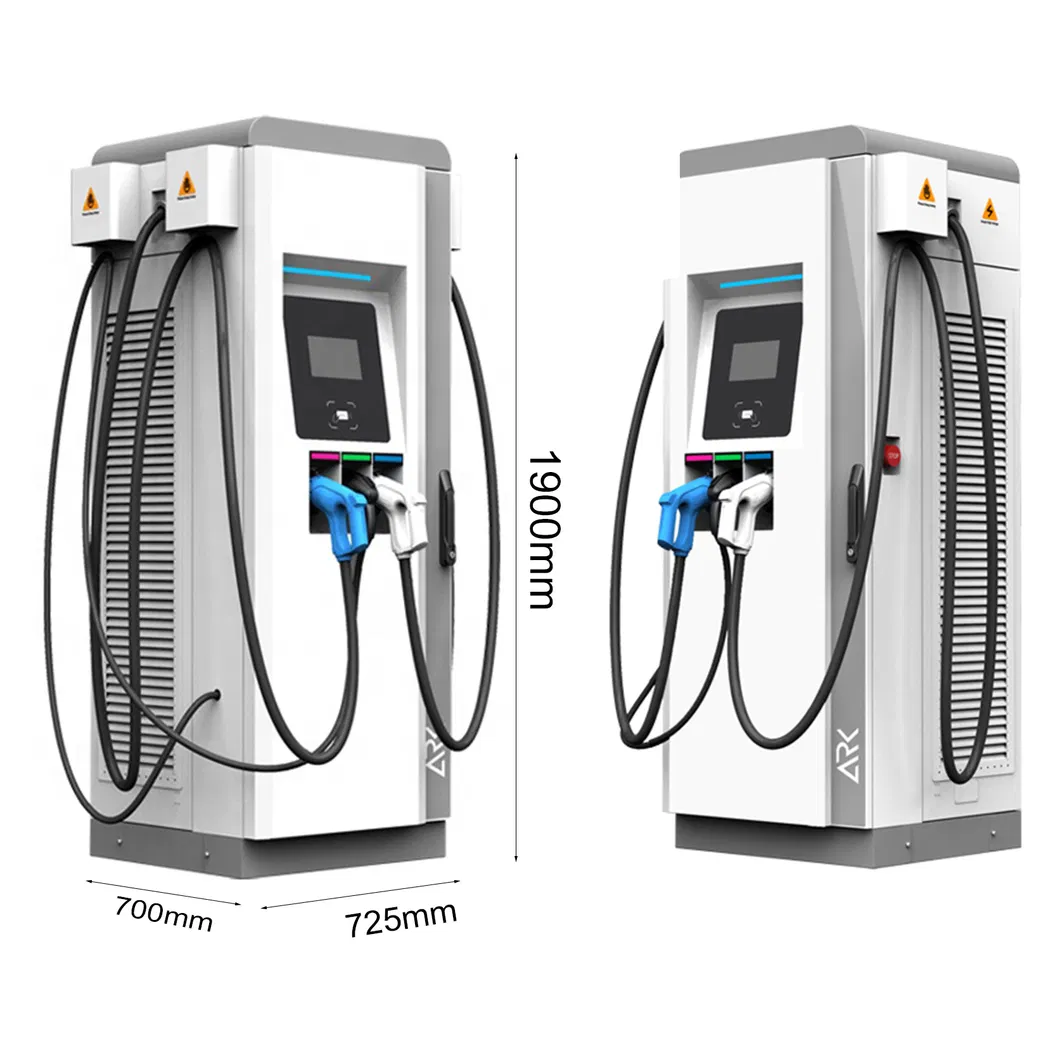

EV Charger Detail 5 EV Charger Detail 6
Product Parameters
Category Details
Electrical Specifications Input Voltage 400Vac 3-phase
Input Frequency 50Hz/60Hz
Rated Power 60kW or 120KW DC
Output Voltage CCS: 200 - 1000VDC, CHAdeMO: 200 - 500VDC
Output Current CCS: 0 - 200A, CHAdeMO: 0 - 125A
Efficiency ≥ 94%
Power Factor ≥ 0.99
Structure Housing Material Metal case
Dimension 1900 x 725 x 700mm
Weight 380kgs
Cable Length 5m
Outlets 3
Environment Working Temp -30°C to +55°C
Protection IP54
Safety Standards IEC 61851-1, IEC 61851-23, DIN 70121
Manufacturing Excellence
Production Process
Packaging & Shipping

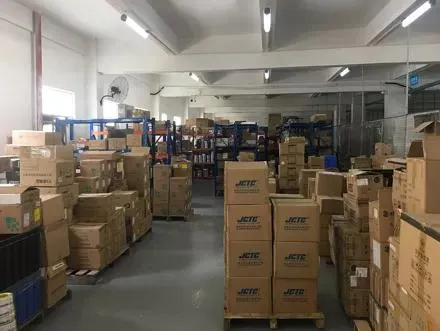

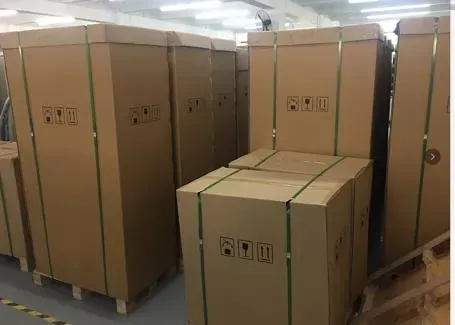

Packaging 1 Packaging 2 Packaging 3
Frequently Asked Questions
Why choose us as your preferred EV Charger supplier?
We maintain a professional technical team and offer a wide range of charging standards with international design. Our products undergo rigorous laboratory testing and are among the few capable of achieving both CE and UL certification.
Is there experience in implementing overseas charging station projects?
Yes, we are pioneers in overseas charger projects, collaborating with power companies in the UK, charging operators in the US (Freeway projects), and major automakers like GM for Bolt EV fleets.
What are the main advantages of your products?
Our products feature telecom-level design, support multiple standards (CCS-1/2, CHAdeMO, GB/T), offer wider voltage ranges, superior temperature adaptation, and advanced modular designs for better reliability.
What are the differences between global DC fast charging standards?
There are 5 main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla (Proprietary). Our chargers are designed to be compatible across these global requirements.
Does higher output power always mean faster charging?
Not necessarily. Charging speed is limited by the vehicle's battery capacity. However, high-power chargers are significant because they can support dual connectors to charge two vehicles simultaneously and provide future-proofing as battery technology improves.
How is after-sales technical support handled?
We provide comprehensive technical training, including written materials and videos. Our team supports customers in mastering parts replacement and basic maintenance, with professional technicians available for urgent support.
