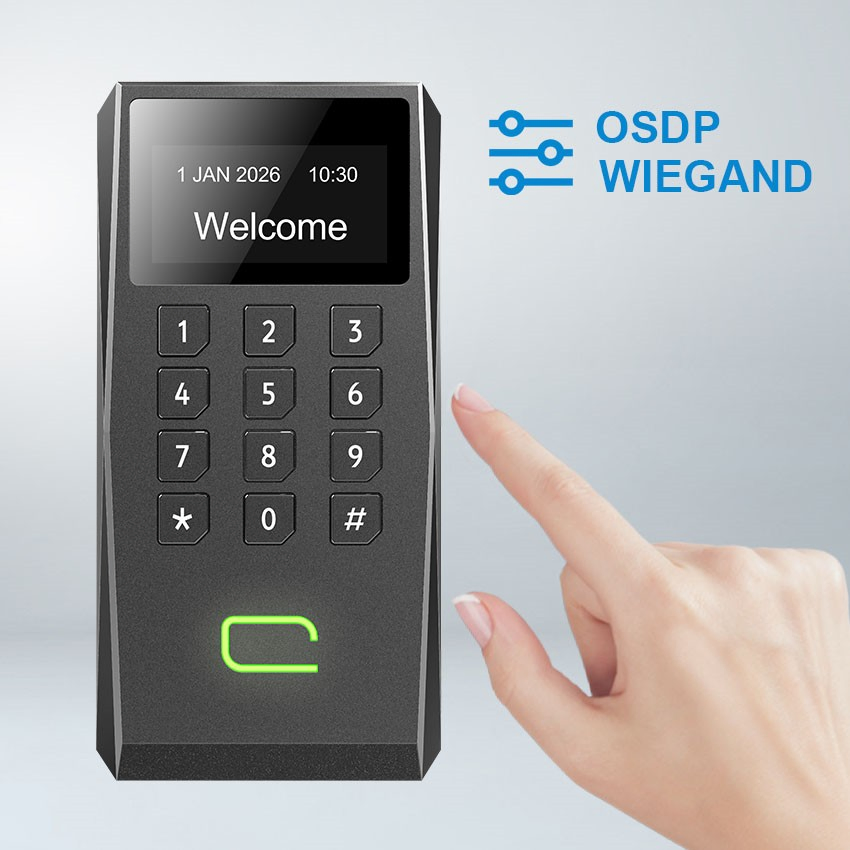

Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
1 / 5
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP

Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP

Customization: Available
Type: IC Card Reader
Card Type: CPU, EM, BLE, NFC, DESFire EV2
Send Inquiry

Product Description

⭐ 2.4 Inch OLED Display 🛡️ IP65 Waterproof 🔐 OSDP & Wiegand 📱 NFC & Bluetooth
Basic Information
Model NO.
CK5
Interface
Serial Port, Wiegand, RS485 Osdp
Reading Distance
1-10cm
Application
Parking, Hospital, Library, Company, Bank, Store, Access Control
Product
Access Control Reader
Display
2.4 Inch OLED Display
Keypad
Mechanical Keypad
Identification
RFID, NFC, BLE Mobile ID, Pin Code
RFID Card
13.56MHz 125kHz
Secure Module
Sam AV2
Power Supply
9-30VDC
IP Protection
IP65 Waterproof
Tamper Alarm
Yes
Origin
China
Product Description

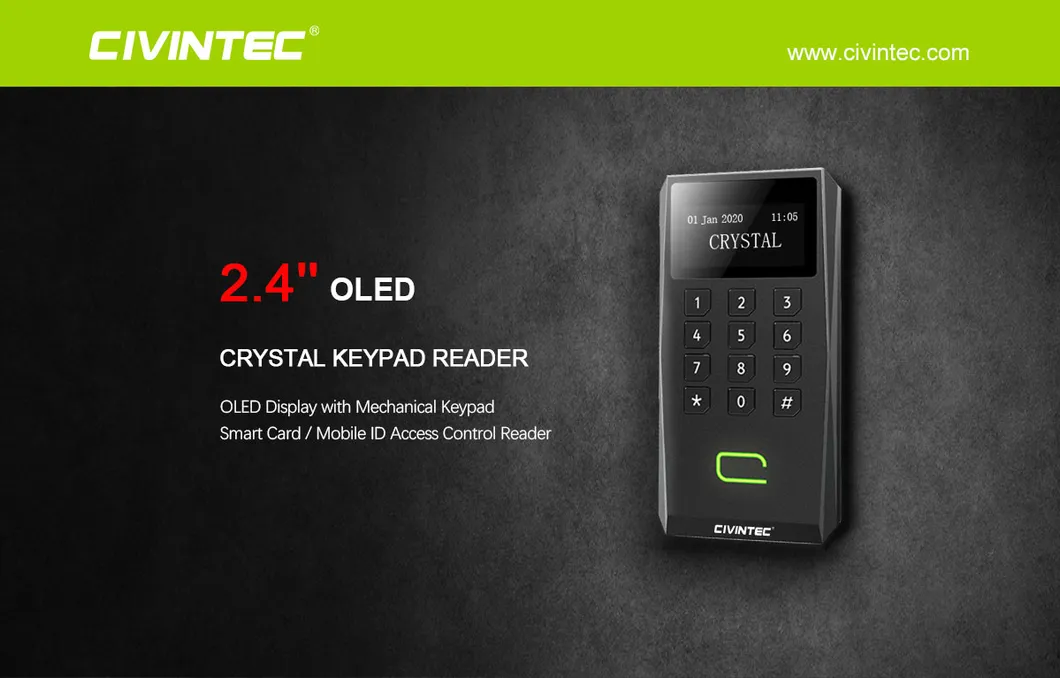

Access Control Reader Overview
Wiegand RS485 Interface
Osdp Display RFID

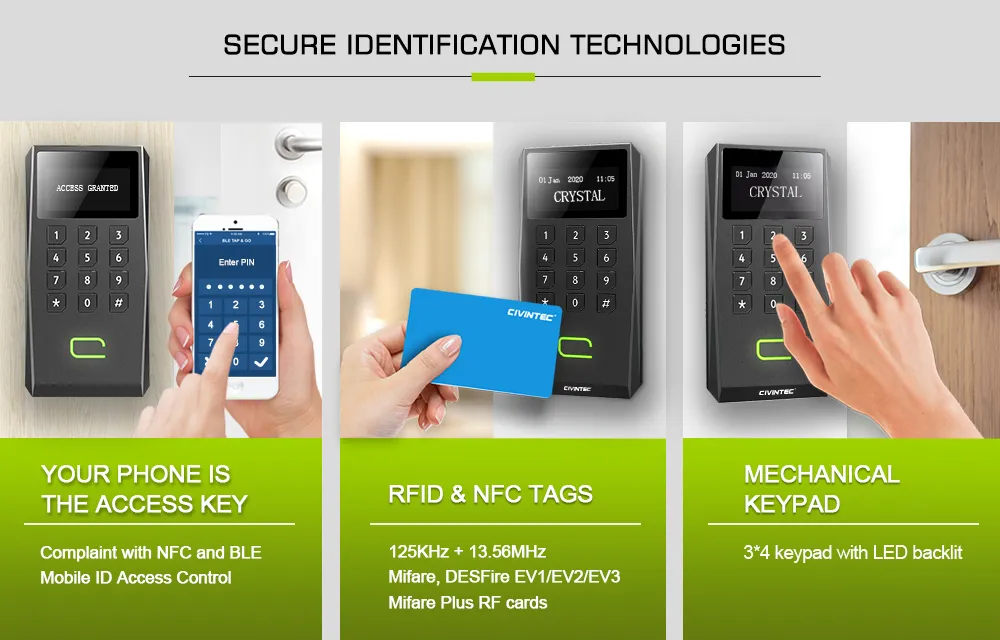

NFC Bluetooth Access
Mobile APP Support
CRYSTAL KEYPADCK5-MX-X
ISO-protocol13.56MHz ISO14443A/B, ISO15693, ISO18092 NFC, 125KHz
Contactless cards- 125KHz Prox, EM4100, EM4200
- Mifare S50/S70, Ultralight® (C), DESFire® EV1/EV2, Mifare® Plus S, X
- NFC forum tag T2T, T4T
Mobile IDISO18092 NFC, BLE
Secure Access ModuleISO7816 Standard Mini Card Slot, MIFARE SAM AV2
Display2.4" OLED, 128x64 white characters on black background
Keypad12 digit keypad in 4 rows of 3 keys in each row with white LED backlit, intensely adjustable
Communication interfacesRS485, OSDP, Wiegand 24-1024
IndicatorFour wire control for LED and buzzer, Symbols LED with Red, Green, yellow(bio-color) or Mixed color Status Indicators, Buzzer
GPI/O2 configurable GPIO
Tamper AlarmBuilt-in mechanical tamper switch for break off protection and opening detection
Power supply9-30V DC
Ingress ProtectionIP65
Housing dimensions165mm(H)* 84mm(W)* 20mm(T)
Operating temperature-40ºC~+60ºC, with thermostat controlled embedded heater
CertificationCE, RoHS

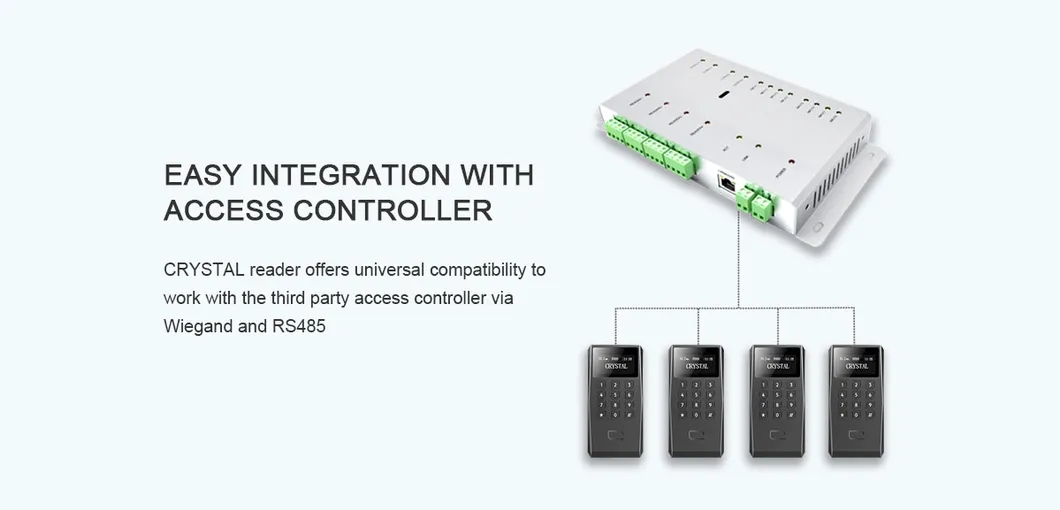

Mechanical Keypad Detail
Reader Dimensions
Installation 1
Installation 2
Installation 3
Features 1
Features 2
Frequently Asked Questions
What identification methods does the CK5 reader support?
The CK5 supports multiple identification technologies including RFID (13.56MHz & 125kHz), NFC, BLE (Bluetooth) Mobile ID, and Pin Code entry via its mechanical keypad.
Is this access control reader suitable for outdoor installation?
Yes, it features an IP65 waterproof rating and an operating temperature range of -40ºC to +60ºC with a thermostat-controlled embedded heater, making it durable for various environments.
What kind of display does the CK5 feature?
It is equipped with a 2.4-inch OLED display that provides clear white characters on a black background (128x64 resolution) for user interaction and status updates.
Which communication interfaces are available for integration?
The device supports RS485, OSDP (Open Supervised Device Protocol), and Wiegand (24-1024) interfaces, ensuring compatibility with most access control systems.
Does the device have security measures against tampering?
Yes, it includes a built-in mechanical tamper switch that triggers an alarm for both break-off protection and unauthorized opening of the reader.
What are the power requirements for this reader?
The CK5 reader operates on a wide voltage range of 9V to 30V DC, providing flexibility for different power supply setups.
