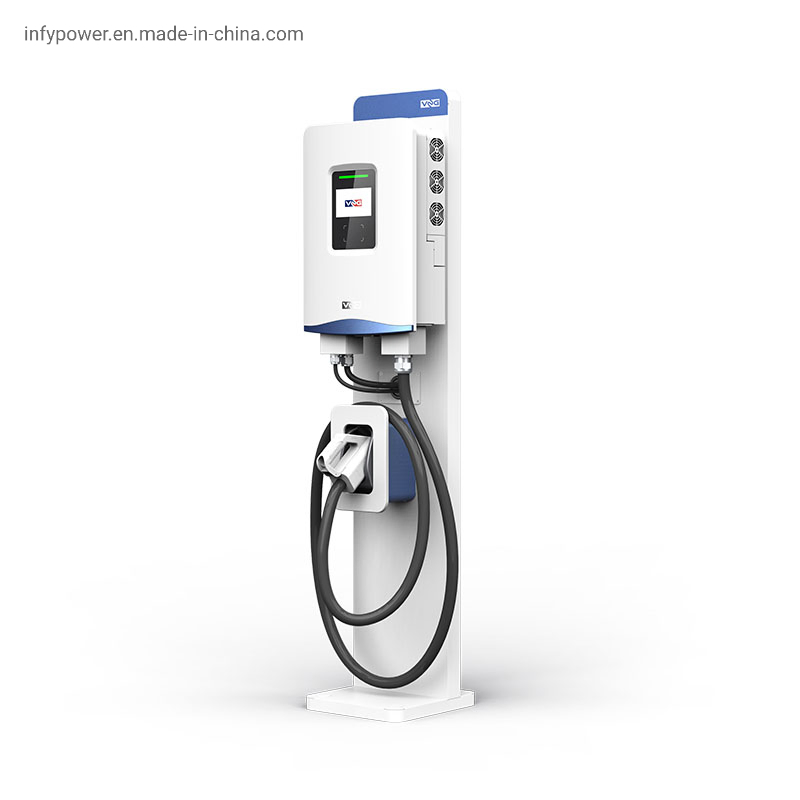

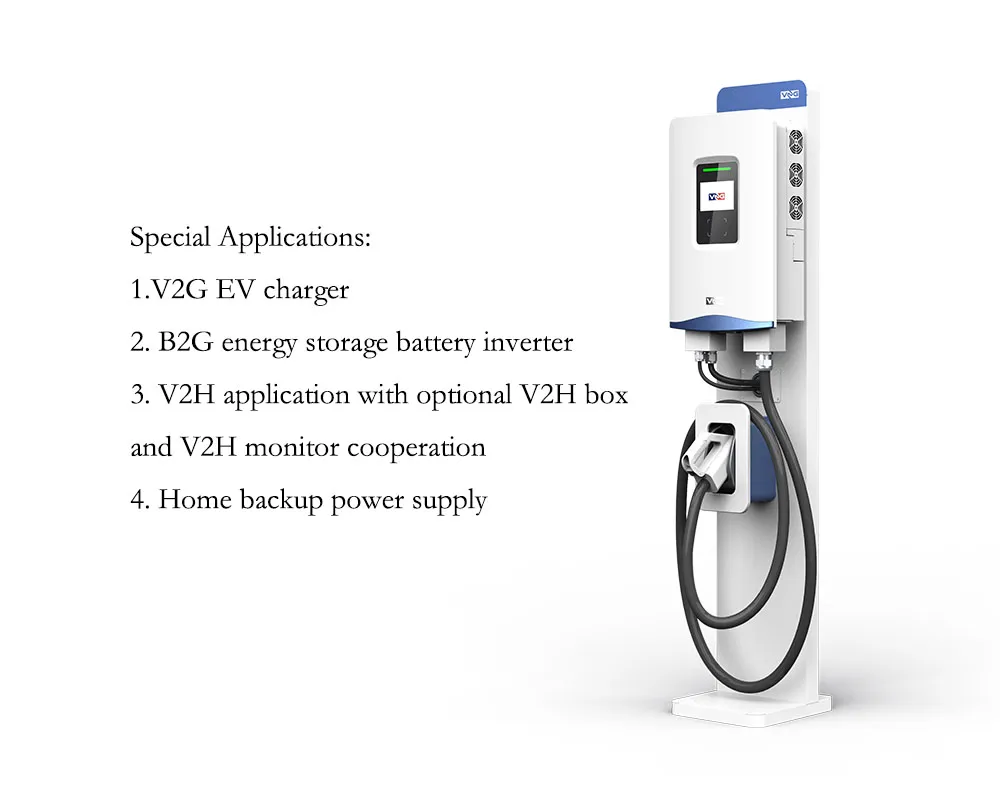

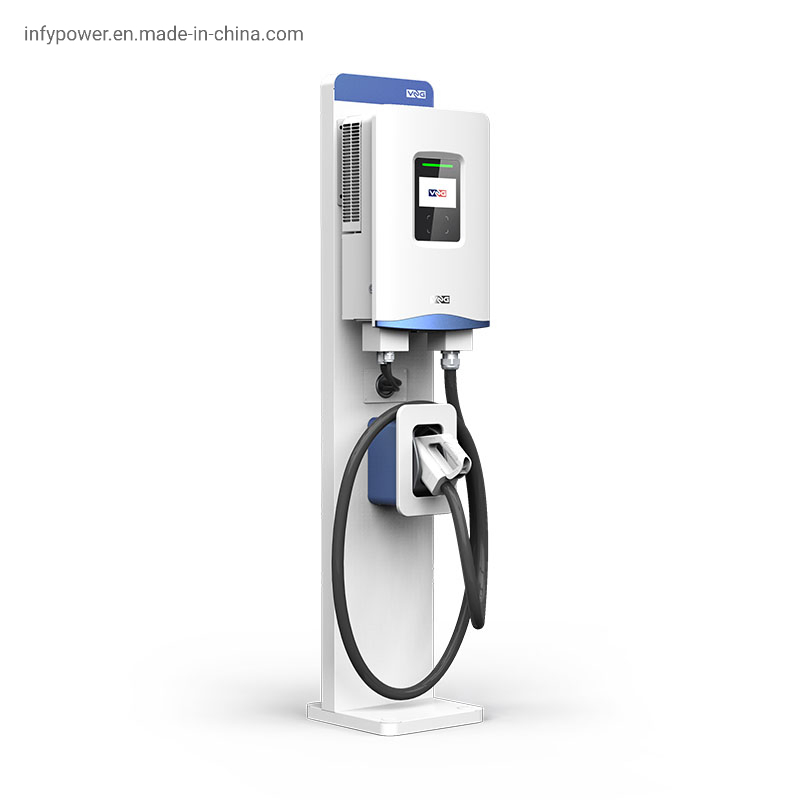

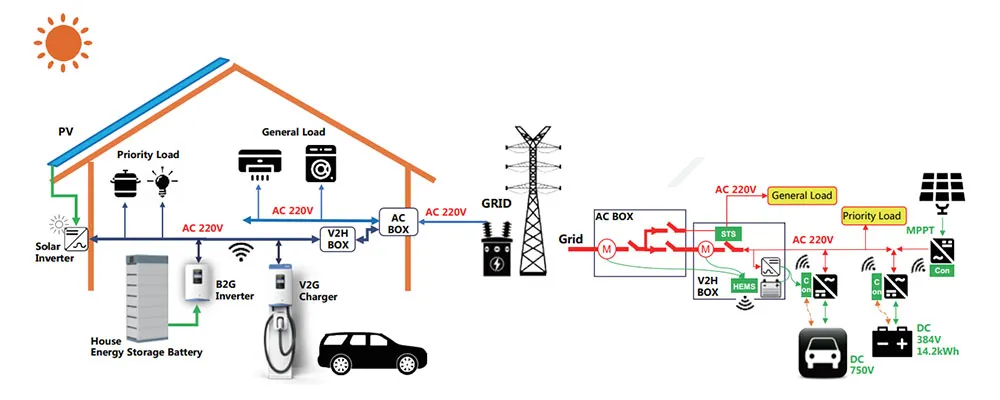

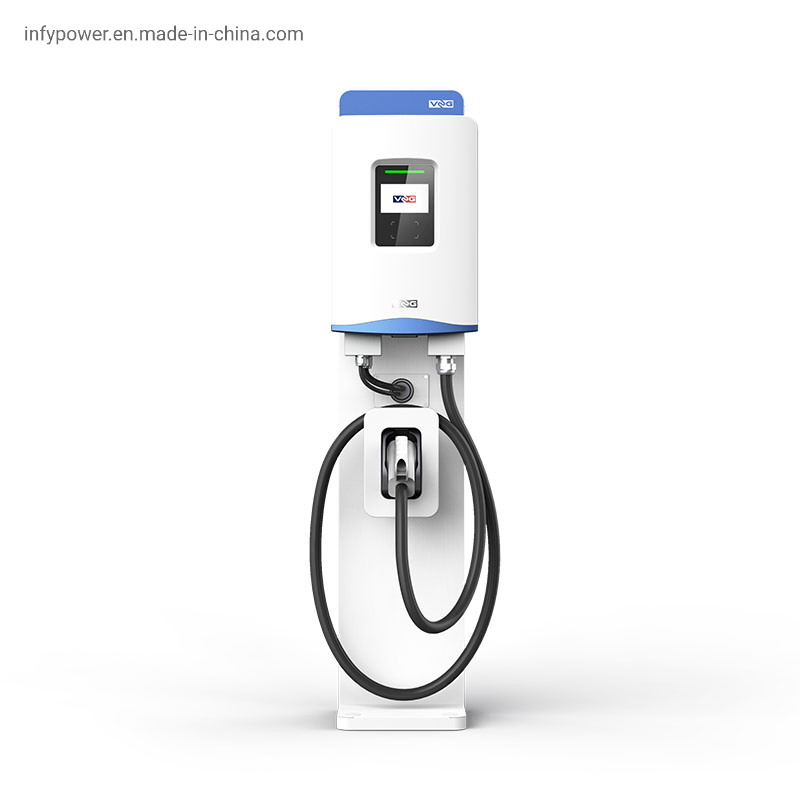

The EXP07KE is a recommended electric vehicle DC charger qualified for CCS, CHAdeMO, and GBT charging standards. This Charging Station is specifically designed with V2G (Vehicle-to-Grid) and V2H (Vehicle-to-Home) functions, allowing the EV battery to be used for grid energy storage, backup power supply, and smart grid node purposes.

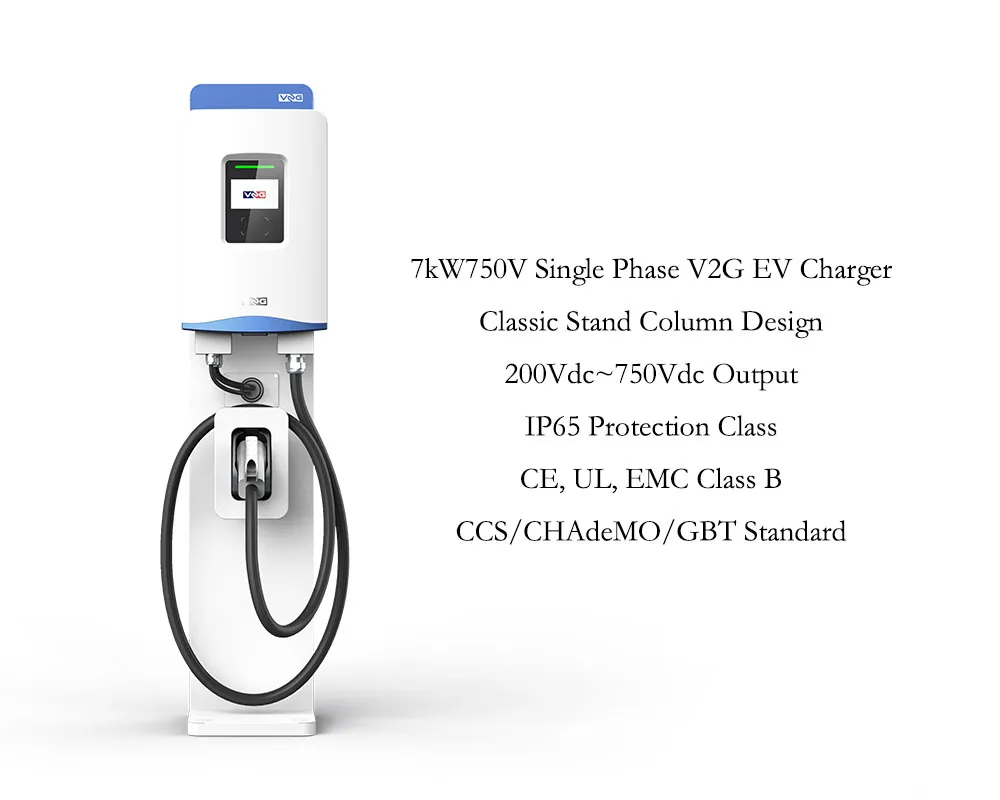

It features a perfect combination of stand column design (optional wall mounting), IP65 protection, 5" TFT LCD touch screen with Wifi interface, AC single phase V2G support, and energy management functions. The fast EV DC charger supports a DC output power capacity of 7kW and a wide output voltage range from 200Vdc to 750Vdc.
| Charging Mode AC Input | 100Vac~264Vac, L+N+PE, 32A, power factor over 0.98 |
| Charging Mode DC Output | 7kW, 200Vdc~750Vdc, 0~23A, Efficiency over 95% |
| V2G Mode DC Output | 7kW/32A, 50Hz/60Hz, Efficiency over 95% |
| B2G Wallbox Converter | 200~750V, max 7kW/23A for Battery, 100Vac~264Vac, max 32A for AC side |
| Charging Standard | CCS, GBT, CHAdeMO |

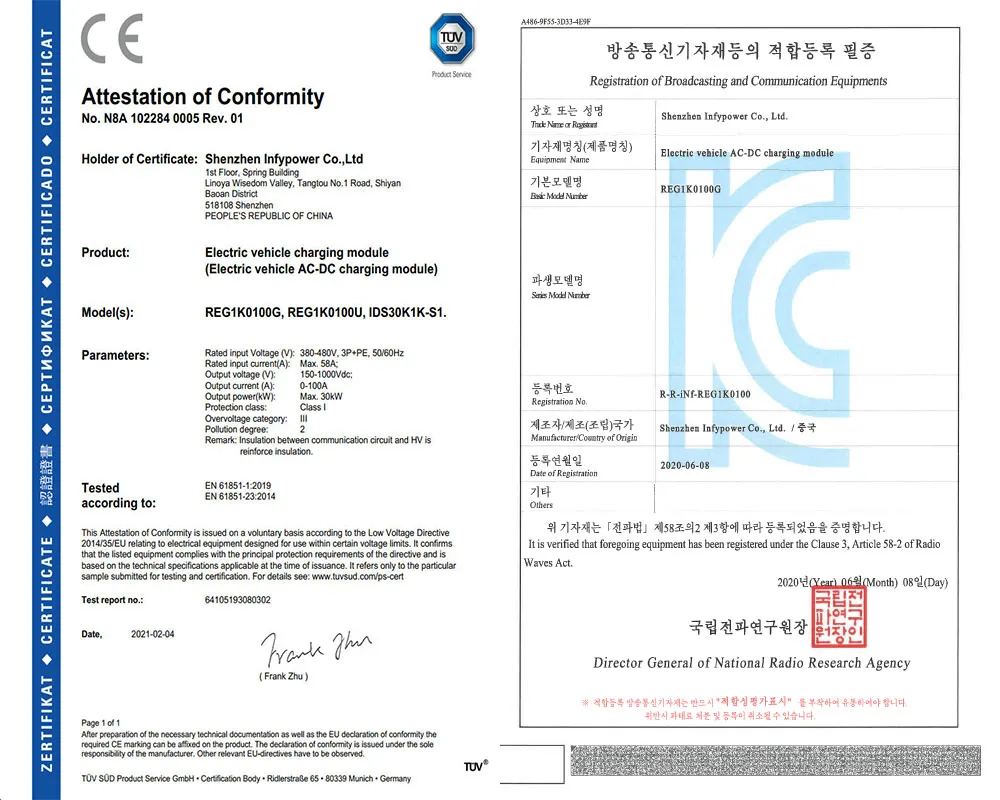

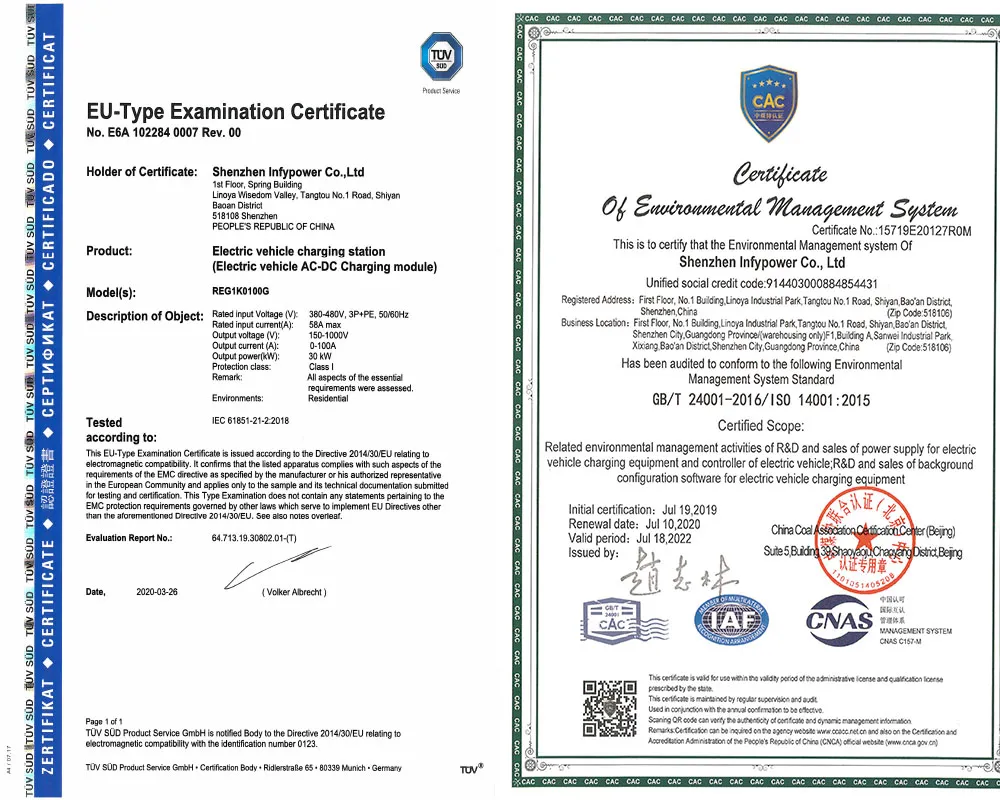

| Certification | EMC Class B, TUV CE and UL |
| Dimension & Weight | 450mm*320mm*200mm (W*H*D) / Less than 30kg |
