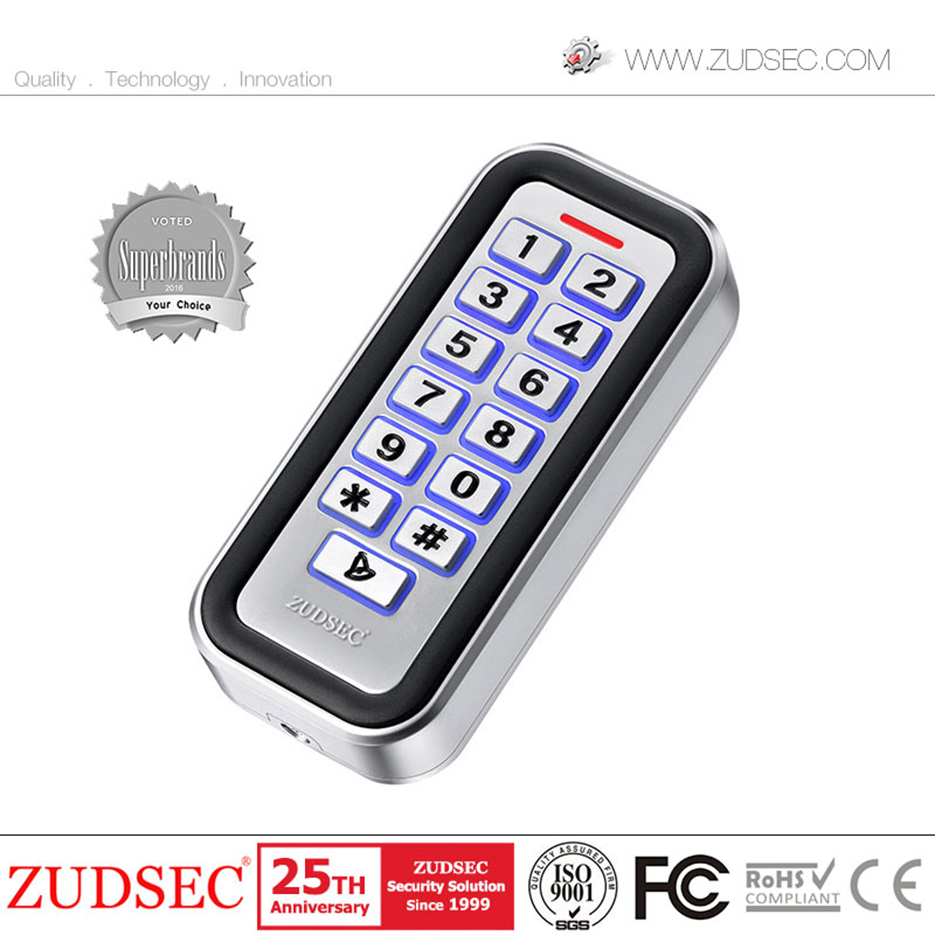

Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 Waterproof for Door Lock
Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 Waterproof for Door Lock
Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 Waterproof for Door Lock
Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 Waterproof for Door Lock
Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 Waterproof for Door Lock
1 / 5
Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 Waterproof for Door Lock
Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 Waterproof for Door Lock
Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 Waterproof for Door Lock
Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 Waterproof for Door Lock
Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 Waterproof for Door Lock

Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 Waterproof for Door Lock

Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

Product Overview

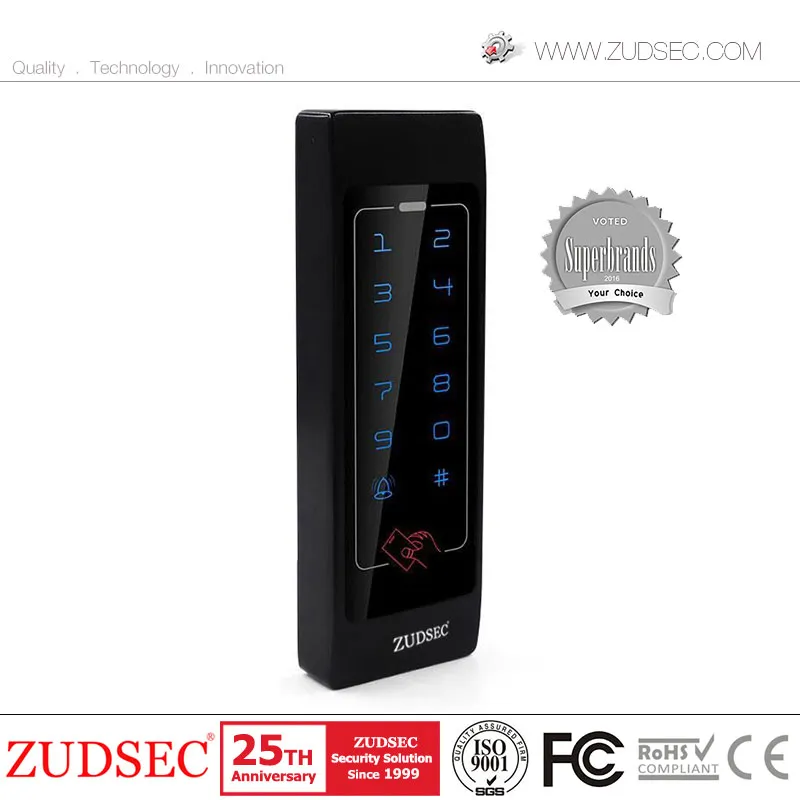

Slim Anti-Vandal Metal RFID Reader Standalone Access Control

The ZDAC-2800W is a high-performance access control solution suitable for mounting either indoor or outdoor in harsh environments. Featuring an exquisite design with a non-masking metal shell, keystroke backlight, and Wiegand output, it supports up to 2000 users. Authentication options include Card, 4-digit PIN, or a combination of Card + PIN. With integrated doorbell functionality, it is an ideal choice for commercial and industrial applications such as offices, factories, warehouses, laboratories, and banks.

Model:ZDAC-2800W
Technology:32-Bit Technology
Capacity:2000 Users
Protection:IP66 Waterproof
Housing:Metal Shell
Card Type:125kHz EM ID Cards
Application:Office, Industrial, Residential
Warranty:1 Year
Key Features
  • Exquisite designs with non-masking Metal shell
  • Backlit keypad for easy nighttime operation
  • WG26 output, can be used as an access reader
  • Supports Cards, Code, or Card & Code access ways
  • Built-in Doorbell key for external connection
  • Low power consumption (Static current <30mA)
  • Adjustable Open-door time (0~99 seconds)
  • Short-circuit protect: Automatic output closure within 100μS
  • Fast search speed: Less than 0.1s
Product Parameters
ParameterDetails
Operating VoltageDC 12V±10%
Active Current<60mA
Idle Current25±5 mA
Card Reading Distance3~6cm
Lock Output LoadMax 3A
Alarm Output LoadMax 20A
Operating Temperature-45ºC ~ 60ºC
Operating Humidity10% - 90% RH
Wiegand InterfaceWiegand 26 bit
Dimensions115mm x 52mm x 23mm
Weight500g
Product Gallery

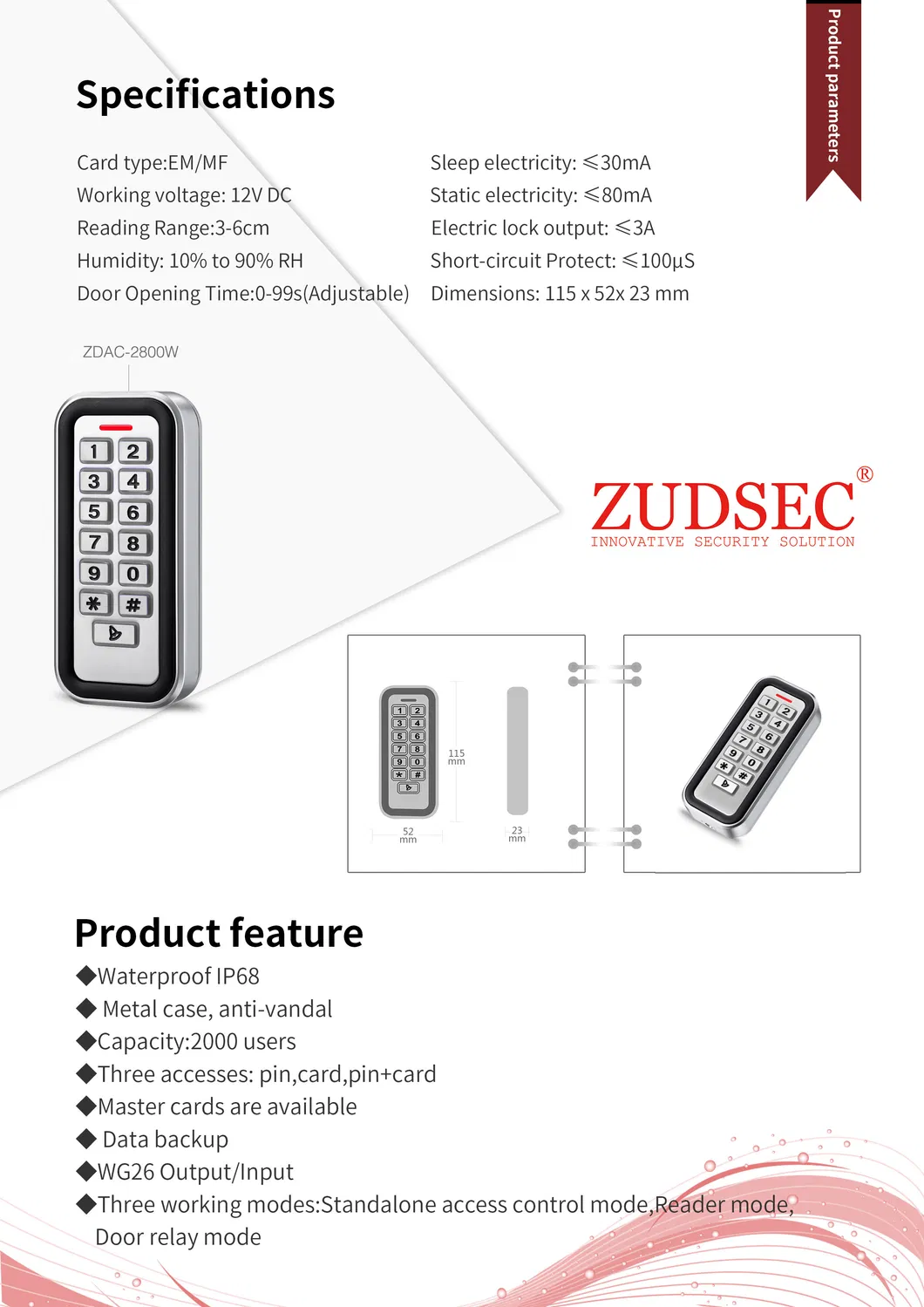

Standalone Access Control Main View
Feature View 1
Feature View 2
Installation Detail 1
Installation Detail 2

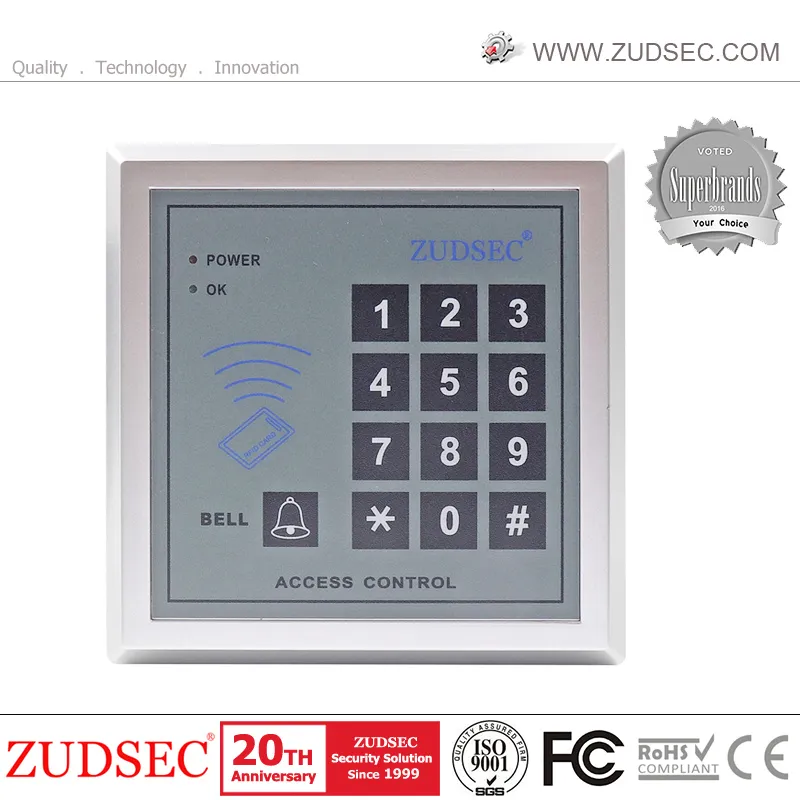

Usage Scenario 1

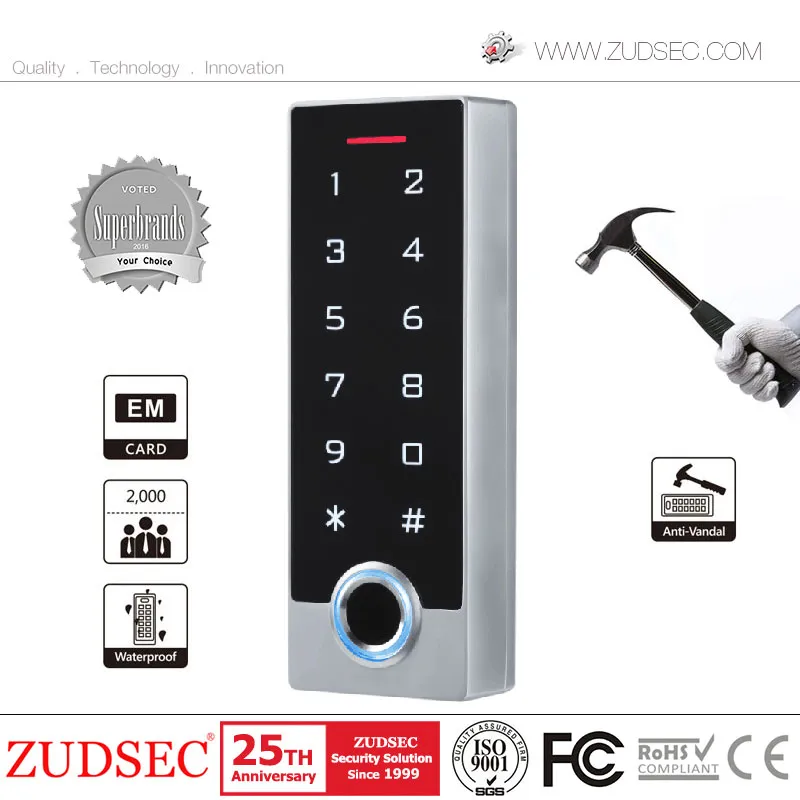

Usage Scenario 2
Usage Scenario 3
Technical Details & Components

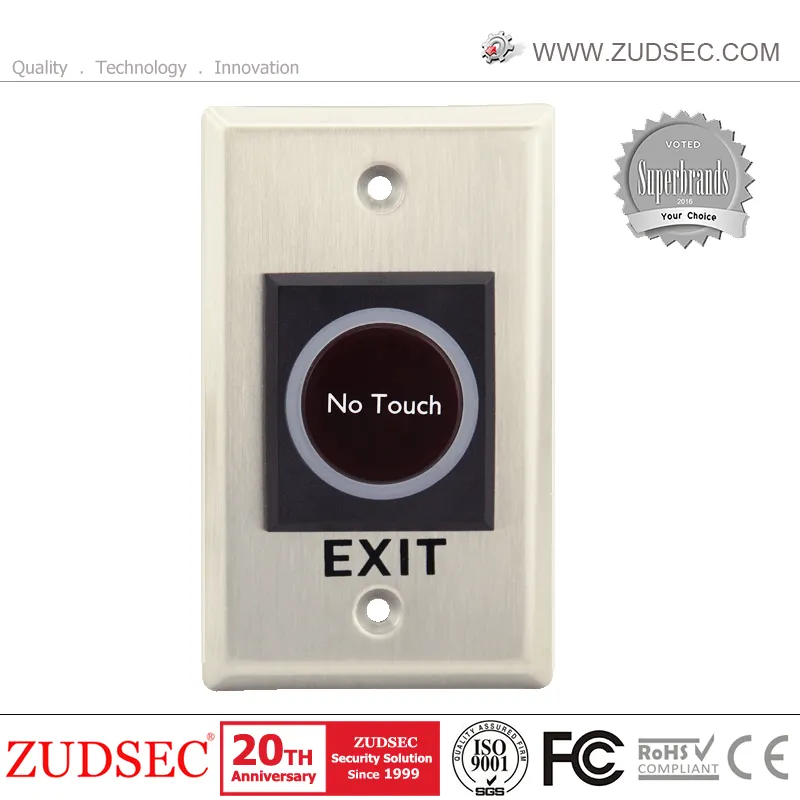

Internal Component

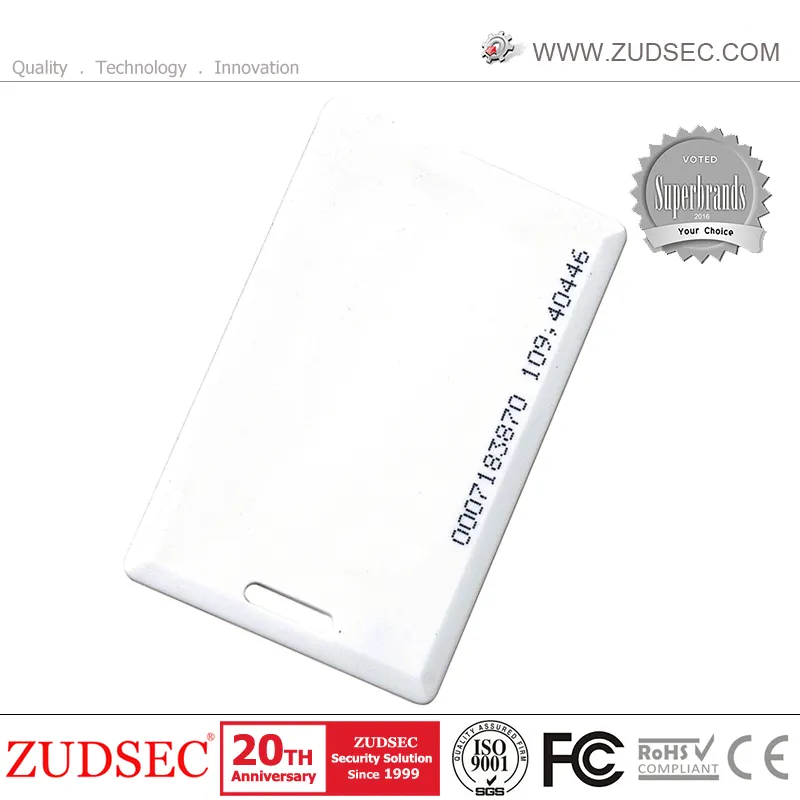

Back View
Related Product Diagrams
Product Series 1
Product Series 2
Product Series 3
Detailed Technical Chart
Wiring and Setup
Frequently Asked Questions (FAQ)
1. Is this device suitable for outdoor use?
Yes, the ZDAC-2800W features an IP66 waterproof rating and a durable metal shell, making it suitable for harsh indoor or outdoor environments.
2. How many users can the system store?
The system has a large capacity that supports up to 2000 users.
3. What are the available entry methods?
Users can gain access via RFID Card, a 4-digit PIN code, or a combination of both (Card + PIN).
4. Does it support connection to an external doorbell?
Yes, it includes a dedicated doorbell key and can be connected to any standard external doorbell system.
5. What happens during a short circuit?
The device includes short-circuit protection. If a relay or alarm output short-circuits, the output will close automatically within 100μS for safety.
6. What is the card reading range for this device?
The device can read compatible 125kHz EM ID cards at a distance of approximately 3 to 6 cm.
