Rama Charger
1 / 5

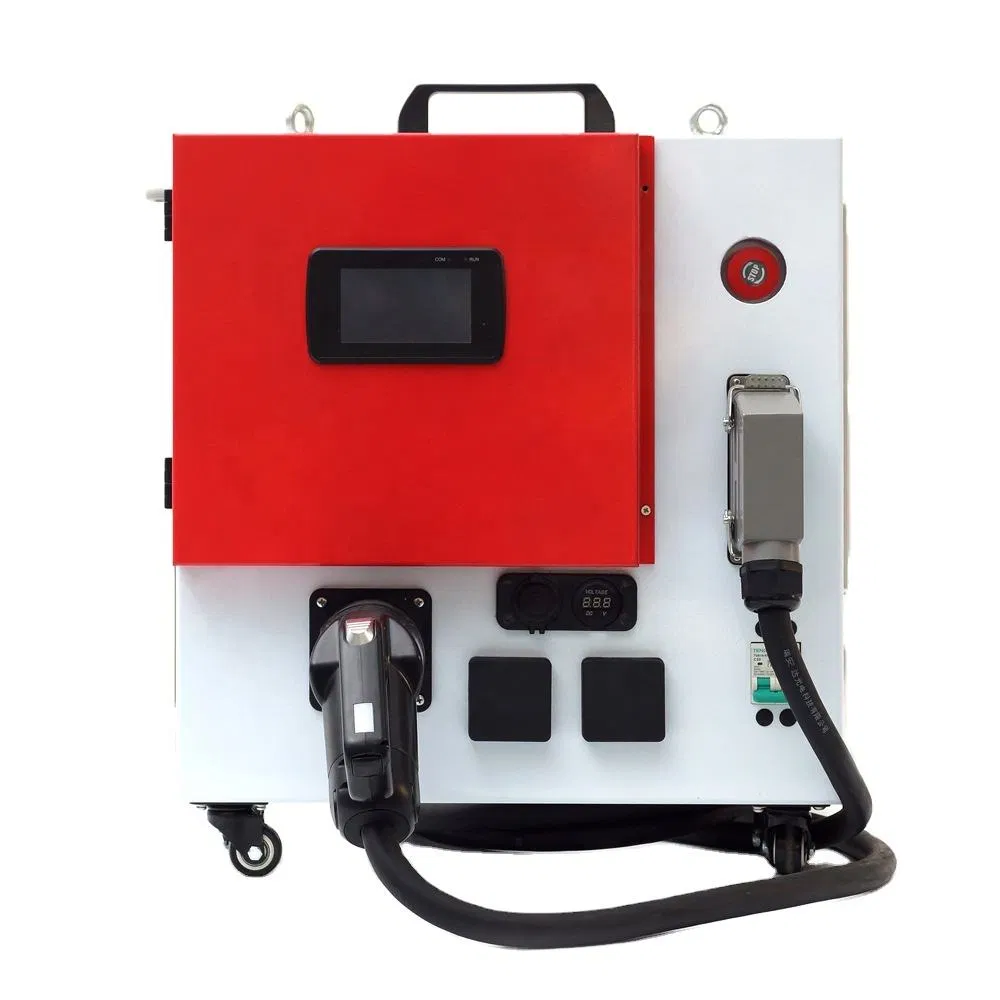

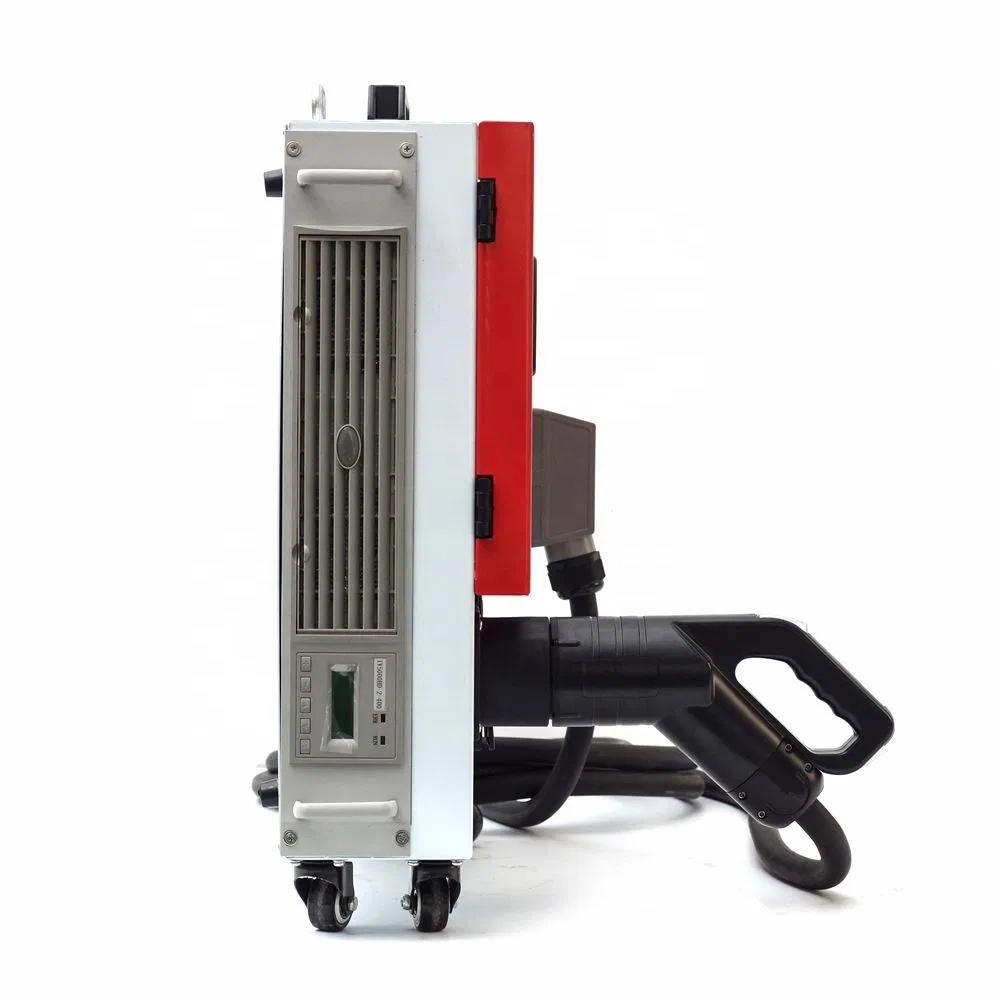

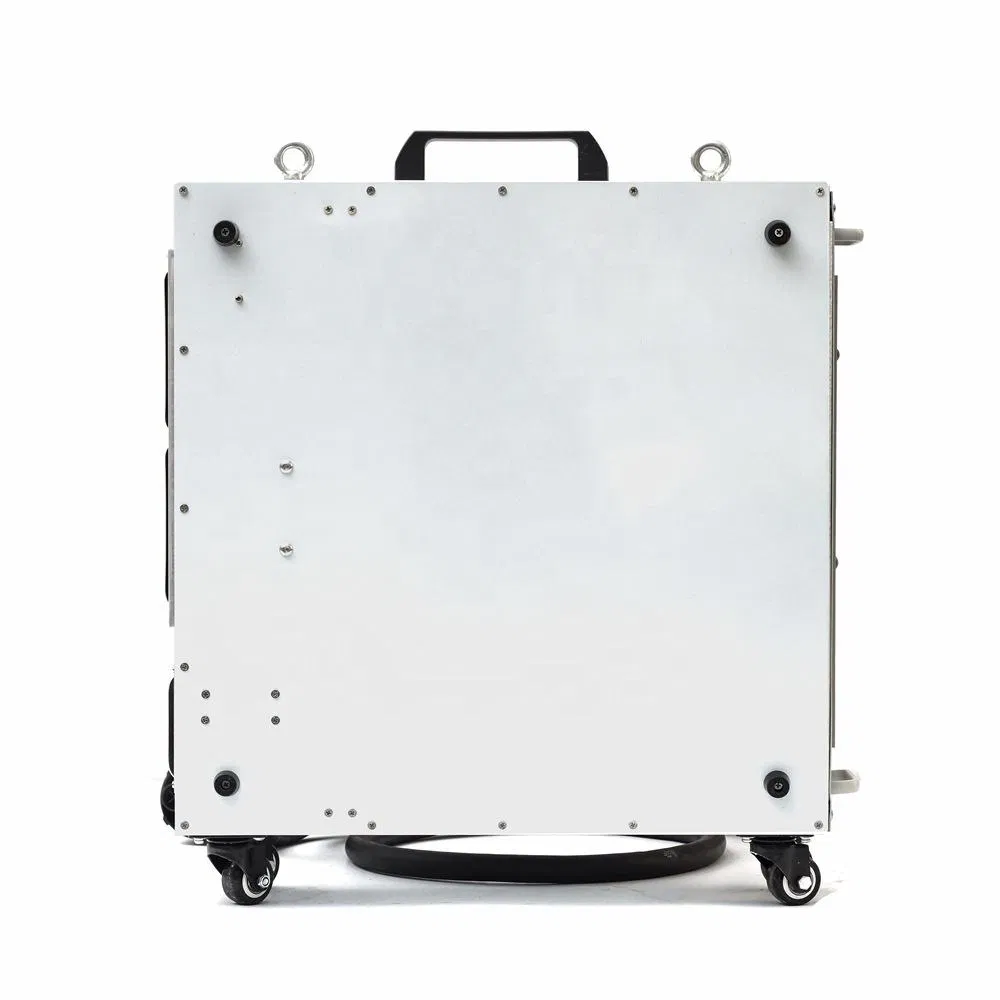

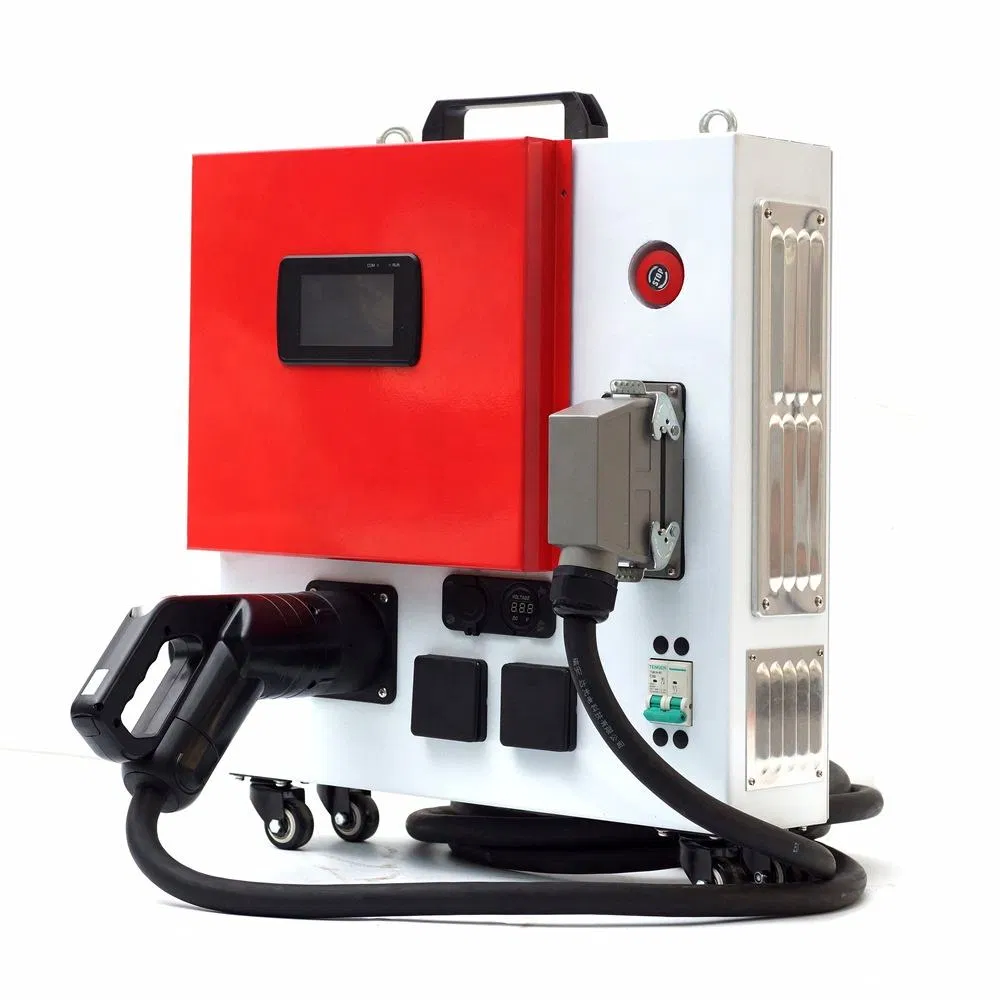

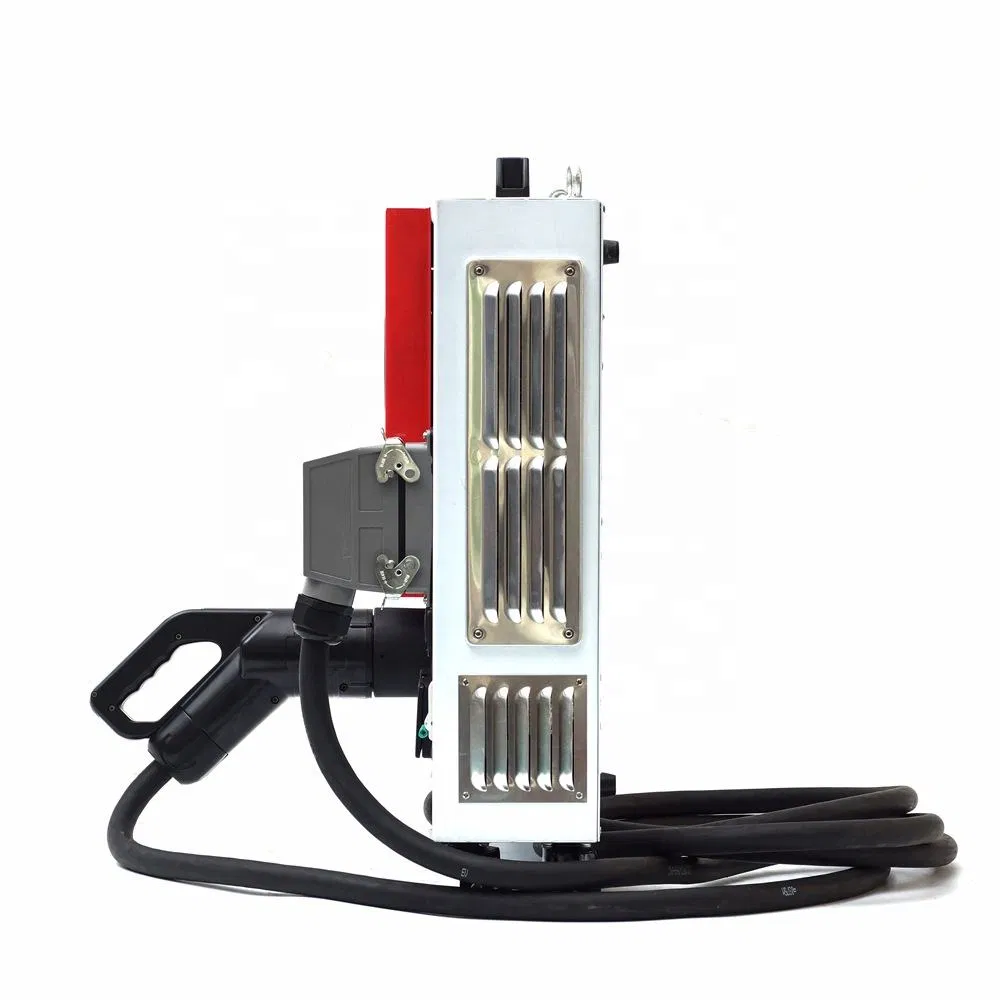

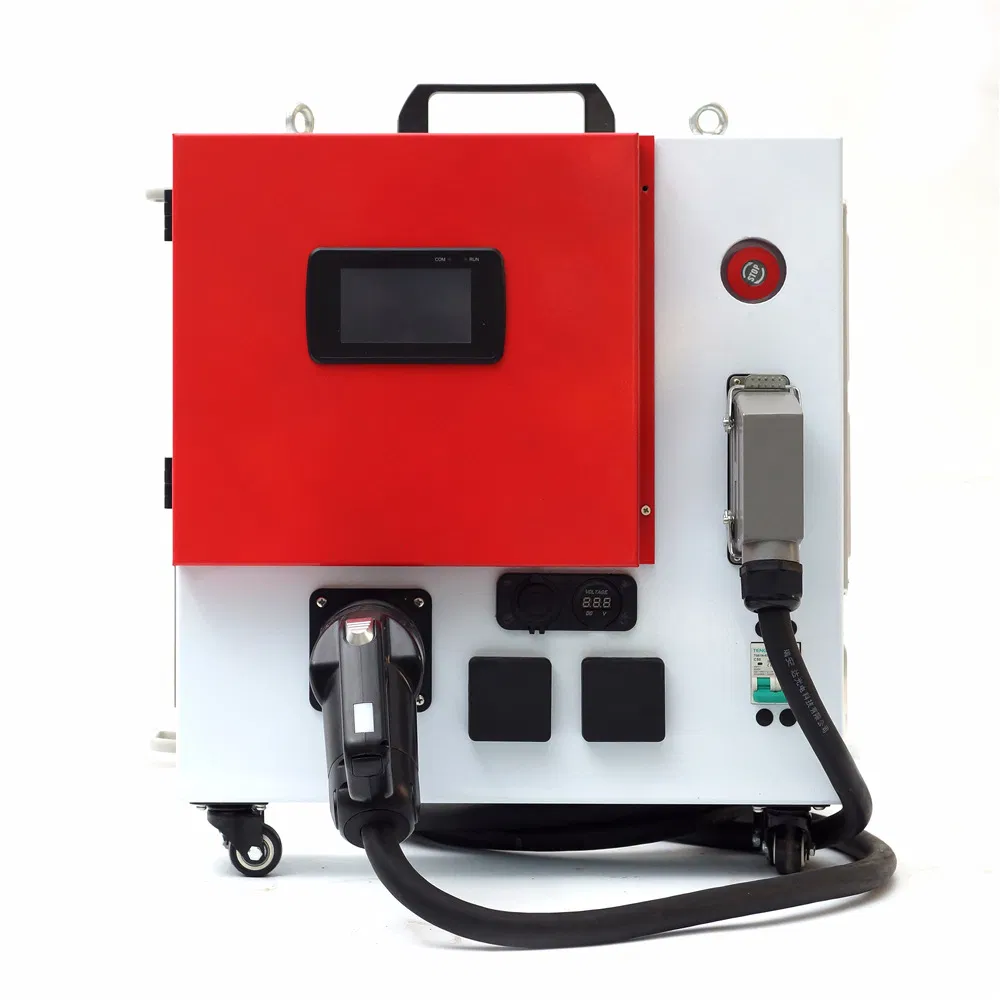

This V2H device is developed based on CHAdeMO vehicle applications. The inverter output range covers 3~10kVA, 110/220V, 50/60Hz, with a maximum current of 32A.
Designed as a portable type, it is ideal for family use, on-board camping, emergency power supply, and office power needs. Special versions supporting car-to-car (V2V) charging are available, and we support customized design requirements.
| Technical Specifications | |
|---|---|
| Load Side Plug Type | CEE16, CEE32 |
| Output Current | 10kVA max, 32A max |
| Voltage | 220VAC (±10%) Single Phase |
| Efficiency | 96% |
| Frequency | 50/60Hz |
| Vehicle Side Plug | CHAdeMO |
| DC Output | Max 10kW, 25A max @400VDC |
| DC Voltage Range | 360~400VDC |
| Weight | 18kg (excluding cable) |
| Dimensions | 550 x 350 x 160mm |
| Housing Protection | IP23 |
| Cooling | Fan cooling (temperature-dependent) |
| Operating Temp | -60°C to +45°C |
| Operation | 4.3 inch touch display |
| Immunity | EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11 |

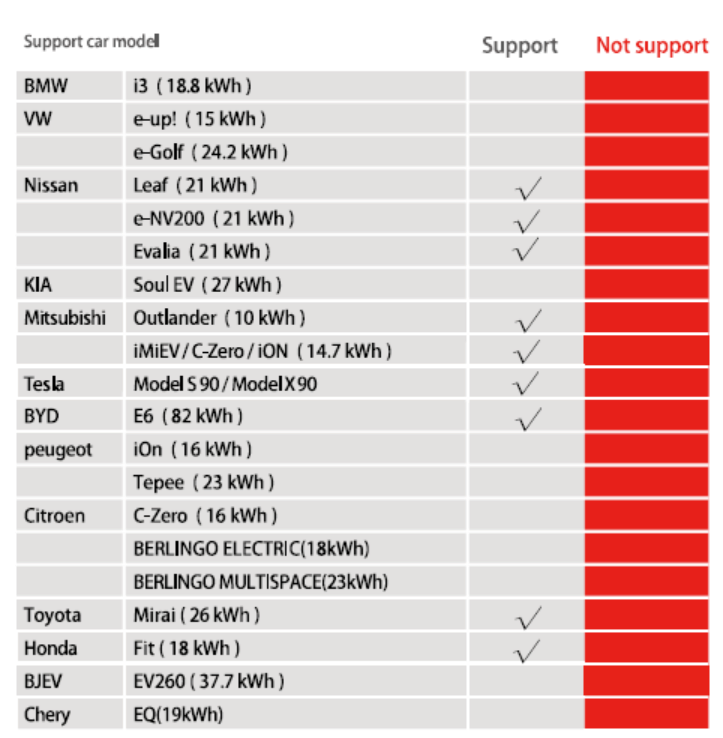

V2H with Japanese EV's protocol, supporting most Japanese electric vehicles.
