Advanced Imaging: Ultra long focal length variable focus with optical fog transmission and non-cooled thermal imaging for 24-hour uninterrupted defense operation.
Intelligent Detection: Full screen object classification detection, automatic search, locking, and tracking of heat source targets.
High-Speed Processing: Target imaging to tracking calculation completed within 80 milliseconds using high-precision direct drive servo control.

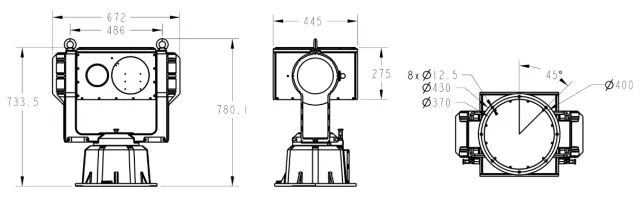

Servo System: Pitch range of -45° to 90° with a flat top design, supporting multiple synchronized devices.
Expansion Support: Can be equipped with laser ranging, Beidou GPS, gyroscope anti-shake, and third-party radar or radio detection systems.

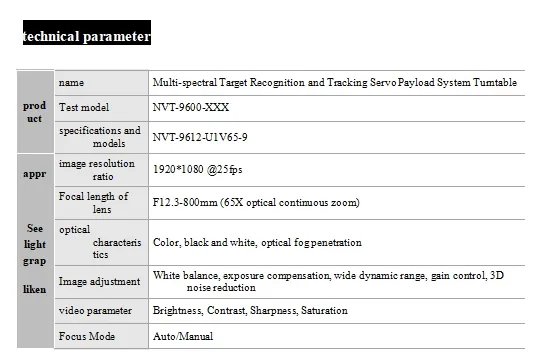

1. What is the maximum optical zoom of this camera system?
The system features a 65X optical continuous zoom with a focal length ranging from F12.3mm to 800mm, ideal for long-range target imaging.
2. How fast can the system track a moving target?
The high-speed direct drive servo system can complete the calculation from target imaging to tracking within 80 milliseconds, ensuring extremely low latency.
3. Can this camera operate in low visibility conditions like fog?
Yes, the camera is equipped with optical fog penetration technology and non-cooled thermal imaging, allowing for effective 24-hour defense even in challenging weather.

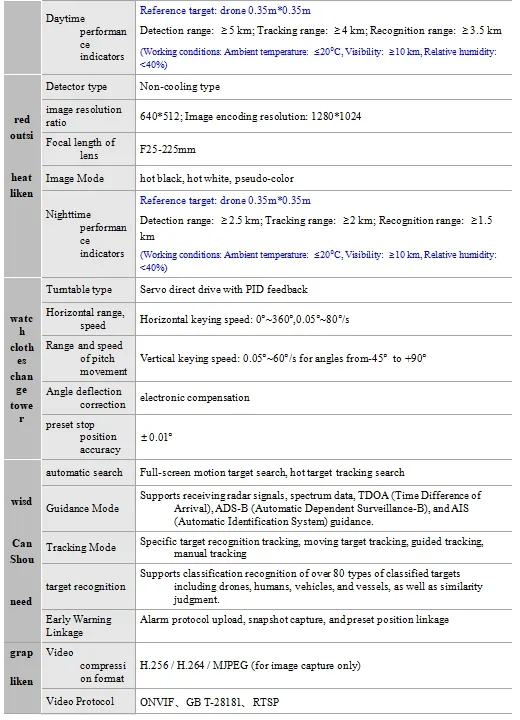

4. What kind of targets is this system designed to detect?
It is specifically designed for detecting low, small, and slow targets in the air at distances of 1-5KM, such as drones or other aerial heat sources.
5. Does it support integration with other security equipment?
Absolutely. It can access third-party radar, radio detection systems, laser ranging, and Beidou GPS for comprehensive collaborative operations.
6. What is the movement range of the turntable?
The specially designed servo system offers a vertical pitch range from -45° to +90°, providing wide-angle coverage for both ground and air surveillance.
