Torque Converte Flywheel Balancing Systems

Customization:	Available
Type:	Vibration Testing Machine
Maxcapacity:	<1000KN

Basic Specifications

Model NO.

PHLD-16/42/65

Accuracy Grade

0.5

Load Way

Electronic Load

Loading Method

Dynamic Load

Display

Digital

Control

Computer Control

Weight

100-500Kg

Power Source

AC380V

Oil Cylinder Position

Under

HS Code

90311000

Production Capacity

1000 Sets/Month

Specification

1100*1100*1530 mm

Product Overview

Applicable to medium workpieces

Technical data	PHLD-42	PHLD-65	PHLD-100	PHLD-150Q	PHLD-200
Max Mass of Workpiece (kg)	42	65	100	150	200
Max Diameter (mm)	510/800	510/800	600/1000	600	600/1000
Height of workpiece (mm)	160	160	200	300	200
Spindle speed (r/min)	800	700	~600	~500	~600
Min Residual Unbalance	3g·mm/kg	3g·mm/kg	5g·mm/kg	5g·mm/kg	5g·mm/kg

Note: 1) With hood; 2) Without hood; 3) Frequency conversion

Range of Application

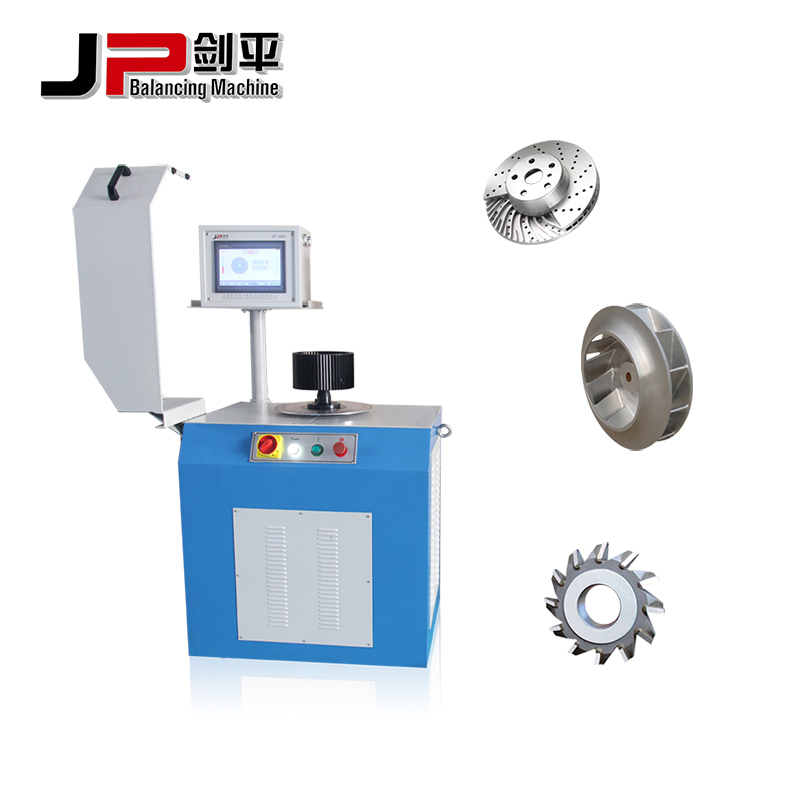

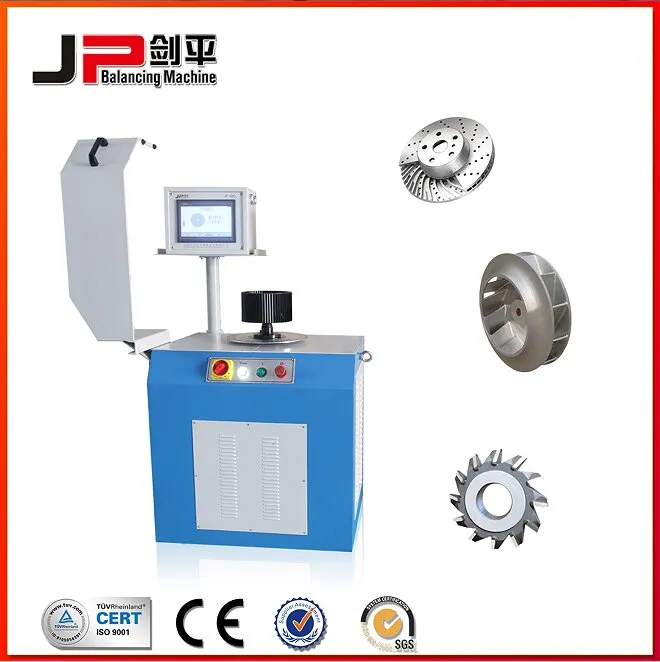

This balancing machine is a widely-used device developed for balancing all kinds of discoid parts, including:

Fan blades and Range hood fans
Brake disks and Brake drums
Saw blades and Grinding wheels
Clutches and Belt pulleys
Pump impellers and Flywheels

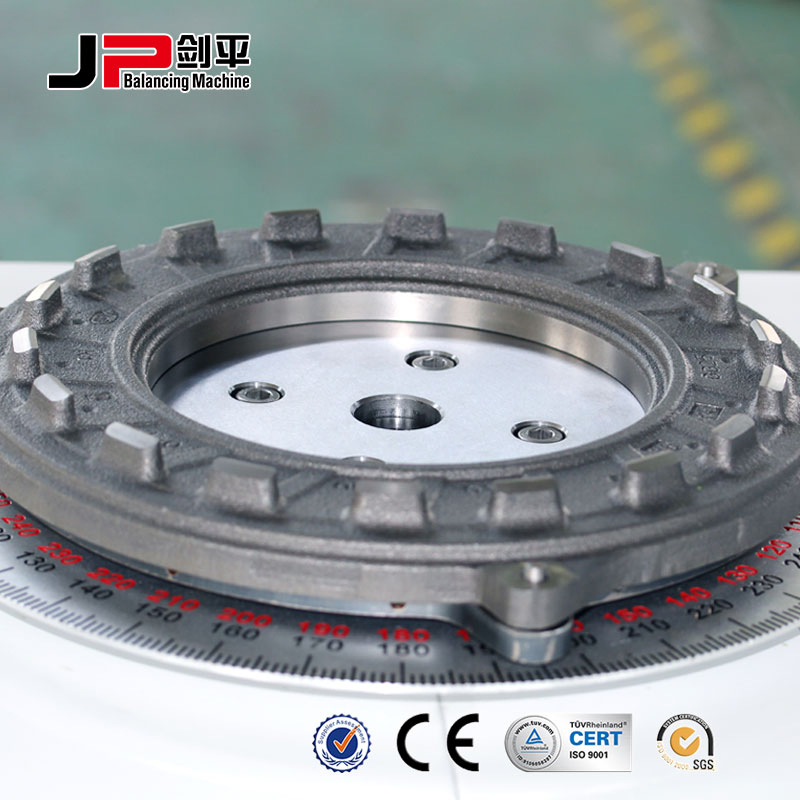

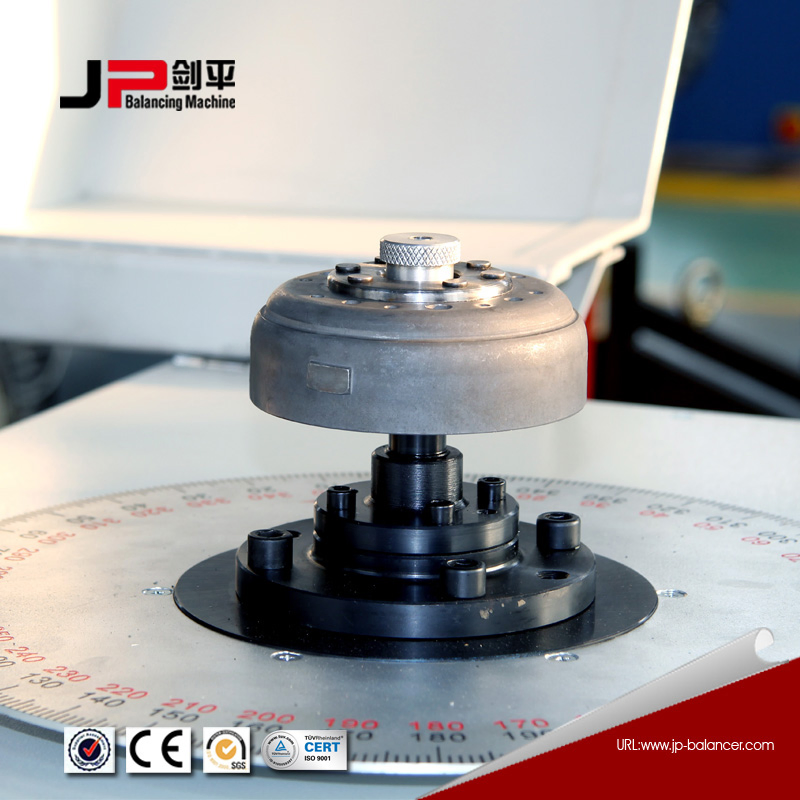

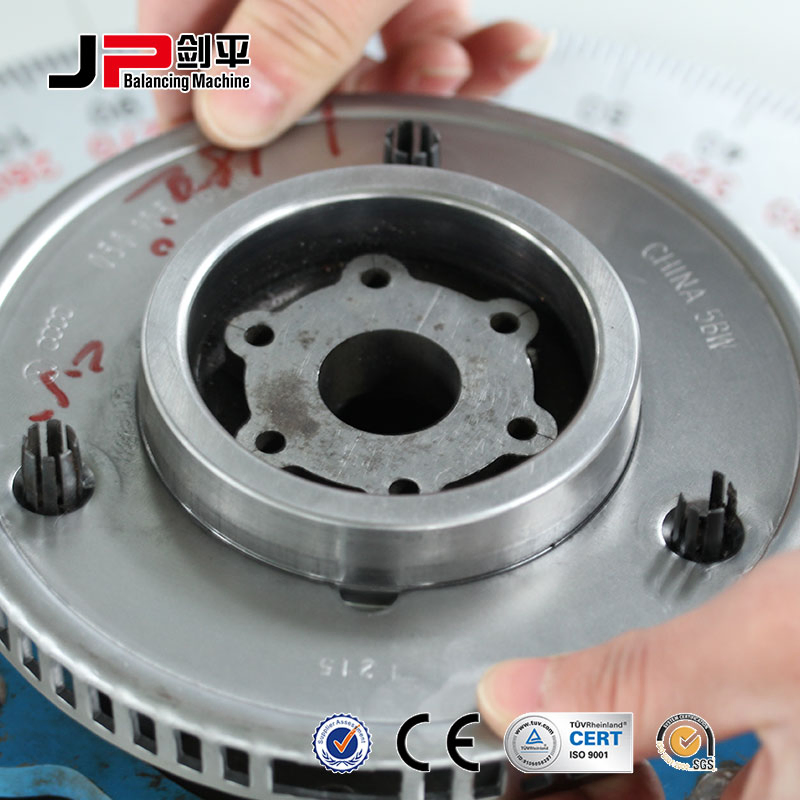

Torque converters and Chucks

According to user requirements, the machine can be equipped with a de-weighting device for enhanced functionality.

Special Features & Technology

The measuring unit employs the JP-580 Electrical Measuring Unit, a system designed for top-tier function and precision:

Compatible with single/double plate and hard/soft bearing machines.
Connects easily with various velocity and pressure sensors.
Equipped with an industrial computer featuring a 17-inch LCD screen.
Running on a reliable Windows-based Operating System.
High dustproof and shakeproof capabilities, ideal for industrial environments.
