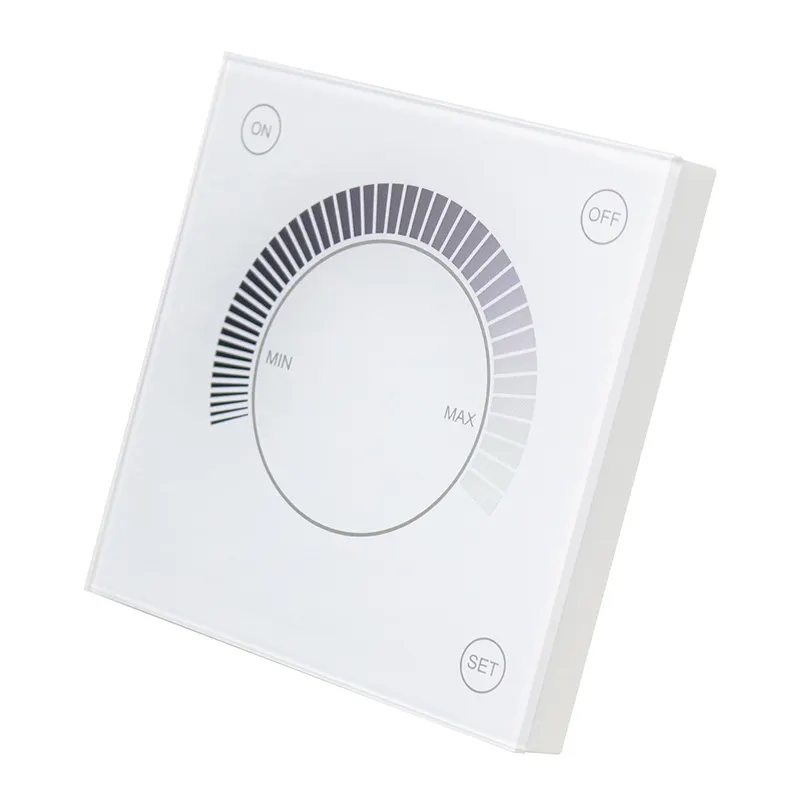

Tw02W Tuya WiFi Touch Panel AC LED Dimmer High Voltage Controller
Tw02W Tuya WiFi Touch Panel AC LED Dimmer High Voltage Controller
Tw02W Tuya WiFi Touch Panel AC LED Dimmer High Voltage Controller
Tw02W Tuya WiFi Touch Panel AC LED Dimmer High Voltage Controller
Tw02W Tuya WiFi Touch Panel AC LED Dimmer High Voltage Controller
1 / 5
Tw02W Tuya WiFi Touch Panel AC LED Dimmer High Voltage Controller
Tw02W Tuya WiFi Touch Panel AC LED Dimmer High Voltage Controller
Tw02W Tuya WiFi Touch Panel AC LED Dimmer High Voltage Controller
Tw02W Tuya WiFi Touch Panel AC LED Dimmer High Voltage Controller
Tw02W Tuya WiFi Touch Panel AC LED Dimmer High Voltage Controller

Tw02W Tuya WiFi Touch Panel AC LED Dimmer High Voltage Controller

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview & Basic Info

Model NO.
TW02W
Load Type
Indirect
Lighting Variation
Stepless
Switch Device
Active
Application
Exhibition Hall, Hotel, Stage, Household Appliances, LED Strip Light
Power Source
AC
Control Mode
PWM Dimmer
Product Name
Tuya WiFi Touch Panel AC LED Dimmer
Max. Load Power
308W@220V
Input/Output Voltage
AC100V~240V
Output Current
Max 1.4A
Certificates
RoHS/CE

Packaging & Delivery

Package Size
48.00cm * 28.00cm * 25.00cm
Package Gross Weight
15.000kg

Product Description

Tuya Wifi Triac Dimmer AC 110V 220V Zigbee Controller Switch

Works with Alexa Google Assistant Smart Life APP RF Remote Control

Main Features:

  • Powered by Tuya, works with Tuya/ Smart Life APP
  • Works with Alexa/ Google Assistant/ Alice
  • RF + Push AC phase-cut dimmer, compatible with 2.4G Remotes
  • Dim and switch single color dimmable LED lamps, incandescent and halogen lights
  • 256 levels 0-100% smooth dimming without flash or strobe
  • Leading edge or trailing edge dimming set by dip switch
  • Modern fashionable outlook design

Compatibility Guide:

Dimmable LED lamps: Max load 300W @ 220V, 200W @ 110V. Dependent on power factor.

Triac Dimmable LED drivers: Max load 300W @ 220V, 200W @ 110V. Max 20 drivers recommended (ensure surge current < 2x 65A).

Incandescent & HV Halogen: Max load 400W @ 220V, 200W @ 110V.

Notice:
1. Remote is not included, must purchase additionally.
2. Zigbee version requires a Zigbee 3.0 Gateway for APP connection.
3. No battery included in the remote.

Technical Specifications

Item CodeTW02RF
Warranty3-Year
Product NameTuya Wifi Touch Panel AC LED Dimmer
Input/Output VoltageAC100V~240V
Output CurrentMax 1.4A
Max Output Power154W@110V, 308W@220V

Detailed Photos

Tuya WiFi Touch Panel Dimmer 1

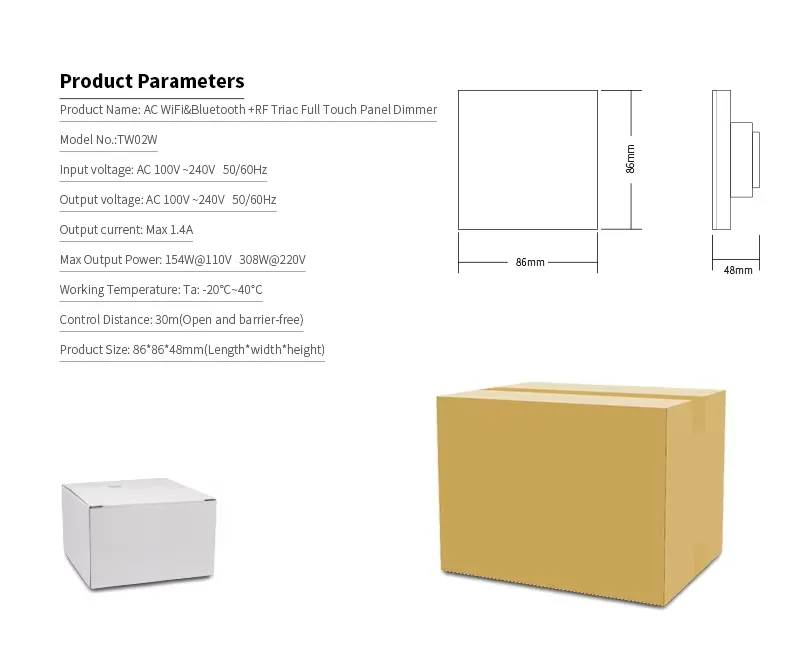

Tuya WiFi Touch Panel Dimmer 2
Tuya WiFi Touch Panel Dimmer 3
Tuya WiFi Touch Panel Dimmer 4
Tuya WiFi Touch Panel Dimmer 5
Tuya WiFi Touch Panel Dimmer 6

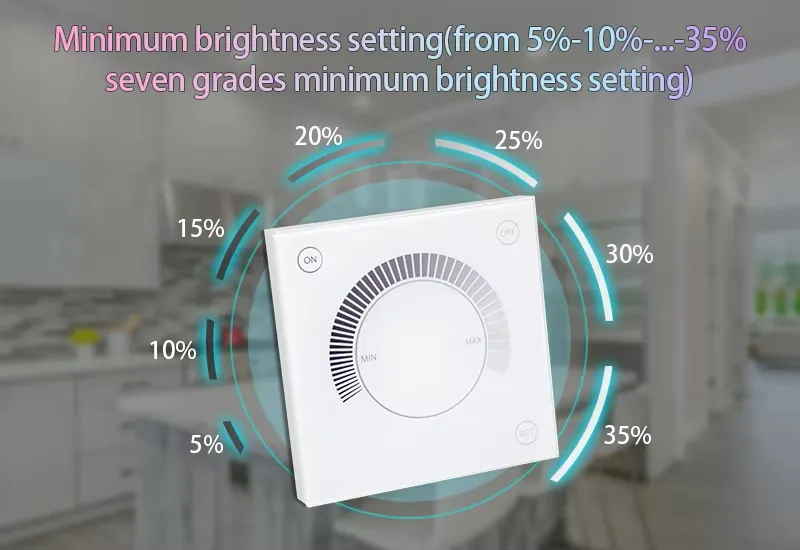

Tuya WiFi Touch Panel Dimmer 7
Tuya WiFi Touch Panel Dimmer 8
Tuya WiFi Touch Panel Dimmer 9
Tuya WiFi Touch Panel Dimmer 10
Tuya WiFi Touch Panel Dimmer 11
Tuya WiFi Touch Panel Dimmer 12

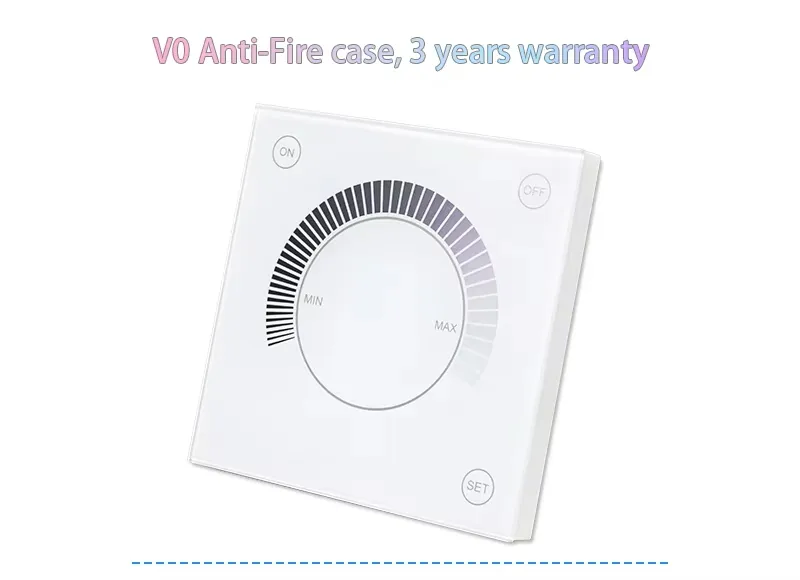

Tuya WiFi Touch Panel Dimmer 13
Tuya WiFi Touch Panel Dimmer 14

Frequently Asked Questions

What types of lamps are compatible with this dimmer?
The dimmer is compatible with dimmable LED lamps, Triac dimmable LED drivers, traditional incandescent lights, and HV halogen lamps.
Does this device support voice control?
Yes, it works perfectly with Amazon Alexa, Google Assistant, and Alice for voice-activated dimming and switching.
Do I need a hub for the Zigbee version?
Yes, the Zigbee version must be connected to a Zigbee 3.0 Gateway to enable APP control features.
Is the RF remote control included in the package?
No, the remote control is sold separately. The dimmer can be controlled via the touch panel, APP, or an optional 2.4G RF remote.
Can I switch between leading-edge and trailing-edge dimming?
Yes, the dimming mode can be easily set using the integrated dip switch on the device to match your specific lamp requirements.
What is the maximum load this dimmer can handle?
The maximum load power is 308W at 220V or 154W at 110V, with a maximum output current of 1.4A.
