SMART LIGHTING SOLUTION

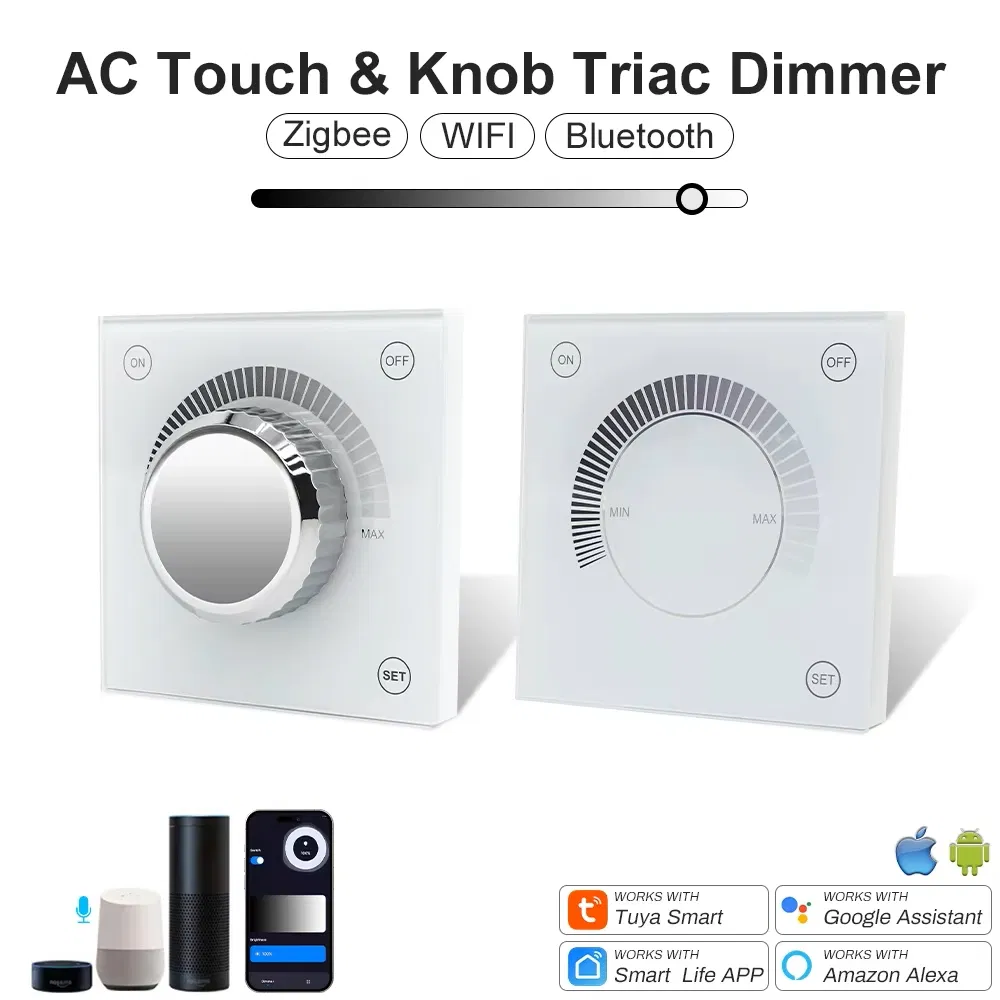

Tuya Wifi Triac Dimmer AC 110V 220V Controller Switch

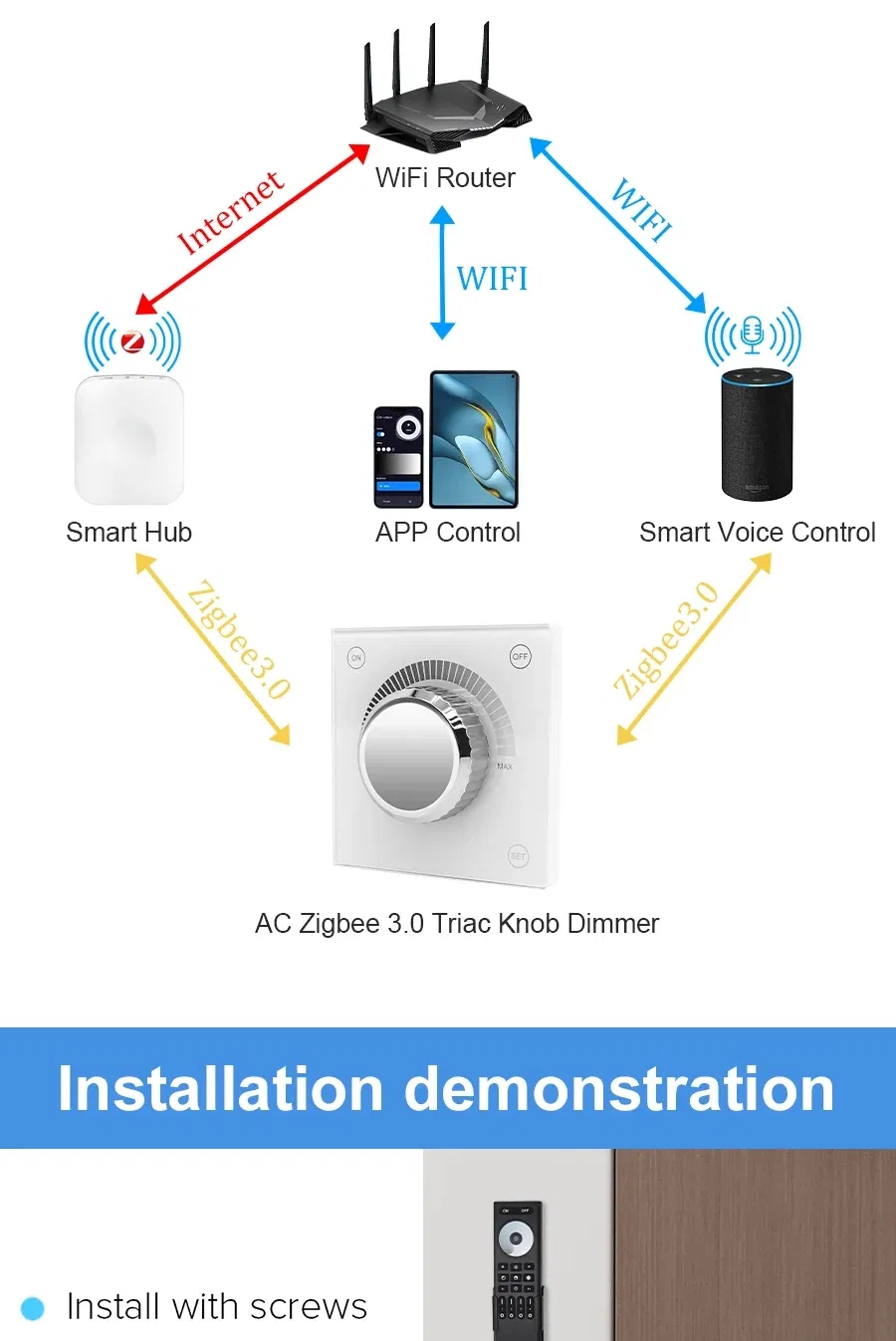

An advanced Zigbee/Wifi compatible smart dimmer switch designed for seamless integration with Alexa, Google Assistant, and Smart Life APP, featuring 2.4G RF remote capabilities.
💡 Key Features
📱
Smart Ecosystem
Powered by Tuya, works with Tuya / Smart Life APP and voice assistants like Alexa, Google Assistant, and Alice.
✨
Smooth Dimming
256 levels of 0-100% dimming smoothly without any flash or strobe effects.
🔌
Dual Control

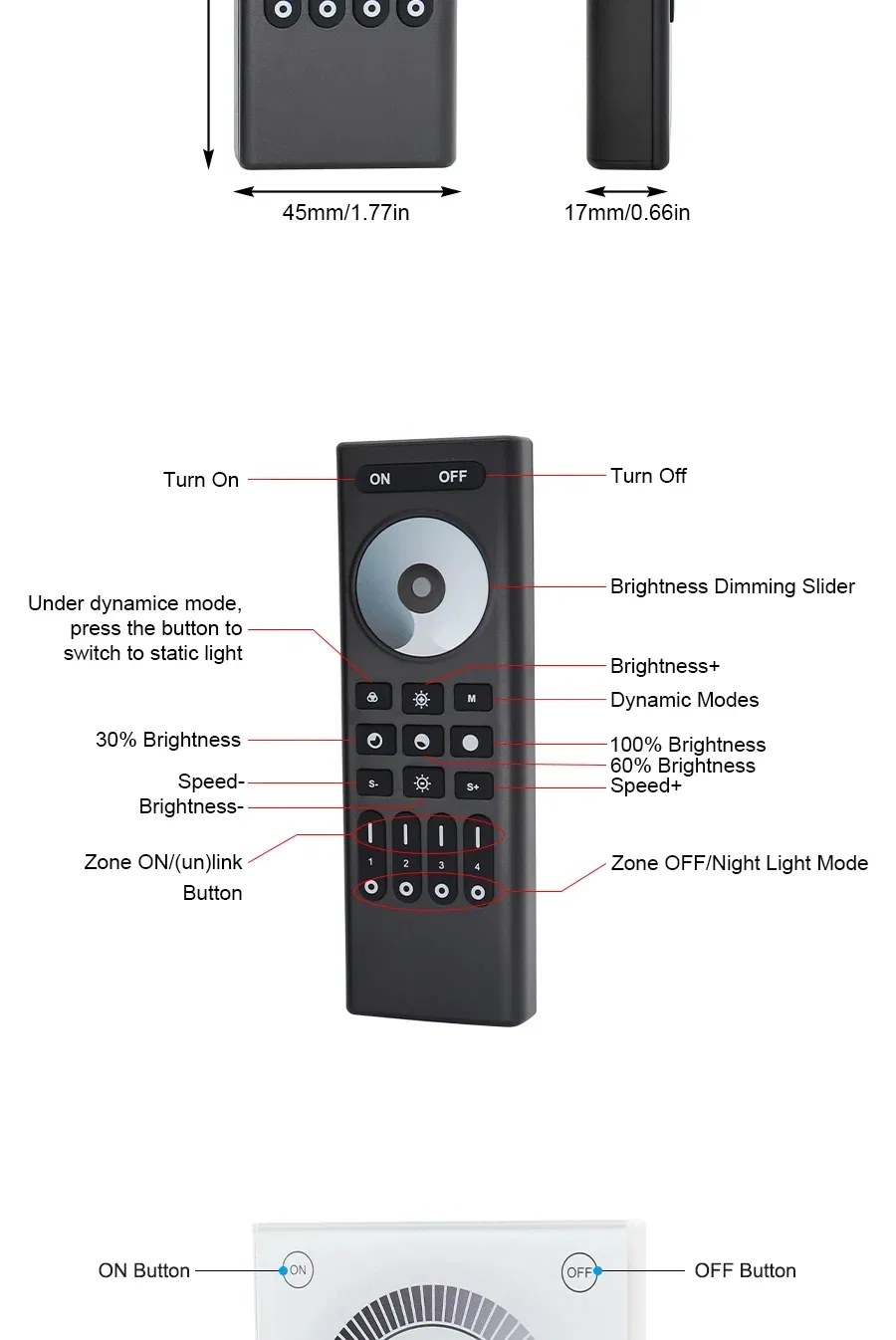

RF + Push AC phase-cut dimmer, fully compatible with 2.4G Remotes for local and remote operation.
🛠️
Flexible Modes
Supports leading edge dimming or trailing edge dimming, selectable via dip switch.

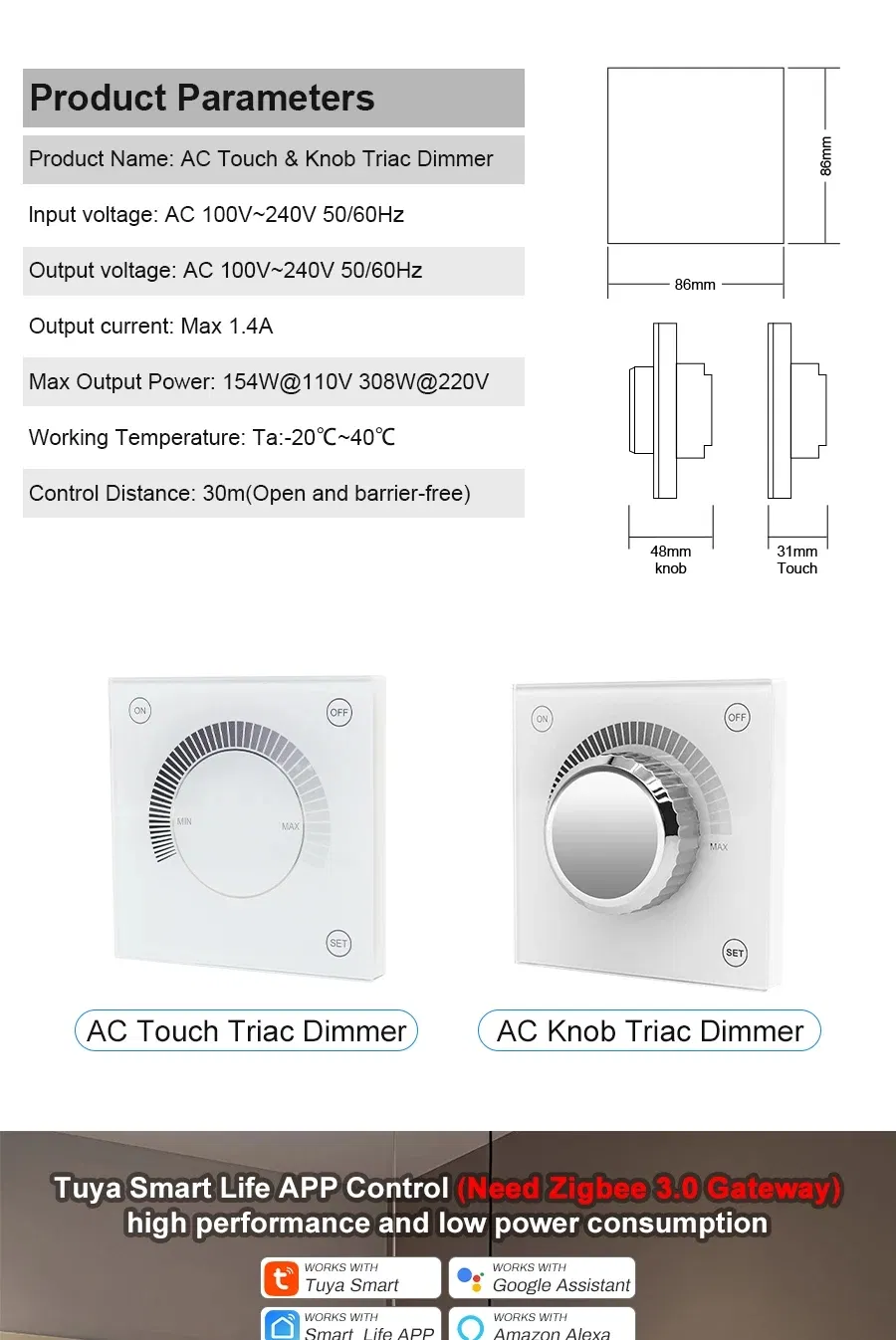

📋 Technical Specifications

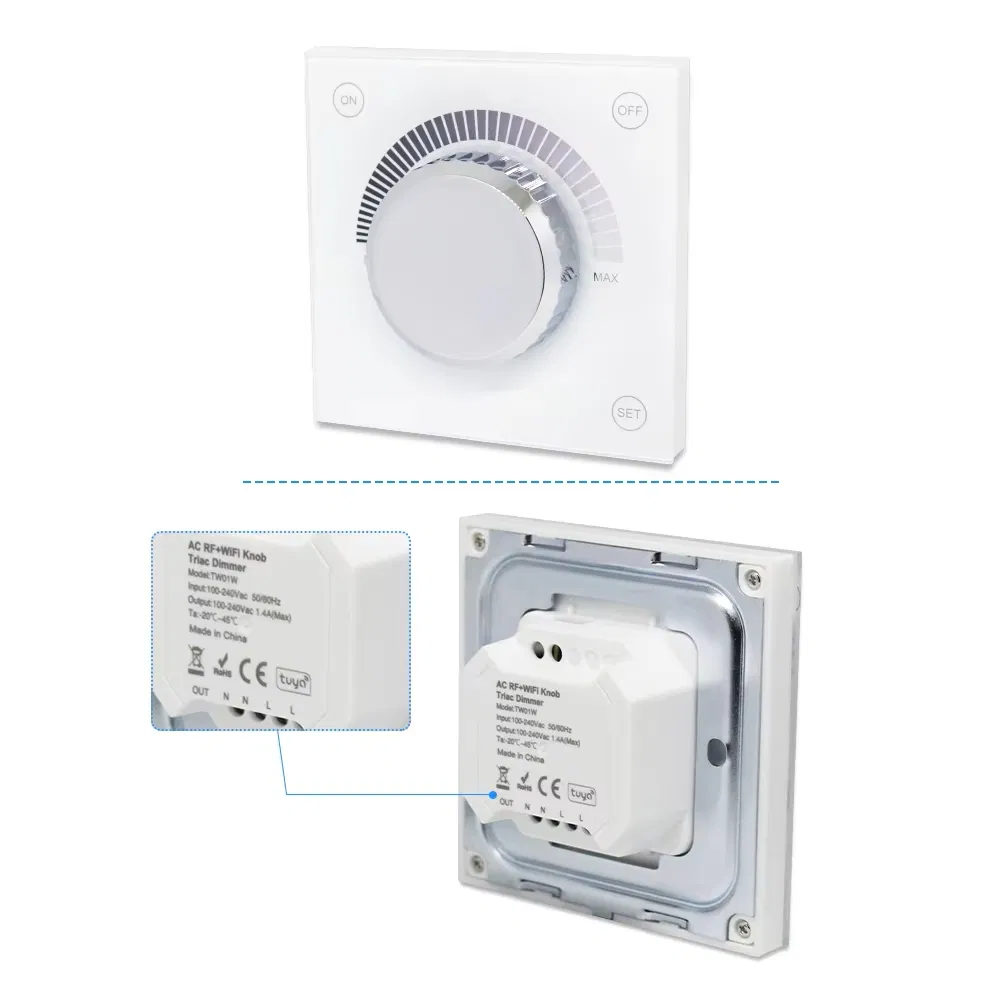

| Model | TW01W |
| Input/Output Voltage | AC 100V ~ 240V |
| Output Current | Max 1.4A |
| Max Output Power | 154W @ 110V / 308W @ 220V |
| Control Mode | PWM Dimmer / WiFi / Zigbee / RF 2.4G |
| Load Type | Indirect / Phase-cut |
| Lighting Variation | Stepless Dimming |
| Certificates | RoHS / CE |
| Application | Hotel, Stage, Household, Exhibition Hall, LED Strip Light |

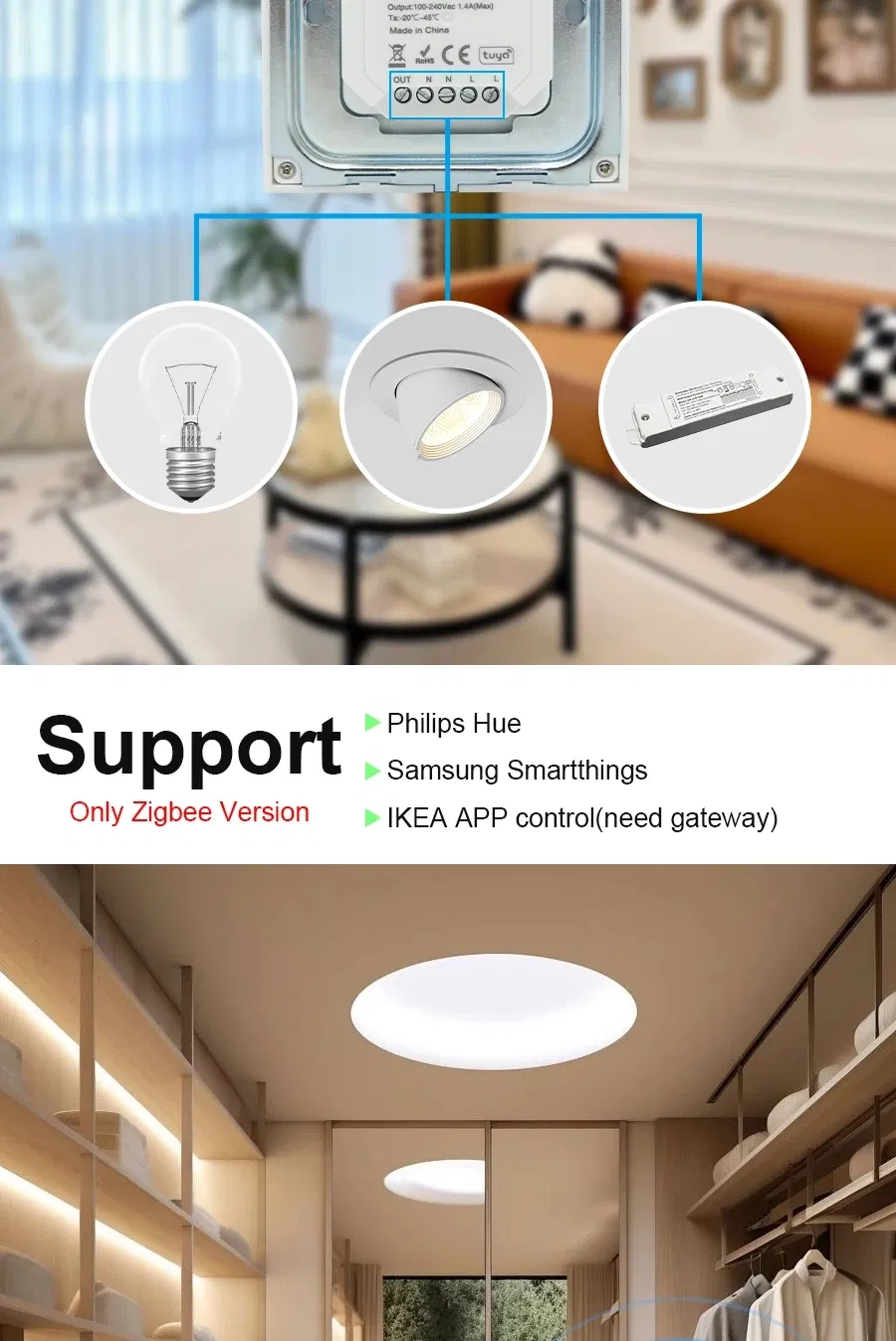

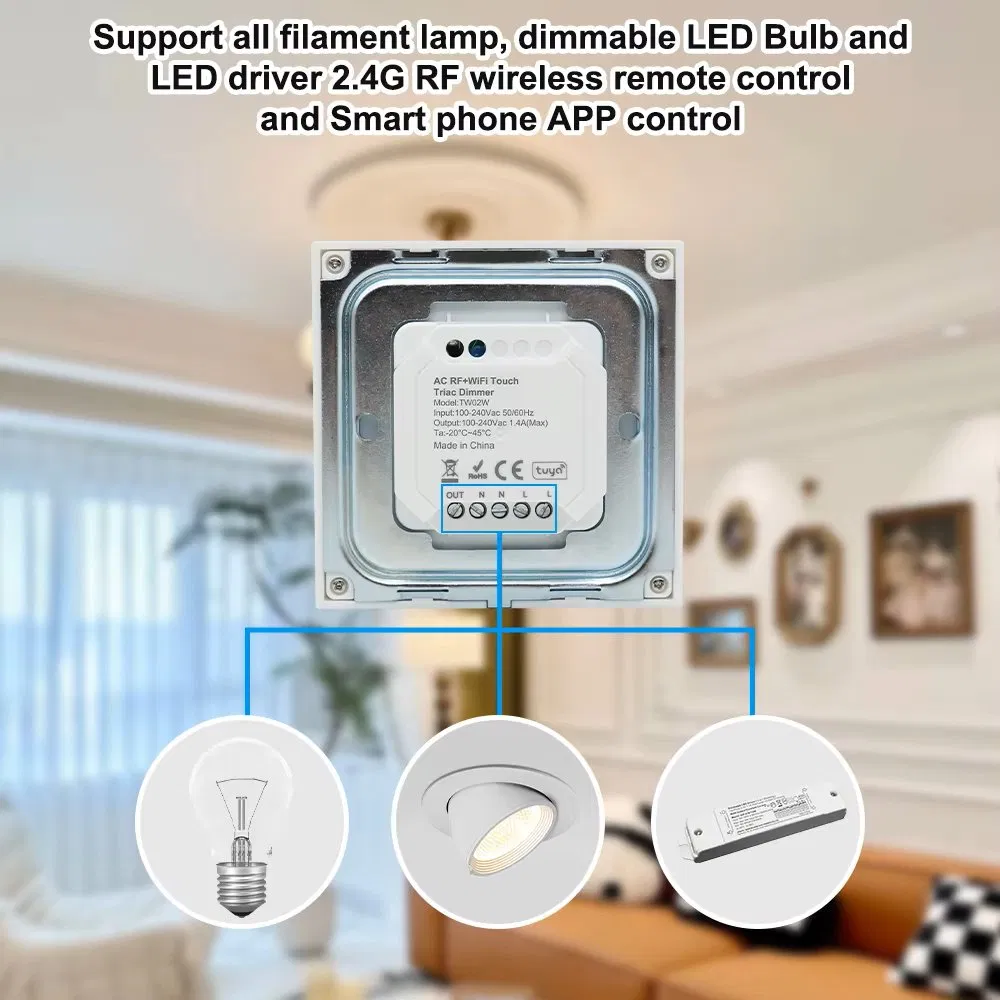

🏠 Lamp Compatibility
Dimmable LED Lamps: Max load 300W @ 220V, 200W @ 110V. (Dependent on power factor result).
Triac Dimmable LED Drivers: Max load 300W @ 220V, 200W @ 110V. Supports up to 20 drivers (surge current < 2x 65A).
Traditional Lighting: Incandescent and HV Halogen lamps, Max load 400W @ 220V, 200W @ 110V.
Important Notices:
1. The remote control is not included and must be purchased separately.
2. Zigbee version requires a Zigbee 3.0 Gateway for APP connectivity.
3. Remotes do not come with batteries due to shipping regulations.
📸 Product Gallery
❓ FAQ
Is this dimmer compatible with all LED lights?
It is compatible with dimmable LED lamps and Triac dimmable LED drivers. Non-dimmable LEDs are not supported.
Do I need a special hub for the WiFi version?
The WiFi version connects directly to your 2.4GHz router via the Tuya/Smart Life APP. Only the Zigbee version requires a dedicated Zigbee 3.0 gateway.
Can I control it using my voice?
Yes, once connected to the APP, you can link it to Amazon Alexa or Google Assistant for voice control.
What is the difference between Leading Edge and Trailing Edge dimming?
This dimmer allows you to switch between both modes via a dip switch to match the requirements of your specific LED drivers or incandescent lamps for optimal performance.
Does the remote work without the APP?
Yes, the 2.4G RF remote can control the dimmer directly even without a WiFi connection or APP setup.
What happens if my power goes out?
The device features high-quality components designed to safely handle power cycles, and most settings are preserved through the Tuya cloud ecosystem.
