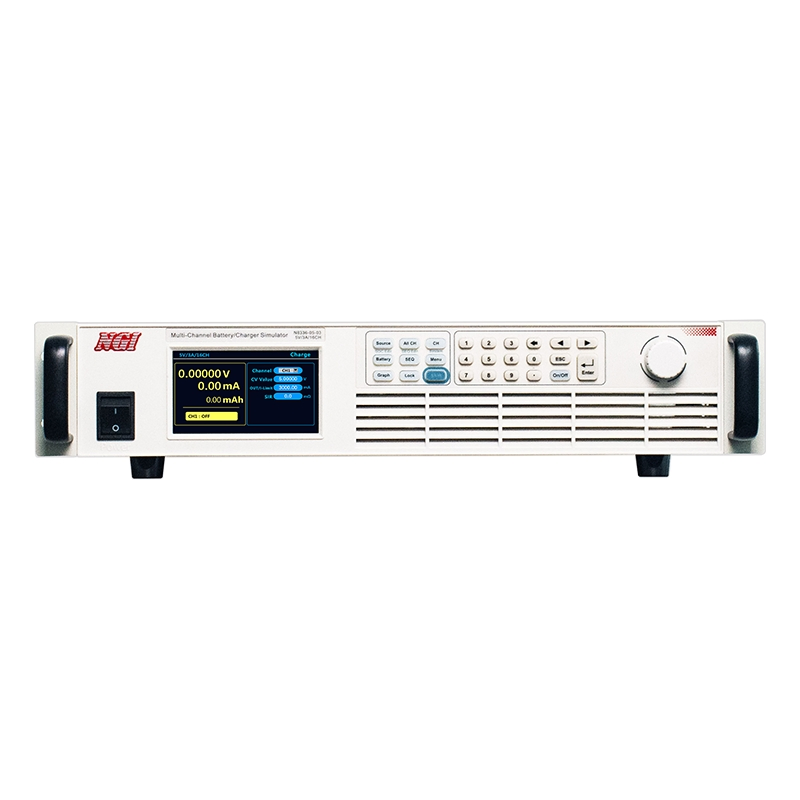

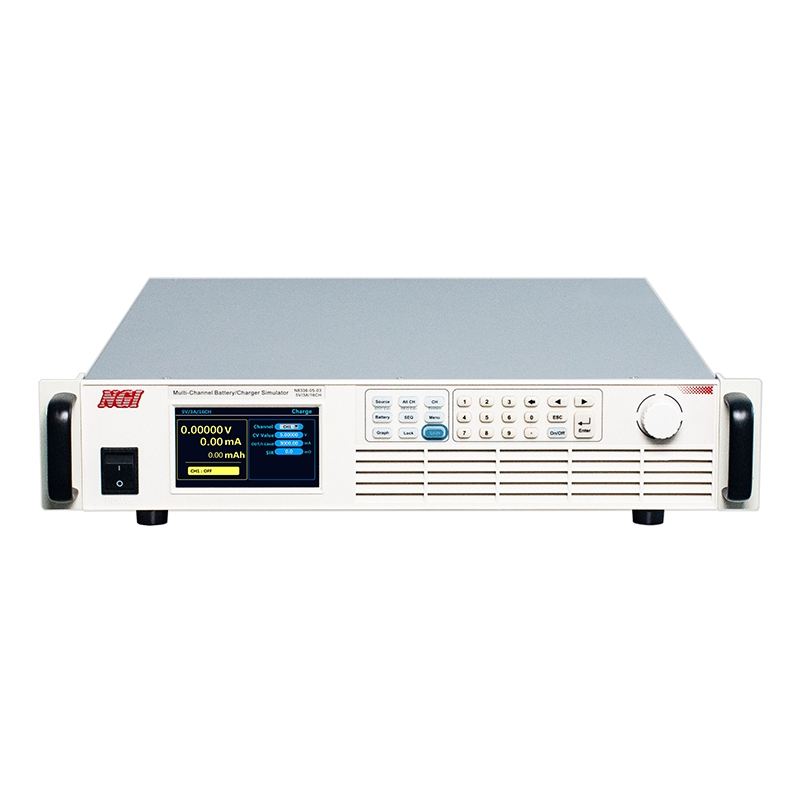

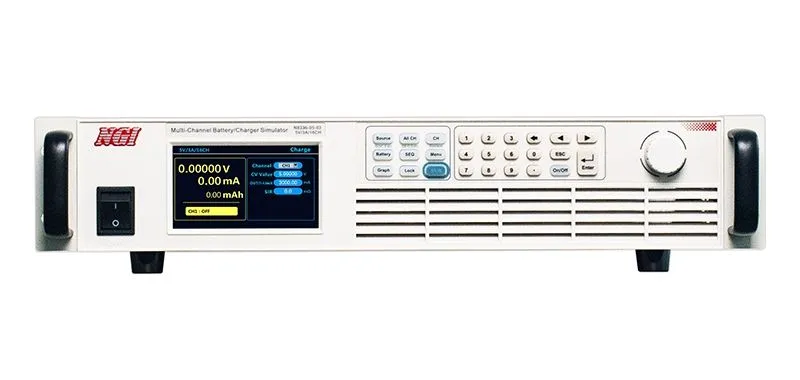

N8336 is a programmable battery simulator with low power, ultra-high accuracy and multi-channel capability. A standalone unit supports up to 16 isolated channels, making it convenient for multi-channel series connections.

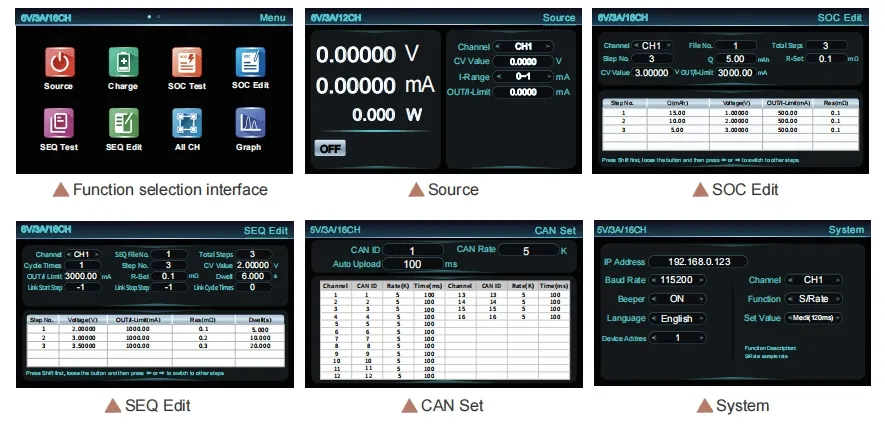

The series supports nA-level current measurement, source mode, charge mode, SOC test, SEQ test, and real-time curves. Its application software is designed for complex test environments requiring multi-parameter monitoring.

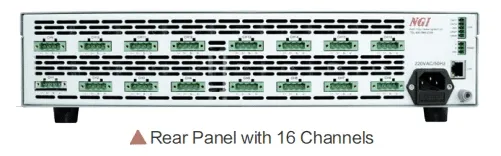

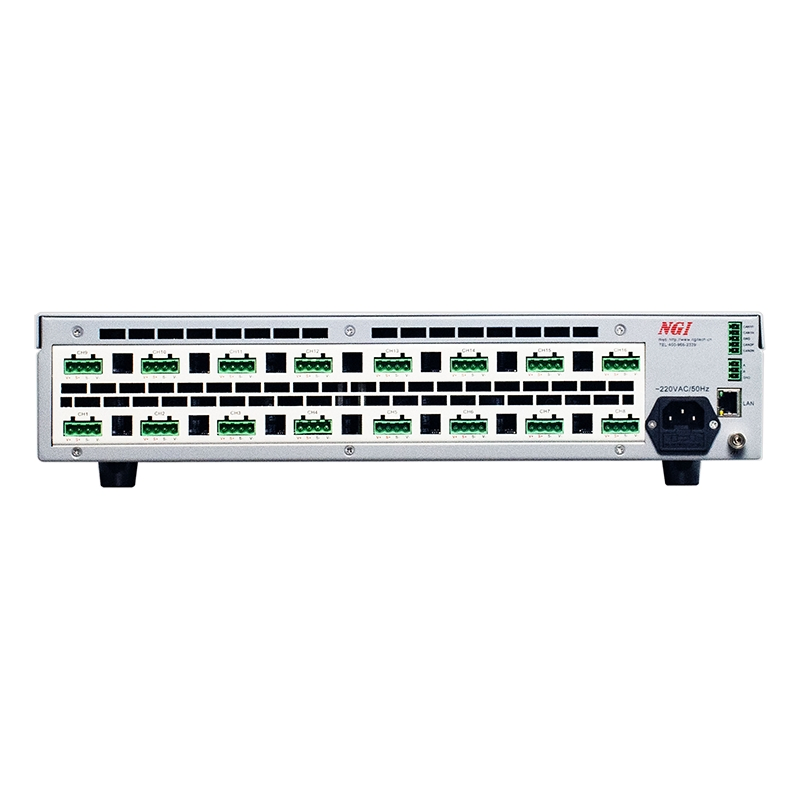

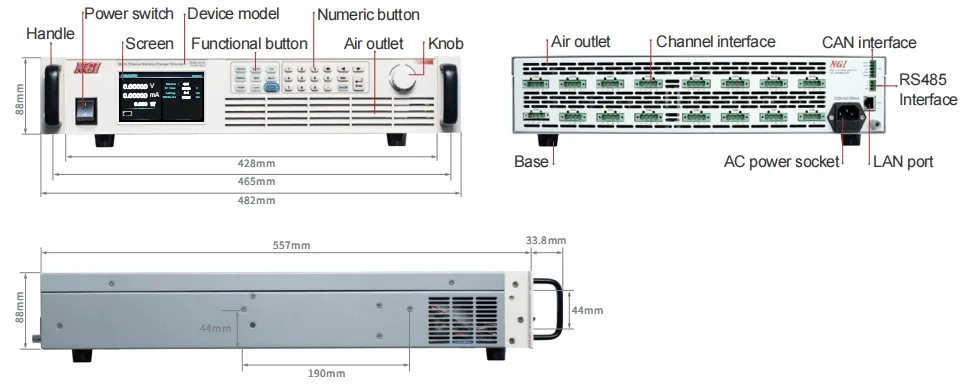

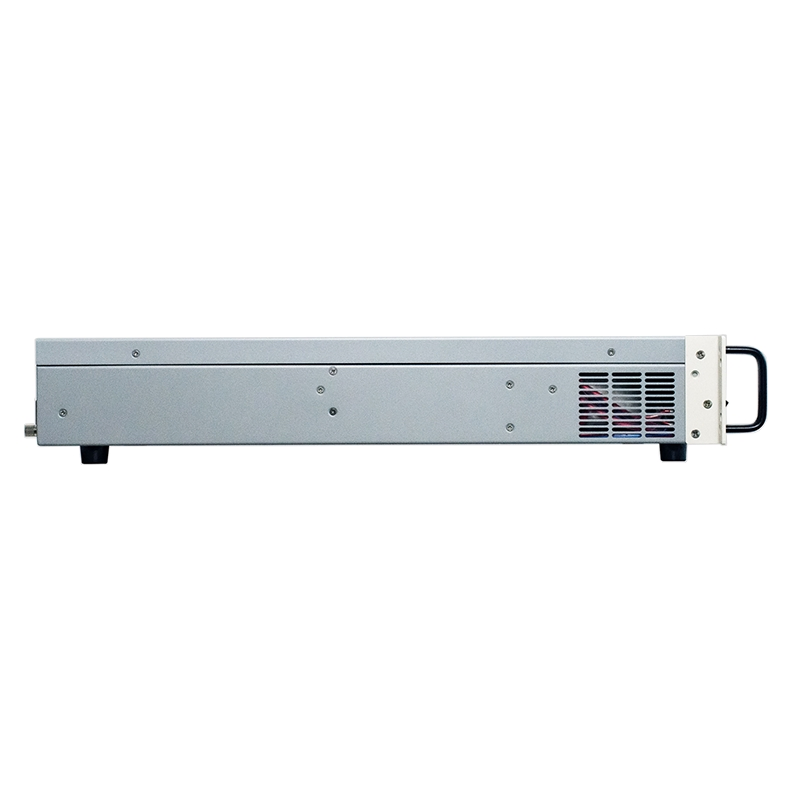

Adopting a standard 19-inch 2U size, the N8336 provides up to 16 isolated channels. This enables 16-station simultaneous testing, reducing instrument requirements and improving efficiency.

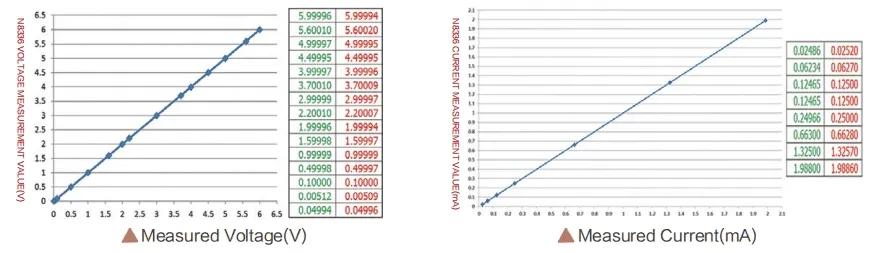

With a voltage resolution of 10μV and current resolution of 10nA, it provides high-precision DC supply and measurement, essential for sensitive R&D and performance testing of BMS chips and portable electronics.

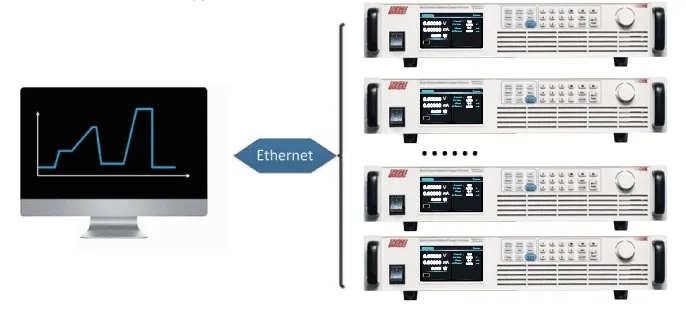

Supports multiple device connections in serial mode to simulate battery pack working conditions. Remote control is available via the integrated application software.
Provides stable DC output with fast dynamic response and no ripple, protecting DUTs from surge damage. The internal circuitry is optimized for testing BMS chips of various specifications.
