Waterproof Metal Standalone Fingerprint RFID Door Access Control with Backlight Kaypad

Customization:	Available
Card Reader Quantity:	2
Control Gates:	One Gate

📋

Basic Information

Model NO.

ZDAC-2100

Technology

32-Bit Technology

Way of Control

Computer Control

Communication

Standalone / Not Networked

Type

One-way Controller

Card Types

EM or EM Compatible

Capacity

2000 Users

Reading Distance

3~6cm

Keypad Housing

Metal

Warranty

1 Year

Dimensions

128mm X 82mm X 28mm

Weight

500g

📝

Product Description

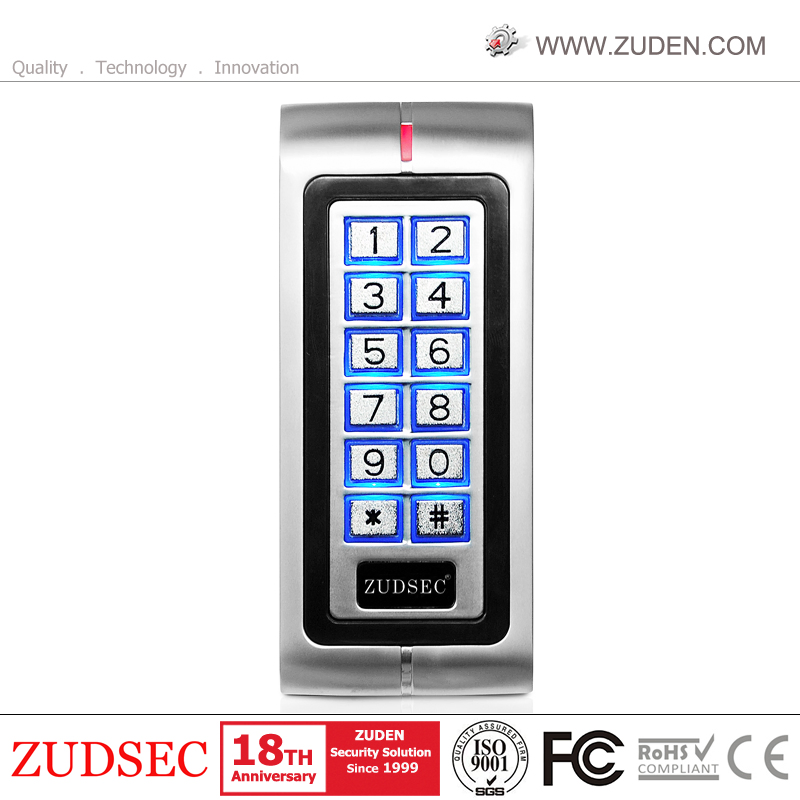

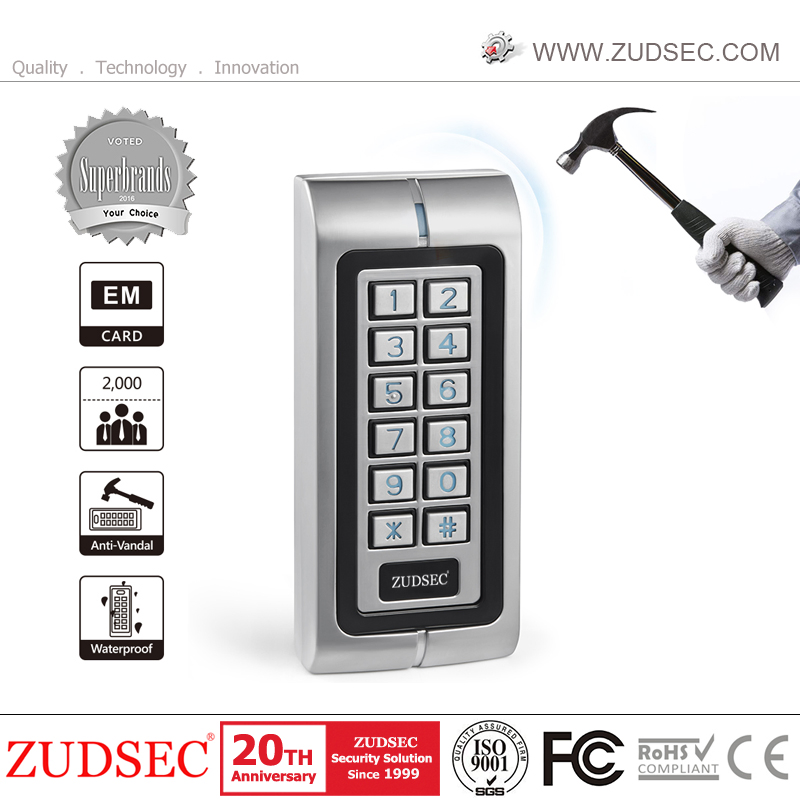

Waterproof Metal Standalone RFID Door Access Control with Backlight Keypad

Suitable for mounting either indoor or outdoor in harsh environments. Exquisite designs with non-masking Metal shell, Keystroke backlight, and Wiegand output. Supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option, with Doorbell function. This standalone system is an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks, and prisons.

⭐

Key Features

Exquisite designs with non-masking Metal shell
Keystroke backlight for night use
Card appliance: 125kHz EM ID cards
WG26 output, can be used as an Access reader
Capacity: 2000 users

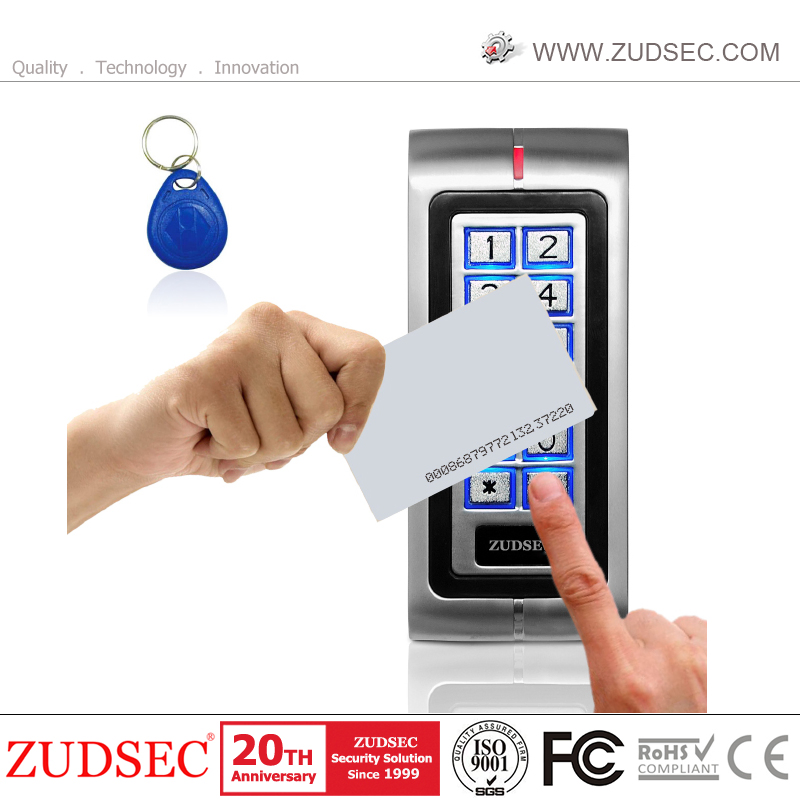

Access ways: cards, code, card & code
Integrated Doorbell key support
Low power: static current less than 30mA
Search speed: less than 0.1s
Short-circuit protection for relay/alarm output

📊

Product Parameters

Operating Voltage	DC 12V±10%
Idle Current	25±5 mA
Active Current	<60mA
Lock Output Load	Max 3A
Alarm Output Load	Max 20A
Operating Temperature	-45ºC ~ 60ºC
Operating Humidity	10% - 90% RH
Adjustable Door Relay time	0 - 99 seconds
Adjustable Alarm Time	0 - 3 minutes
Wiring Connections	Electric Lock, Exit Button, External Alarm, External reader
Packing Size	19 * 12.7 * 6CM

🖼️

Product Gallery

🔗

Related Series

❓

Frequently Asked Questions

How many users can this device register?

The device supports up to 2000 users with either card, PIN, or card + PIN combinations.

Is this access control unit suitable for outdoor use?

Yes, it features a waterproof metal housing and is designed to operate in harsh environments ranging from -45ºC to 60ºC.

What types of cards are compatible with the reader?

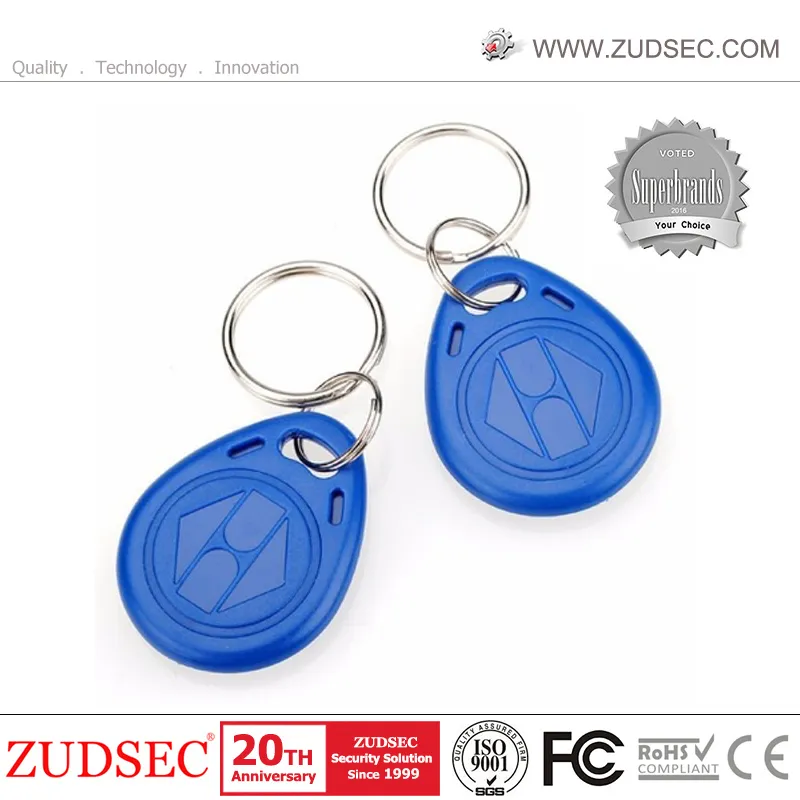

It is compatible with 125kHz EM or EM compatible ID cards.

Can I use this as a standalone reader for another controller?

Yes, it includes a standard Wiegand 26-bit interface, allowing it to function as an external reader.

What happens if there is a short circuit on the output?

The device includes short-circuit protection; the output will automatically close within 100μS if a short circuit is detected on the relay or alarm output.

How fast is the user identification process?

The search speed is extremely fast, taking less than 0.1 seconds to identify a user.
