Rama Charger
1 / 3

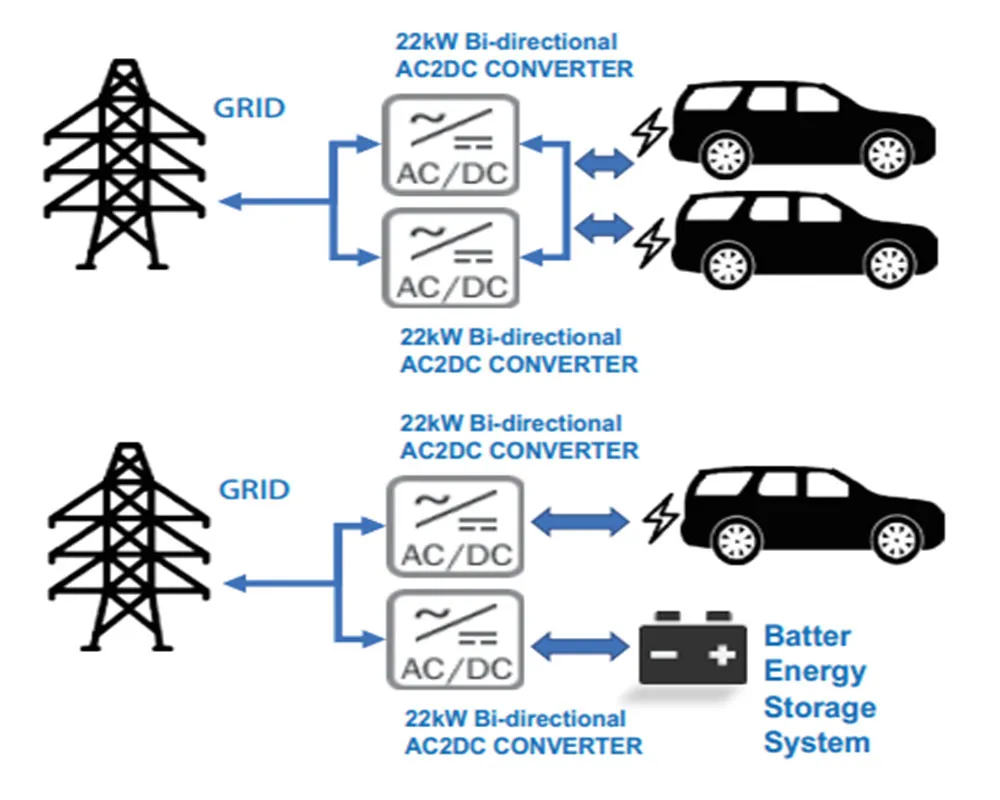

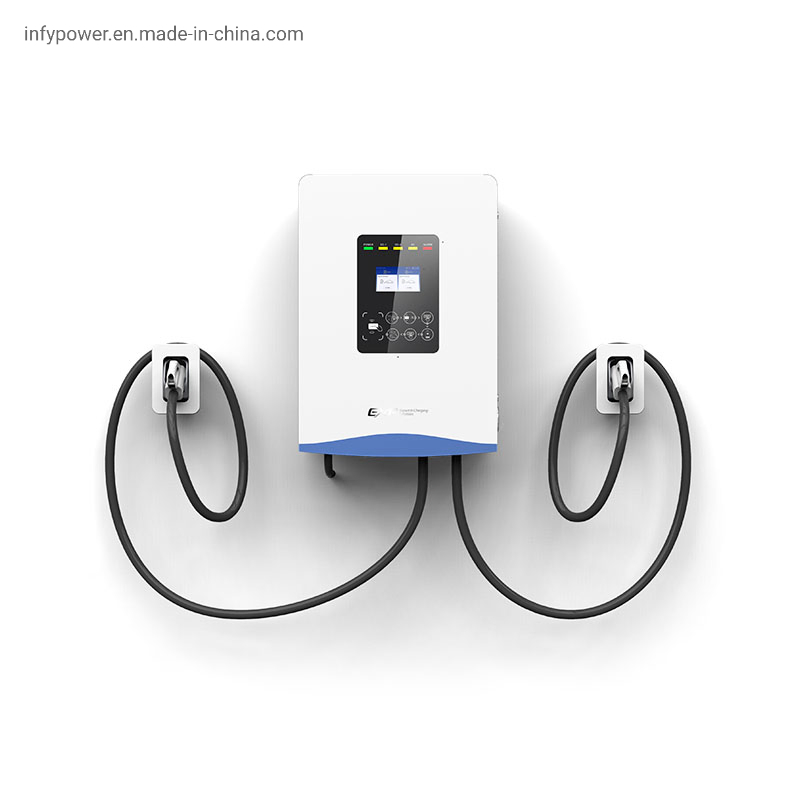

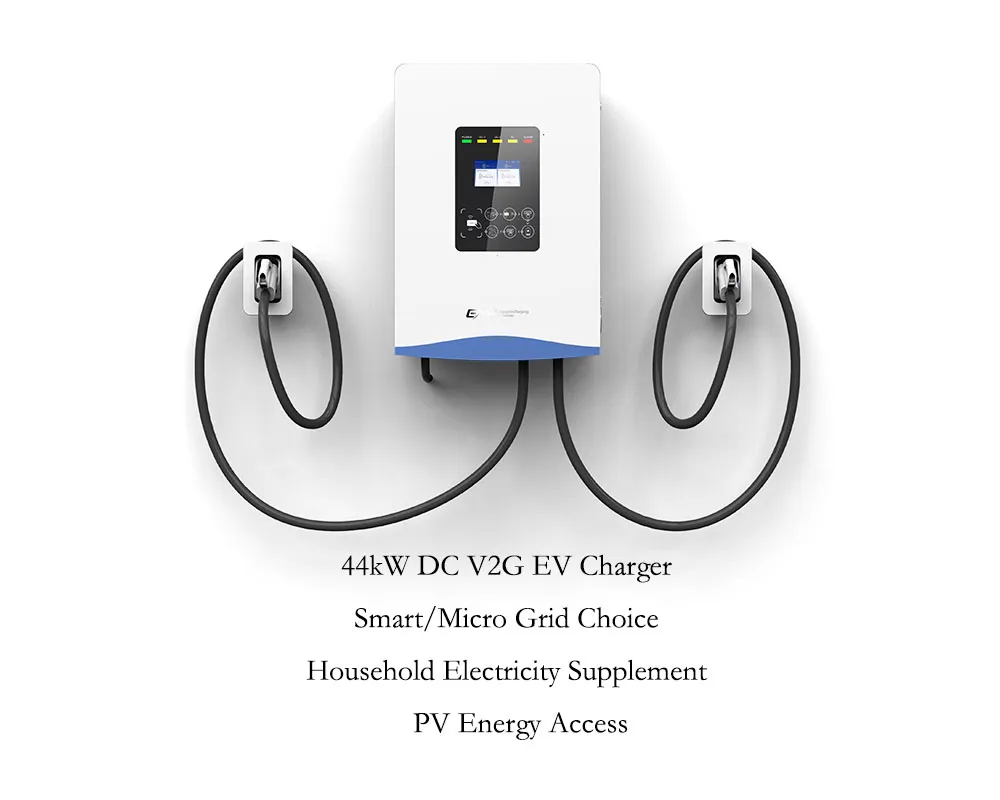

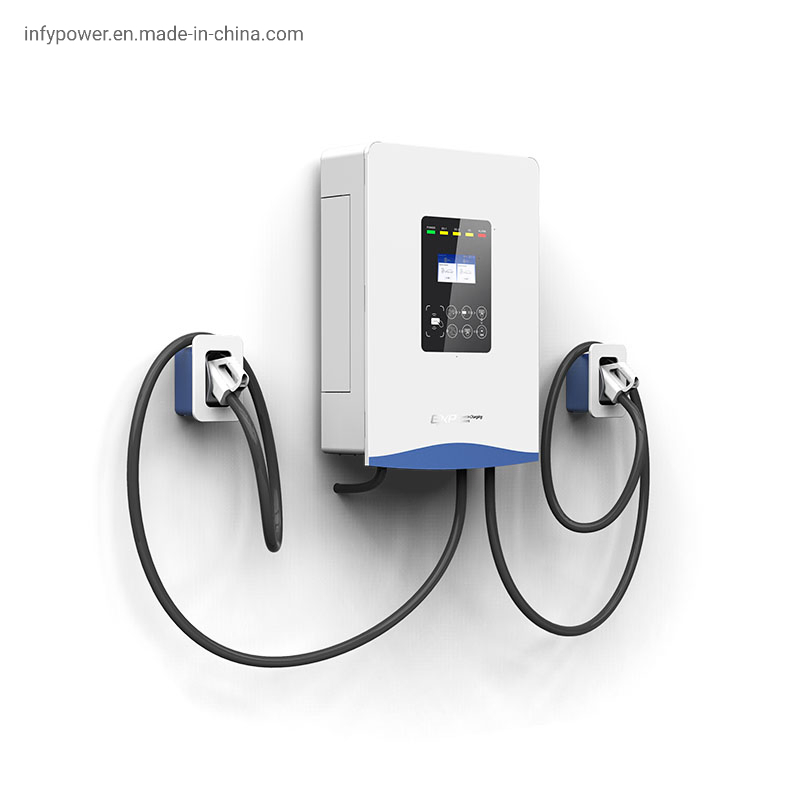

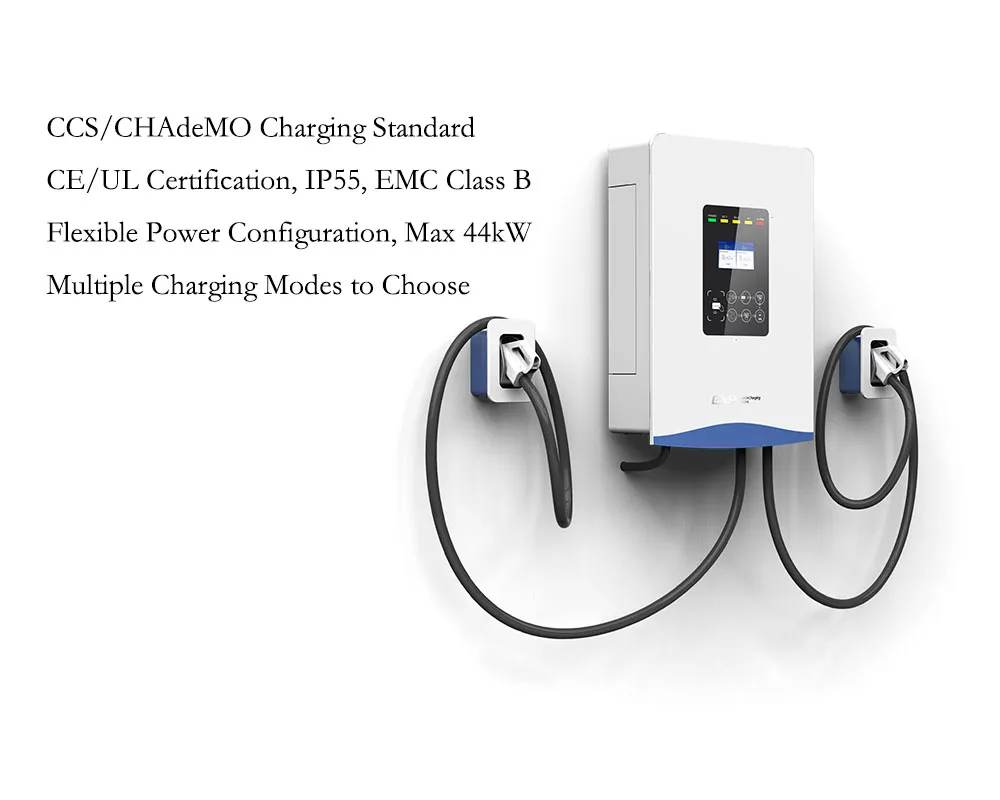

EXP60K4E is a V2G electric vehicle charger qualified with CCS and CHAdeMO charging standards. V2G EV chargers prove to be of great value in smart grid peak-valley electricity usage, grid capacity supplement, and backup power supply. The EV charging station features a perfect combination of IP55 protection, a 7" LCD touch screen display, and multiple charging and power distribution modes. Technically, the V2G EV DC charger supports a maximum DC output power capacity of 44kW and an ultra-wide charging voltage range from 150Vdc to 1000Vdc.
| AC Grid Access | 45~65Hz, 3 phases+N+PE, 260Vac~530Vac, 44kW |
| EV Charging | 44kW, 150V~1000V |
| EV Discharging | 44kW, V2G standard: CCS IEC15118-20, CHAdeMO V1.2 EVPOSSA |
| Battery Access | Optional Storage Access: 300V~1000V, CAN communication |
| Metering | 1 bidirectional AC meter, 2 bidirectional DC energy meters |

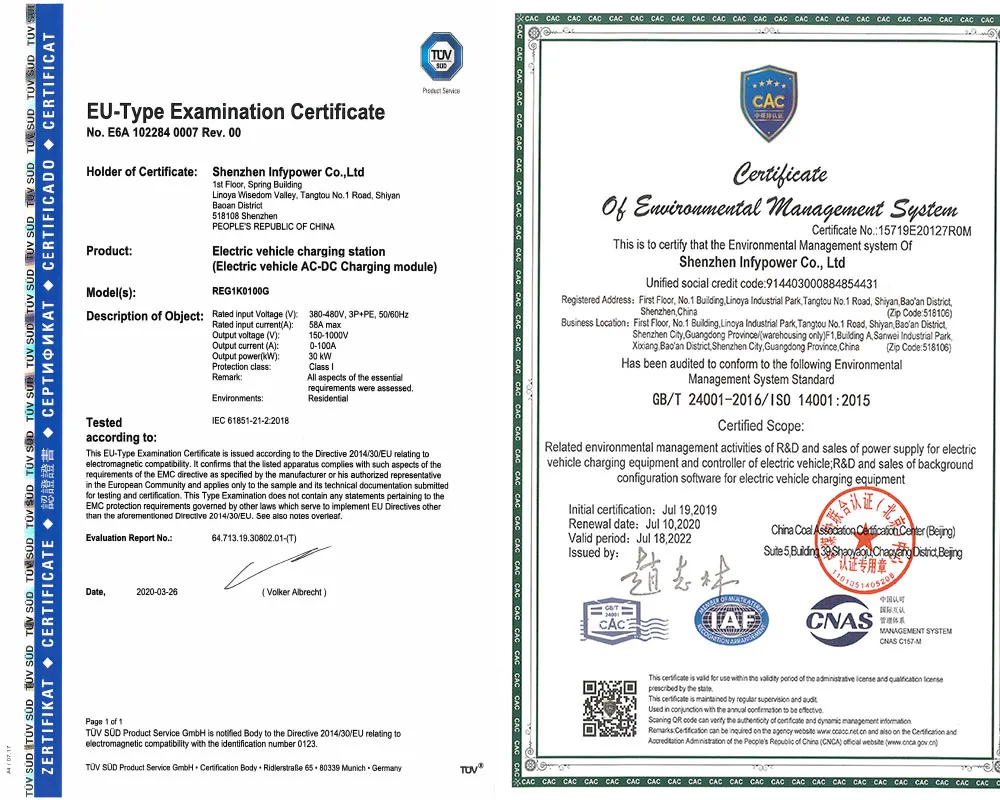

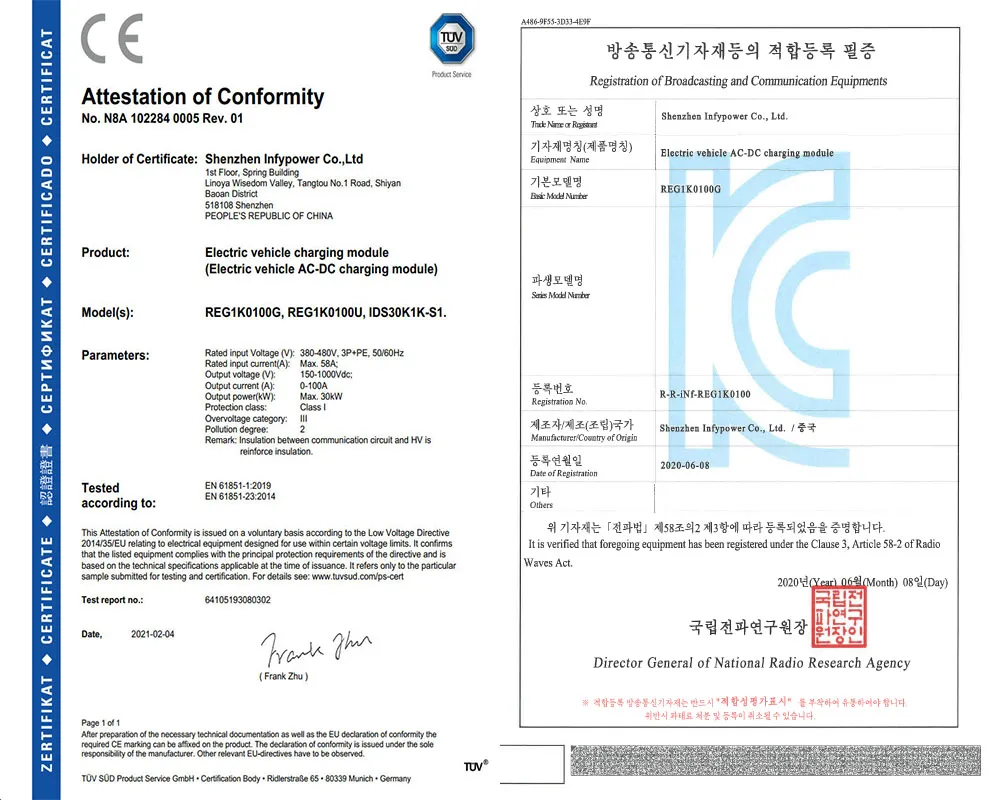

| Certification | TUV CE and UL, EMC Class B |
| Dimensions | 705mm * 1000mm * 240mm (W*H*D) / 120kg |
